3396-0000 datasheet, PDF - EEWORLD Datasheet

3396-0000: Description40 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET; CategoryThe connector The connector; File Size136KB，4 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric Compare View All

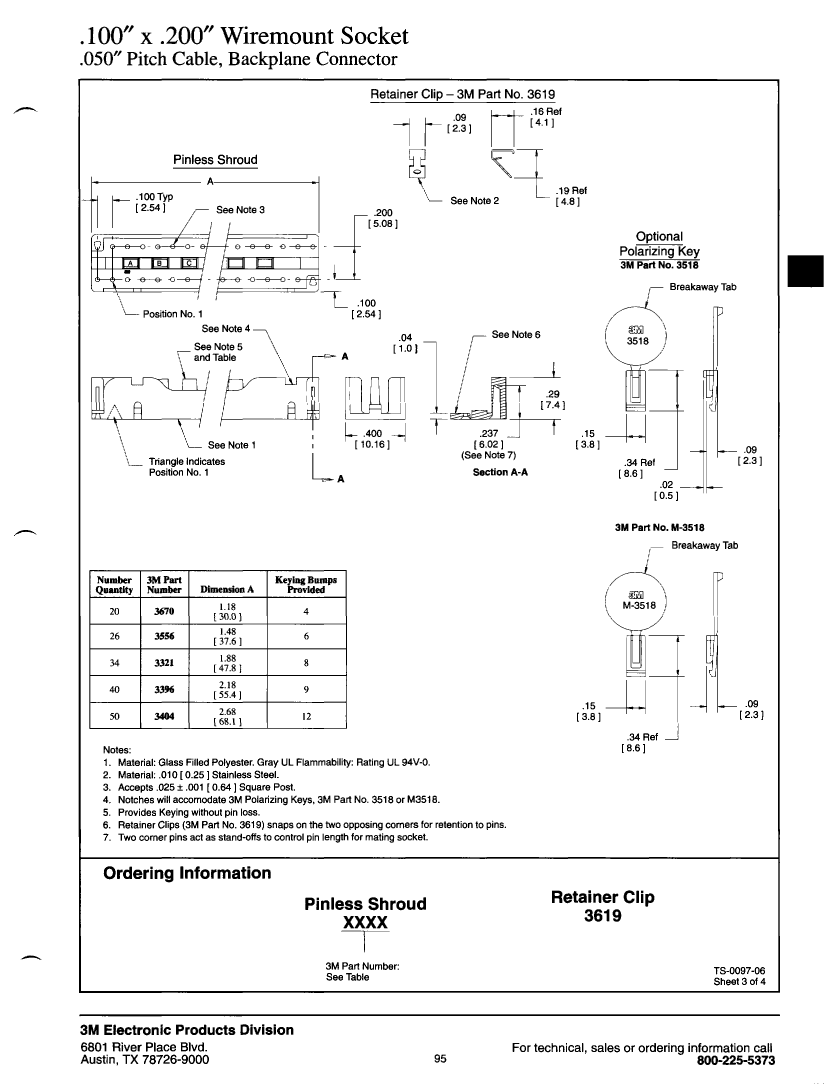

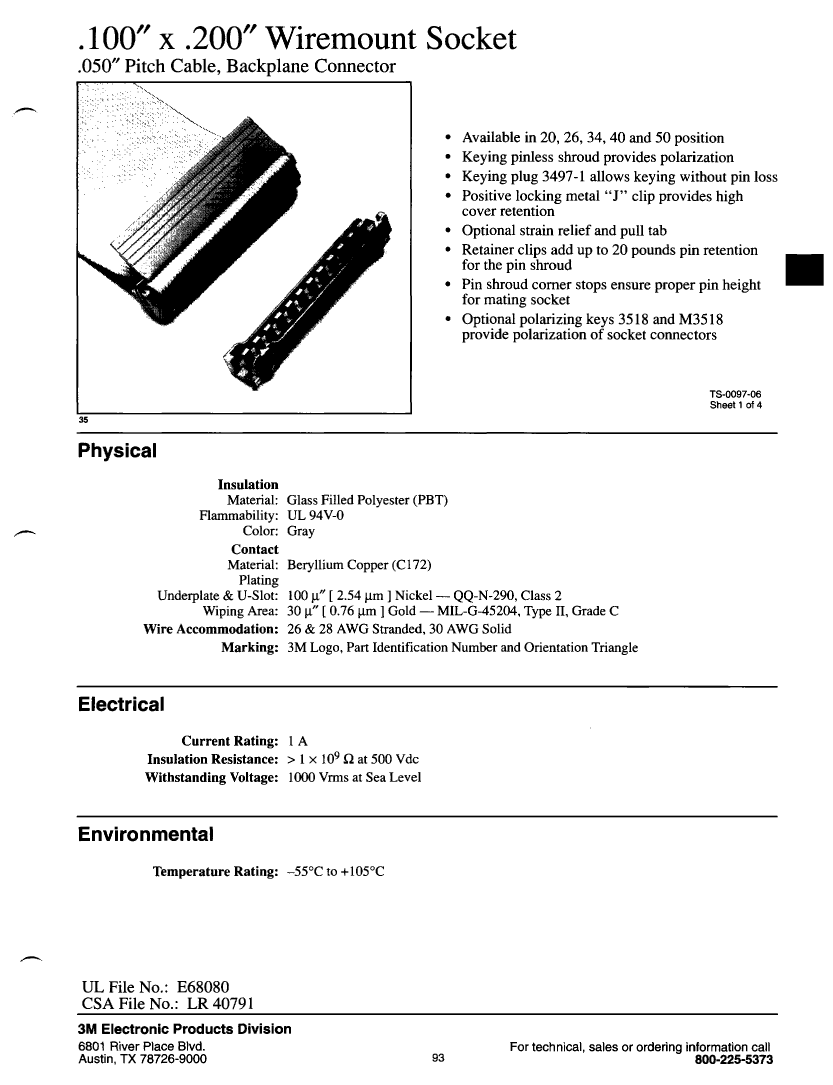

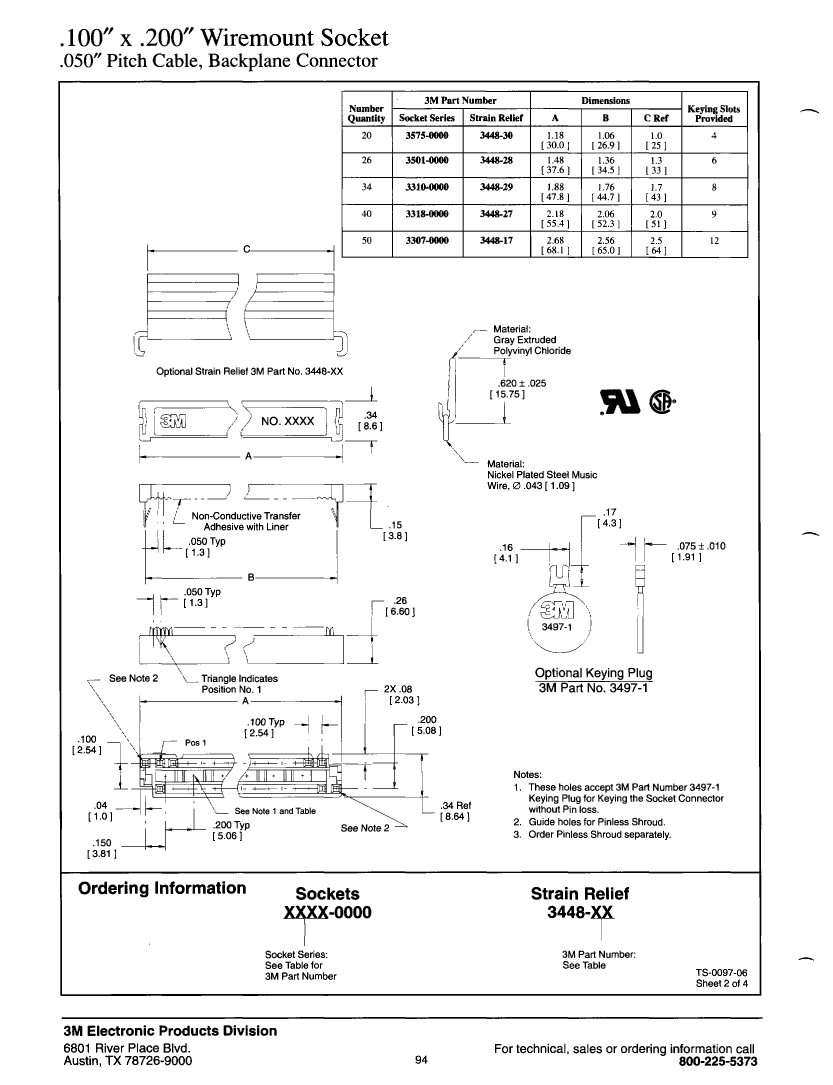

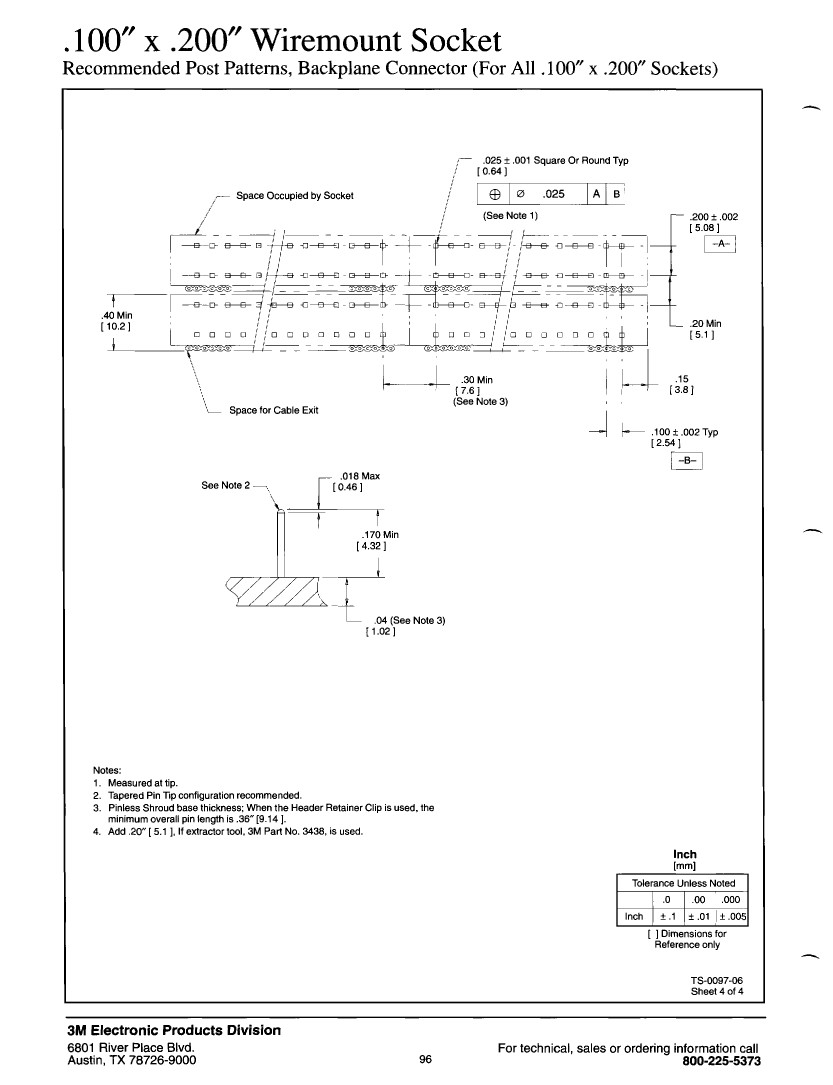

3396-0000 Overview

40 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	3396
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

	3396-0000	3556-0000	3404-0000
Description	40 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET	26 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET	50 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, SOCKET
Maker	3M	3M	3M
Reach Compliance Code	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED, SHROUDED	POLARIZED
Body/casing type	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Manufacturer's serial number	3396	3556	3404
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC
Total number of contacts	40	26	50
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
