74F30 8-Input NAND Gate
April 1988
Revised January 2004
74F30
8-Input NAND Gate
General Description
This device contains a single gate, which performs the
logic NAND function.
Ordering Code:
Order Number
74F30SC
(Note 1)
74F30SJ
74F30PC
Package Number
M14A
M14D
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
Note 1:
Devices also available in Tape and Reel. Specify by appending the letter “X” to the ordering code.
Logic Symbol
IEEE/IEC
Connection Diagram
Unit Loading/Fan Out
U.L.
Pin Names Description
A
0
–A
7
O
Inputs
Output
1.0/1.0
50/33.3
Input I
IH
/I
IL
HIGH/LOW Output I
OH
/I
OL
20
µ
A/
−
0.6 mA
Function Table
Inputs
A
0
L
X
X
X
X
X
X
X
H
A
1
X
L
X
X
X
X
X
X
H
A
2
X
X
L
X
X
X
X
X
H
A
3
X
X
X
L
X
X
X
X
H
A
4
X
X
X
X
L
X
X
X
H
A
5
X
X
X
X
X
L
X
X
H
A
6
X
X
X
X
X
X
L
X
H
A
7
X
X
X
X
X
X
X
L
H
Output
O
H
H
H
H
H
H
H
H
L
−
1 mA/20 mA
H
=
HIGH Voltage Level
L
=
LOW Voltage Level
X
=
Immaterial
© 2004 Fairchild Semiconductor Corporation
DS009560
www.fairchildsemi.com
74F30
Absolute Maximum Ratings
(Note 2)
Storage Temperature
Ambient Temperature under Bias
Junction Temperature under Bias
V
CC
Pin Potential to Ground Pin
Input Voltage (Note 3)
Input Current (Note 3)
Voltage Applied to Output
in HIGH State (with V
CC
=
0V)
Standard Output
3-STATE Output
Current Applied to Output
in LOW State (Max)
twice the rated I
OL
(mA)
−
65
°
C to
+
150
°
C
−
55
°
C to
+
125
°
C
−
55
°
C to
+
150C
−
0.5V to
+
7.0V
−
0.5V to
+
7.0V
−
30 mA to
+
5.0 mA
Recommended Operating
Conditions
Free Air Ambient Temperature
Supply Voltage
0
°
C to
+
70
°
C
+
4.5V to
+
5.5V
−
0.5V to V
CC
−
0.5V to
+
5.5V
Note 2:
Absolute maximum ratings are values beyond which the device
may be damaged or have its useful life impaired. Functional operation
under these conditions is not implied.
Note 3:
Either voltage limit or current limit is sufficient to protect inputs.
DC Electrical Characteristics
Symbol
V
IH
V
IL
V
CD
V
OH
V
OL
I
IH
I
BVI
I
CEX
V
ID
I
OD
I
IL
I
OS
I
CCH
I
CCL
Parameter
Input HIGH Voltage
Input LOW Voltage
Input Clamp Diode Voltage
Output HIGH
Voltage
Output LOW
Voltage
Input HIGH
Current
Input HIGH Current
Breakdown Test
Output HIGH
Leakage Current
Input Leakage
Test
Output Leakage
Circuit Current
Input LOW Current
Output Short-Circuit Current
Power Supply Current
Power Supply Current
−60
0.5
4.75
3.75
−0.6
−150
1.5
4.5
10% V
CC
5% V
CC
10% V
CC
2.5
2.7
0.5
5.0
7.0
50
Min
2.0
0.8
−1.2
Typ
Max
Units
V
V
V
V
V
µA
µA
µA
V
µA
mA
mA
mA
mA
Min
Min
Min
Max
Max
Max
0.0
0.0
Max
Max
Max
Max
V
CC
Conditions
Recognized as a HIGH Signal
Recognized as a LOW Signal
I
IN
= −18
mA
I
OH
= −1
mA
I
OH
= −1
mA
I
OL
=
20 mA
V
IN
=
2.7V
V
IN
=
7.0V
V
OUT
=
V
CC
I
ID
=
1.9
µA
All Other Pins Grounded
V
IOD
=
150 mV
All Other Pins Grounded
V
IN
=
0.5V
V
OUT
=
0V
V
O
=
HIGH
V
O
=
LOW
AC Electrical Characteristics
T
A
= +25°C
Symbol
Parameter
Min
t
PLH
t
PHL
Propagation Delay
A
n
to O
1.0
1.5
V
CC
= +5.0V
C
L
=
50 pF
Typ
3.7
2.8
Max
5.0
5.0
T
A
=
0°C to
+70°C
V
CC
= +5.0V
C
L
=
50 pF
Min
1.0
1.5
Max
5.5
5.5
ns
Units
www.fairchildsemi.com
2
74F30
Physical Dimensions
inches (millimeters) unless otherwise noted
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
Package Number M14A
3
www.fairchildsemi.com
74F30
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)

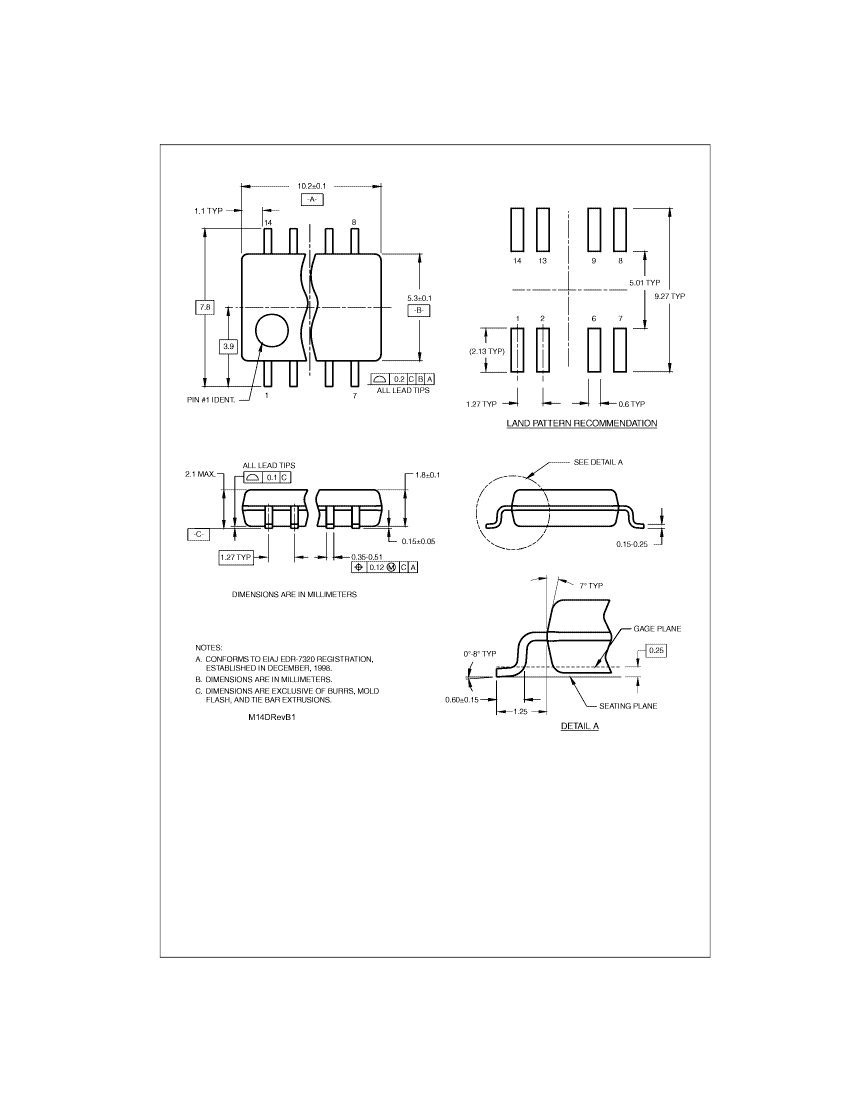

14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M14D
www.fairchildsemi.com
4
74F30 8-Input NAND Gate
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide
Package Number N14A
