CrystalFree™ Oscillator
Ultra Low Power Oscillators
8202
PRELIMINARY DATA SHEET
Features
Frequency Range:
Output Type:
Frequency Tolerance:
Supply Voltage:
Power Consumption:
Standby Current:
Standard Package:
Operating Temperature:
4 to 133 MHz
CMOS
± 400 ppm
1.8 to 3.3 V
1.9 mA
(1.8 V)
< 1 uA
5.0 x 3.2 mm
2.5 x 2.0 mm
0 to 70 °C
-20 to 70 °C
This product is rated “Green”, please contact
factory for environmental compliancy information
Specification
Parameter
Supply Voltage
Output Frequency
Frequency Stability
Supply Current
Quiescent Current
Input LOW level
Input HIGH level
Output LOW level
Output HIGH level
Rise/Fall Time
Symbol
VDD
F
OUT
F
STB
IDD
I
STBY
V
IL
V
IH
V
OL
V
OH
T
R
/T
F
1.8 V
Specifications
2.5 V
3.3 V
4 to 133 MHz
± 400 ppm
Nominal
See ordering code
Total Frequency Stability*
Conditions
2.0 mA
2.2 mA
Typical; No load condition; 25°C
1 uA
STBY# = GND
0.3 VDD (max)
At STBY# pin
0.7 VDD (min)
0.1 VDD (max)
I
OL
= - 1 mA
0.9 VDD (min)
I
OH
= 1 mA
2.75 ns
2.3 ns
1.9 ns
20% to 80% x VDD. Output load (CL) = 4 pF
45% / 55%
For frequencies < 100MHz;
SYM
Symmetry
40% / 60%
For frequencies > 100MHz;
Start-up time
T
ST
Output valid time after VDD meets the specified range & STBY# transition
100 us
Period Jitter
PJ
RMS
4 pF load; 75 MHz
17 ps
6 ps
5 ps
Cycle to Cycle Jitter
CCJ
MAX
120 ps
50 ps
40 ps
4 pF load; 75 MHz
Note: Above specifications are typical unless otherwise specified.
* Stability over temperature, supply variation, 3x reflow, load variation, aging (10 years)
1.9 mA

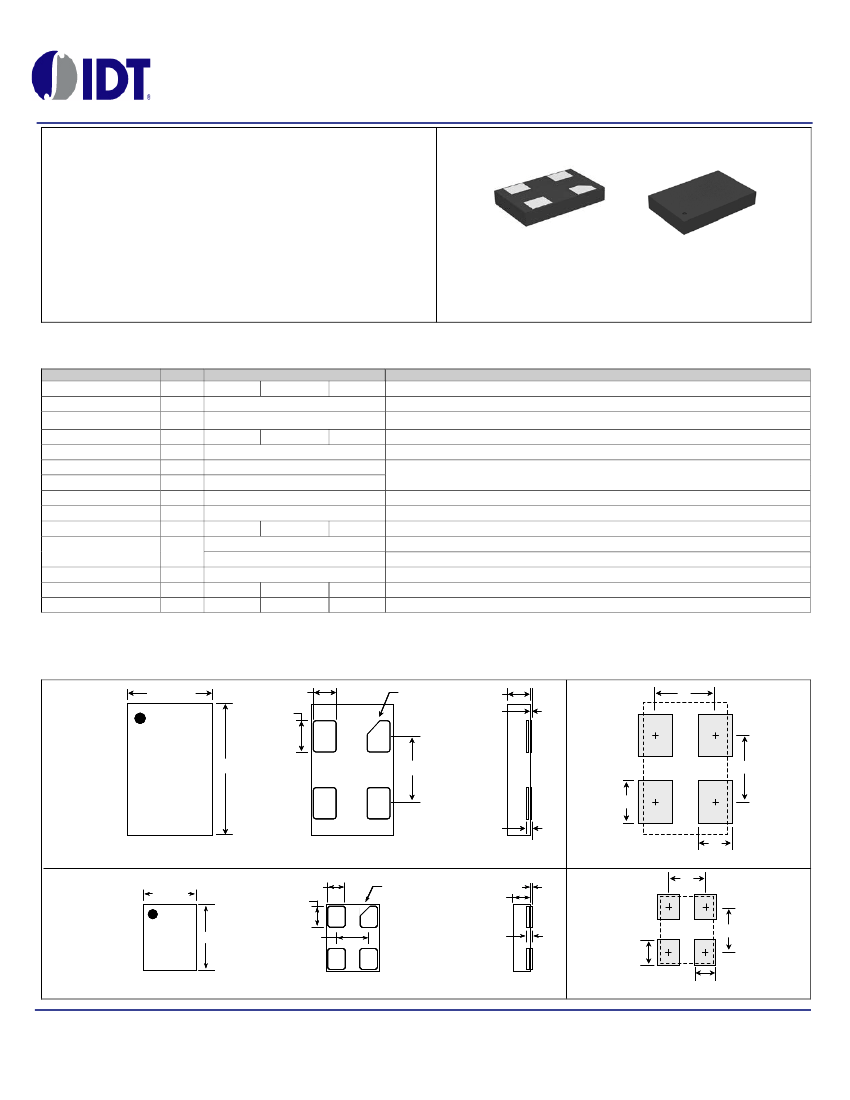

Package Outline and Dimensions
3.20 ±0.05
0.90 ±0.05
1.20 ±0.05
Pin #1 ID
Chamfer
0.5 x 45°
0.85 ±0.05
0.0-0.05
Typical PCB Land Pattern
2.2
5.0 x 3.2
(mm)
STBY#
5.0 x 3.2mm
VDD
2.5
4L SMD
5.00 ±0.05
2.54
GND
0.203 Ref.
OUT
1.4
1.6
Top View
2.0 ±0.05
Bottom View
0.65 ±0.05
0.75 ±0.05
Pin #1 ID
Chamfer
0.35 x 45°
Side View
1.5
0.0-0.05
0.55 ±0.05
2.5 x 2.0
(mm)
STBY#
1.8
VDD
OUT
0.8
2.5 x 2.0mm
4L SMD
2.5 ±0.05
1.225 Bsc
0.152 Ref.
GND
0.9
0.9
Top View
June 1, 2011
Bottom View
Side View
www.IDT.com
©2011 Integrated Device Technology, Inc
8202 Datasheet
CrystalFree™ Oscillator
Absolute Maximum Ratings
Temperature (°C)
Stresses beyond those listed under
Absolute Maximum Ratings
may cause permanent damage to the device. These ratings are
stress specifications only. Functional operation of product at
these or under any condition beyond those listed in the
operating specifications is not implied. Exposure to absolute
maximum rated conditions may affect product reliability.
Item
VDD
STBY#
OUT
Storage Temperature
Solder Reflow Profile
40 sec (max)
250
200
150
100
50
150°C
60-180
sec
(260°C max)
245°C
217°C
s c
sec
°
/
6
°
C
60-150
sec
a
ma x
4.6 V
-0.5 V to VDD + 0.5 V
-0.5 V to VDD + 0.5 V
-65°C to 150°C
3
°
C/
se
Maximum Absolute Rating
cm
ax
Time
Pin Descriptions
Pin #
1
2
3
4
Output Waveform
Description
T
R
T
F
V
OH
Name
STBY#
GND
OUT
2
VDD
Standby Mode
1
(0 = Output Disabled)
Ground
CMOS Output
Power
0.8 VDD
0.5 VDD
0.2 VDD
1. Pulled high internally
2. Weak pull down to GND during STBY# enable and startup
V
OL
SYM = t
1
/ t
2
t
1
t
2
Time
Ordering Information
8202-
Frequency
4 to 133MHz
133
VPC
Package
NSG
E
T
Temp
Blank:
0 to 70°C
E:
-20 to 70°C
Shipping
Blank: Tubes
T:
Tape and Reel
NSG: 5.0 x 3.2 (4 pin)
NVG: 2.5 x 2.0 (4 pin)
6024 Silver Creek Valley Road
San Jose, California 95138
Sales
800-345-7015 (inside USA)
+1 408-284-8200 (outside USA)
Fax: 408-284-2775
Technical Support
crystalfreetechsupport@idt.com
+1 408-739-5400
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,
including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any
license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to significantly affect the health or safety of users. Anyone using an
IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective
third party owners.
Copyright 2010, 2011. All rights reserved.
June 1, 2011
www.IDT.com
©2011 Integrated Device Technology, Inc
