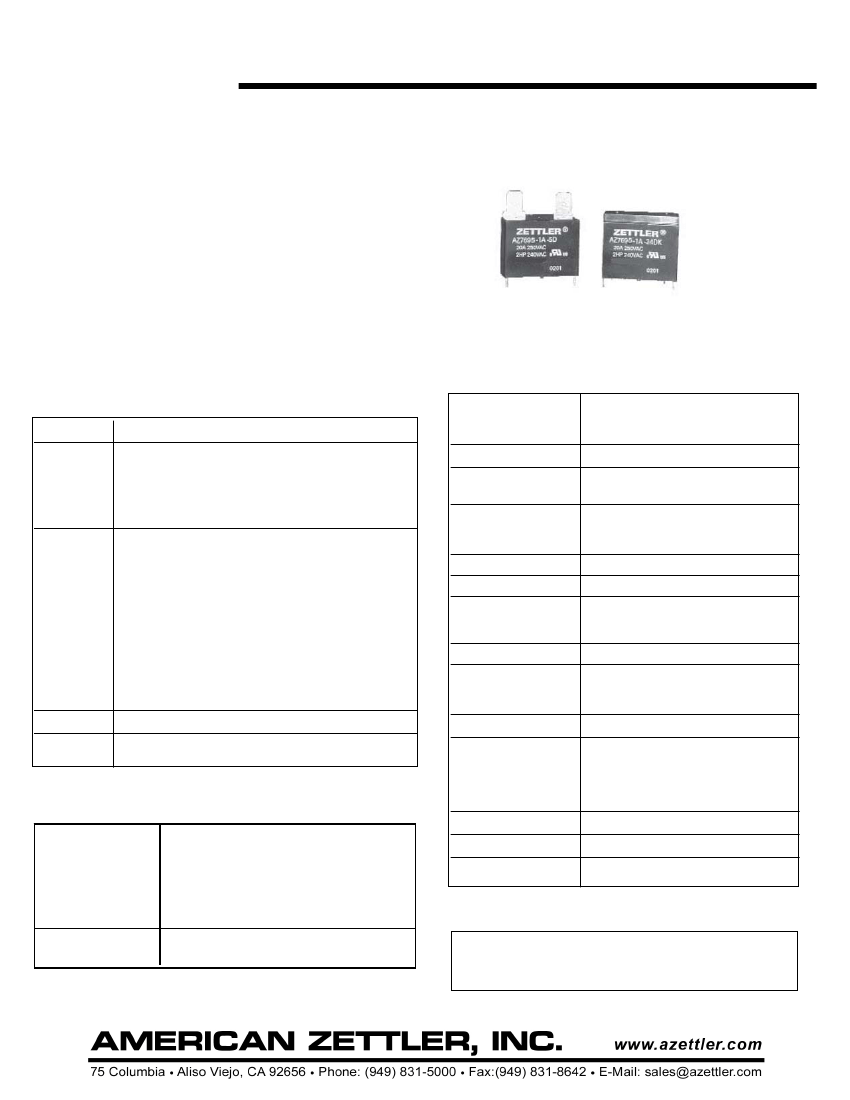

AZ7695
25 AMP MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
•
•
Low cost
25 Amp switching
80 Amp inrush current
Short Circuit Rating 5000 A rms, 250 VAC
Quick connect and PCB terminals
Flux tight construction
Class F
insulation system
available
UL, CUR file E44211
TUV 50251020
GENERAL DATA
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
Resistive load:
Max. switched power: 6250 VA
Max. switched current: 25 A
Max. switched voltage: 250 VAC, 30 VDC
Life Expectancy
Mechanical
Electrical
Operate Time (max)
Release Time (max)
Minimum operations
1 x 10
7
1 x 10
5
at 25 A 250 VAC Res.
20 ms at nominal coil voltage
10 ms at nominal coil voltage
(with no coil suppression)
Rated Load
UL, CUR
25A at 250 VAC/30 VDC Resistive, 100k ops, 85
0
C
25A at 250 VAC General use, 100k ops, 85
0
C
2 HP at 240 VAC Motor, 100k ops, 85
0
C
25 FLA / 85 LRA at 250 VAC, 100k ops, 85
0
C
16A/20A/25A 250VAC; cos phi=0, 95 100k ops, 85°C
16A/20A/25A 30VDC; 100k ops, 85°C
16A/20A/25A 250VAC; cos phi=0, 75 100k ops, 85°C
NO: 70A/80A for 0,07s 250VAC; cos phi=0, 65
100k ops, 85°C
NC: 25A for 4, 93s 250VAC; cos phi=0, 95
100k ops, 85°C
silver tin oxide
< 100 milliohms initially
(6V, 1 A voltage drop method)
Dielectric Strength
5,000 VAC coil to contact
(at sea level for 1 min.)
1,000 VAC between open contacts
10,000 V surge contact to coil
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Operating
10 g
Non-Operating
100 g
Enclosure
Terminals
P.B.T. polyester
Tinned copper alloy
P. C. & quick connect
Note: Allow suitable slack on leads when wiring,
and do not subject the terminals to excessive
force.
1000 megohms min. at 500 VDC
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 105°C (266°F)
0.059" DA at 10–55 Hz
TUV
Material
Resistance
COIL
Max. Solder Temp.
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
441 mW
Max. Solder Time
Weight
1.5 W at 20°C (73.4°F) ambient
60°C (140°F) at nominal coil voltage
Max. 105°C (221°F)
Max. 155°C (311°F)
Class F
270°C (518°F)
5 seconds
23 grams
NOTES
1. All values at 23°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
3/17/2015

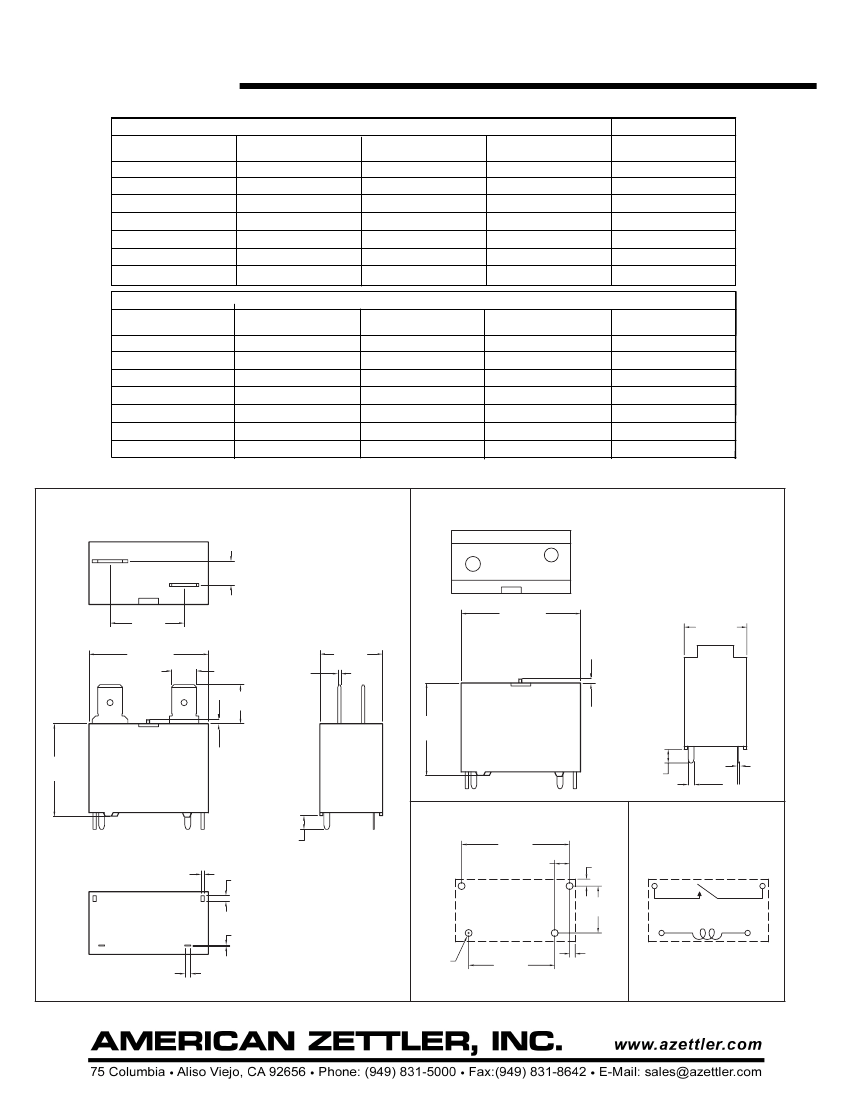

AZ7695
RELAY ORDERING DATA
COIL SPECIFICATIONS - PCB TERMINALS WITH QUICK CONNECT TERMINALS
Nominal Coil
VDC
5
6
9
12
18
24
48
Must Operate
VDC
3.5
4.2
6.3
8.4
12.6
16.8
33.6
Max. Continuous
VDC
6.5
7.8
11.7
15.6
23.4
31.2
62.4
Coil Resistance
± 10%
28
40
90
160
360
640
2560
ORDER NUMBER*
Form A
(SPST)
AZ7695–1A–5D
AZ7695–1A–6D
AZ7695–1A–9D
AZ7695–1A–12D
AZ7695–1A–18D
AZ7695–1A–24D
AZ7695–1A–48D
COIL SPECIFICATIONS - PCB TERMINALS
Nominal Coil
VDC
5
6
9
12
18
24
48
Must Operate
VDC
3.5
4.2
6.3
8.4
12.6
16.8
33.6
Max. Continuous
VDC
6.5
7.8
11.7
15.6
23.4
31.2
62.4
Coil Resistance
± 10%
28
40
90
160
360
640
2560
ORDER NUMBER*
Form A
(SPST)
AZ7695–1A–5DK
AZ7695–1A–6DK
AZ7695–1A–9DK
AZ7695–1A–12DK
AZ7695–1A–18DK
AZ7695–1A–24DK
AZ7695–1A–48DK
* For epoxy seal change “DK” to “DEK”. For Class F
insulation system
add suffix “F” to part number.
MECHANICAL DATA
0#" 15)#+ #/..%#4 6%23)/.
0#" 6%23)/.
;=
;=
-!8
;=
-!8
;=
;=
-!8
;=
-!8
;=
X
;=
X
;=
-!8
;=
;=
-!8
;=
;=
X
;=
X
;=
X
;=
X
;=
X
;=
0# "/!2$ ,!9/54
4YPICAL FOR BOTH VERSIONS
;=
;=
;=
7)2).' $)!'2!-
4YPICAL FOR BOTH VERSIONS
X
;=
;=
X
;=
;=
X
;=
X
;=
;=
6IEWED TOWARD TERMINALS
6IEWED TOWARD TERMINALS
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
