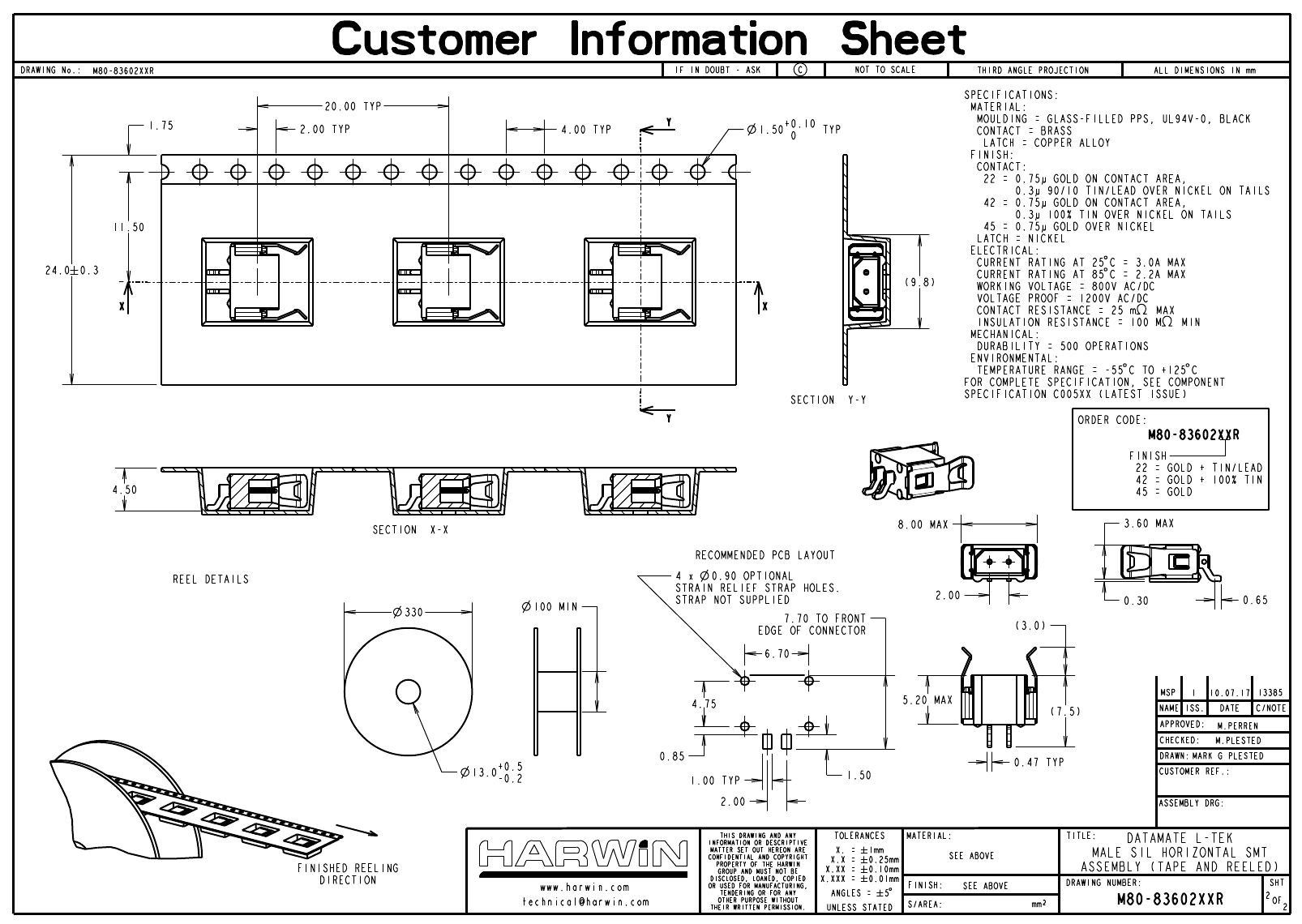

Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Harwin |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| body width | 0.153 inch |
| subject depth | 0.295 inch |
| body length | 0.314 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 25 mΩ |
| Contact style | RND PIN-SKT |
| Durability | 500 Cycles |
| Insulation resistance | 100000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Plug contact pitch | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 30u inch |
| Rated current (signal) | 3 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 2.0066 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 2 |
| Base Number Matches | 1 |
| M80-8360242R | M80-8360245R | M80-8360222R | |
|---|---|---|---|
| Description | Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator |
| Is it Rohs certified? | conform to | conform to | incompatible |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| body width | 0.153 inch | 0.153 inch | 0.153 inch |
| subject depth | 0.295 inch | 0.295 inch | 0.295 inch |
| body length | 0.314 inch | 0.314 inch | 0.314 inch |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 25 mΩ | 25 mΩ | 25 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 1 | 1 | 1 |
| Number of rows loaded | 1 | 1 | 1 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Plating thickness | 30u inch | 30u inch | 30u inch |
| Rated current (signal) | 3 A | 3 A | 3 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 2 | 2 | 2 |
| Base Number Matches | 1 | 1 | 1 |
| Maker | Harwin | Harwin | - |
| Contact completed and terminated | TIN OVER NICKEL | - | TIN/LEAD OVER NICKEL |
