Q-40.000000M-HC1612/4-F-30-10-D-8-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> Q-40.000000M-HC1612/4-F-30-10-D-8-TR

Q-40.000000M-HC1612/4-F-30-10-D-8-TR: DescriptionParallel - Fundamental Quartz Crystal, 40MHz Nom, ROHS COMPLIANT, LEADLESS, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size539KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric Compare View All

Q-40.000000M-HC1612/4-F-30-10-D-8-TR Overview

Parallel - Fundamental Quartz Crystal, 40MHz Nom, ROHS COMPLIANT, LEADLESS, CERAMIC, SMD, 4 PIN

Q-40.000000M-HC1612/4-F-30-10-D-8-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, LEADLESS, CERAMIC, SMD, 4 PIN
Reach Compliance Code	unknow
Other features	TAPE AND REEL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.001%
frequency tolerance	30 ppm
load capacitance	8 pF
Manufacturer's serial number	HC1612/4
Installation features	SURFACE MOUNT
Nominal operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)
Series resistance	100 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

Quartz SMD, Ceramic

HC1612/4

Features:

- SMD

- High reliability

- Application: Bluetooth, wireless LAN

- Ultra thin and small leadless type

Specifications

Frequency range

Frequency tolerance,Ta=25°C

Load capacitance

Temperature tolerance

Storage temperature range

Operating temperature range

Maximum drive level

Recommended drive level

Series resistance

Shunt capacitance

Insulation resistance

Aging

- Please consult with us for other specifications

Resistance of series resonance (ESR)

Frequency (MHz)

Mode

32.0 <= f < 40.0

Fundamental

Symbol

Äf/f

STG

OPR

Äf

HC1612/4

32.000MHz ~ 52.000MHz

±10ppm ~ ±50ppm

8,10,12pf

±10ppm ~ ±50ppm

-55°C ~ +125°C

-20°C ~ 70°C

100ìW

10ìW

As per table

3pF

500M Ohm

±3ppm/Year

Remarks

Fundamental mode

Please specify

Others are offered

Please specify

Others are offered

25°C ±3°C

Max

Min

Ohm max

150

Frequency (MHz)

40.0 <= f < 52.0

Mode

Fundamental

Ohm max

100

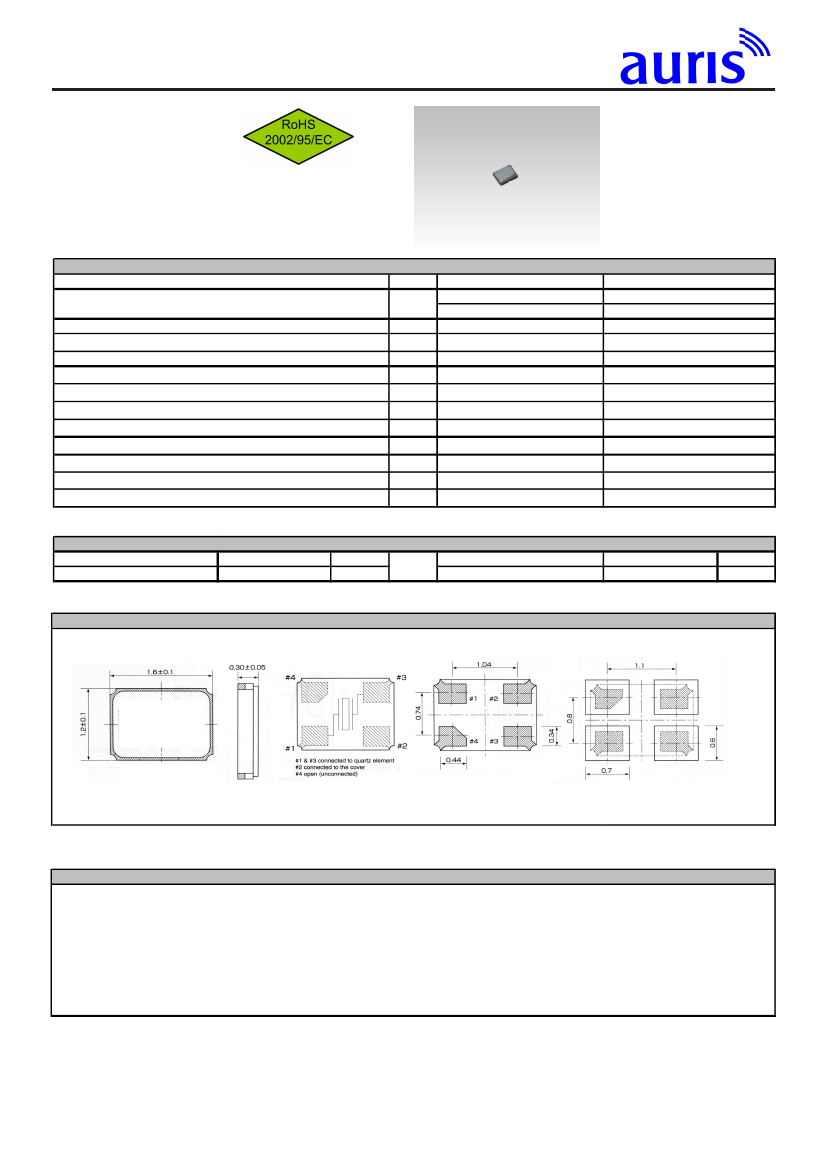

Drawing

HC1612/4

Dimensions in mm

Order key

Part

- 32.000000M - HC1612/4

Frequency

Package

-F

Mode of

oscillation

- 30

Frequency

tolerance

±ppm

(25°C)

- 50

Temperature

tolerance

±ppm

(Temp. range)

-E

Temperature

range

0°C ~ +70°C

- 12

Load

capacitance

SR=series

- TR

Option

Q=Quartz

M=MHz

HC1612/4

F=fund.

TR=Tape and reel

X=Special options

B= -10°C ~ +60°C

C= -10°C ~ +70°C

D= -20°C ~ +70°C

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.

2.22
