Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SSR1008/5
SSR1009/5
SSR1010/5
10 AMP
80
─
100 VOLTS
SCHOTTKY RECTIFIER
Designer’s Data Sheet
FEATURES:
•
•
•
•
•
•
•
Extremely Low Forward Voltage Drop
Low Reverse Leakage
Hermetically Sealed Package
Guard Ring for Overvoltage Protection
Eutectic Die Attach
175
°
C Operating Junction Temperature
TX, TXV, or Space Level Screening Available
TO-5
MAXIMUM RATINGS
RATING
Peak Repetitive Reverse Voltage and DC
Blocking Voltage
SSR1008/5
SSR1009/5
SSR1010/5
Average Rectified Output Current
1/
(Resistive Load, 60Hz, Sine Wave, TA=25
°
C)
Peak Surge Current
1/
(8.3 ms Pulse, Half Sine Wave, superimposed on
I
O
, allow junction to reach equilibrium between
pulses, TA=25
°
C)
Operating and Storage Temperature
Maximum Thermal Resistance
1/
Junction to Case
SYMBOL
V
RRM
V
RWM
V
R
I
O
I
FSM
VALUE
UNIT
80
90
100
Volts
10
150
Amps
Amps
T
OP
& T
STG
-65 to +175
°
C
R
θJC
7.0
°
C/W
Notes: 1/ For optimal performance, connect leads 1 & 2 together (Anode).
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: SH0022C
DOC
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, Ca 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SSR1008/5
SSR1009/5
SSR1010/5
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS
Instantaneous Forward Voltage Drop
2/
(I
F
= 1 Adc, T
A
= 25
°
C, 300 - 500µs Pulse)
(I
F
= 5 Adc, T
A
= 25
°
C, 300 - 500µs Pulse)
(I
F
= 10 Adc, T
A
= 25
°
C, 300 - 500µs Pulse)
Instantaneous Forward Voltage Drop
(I
F
= 5 Adc, T
A
= -55
°
C, 300 - 500µs Pulse)
Reverse Leakage Current
(Rated V
R
, T
A
= 25
°
C, 300µs Pulse Minimum)
Reverse Leakage Current
(Rated V
R
, T
A
= 100°C, 300µs Pulse Minimum)
Junction Capacitance
(V
R
= 10 Vdc, T
A
= 25
°
C, f = 1 MHz)
NOTES:
SYMBOL
V
F1
V
F2
V
F3
V
F4
I
R1
I
R2
C
J
MAXIMUM
0.56
0.73
0.85
0.82
100
5
400
UNIT
Vdc
Vdc
µA
mA
pF
2/
V
F
as measured between pins 1 and 2 in common, within .100” from the case, and pin 3 directly at the case.

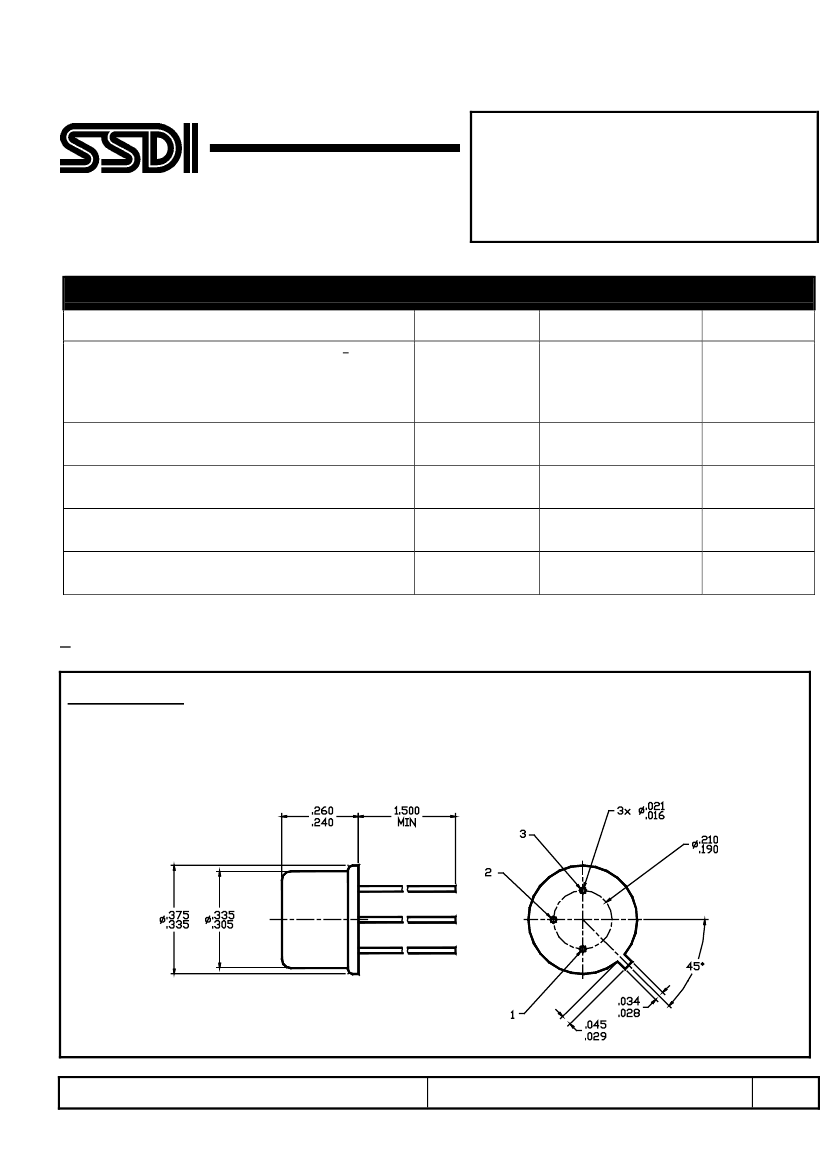

Case Outline- TO-5
PIN 1- ANODE
PIN 2- ANODE
PIN 3- CATHODE
CASE- CATHODE
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: SH0022C
