Q-60.000000M-HC1612/4-F-50-10-D-8-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> Q-60.000000M-HC1612/4-F-50-10-D-8-TR

Q-60.000000M-HC1612/4-F-50-10-D-8-TR: DescriptionParallel - Fundamental Quartz Crystal, 60MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size223KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric Compare View All

Q-60.000000M-HC1612/4-F-50-10-D-8-TR Overview

Parallel - Fundamental Quartz Crystal, 60MHz Nom, SMD, 4 PIN

Q-60.000000M-HC1612/4-F-50-10-D-8-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMD, 4 PIN
Reach Compliance Code	unknow
Other features	TR
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.001%
frequency tolerance	50 ppm
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	60 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

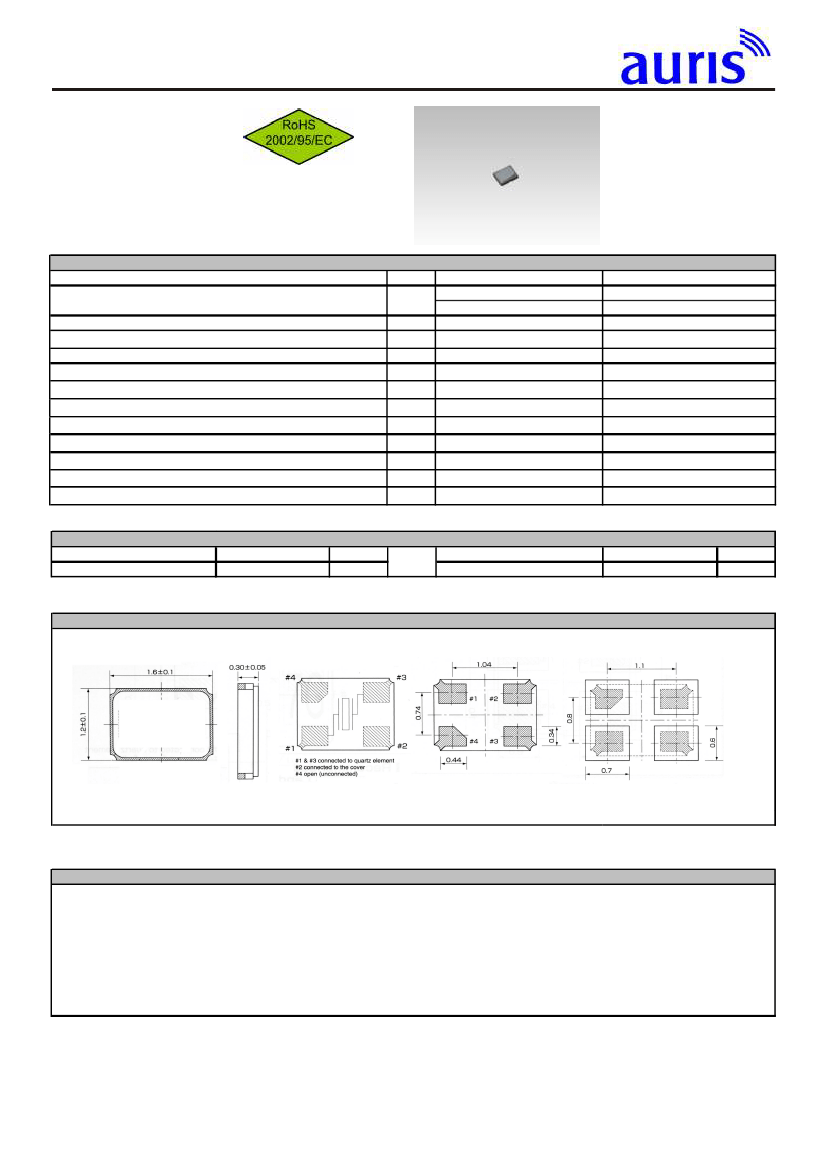

Quartz SMD, Ceramic

HC1612/4

Features:

- SMD

- High reliability

- Application: Bluetooth, wireless LAN

- Ultra thin and small leadless type

Specifications

Frequency range

Frequency tolerance,Ta=25°C

Load capacitance

Temperature tolerance

Storage temperature range

Operating temperature range

Maximum drive level

Recommended drive level

Series resistance

Shunt capacitance

Insulation resistance

Aging

Symbol

∆f/f

STG

OPR

∆f

HC1612/4

26.000MHz ~ 60.000MHz

±10ppm ~ ±50ppm

8,10,12pf

±10ppm ~ ±50ppm

-55°C ~ +125°C

-20°C ~ 70°C

100µW

10µW

As per table

3pF

500M Ohm

±3ppm/Year

25°C ±3°C

Max

Min

Remarks

Fundamental mode

Please specify

Others are offered

Please specify

Others are offered

Resistance of series resonance (ESR)

Frequency (MHz)

Mode

26.0 <= f < 40.0

Fundamental

Ohm max

150

Frequency (MHz)

40.0 <= f < 60.0

Mode

Fundamental

Ohm max

100

Drawing

HC1612/4

Dimensions in mm

Order key

Part

- 32.000000M - HC1612/4

Frequency

Package

-F

Mode of

oscillation

- 30

Frequency

tolerance

±ppm

(25°C)

- 50

Temperature

tolerance

±ppm

(Temp. range)

-E

Temperature

range

0°C ~ +70°C

- 12

Load

capacitance

SR=series

- TR

Option

Q=Quartz

M=MHz

HC1612/4

F=fund.

TR=Tape and reel

X=Special options

B= -10°C ~ +60°C

C= -10°C ~ +70°C

D= -20°C ~ +70°C

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.

2.22

Q-60.000000M-HC1612/4-F-50-10-D-8-TR Related Products

	Q-60.000000M-HC1612/4-F-50-10-D-8-TR	Q-26.000000M-HC1612/4-F-10-10-D-8-TR	Q-60.000000M-HC1612/4-F-10-10-D-8-TR	Q-26.000000M-HC1612/4-F-30-10-D-12-TR	Q-60.000000M-HC1612/4-F-30-10-D-12-TR	Q-26.000000M-HC1612/4-F-50-50-B-8-TR	Q-26.000000M-HC1612/4-F-10-50-A-10-TR
Description	Parallel - Fundamental Quartz Crystal, 60MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 26MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 60MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 26MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 60MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 26MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 26MHz Nom, SMD, 4 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN	SMD, 4 PIN
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown	unknown
Other features	TR	TR	TR	TR	TR	TR	TR
Ageing	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW
frequency stability	0.001%	0.001%	0.001%	0.001%	0.001%	0.005%	0.005%
frequency tolerance	50 ppm	10 ppm	10 ppm	30 ppm	30 ppm	50 ppm	10 ppm
load capacitance	8 pF	8 pF	8 pF	12 pF	12 pF	8 pF	10 pF
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	60 MHz	26 MHz	60 MHz	26 MHz	60 MHz	26 MHz	26 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	60 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-10 °C	-
physical size	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)
surface mount	YES	YES	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	1	1	-	-
Series resistance	-	150 Ω	-	150 Ω	-	150 Ω	150 Ω
