536275-1

Description
160 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG
CategoryThe connector    The connector

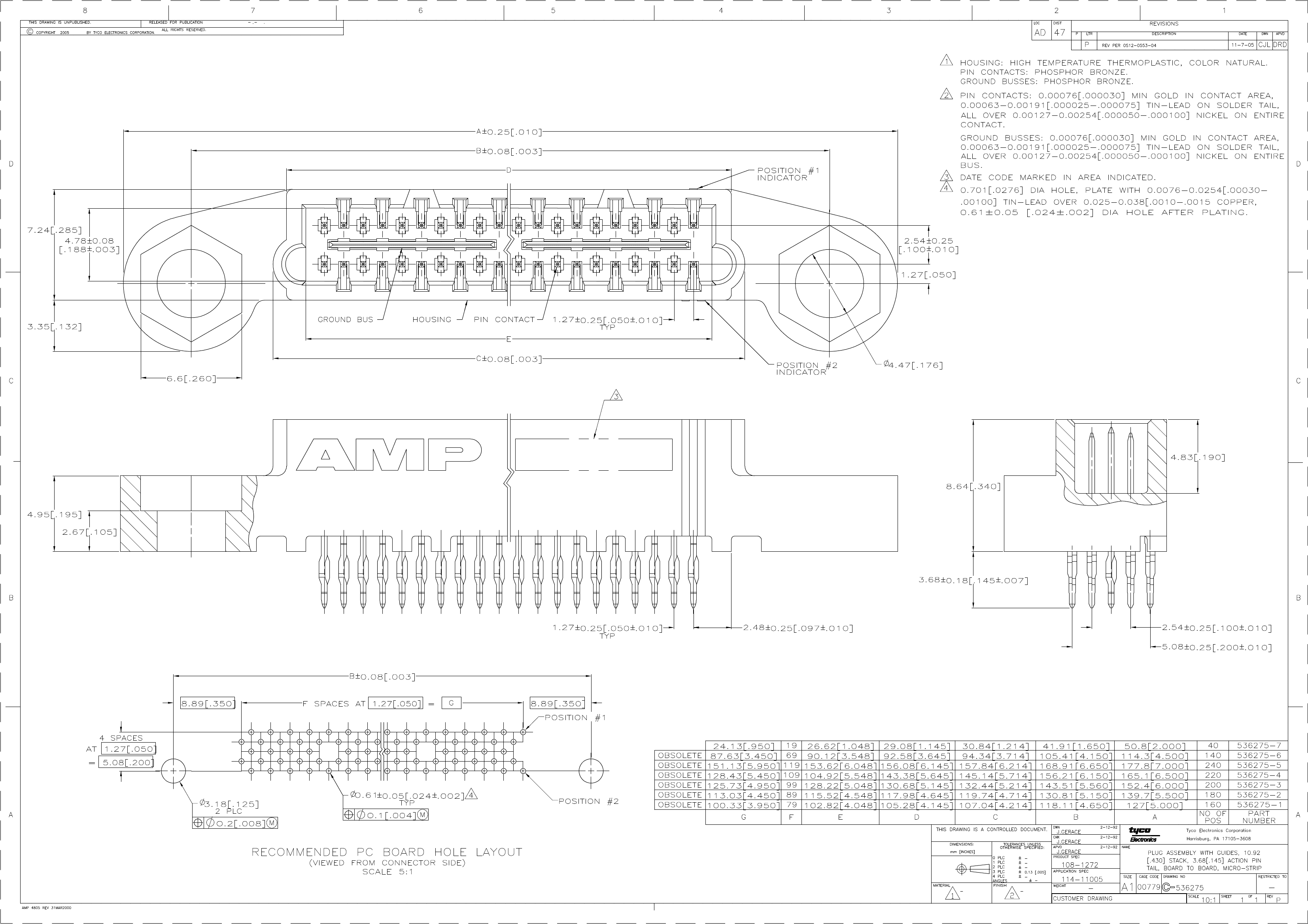

File Size181KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

536275-1 Overview

160 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG

536275-1 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresACTION PIN
Board mount optionsHOLE .125-.137
body width0.417 inch
subject depth0.34 inch
body length5 inch
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialTHERMOPLASTIC
MIL complianceNO
Manufacturer's serial number536275
Plug contact pitch0.05 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number5
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing1.27 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.145 inch
Terminal pitch1.27 mm
Termination typePRESS FIT
Total number of contacts160
Base Number Matches1

536275-1 Related Products

536275-1 536275-2 536275-4 536275-5
Description 160 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG 180 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG 220 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG 240 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, PRESS FIT, PLUG
Maker TE Connectivity TE Connectivity TE Connectivity TE Connectivity
Reach Compliance Code unknown unknown unknown unknown
Other features ACTION PIN ACTION PIN ACTION PIN ACTION PIN
Body/casing type PLUG PLUG PLUG PLUG
Connector type BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR BOARD STACKING CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI AU ON NI GOLD (30)
Contact completed and terminated GOLD GOLD GOLD TIN LEAD OVER NICKEL
Contact point gender MALE MALE MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
DIN compliance NO NO NO NO
Filter function NO NO NO NO
IEC compliance NO NO NO NO
MIL compliance NO NO NO NO
Manufacturer's serial number 536275 536275 536275 536275
Mixed contacts NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD
Number of rows loaded 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Termination type PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 160 180 220 240
Base Number Matches 1 1 1 1
ECCN code EAR99 EAR99 EAR99 -
Board mount options HOLE .125-.137 HOLE .125-.137 HOLE .125-.137 -
body width 0.417 inch 0.417 inch 0.417 inch -
subject depth 0.34 inch 0.34 inch 0.34 inch -
body length 5 inch 5.5 inch 6.5 inch -
contact mode RECTANGULAR RECTANGULAR RECTANGULAR -
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT -
insulator material THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC -
Plug contact pitch 0.05 inch 0.05 inch 0.05 inch -
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch -
Number of connectors ONE ONE ONE -
PCB row number 5 5 5 -
PCB contact pattern STAGGERED STAGGERED STAGGERED -
PCB contact row spacing 1.27 mm 1.27 mm 1.27 mm -
Plating thickness 30u inch 30u inch 30u inch -
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING -
Guideline UL, CSA UL, CSA UL, CSA -
reliability COMMERCIAL COMMERCIAL COMMERCIAL -
Terminal length 0.145 inch 0.145 inch 0.145 inch -
