5962-9450601HXX datasheet, PDF

5962-9450601HXX: DescriptionSingle-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP24, CERAMIC, DDIP-24; CategoryAnalog mixed-signal IC The signal circuit; File Size109KB，2 Pages; ManufacturerC&D

Download Datasheet Parametric Compare View All

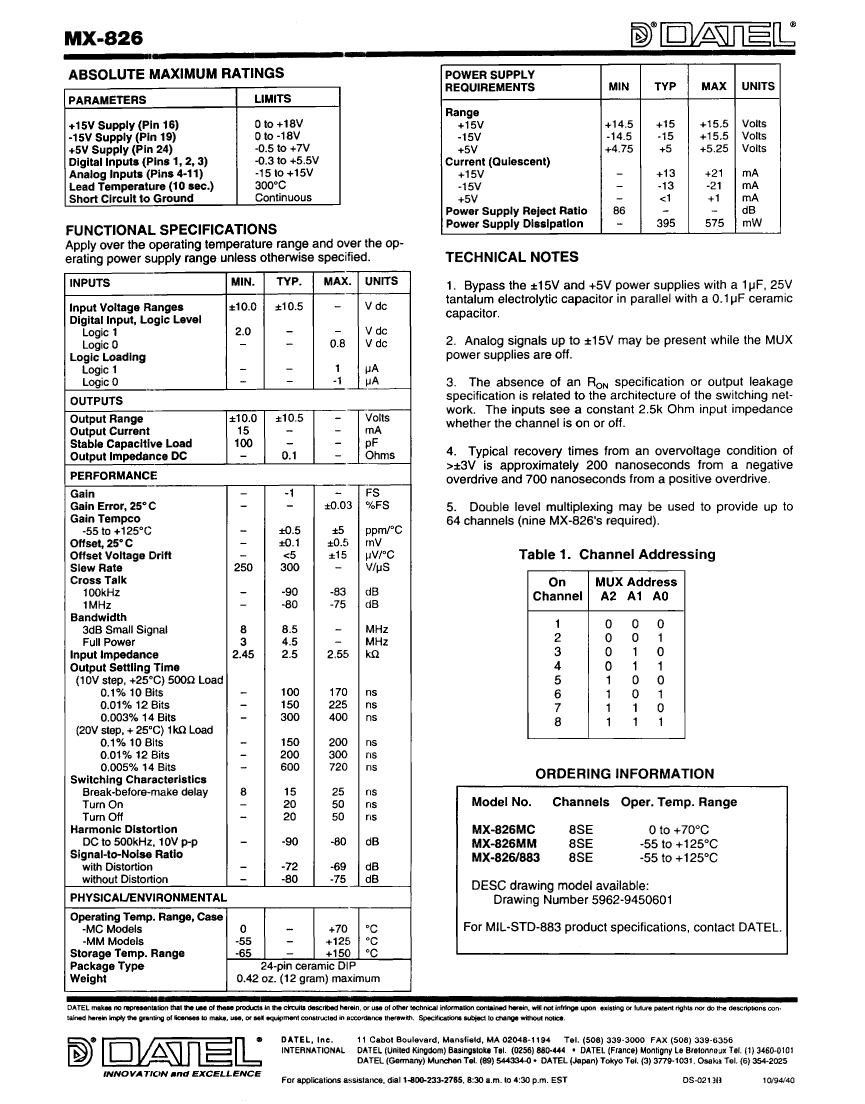

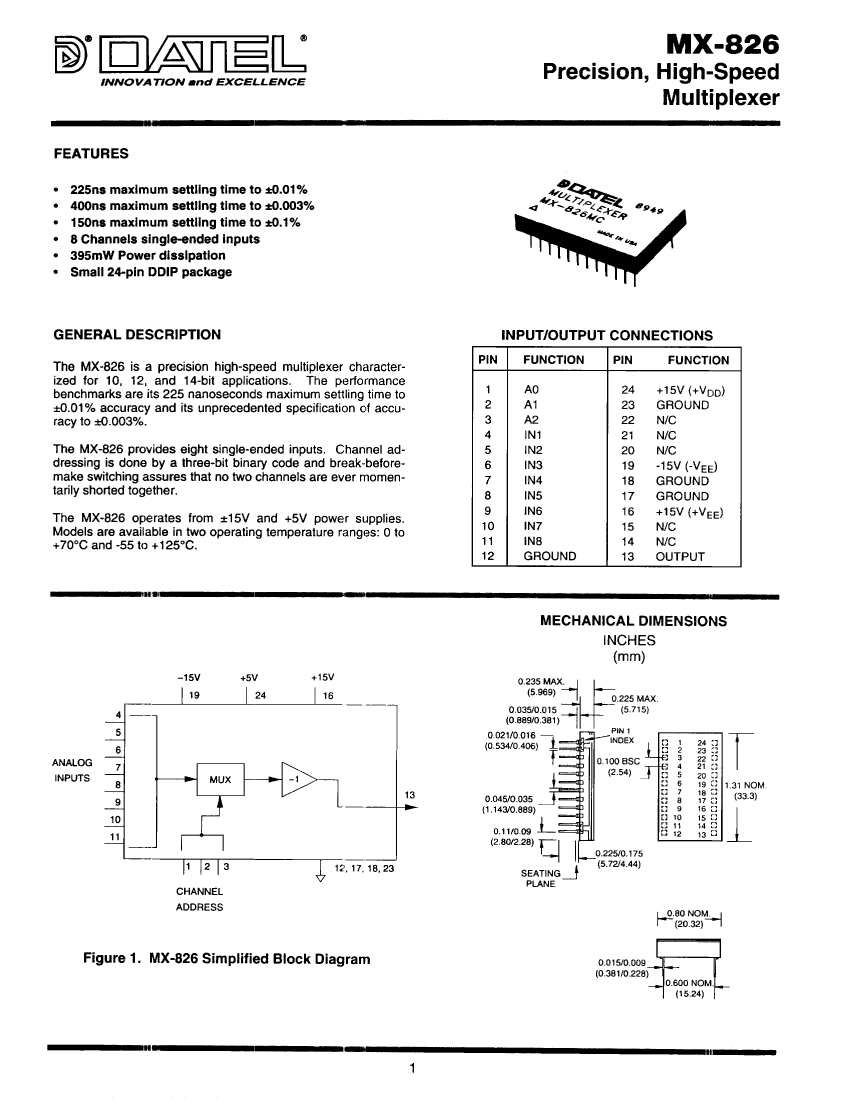

5962-9450601HXX Overview

Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP24, CERAMIC, DDIP-24

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	C&D
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T24
length	33.3 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.969 mm
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	50 ns
Maximum connection time	50 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
Base Number Matches	1

	5962-9450601HXX	5962-9450601HXC
Description	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP24, CERAMIC, DDIP-24	Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CDIP24, CERAMIC, DDIP-24
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	C&D	C&D
Parts packaging code	DIP	DIP
package instruction	DIP,	DIP,
Contacts	24	24
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDIP-T24	R-CDIP-T24
length	33.3 mm	33.3 mm
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	8	8
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.969 mm	5.969 mm
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Maximum disconnect time	50 ns	50 ns
Maximum connection time	50 ns	50 ns
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm
Base Number Matches	1	1
