54306-2011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54306-2011

54306-2011: DescriptionTelecom and Datacom Connector, 20 Contact(s), Male, IDC Terminal, Latch, Plug; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54306-2011 Overview

Telecom and Datacom Connector, 20 Contact(s), Male, IDC Terminal, Latch, Plug

54306-2011 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EMI/RFI SHIELDED
body width	0.354 inch
body length	0.76 inch
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	LEAF
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	PLASTIC
MIL compliance	NO
Manufacturer's serial number	54306
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	12u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Termination type	IDC
Total number of contacts	20
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	.1668 N
Base Number Matches	1

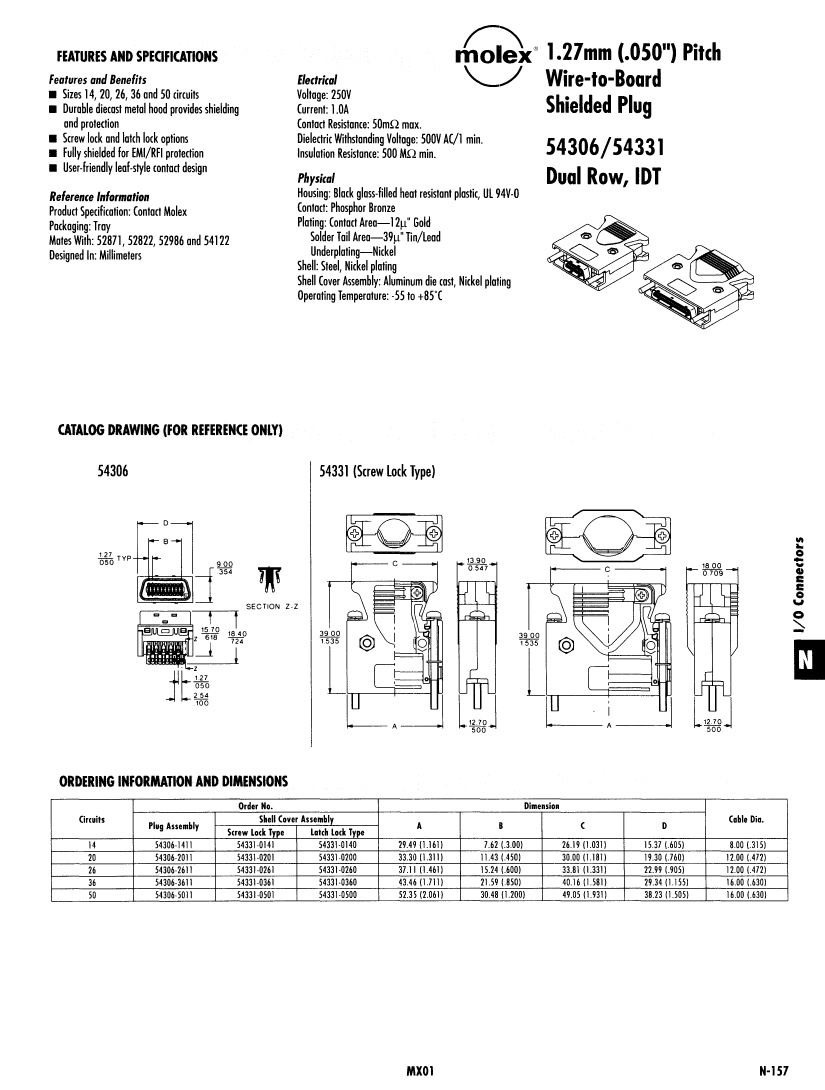

Preview

Download Datasheet

View All

54306-2011 Related Products

	54306-2011	54306-1411	54306-2611	54306-3611	54306-5011
Description	Telecom and Datacom Connector, 20 Contact(s), Male, IDC Terminal, Latch, Plug	Telecom and Datacom Connector, 14 Contact(s), Male, IDC Terminal, Latch, Plug	Telecom and Datacom Connector, 26 Contact(s), Male, IDC Terminal, Latch, Plug	Telecom and Datacom Connector, 36 Contact(s), Male, IDC Terminal, Latch, Plug	Telecom and Datacom Connector, 50 Contact(s), Male, IDC Terminal, Latch, Plug
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED	EMI/RFI SHIELDED
body width	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch
body length	0.76 inch	0.605 inch	0.905 inch	1.155 inch	1.505 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	50 mΩ	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Contact style	LEAF	LEAF	LEAF	LEAF	LEAF
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	54306	54306	54306	54306	54306
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LATCH	LATCH	LATCH	LATCH	LATCH
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	12u inch	12u inch	12u inch	12u inch	12u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	IDC	IDC	IDC	IDC	IDC
Total number of contacts	20	14	26	36	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	24 AWG	24 AWG	24 AWG	24 AWG	24 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Evacuation force-minimum value	.1668 N	.1668 N	.1668 N	.1668 N	.1668 N
