160H-68/TABS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 160H-68/TABS

160H-68/TABS: DescriptionToggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Bat Type Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size789KB，2 Pages; ManufacturerCarling Technologies

Download Datasheet Parametric Compare View All

160H-68/TABS Overview

Toggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Bat Type Actuator, Panel Mount-threaded

160H-68/TABS Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Actuator type	BAT TYPE
Contact (AC) maximum rated R load	10A@125VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@125VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	125 V
Electrical life	25000 Cycle(s)
Manufacturer's serial number	160H
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	66 °C
Minimum operating temperature	-18 °C
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	TOGGLE SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

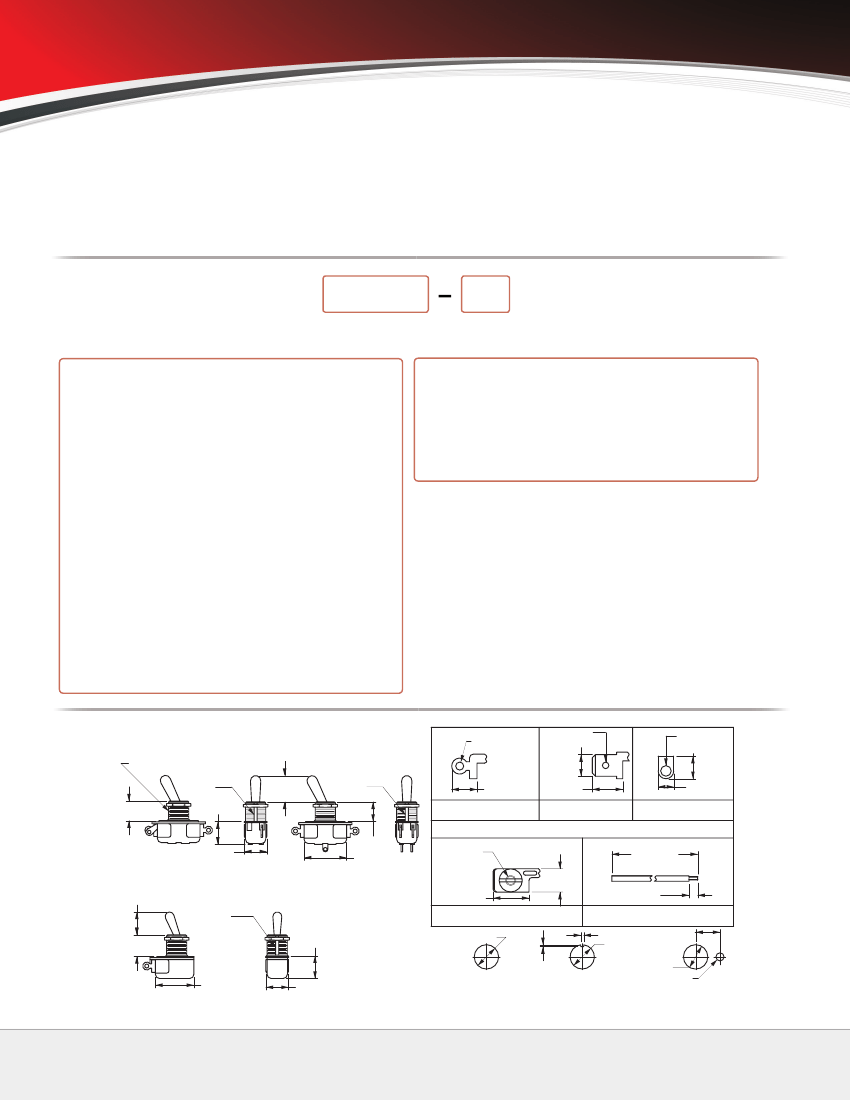

110-Series

Heavy Action Toggle Switches

The 110-Series is a compactly designed, versatile metal construction toggle switch

which is appropriate for a variety of uses. Features include single or double pole

options, maintained or momentary construction with termination choices including

solder lug end or bottom, wire leads and .250 tab terminals. The quick make/quick

break contact mechanism makes the switch suitable for high voltage (125-250 volt)

applications. This switch is popular within the Small Appliance, Floor Maintenance,

and most low current AC/DC market segments.

Carling Technologies, Inc.

60 Johnson Avenue • Plainville, CT 06062-1177

Phone: (860) 793-9281 • Fax: (860) 793-9231

Email: sales@carlingtech.com • www.carlingtech.com

160H-68/TABS Related Products

	160H-68/TABS	160H-63/TABS	160H-21/TABS	160H-78/TABS	160H-25/TABS	160H-22/TABS	160H-52/TABS	160H-57/TABS
Description	Toggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Bat Type Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Bat Type Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Ball Type Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Bat Type Actuator, Panel Mount-threaded,	Toggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Ball Type Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Ball Type Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Bat Type Actuator, Panel Mount-threaded	Toggle Switch, SPST, Latched, 10A, 125VDC, Quick Connect Terminal, Bat Type Actuator, Panel Mount-threaded
Reach Compliance Code	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	BAT TYPE	BAT TYPE	BALL TYPE	BAT TYPE	BALL TYPE	BALL TYPE	BAT TYPE	BAT TYPE
Contact (AC) maximum rated R load	10A@125VAC	10A@125VAC	10A@125VAC	10A@125VAC	10A@125VAC	10A@125VAC	10A@125VAC	10A@125VAC
Maximum contact current (AC)	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A
Maximum contact current (DC)	10 A	10 A	10 A	10 A	10 A	10 A	10 A	10 A
Contact (DC) maximum rated R load	10A@125VDC	10A@125VDC	10A@125VDC	10A@125VDC	10A@125VDC	10A@125VDC	10A@125VDC	10A@125VDC
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Maximum contact voltage (DC)	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Electrical life	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)	25000 Cycle(s)
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating temperature	66 °C	66 °C	66 °C	66 °C	66 °C	66 °C	66 °C	66 °C
Minimum operating temperature	-18 °C	-18 °C	-18 °C	-18 °C	-18 °C	-18 °C	-18 °C	-18 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
Base Number Matches	1	1	1	1	1	1	1	1
Manufacturer's serial number	160H	160H	160H	-	160H	160H	160H	160H
