CS02-280-1R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> CS02-280-1R

CS02-280-1R: DescriptionCommon Mode Choke; CategoryAnalog mixed-signal IC filter; File Size271KB，2 Pages; ManufacturerICE Components; Websitehttp://www.icecomponents.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CS02-280-1R Overview

Common Mode Choke

CS02-280-1R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ICE Components
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Other features	IMPEDANCE AT 10 MHZ
Certification	UL
Maximum DC resistance	0.025 Ω
filter type	DATA LINE FILTER
high	5.5 mm
inductance	37.3 µH
length	10.6 mm
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	155 °C
Minimum operating temperature	-40 °C
Output impedance	561 OHM Ω
method of packing	TAPE AND REEL
physical size	L10.6XB9.3XH5.5 (mm)/L0.417XB0.366XH0.217 (inch)
Rated current	2.8 A
width	9.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ICE Components, Inc.

Voice: 800.729.2099

Fax: 678.560.9304

cust.serv@icecomp.com

www.icecomponents.com

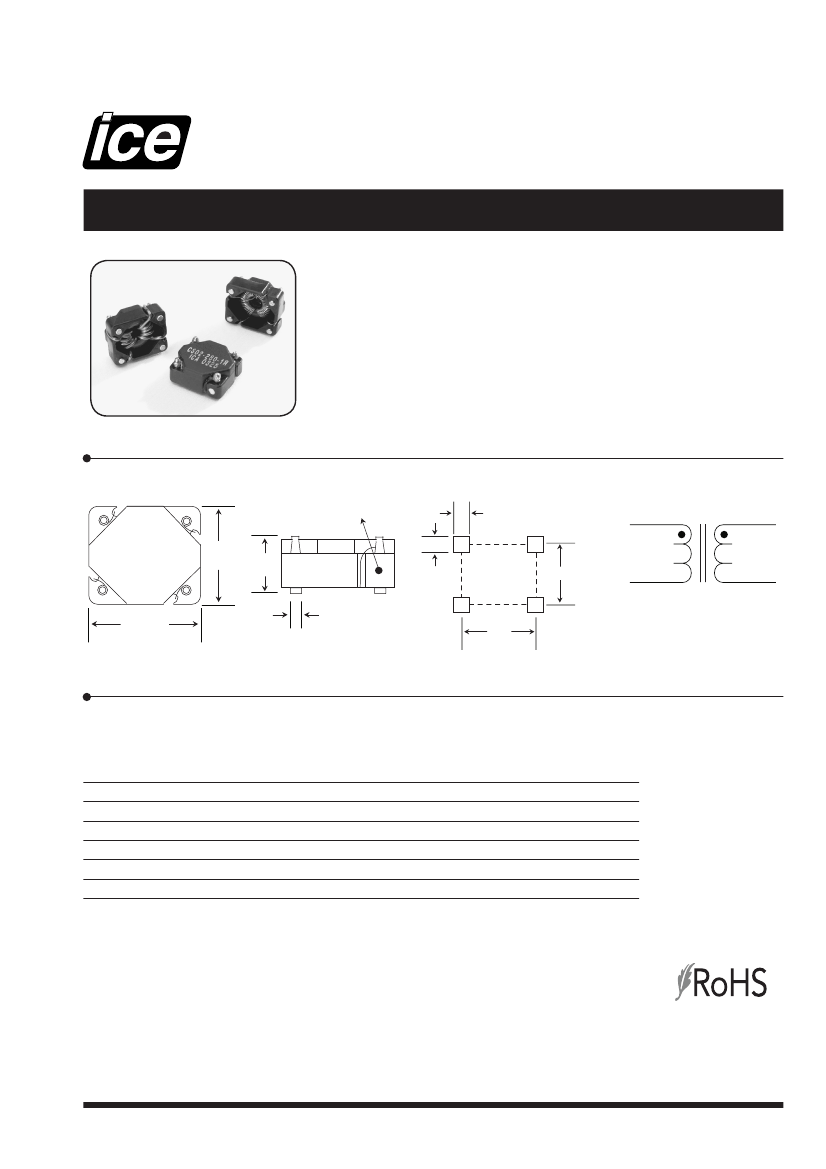

Common Mode Choke

Features

• Filters common mode noise

over a broad frequency range

• Small footprint

• Current range up to 7.5 A

• For use from 300 kHz to 100 MHz

CSO2 Series

Applications

• EMI Filters

• High Density Power Supplies

• “Brick” DC/DC Converters

• Point of Load DC/DC Converters

Packaging:

Reel diameter: 13”, Reel width: 16 mm, Pieces/reel: 700

Mechanical

dot for pin 1

Recommended PCB Layout

1.6

Schematic

CS02-XXX-XR

ICA-YYWW

9.3

max

5.5

max

6.22

10.6 max

1.0 dia

7.62

Top view

Side view

Top View

units: mm

Electrical Specifications

Part

Number

CS02-280-1R

CS02-470-1R

CS02-470-2R

CS02-710-2R

CS02-131-2R

CS02-231-2R

Inductance

(µH typ.)

37.3

94.7

176

312

Inductance

(µH min.)

130

230

rms

DCR

(A max.) (mΩ max.)

2.80

1.33

3.40

2.69

1.65

0.89

23.4

166

Hi-Pot

rms

)

2500

500

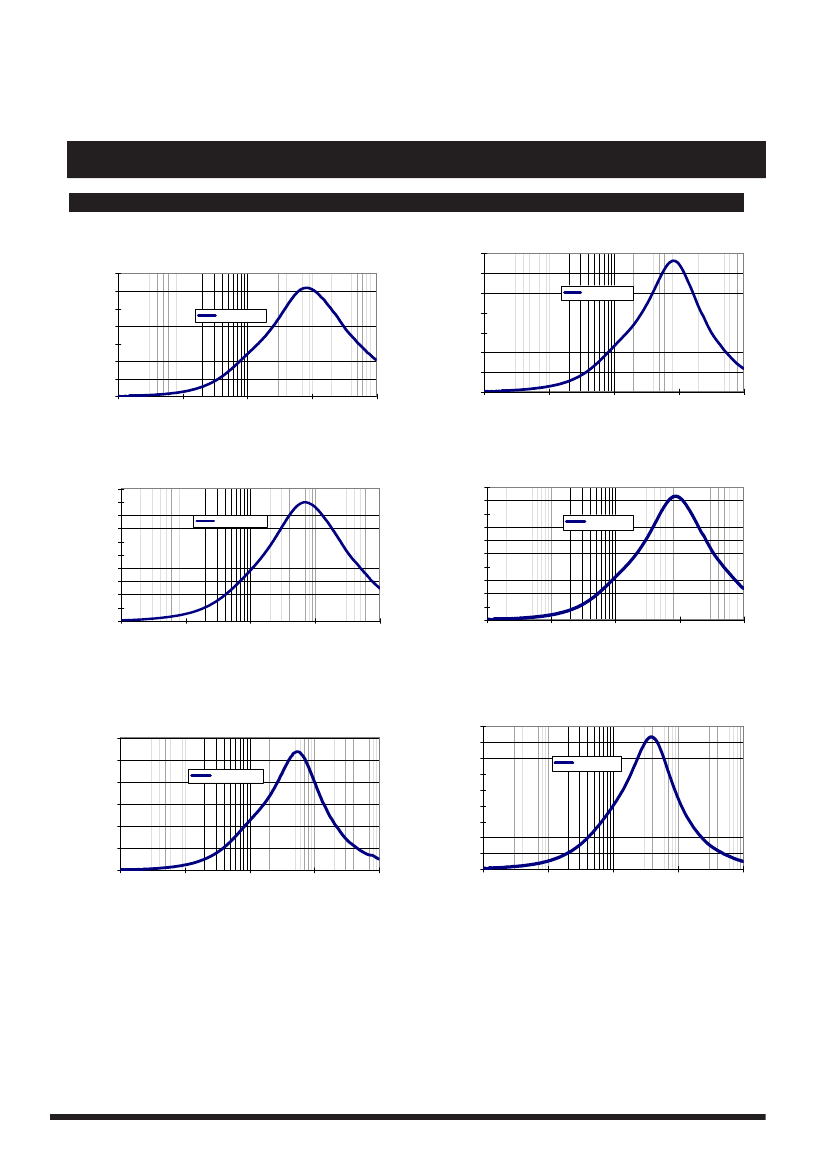

Max. Impedance

(typ.)

561

Ω

@ 10MHz

1010

Ω

@ 8MHz

1300

Ω

@ 8MHz

1490

Ω

@ 8MHz

2900

Ω

@ 7MHz

5150

Ω

@ 6MHz

1. Inductance measured at

100 kHz, 0.1 Vrms, series.

2. I

rms

: Temp. rise = 40°C

at rated RMS current.

3. Hi-pot rating: Winding to

winding for 1 minute.

4. Electrical specifications

at 25°C.

5. Operating temperature

range: -40°C to +155°C.

6. Meets UL94V-0.

7. Creepage Distance:

2500 Vrms hi-pot = 4 mm

500 Vrms hi-pot = 0 mm.

Specifications subject to change without notice.

(06/07) CS02-1

CS02-280-1R Related Products

	CS02-280-1R	CS02-470-2R	CS02-470-1R	CSO2	CS02-710-2R	CS02-231-2R	CS02-131-2R
Description	Common Mode Choke	Common Mode Choke	Common Mode Choke	Common Mode Choke	Common Mode Choke	Common Mode Choke	Common Mode Choke
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to
Maker	ICE Components	ICE Components	ICE Components	-	ICE Components	ICE Components	ICE Components
Reach Compliance Code	unknow	unknow	unknow	-	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	-	N	N	N
Other features	IMPEDANCE AT 10 MHZ	IMPEDANCE AT 8 MHZ	IMPEDANCE AT 8 MHZ	-	IMPEDANCE AT 8 MHZ	IMPEDANCE AT 6 MHZ	IMPEDANCE AT 7 MHZ
Certification	UL	UL	UL	-	UL	UL	UL
Maximum DC resistance	0.025 Ω	0.02 Ω	0.063 Ω	-	0.027 Ω	0.145 Ω	0.06 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	-	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	5.5 mm	5.5 mm	5.5 mm	-	5.5 mm	5.5 mm	5.5 mm
inductance	37.3 µH	63 µH	63 µH	-	94.7 µH	312 µH	176 µH
length	10.6 mm	10.6 mm	10.6 mm	-	10.6 mm	10.6 mm	10.6 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2	-	2	2	2
Maximum operating temperature	155 °C	155 °C	155 °C	-	155 °C	155 °C	155 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C
Output impedance	561 OHM Ω	1300 OHM Ω	1010 OHM Ω	-	1490 OHM Ω	5150 OHM Ω	2900 OHM Ω
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L10.6XB9.3XH5.5 (mm)/L0.417XB0.366XH0.217 (inch)	L10.6XB9.3XH5.5 (mm)/L0.417XB0.366XH0.217 (inch)	L10.6XB9.3XH5.5 (mm)/L0.417XB0.366XH0.217 (inch)	-	L10.6XB9.3XH5.5 (mm)/L0.417XB0.366XH0.217 (inch)	L10.6XB9.3XH5.5 (mm)/L0.417XB0.366XH0.217 (inch)	L10.6XB9.3XH5.5 (mm)/L0.417XB0.366XH0.217 (inch)
Rated current	2.8 A	3.4 A	1.33 A	-	2.69 A	0.89 A	1.65 A
width	9.3 mm	9.3 mm	9.3 mm	-	9.3 mm	9.3 mm	9.3 mm
Base Number Matches	1	1	1	-	1	1	1
