Agilent AMMC-6241
26–43 GHz Low Noise Amplifier
Data Sheet
Features
•
Wide frequency range: 26 - 43 GHz
•
High gain: 20 dB
•
Low 50
Ω
Noise Figure: 2.7 dB
Chip Size: 1900 x 800
µm
(74.8 x 31.5 mils)
Chip Size Tolerance: ± 10
µm
(± 0.4 mils)
Chip Thickness: 100 ± 10
µm
(4 ± 0.4 mils)
RF Pad Dimensions: 110 x 90
µm
(4.3 x 3.5 mils)
DC Pad Dimensions: 100 x 100
µm
(3.9 x 3.9 mils)
•
50
Ω
Input and Output Match
•
Flat Gain Response
•
Single 3V Supply Bias
Applications
•
Microwave Radio systems
•
Satellite VSAT, DBS Up/Down
Link
•
LMDS & Pt-Pt mmW Long Haul
•
Broadband Wireless Access
(including 802.16 and 802.20
WiMax)
•
WLL and MMDS loops
•
Commercial Grade Military
Description
Agilent’s AMMC-6241 is a high
gain, low-noise amplifier that
operates from 26 GHz to 43
GHz. This LNA provides a
wide-band solution for system
design since it covers several
bands, thus, reduces part
inventory. The device has
input / output match to 50
Ohm, is unconditionally stable
and can be used as either
primary or sub-sequential low
noise gain stage. By
eliminating the complex tuning
and assembly processes
typically required by hybrid
(discrete-FET) amplifiers, the
AMMC-6241 is a cost-effective
alternative in the 26 - 43 GHz
communications receivers. The
backside of the chip is both
RF and DC ground. This helps
simplify the assembly process
and reduces assembly related
performance variations and
costs. It is fabricated in a
PHEMT process to provide
exceptional noise and gain
performance. For improved
reliability and moisture
protection, the die is
passivated at the active areas.
AMMC-6241 Absolute Maximum Ratings
[1]
Symbol Parameters/Conditions
V
d
V
g
I
d
P
in
T
ch
T
stg
T
max
Positive Drain Voltage
Gate Supply Voltage
Drain Current
CW Input Power
Operating Channel Temp.
Storage Case Temp.
Units
V
V
mA
dBm
°C
°C
Min.
Max.
7
NA
100
15
+150
-65
+150
+300
Maximum Assembly Temp (60 sec max) °C
Note: Operation in excess of any one of these conditions may result in permanent damage to this device.
Note: These devices are ESD sensitive. The following precautions are strongly recommended. Ensure that an ESD approved
carrier is used when dice are transported from one destination to another. Personal grounding is to be worn at all times when
handling these devices. For more details, refer to Agilent Application Note A004R: Electrostatic Discharge Damage and Control.
ESD Machine Model (Class A)
ESD Human Body Model (Class 0)
AMMC-6241 DC Specifications/Physical Properties
[1]
Symbol
I
d
θ
ch-b
Parameters and Test Conditions
Drain Supply Current (under any RF power drive and temperature) (V
d
=3.0 V)
Thermal Resistance
[2]
(Backside temperature, Tb = 25°C)
Units Min. Typ.
mA
°C/W
60
25
Max.
80
Notes:
1. Ambient operational temperature T
A
=25°C unless otherwise noted.
2. Channel-to-backside Thermal Resistance (q
ch-b
) = 26°C/W at T
channel
(T
c
) = 34°C as measured using infrared microscopy. Thermal Resistance at
backside temperature (T
b
) = 25°C calculated from measured data.
AMMC-6241 RF Specifications
[3, 4, 5]
T
A
= 25°C, V
d
=3.0 V, I
d(Q)=
60 mA, Z
in
=Z
o
=50
Ω
Symbol
Gain
NF
P
-1dB
OIP3
RLin
RLout
Isol
Parameters and Test Conditions
Small-signal Gain
[6]
Noise Figure into 50
Ω
Output Power at 1dB Gain
Compression
Third Order Intercept Point;
∆f=100MHz;
Pin=-35dBm
Input Return Loss
[6]
Output Return Loss
[6]
Reverse Isolation
[6]
Units Minimum
dB
dB
dBm
dBm
dB
dB
dB
Typical
Maximum
Sigma
1.0
26-37 GHz = 3.0
37-40 GHz = 3.3
0.05
26-35 GHz = 20
26-37 GHz = 21
35-40 GHz = 18.5 37-40 GHz = 19.5
26-37 GHz = 2.7
37-40 GHz = 3.0
+10
+20
-13
-16
-40
-11
-12
0.40
0.50
0.50
Notes:
3. Small/Large -signal data measured in wafer form T
A
= 25°C.
4. 100% on-wafer RF test is done at frequency =30, 32, and 38 GHz.
5. Specifications are derived from measurements in a 50
Ω
test environment. Aspects of the amplifier performance may be improved over a more
narrow bandwidth by application of additional conjugate, linearity, or low noise (Gopt) matching.
6. As derived from measured s-parameters
USL
LSL
USL
2.6
2.7
2.8
2.9
19
20
2.8
2.9
3
3.1
3.2
3.3
Noise Figure at 32 GHz
Gain at 38 GHz
Noise Figure at 38GHz
Typical distribution of Small Signal Gain, Noise Figure, and Return Loss. Based on 1500 part sampled over several
production lots.
2
AMMC-6241 Typical Performances
(T
A
= 25°C, V
d1
= V
d2
=3.0 V, I
total
= 60 mA, Z
in
= Z
out
= 50
Ω
unless otherwise stated)
NOTE: These measurements are in a 50
Ω
test environment. Aspects of the amplifier performance may be improved over
a narrower bandwidth by application of additional conjugate, linearity, or low noise (Gopt) matching.
25
20
S12 (dB)
0
-10
-20
0
-5
S21 (dB)
10
5
0
25
29
33
37
41
Frequency (GHz)
45
-40
-50
S11 (dB)
25
29
33
37
41
Frequency (GHz)
45
15
-30
-10
-15
-60
-70
-20
25
29
33
37
Frequency (GHz)
41
45

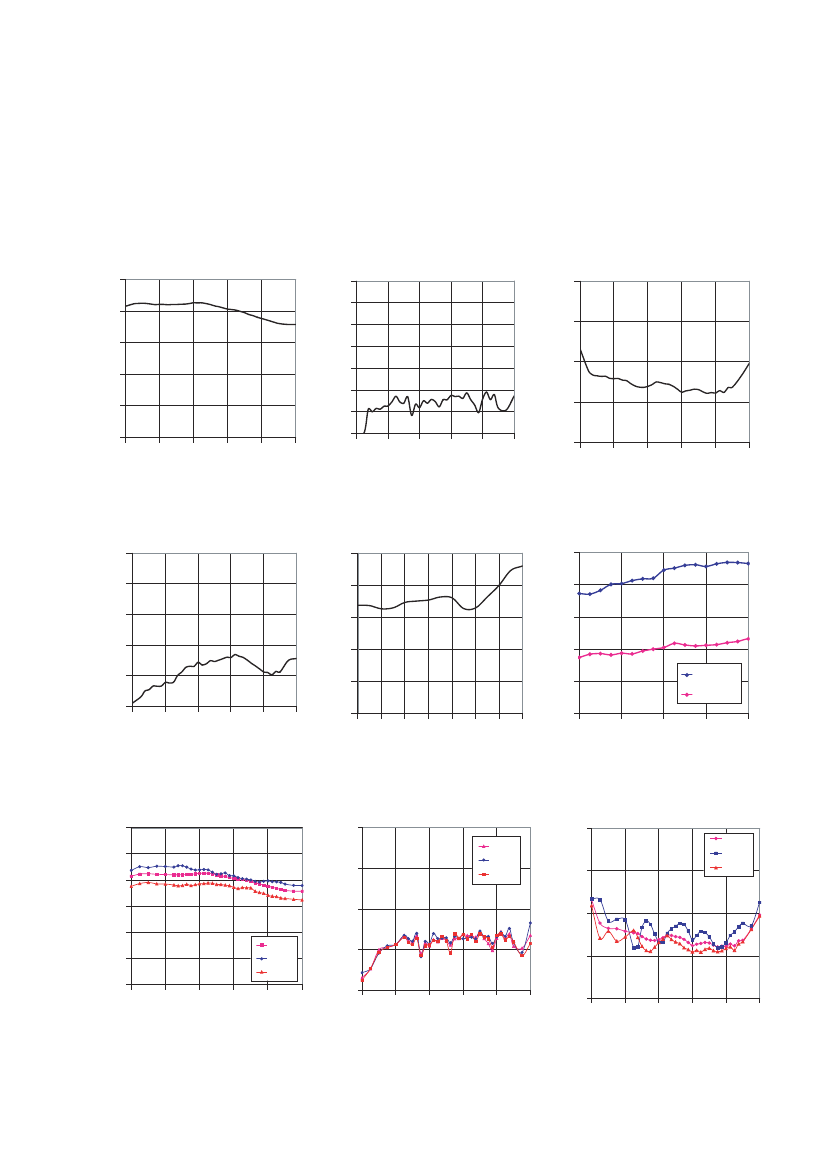

Figure 1. Typical Gain
Figure 2. Typical Isolation
Figure 3 Typical Input Return Loss
0
-5
3.5
3.0
25
20
S22 (dB)
-10
-15
-20
-25
25
29
33
37
41
Frequency (GHz)
45
NF (dB)
OIP3 & OP1dB (dBm)
2.5
2.0
1.5
1.0
26
28
30 32 34 36
Frequency (GHz)
38
40
15
10
5
0
27
31
35
39
Frequency (GHz)
43
OIP3
OP-1dB
Figure 4. Typical Output Return Loss
Figure 5. Typical Noise Figure into a 50
Ω
load.
Figure 6. Typical Output P
-1dB
and 3
rd
Order
Intercept Point.
30
25
0
25C
-40C
+85C
0
25C
-40C
+85C
-20
20
-5
S21 (dB)
S12 (dB)
15
10
5
0
25
29
33
37
Frequency (GHz)
41
45
25C
-40C
+85C
-40
-60
-80
25
29
33
37
41
Frequency (GHz)
45
S11 (dB)
-10
-15
-20
25
29
33
37
Frequency (GHz)
41
45

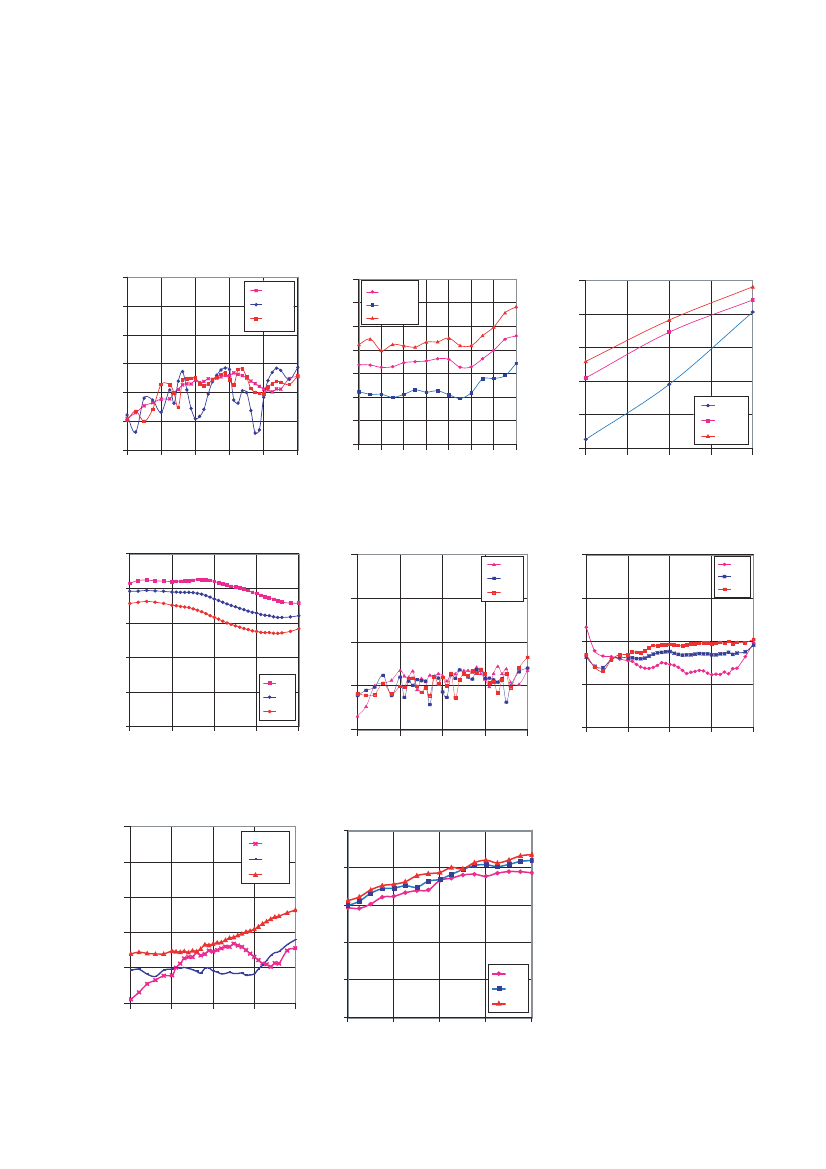

Figure 7. Gain Over Temperature
Figure 8. Isolation Over Temperature
Figure 9. Input Return Loss Over Temperature
3
AMMC-6241 Typical Performances
(T
A
= 25°C, V
d1
= V
d2
=3.0 V, I
total
=60 mA, Z
in
= Z
out
= 50
Ω
unless otherwise stated)
NOTE: These measurements are in a 50
Ω
test environment. Aspects of the amplifier performance may be improved over
a narrower bandwidth by application of additional conjugate, linearity, or low noise (Gopt) matching.
0
-5
-10
S22 (dB)
4.5
66
+25C
-40C
+85C
Idd (mA)
25C
-40C
+85C
NF (dB)
4.0
3.5
3.0
2.5
2.0
1.5
1.0
64
62
60
58
56
3
3.5
4
Vdd (V)
4.5
5
-40C
+25C
+85C
-15
-20
-25
-30
25
29
33
37
41
Frequency (GHz)
45
26 28 30 32 34 36 38 40
Frequency (GHz)
Figure 11. Noise Figure Over Temperature
Figure 10. Output Return Loss Over
Temperature
Figure 12. Typical Total Idd over Temperature
25
20
15
10
5
0
25
30
35
40
Frequency (GHz)
45
3V
4V
5V
0
3V
4V
5V
0
-20
-5
3V
4V
5V
S21 (dB)
S12 (dB)
S11 (dB)
-40
-10
-60
-15
-80
25
30
35
40
Frequency (GHz)
45
-20
25
30
35
40
Frequency (GHz)
45
Figure 13. Gain over Vdd
0
-5
S22 (dB)
Figure 14. Isolation Over Vdd
Figure 15. Input RL Over Vdd
29
3V
4V
5V
24
OIP3 (dBm)
-10
-15
-20
19
14
9
3V
4V
5V
31
35
39
Frequency (GHz)
43
-25
25
30
35
40
Frequency (GHz)
45
4
27
Figure 16. Output RL Over Vdd
Figure 17. Output IP3 Over Vdd
4
AMMC-6241 Typical Scattering Parameters
[1]
(Tc=25°C, V
D1
=V
D2
= 3 V, I
total
= 60 mA ,Z
in
= Z
out
= 50
Ω
)
Note: Data obtained from on-wafer measurements
Freq GHz
15.0
17.0
19.0
22.0
24.0
25.0
26.0
26.5
27.0
27.5
28.0
28.5
29.0
29.5
30.0
30.5
31.0
31.5
32.0
32.5
33.0
33.5
34.0
34.5
35.0
35.5
36.0
36.5
37.0
37.5
38.0
38.5
39.0
39.5
40.0
40.5
41.0
41.5
42.0
42.5
43.0
44.0
45.0
46.0
47.0
48.0
49.0
50.0
S11
dB
-1.013
-1.306
-1.528
-2.642
-5.557
-8.397
-11.117
-11.627
-11.731
-11.805
-11.787
-12.038
-12.076
-12.070
-12.259
-12.339
-12.699
-12.988
-13.131
-13.159
-13.040
-12.824
-12.498
-12.573
-12.710
-12.792
-13.029
-13.389
-13.752
-13.599
-13.511
-13.392
-13.449
-13.713
-13.892
-13.822
-13.857
-13.578
-13.775
-13.188
-13.131
-11.798
-10.167
-8.784
-7.425
-6.079
-4.403
-2.878
Mag
0.890
0.860
0.839
0.738
0.527
0.380
0.278
0.262
0.259
0.257
0.257
0.250
0.249
0.249
0.244
0.242
0.232
0.224
0.221
0.220
0.223
0.228
0.237
0.235
0.231
0.229
0.223
0.214
0.205
0.209
0.211
0.214
0.213
0.206
0.202
0.204
0.203
0.209
0.205
0.219
0.221
0.257
0.310
0.364
0.425
0.497
0.602
0.718
Phase
173.506
152.019
127.230
74.942
13.805
-29.421
-81.009
-106.817
-129.432
-149.942
-165.515
-176.581
173.456
165.646
159.454
154.710
150.567
148.382
146.592
145.349
145.137
143.097
140.155
138.158
134.590
131.388
130.988
129.322
130.820
130.535
131.737
130.598
130.777
130.341
130.693
131.722
133.603
134.336
136.724
139.343
142.382
146.033
147.240
144.663
139.414
135.513
128.030
120.056
S21
dB
-7.637
5.022
9.344
15.740
19.561
20.760
21.155
21.214
21.239
21.203
21.113
21.023
21.060
21.058
21.007
21.043
21.040
21.078
21.104
21.192
21.308
21.302
21.296
21.182
21.024
20.813
20.678
20.494
20.310
20.239
20.142
19.955
19.742
19.463
19.274
19.016
18.830
18.631
18.429
18.218
18.030
17.887
17.877
17.791
17.680
17.700
17.793
17.615
Mag
0.415
1.783
2.932
6.123
9.507
10.915
11.422
11.501
11.533
11.485
11.367
11.250
11.297
11.296
11.229
11.276
11.272
11.322
11.355
11.471
11.625
11.617
11.609
11.458
11.251
10.981
10.811
10.585
10.364
10.279
10.165
9.948
9.708
9.400
9.198
8.929
8.740
8.542
8.346
8.145
7.970
7.841
7.831
7.755
7.656
7.673
7.756
7.599
Phase
-94.306
163.635
75.144
-29.058
-103.326
-143.267
178.829
160.796
143.152
126.214
110.350
95.138
80.037
65.449
51.326
37.629
23.753
10.265
-3.075
-16.397
-30.578
-44.533
-58.173
-72.363
-85.797
-98.385
-111.390
-123.674
-136.026
-147.683
-160.235
-172.253
175.463
164.088
152.397
141.026
129.648
118.871
107.881
97.768
87.333
67.235
45.991
24.481
2.691
-19.090
-43.456
-66.790
S12
dB
-59.891
-74.194
-58.181
-71.353
-69.197
-73.597
-69.288
-58.793
-59.928
-58.475
-58.768
-57.465
-57.267
-55.391
-52.903
-55.427
-55.992
-53.178
-61.593
-56.515
-58.069
-54.981
-56.012
-54.348
-55.336
-57.651
-54.494
-54.425
-52.515
-52.954
-52.864
-53.785
-51.373
-54.373
-56.900
-60.282
-54.278
-51.010
-54.346
-52.144
-58.236
-59.155
-52.882
-52.831
-50.765
-53.926
-52.746
-49.370
Mag
0.001
0.000
0.001
0.000
0.000
0.000
0.000
0.001
0.001
0.001
0.001
0.001
0.001
0.002
0.002
0.002
0.002
0.002
0.001
0.001
0.001
0.002
0.002
0.002
0.002
0.001
0.002
0.002
0.002
0.002
0.002
0.002
0.003
0.002
0.001
0.001
0.002
0.003
0.002
0.002
0.001
0.001
0.002
0.002
0.003
0.002
0.002
0.003
Phase
132.755
57.784
46.460
-129.404
139.800
-65.707
169.237
-110.455
-142.525
-171.775
-162.445
158.458
169.607
168.814
134.843
92.750
109.517
109.357
76.010
131.534
100.560
85.525
113.052
84.952
50.316
106.642
104.628
83.500
90.790
67.823
57.307
81.931
54.256
53.324
27.630
22.819
32.324
-8.926
41.468
19.887
-38.809
-43.306
162.395
-14.230
-17.966
-12.616
110.943
18.237
S22
dB
-10.443
-14.828
-20.040
-27.825
-28.011
-24.449
-23.448
-22.500
-22.260
-21.694
-21.715
-21.674
-21.093
-21.180
-21.033
-19.948
-19.390
-18.631
-18.449
-18.461
-17.807
-18.223
-18.033
-17.550
-17.667
-17.466
-17.225
-16.978
-17.004
-16.551
-16.813
-17.019
-17.453
-17.967
-18.409
-18.887
-19.364
-19.483
-19.835
-19.299
-19.365
-17.525
-17.185
-17.248
-16.593
-15.788
-15.204
-14.953
Mag
0.301
0.181
0.100
0.041
0.040
0.060
0.067
0.075
0.077
0.082
0.082
0.082
0.088
0.087
0.089
0.101
0.107
0.117
0.120
0.119
0.129
0.123
0.125
0.133
0.131
0.134
0.138
0.142
0.141
0.149
0.144
0.141
0.134
0.126
0.120
0.114
0.108
0.106
0.102
0.108
0.108
0.133
0.138
0.137
0.148
0.162
0.174
0.179
Phase
129.202
102.094
80.180
4.390
-90.859
-110.024
-127.918
-137.132
-143.296
-148.929
-157.855
-156.390
-165.820
-168.128
-165.016
-169.860
-174.803
-177.679
173.486
168.589
164.643
157.797
155.542
150.830
145.841
143.100
137.833
131.310
127.335
120.618
113.724
107.173
100.864
97.791
94.365
92.964
92.290
92.508
94.045
94.187
93.694
90.759
81.030
74.975
69.936
60.992
57.597
47.450
5
京公网安备 11010802033920号
EEWORLD
