56K101-400N4 datasheet, PDF - EEWORLD Datasheet

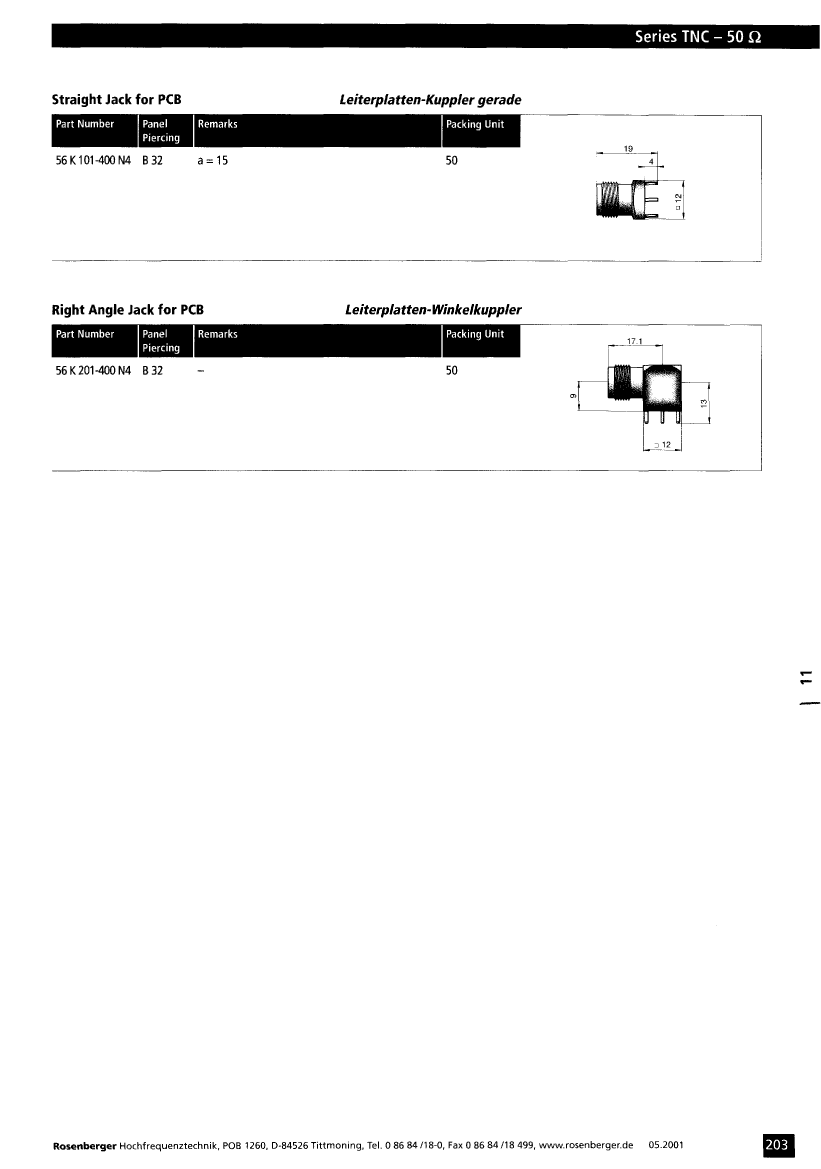

56K101-400N4: DescriptionRF TNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack,; CategoryThe connector; File Size17KB，1 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

56K101-400N4 Overview

RF TNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack,

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	compliant
Other features	STANDARDS: MIL-C-39012; IEC 169-17, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
Insertion loss	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	TNC
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.2
Base Number Matches	1

	56K101-400N4	56K201-400N4
Description	RF TNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack,	RF TNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Jack,
Maker	Rosenberger	Rosenberger
Reach Compliance Code	compliant	compliant
Other features	STANDARDS: MIL-C-39012; IEC 169-17, INSERTION LOSS MAX AT 1 GHZ	STANDARDS: MIL-C-39012; IEC 169-17, INSERTION LOSS MAX AT 1 GHZ
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF TNC CONNECTOR	RF TNC CONNECTOR
Contact to complete cooperation	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD
Contact point gender	FEMALE	FEMALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	YES	YES
Insertion loss	0.1 dB	0.1 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4
MIL compliance	YES	YES
Manufacturer's serial number	TNC	TNC
Installation method	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD
Maximum operating frequency	10 GHz	10 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
Termination type	SOLDER	SOLDER
voltage standing wave ratio	1.2	1.25
Base Number Matches	1	1
