FEATURES
Low Cost
Low Power
2.0 W @ 2.5 V (Outputs Enabled)
<100 mW @ 2.5 V (Outputs Disabled)
34 34, Fully Differential, Nonblocking Array
3.2 Gbps per Port NRZ Data Rate
Wide Power Supply Range: 2.5 V to 3.3 V
LVTTL or LVCMOS Level Control Inputs:
@ 2.5 V to 3.3 V
Low Jitter: 45 ps
Drives a Backplane Directly
Programmable Output Swing
100 mV to 1.6 V Differential
50 On-Chip I/O Termination
User Controlled Voltage at the Load
Minimizes Power Dissipation
Dual Rank Latches
Available in 256-Ball Grid Array
34 34, 3.2 Gbps
Asynchronous Digital Crosspoint Switch
AD8152
*
FUNCTIONAL BLOCK DIAGRAM
VCC
34
INP
VTTI
34
INN
34
OUTP
34 34
DIFFERENTIAL
SWITCH MATRIX
OUTPUT
LEVEL
DACs
VTTO
34
OUTN
D[5:0]
MATRIX
CONNECTION
LATCHES
CONNECTION
DECODE
OUTPUT
LEVEL
LATCHES
RESET
CS
A[6:0]
RE
WE
UPDATE
VEE
CONTROL
LOGIC
AD8152
APPLICATIONS
Fiber Optic Network Switching
High Speed Serial Backplane Routing to OC-48 with FEC
Gigabit Ethernet
Digital Video (HDTV)
Data Storage Networks
GENERAL DESCRIPTION
AD8152 is a member of the Xstream line of products and is a
breakthrough in digital switching, offering a large switch array
(34
×
34) on very little power, typically 2.0 W. Additionally, it
operates at data rates up to 3.2 Gbps per port, making it suitable
for Sonet/SDH OC-48 with Forward Error Correction (FEC).
The AD8152’s useful supply voltage range allows the user to
operate at LVPECL/CML data levels down to 2.5 V. The control
interface is LVTTL or LVCMOS compatible on 2.5 V to 3.3 V.
The AD8152’s fully differential signal path reduces jitter and
crosstalk while allowing the use of smaller single-ended voltage
swings. It is offered in a 256-ball SBGA package that operates
over the industrial temperature range of 0°C to 85°C.
100mV/DIV
80ps/DIV

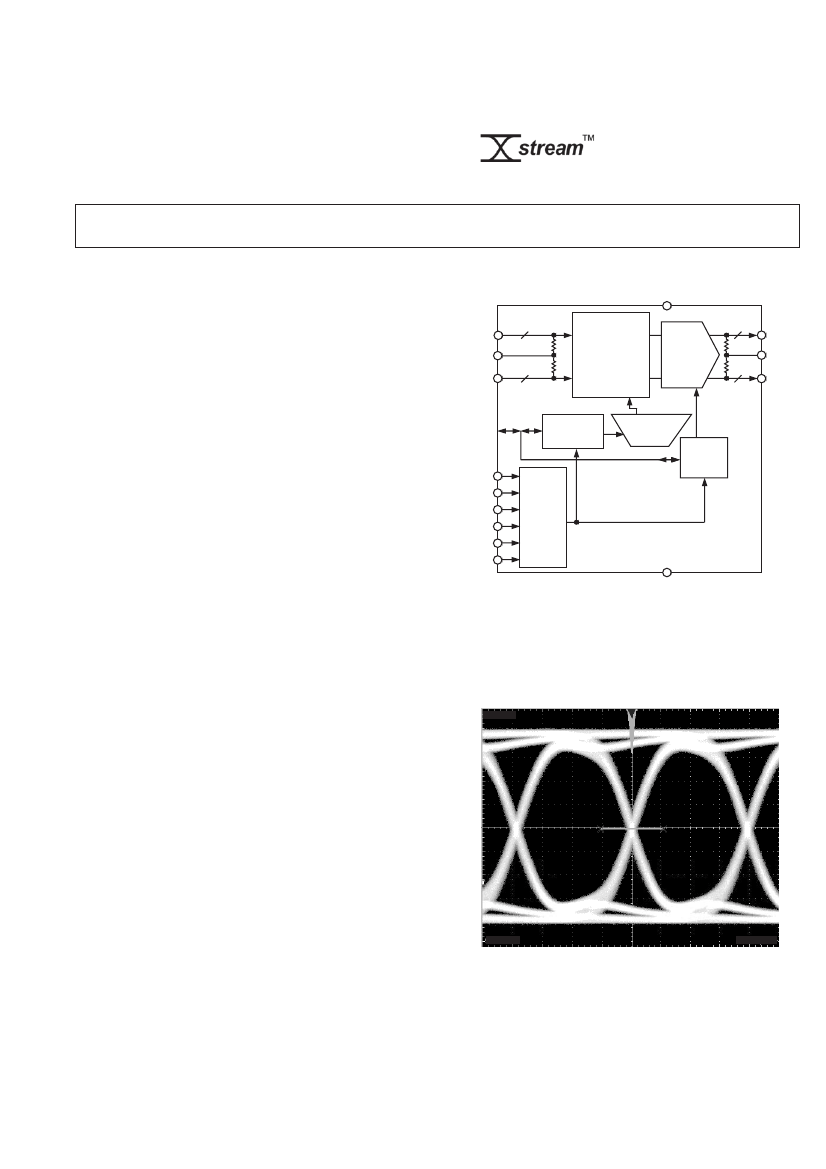

Figure 1. Eye Pattern, 3.2 Gbps, PRBS 23
*Patent
Pending
REV. A
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective companies.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
www.analog.com
Fax: 781/326-8703
© 2003 Analog Devices, Inc. All rights reserved.
AD8152
ELECTRICAL CHARACTERISTICS
Parameter
DYNAMIC PERFORMANCE
Max Data Rate/Channel (NRZ)
Channel Jitter
RMS Channel Jitter
Propagation Delay
Propagation Delay Match
Output Rise/Fall Time
INPUT CHARACTERISTICS
Input Voltage Swing
Input Voltage Range
Input Bias Current
Input Capacitance
OUTPUT CHARACTERISTICS
Output Voltage Swing
Output Voltage Range
Output Current
Output Capacitance
TERMINATION CHARACTERISTICS
Resistance
Temperature Coefficient
POWER SUPPLY
Operating Range
VCC
Quiescent Current
VCC
VEE
(@ 25 C, VCC = 2.5 V to 3.3 V, VEE = 0 V, R
L
= 50
unless otherwise noted.)
Min
3.2
, Differential Output Swing = 800 mV p-p,
Condition
Typ
Max
Unit
Gbps
ps p-p
ps
ps
ps
ps
mV p-p
V
mA
pF
mV p-p
V
mA
pF
W
W/∞C
Data Rate
£
3.2 Gbps; PRBS 2
23
– 1
Input to Output
20% to 80%
Single-Ended (See TPC 14)
Common-Mode (See TPC 15)
45
<10
660
±
50
100
50
VEE + 0.8
2
2
800
±
120
1000
VCC + 0.2
Differential (See TPC 18)
100
800
VCC – 1.2
2
2
43
50
0.05
1600
VCC + 0.2
32
57
VEE = 0 V
All Outputs Disabled
All Outputs Enabled
All Outputs Disabled
All Outputs Enabled
T
MIN
to T
MAX,
All Outputs Enabled
VCC = 3.3 V
VCC = 3.3 V
VCC = 2.5 V
VCC = 2.5 V
VCC = 3.3 V, IOH = –2 mA
VCC = 3.3 V, IOL = +2 mA
VCC = 2.5 V, IOH = –100 uA
VCC = 2.5 V, IOL = +100 uA
2.25
32
190
32
770
800
2
3.63
45
45
V
mA
mA
mA
mA
mA
V
V
V
V
V
V
V
V
∞C
∞C/W
∞C/W
∞C/W
LOGIC INPUT CHARACTERISTICS
Input High (VIH)
Input Low (VIL)
Input High (VIH)
Input Low (VIL)
LOGIC OUTPUT CHARACTERISTICS
Output High (VOH)
Output Low (VOL)
Output High (VOH)
Output Low (VOL)
THERMAL CHARACTERISTICS
Operating Temperature Range
JA
0.8
1.7
0.7
2.4
0.4
2.1
0.2
0
85
15
12
11
Still Air
200 lfpm
400 lfpm
Specifications subject to change without notice.
–2–
REV. A
AD8152
ABSOLUTE MAXIMUM RATINGS
1
MAXIMUM POWER DISSIPATION – W
16
Tj = 150 C
14
12
400 lfpm
10
200 lfpm
8
STILL AIR
6
4
2
0
VCC to VEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.7 V
VTTI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VCC + 0.6 V
VTTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VCC + 0.6 V
Internal Power Dissipation
2
AD8152 256-Ball SBGA (BP) . . . . . . . . . . . . . . . . . . 8.33 W
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . VCC + 0.6 V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . 1.7 V
Logic Input Voltage . . . . . . VEE – 0.3 V < V
IN
< VCC + 0.6 V
Storage Temperature Range . . . . . . . . . . . . . –65°C to +125°C
Lead Temperature Range . . . . . . . . . . . . . . . . . . . . . . . 300°C
NOTES
1
Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
2
Specification is for the device in free air (T
A
= 25°C):
JA
= 15°C/W @ still air.
0
10
20
30
40
50
60
70
AMBIENT TEMPERATURE – C
80
90
Figure 2. Maximum Power Dissipation vs. Temperature
MAXIMUM POWER DISSIPATION
The maximum power that can be safely dissipated by the AD8152 is
limited by the associated rise in junction temperature. The maxi-
mum safe junction temperature for plastic encapsulated devices
is determined by the glass transition temperature of the plastic,
approximately 150°C. Temporarily exceeding this limit may cause
a shift in parametric performance due to a change in the stresses
exerted on the die by the package. Exceeding a junction tem-
perature of 175°C for an extended period can result in device
failure. To ensure proper operation, it is necessary to observe the
maximum power derating curves shown in Figure 2.
ORDERING GUIDE
Model
AD8152JBP
AD8152-EVAL
Temperature Range
0°C to 85°C
Package Description
256-Ball SBGA (27 mm
×
27 mm)
Evaluation Board
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although the
AD8152 features proprietary ESD protection circuitry, permanent damage may occur on devices
subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended
to avoid performance degradation or loss of functionality.
REV. A
–3–
AD8152

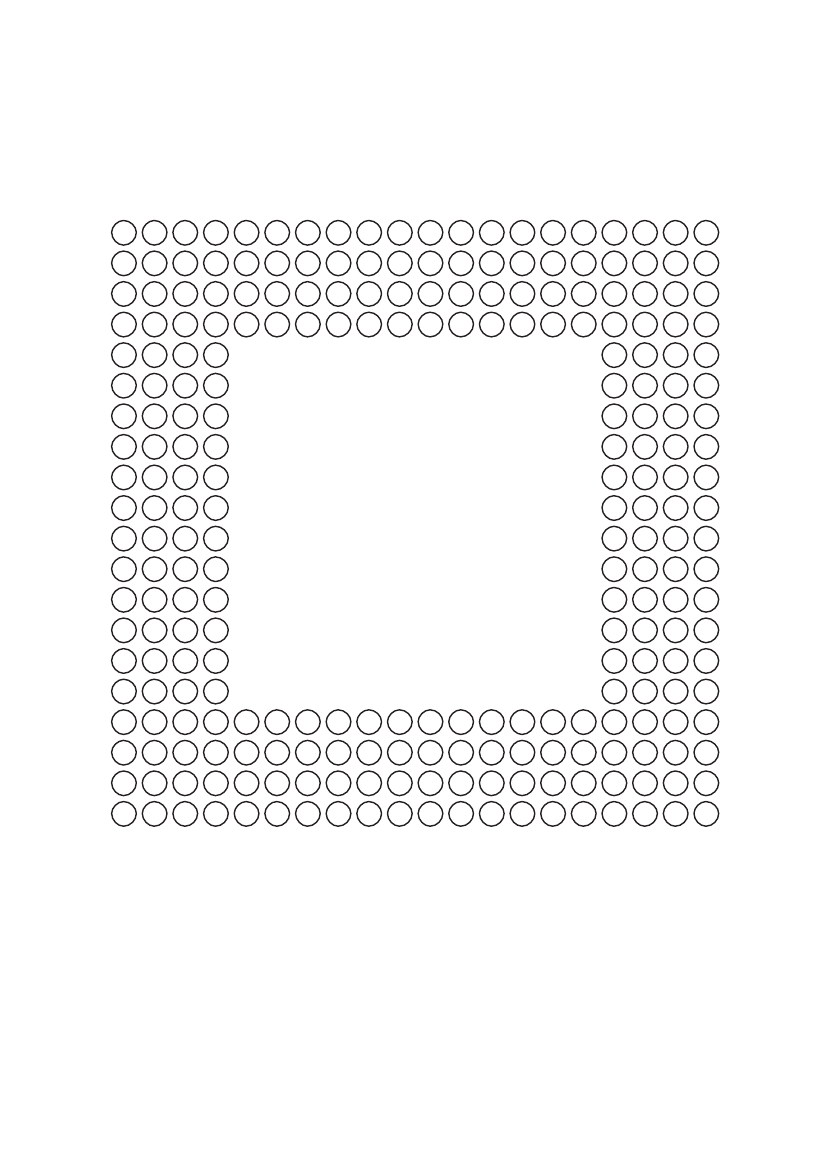

BALL GRID ARRAY
