531816-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 531816-7

531816-7: DescriptionCONNECTOR, 70 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CARD EXTENDER, RECEPTACLE; CategoryThe connector; File Size134KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

531816-7 Overview

CONNECTOR, 70 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CARD EXTENDER, RECEPTACLE

531816-7 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	531816
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.91 mm
Termination type	CARD EXTENDER
Total number of contacts	70
Base Number Matches	1

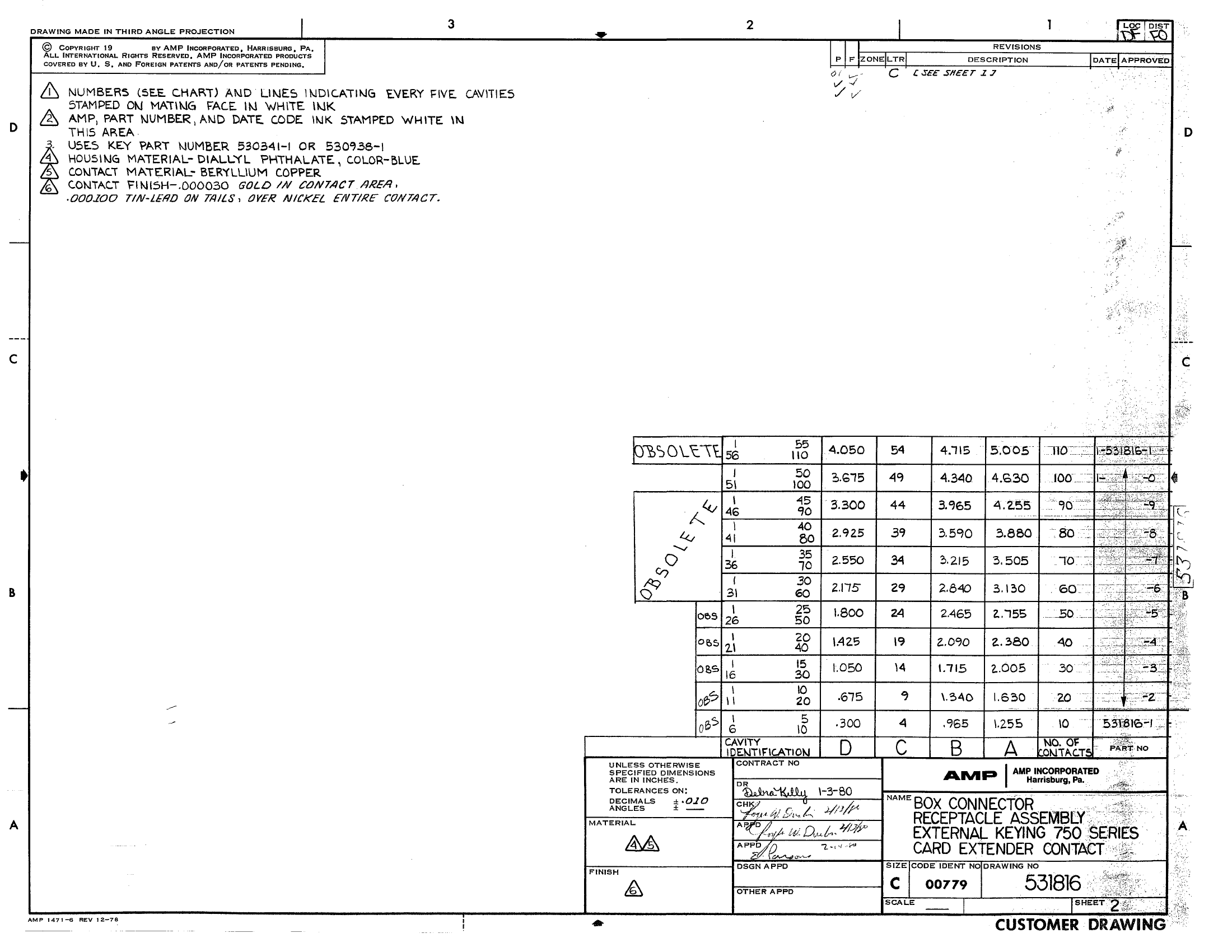

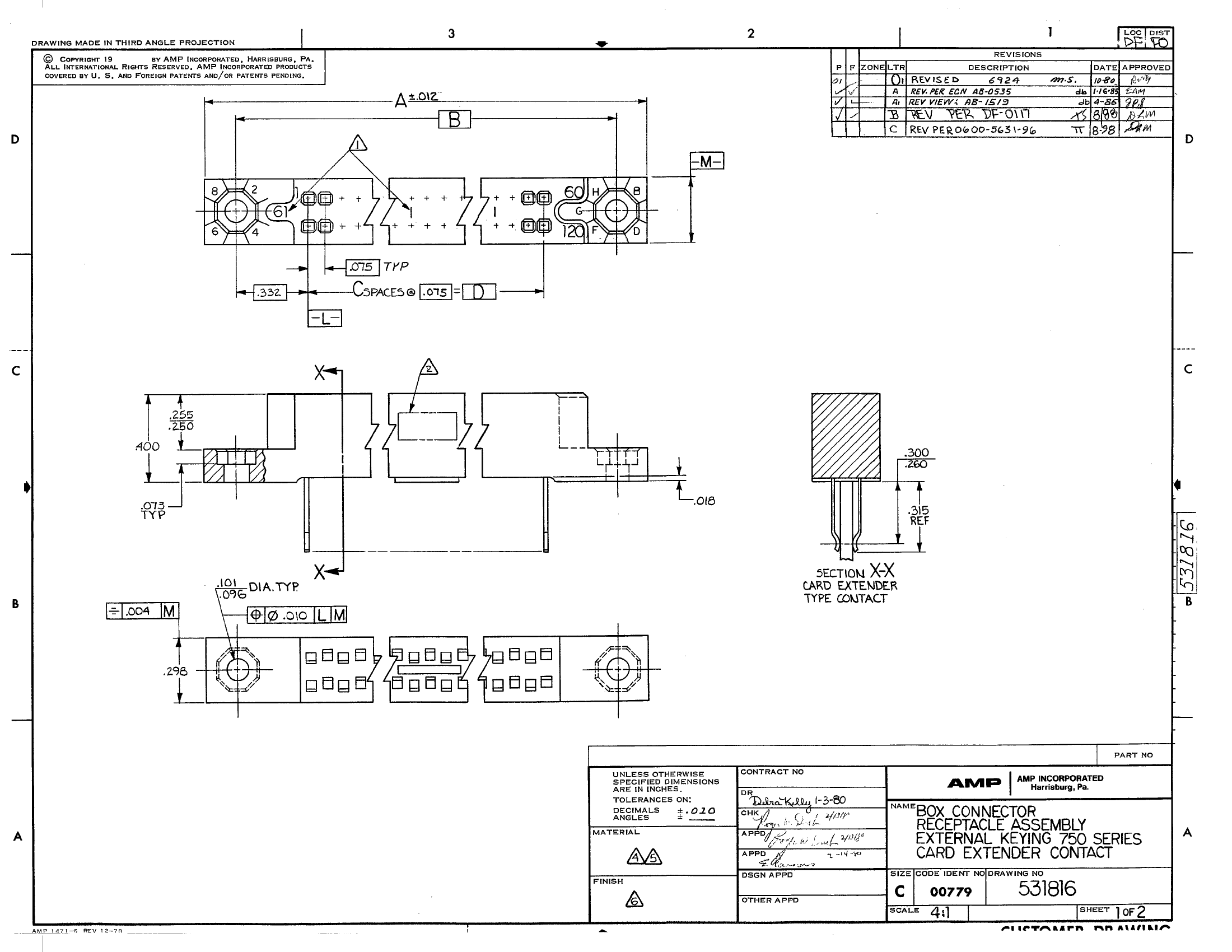

Preview

Download Datasheet

View All

531816-7 Related Products

	531816-7	1-531816-1	531816-3	531816-1	531816-2	531816-6	531816-9	531816-5	531816-4
Description	CONNECTOR, 70 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CARD EXTENDER, RECEPTACLE	CONNECTOR, 110 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CARD EXTENDER, RECEPTACLE	HEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,SKT,0.075 PITCH,HOLE .087-.098	CONNECTOR, 10 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CARD EXTENDER, RECEPTACLE	CONNECTOR, 20 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CARD EXTENDER, RECEPTACLE	CONNECTOR, 60 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CARD EXTENDER, RECEPTACLE	CONNECTOR, 90 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, CARD EXTENDER, RECEPTACLE	HEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,SKT,0.075 PITCH,HOLE .087-.098	HEADER CONNECTOR,PCB MNT,PLUG,40 CONTACTS,SKT,0.075 PITCH,HOLE .087-.098
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Manufacturer's serial number	531816	531816	531816	531816	531816	531816	531816	531816	531816
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of rows loaded	2	2	2	2	2	2	2	2	2
Terminal pitch	1.91 mm	1.91 mm	1.905 mm	1.91 mm	1.91 mm	1.91 mm	1.91 mm	1.905 mm	1.905 mm
Total number of contacts	70	110	30	10	20	60	90	50	40
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Other features	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	-
DIN compliance	NO	NO	-	NO	NO	NO	NO	-	-
Filter function	NO	NO	-	NO	NO	NO	NO	-	-
IEC compliance	NO	NO	-	NO	NO	NO	NO	-	-
MIL compliance	NO	NO	-	NO	NO	NO	NO	-	-
Mixed contacts	NO	NO	-	NO	NO	NO	NO	-	-
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-
Termination type	CARD EXTENDER	CARD EXTENDER	-	CARD EXTENDER	CARD EXTENDER	CARD EXTENDER	CARD EXTENDER	-	-
Base Number Matches	1	1	1	1	1	1	1	-	-
