LC Connectors
One-Piece LC Connector
Product Facts
■
Widened Thumb Latch
Universal One-Piece
Connector Body
Singlemode Telecordia
GR-326 tested (Report
#501-652)
Multimode TIA/EIA 568-B.3
tested
Singlemode and Multimode
are compatible with both
anaerobic adhesives and
heat cure epoxy adhesives
Universal Connector Body
■
Common body for simplex
or duplex
■
Common body for jumper
or buffer applications
■
Fewer parts to inventory

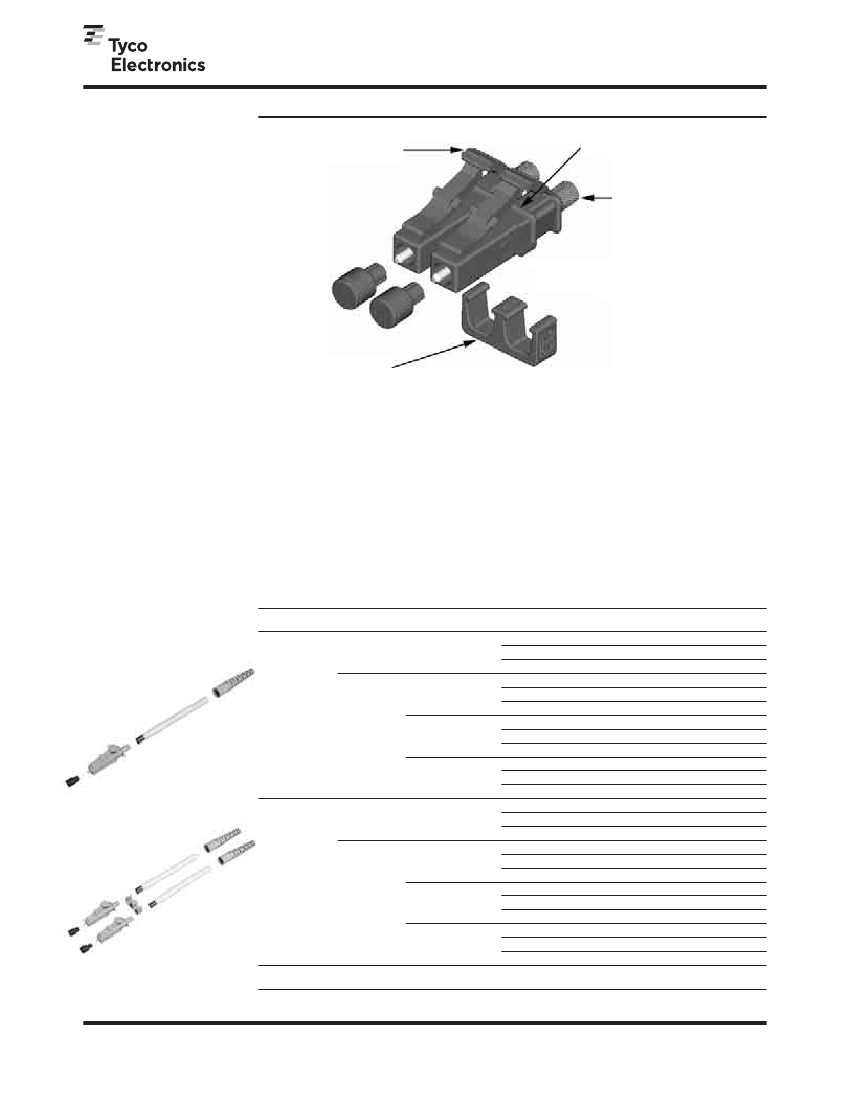

Duplex Clip
■
Field installable
■
Makes simplex
assemblies duplex
■
Correct polarity errors
■
Used for both jumpers
and buffered fiber
applications
One-Piece Body
■
Improved rigidity
■
Improved side-load
strength
Diamond Knurled Crimp Body
■
■
■
Duplex Clip
■
■
Color coded to comply
with 568 C
■
Aqua for 50/125 laser
optimized
■
Black for standard 50/125
■
Beige for 62.5/125
■
Blue for singlemode
■
Widened Thumb Latch
■
Increased hit area
■
Increased bend strength
■
Ramped front latch for
snag resistance
Diamond Knurled Crimp Body
■
Increased tensile proof
strength
■
Identical to
Tyco Electronics’
SC/FC design
Performance Characteristics
Insertion Loss
— 0.2 dB Typical
Reflectance
— -55 dB Typical
Operating Temperature
—
-40°C to +75°C
Durability
— 500 Cycles
■
■
LC Connector Kits
Description
Fiber Type
Singlemode
Housing
Color
Blue
Boot
Color
Blue
Used with
900 µm Buffered
1.6-2.0 mm Jacketed
3.0 mm Jacketed
900 µm Buffered
1.6-2.0 mm Jacketed
3.0 mm Jacketed
900 µm Buffered
1.6-2.0 mm Jacketed
3.0 mm Jacketed
900 µm Buffered
1.6-2.0 mm Jacketed
3.0 mm Jacketed
900 µm Buffered
1.6-2.0 mm Jacketed
3.0 mm Jacketed
900 µm Buffered
1.6-2.0 mm Jacketed
3.0 mm Jacketed
900 µm Buffered
1.6-2.0 mm Jacketed
3.0 mm Jacketed
900 µm Buffered
1.6-2.0 mm Jacketed
3.0 mm Jacketed
—
Individual Pack
Part Number
1918384-1
1918266-1
1918374-1
1918385-3
1918267-3
1918375-3
1918385-4
1918267-4
1918375-4
1918385-1
1918267-1
1918375-1
1918387-1
1918372-1
1918376-1
1918388-3
1918373-3
1918377-3
1918388-4
1918373-4
1918377-4
1918388-1
1918373-1
1918377-1
1754371-1
Bulk Pack
Part Number
1918384-2
1918266-2
1918374-2
1918385-5
1918267-5
1918375-5
1918385-6
1918267-6
1918375-6
1918385-2
1918267-2
1918375-2
1918387-2
1918372-2
1918376-2
1918388-5
1918373-5
1918377-5
1918388-6
1918373-6
1918377-6
1918388-2
1918373-2
1918377-2
—
Beige
Simplex
Multimode
Beige
Aqua
Black
Beige
Beige
Singlemode
Blue
Blue
Beige
Aqua
n)
ow
sh
2.0
6-
(1.
Duplex
Multimode
Beige
Black
Beige
Duplex Clip
For use with
Simplex Kits
Black
Beige
—
Note:
All part numbers are RoHS compliant.
44
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
Fiber Optic Products Catalog
LC Connectors
(Continued)
Connectors/Adapters/
Tooling & Accessories

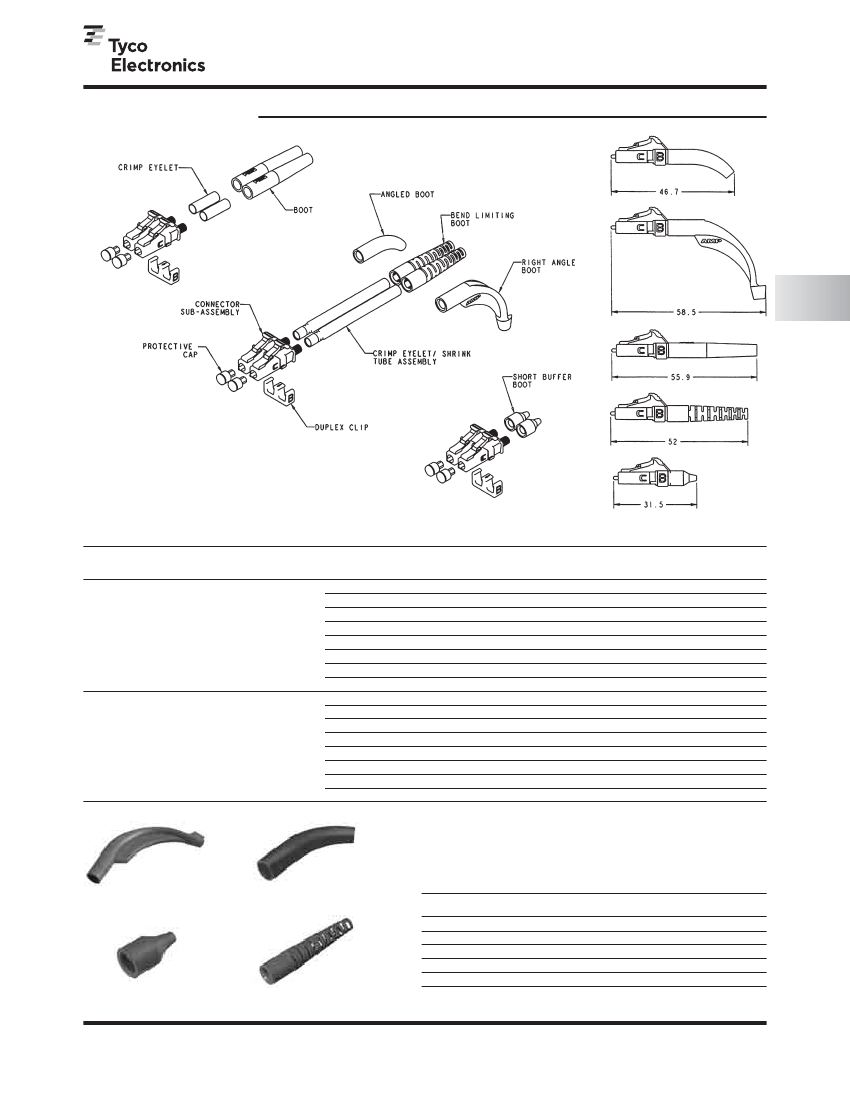

One-Piece LC Connector Family
3.0
Jacket
1
1.6 - 2.4 mm
Jacket
250 / 900 µm
Buffered Fiber
Note:
All of the above are also available in simplex.
LC Connector Component Selection Chart (bulk packaged)
Fiber Type
Simplex Connector
Assembly &
Dust Cap
Duplex Clip
Cable Size
1.6-2.0 mm
1.6-2.0 mm
1.6-2.0 mm
2.4 mm
2.4 mm
2.4 mm
3.0 mm
900 µm
1.6-2.0 mm
1.6-2.0 mm
1.6-2.0 mm
2.4 mm
2.4 mm
2.4 mm
3.0 mm
900 µm
Crimp Eyelet
with Heat Shrink
6374150-1
6374150-1
6374150-1
6588189-1
6588189-1
6588189-1
—
—
6374150-1
6374150-1
6374150-1
6588189-1
6588189-1
6588189-1
—
—
Crimp Eyelet
—
—
—
—
—
—
5504118-3
—
—
—
—
—
—
—
5504118-3
—
Strain Relief
Description
Straight/Bend Limiting
Angled
50 Degree Angle
Straight/Bend Limiting
Angled
50 Degree Angle
Straight
900 µm Buffer, 10 mm
Straight/Bend Limiting
Angled
50 Degree Angle
Straight/Bend Limiting
Angled
50 Degree Angle
Straight
900 µm Buffer, 10 mm
Strain Relief
Part Number
(see chart below)
1588153-X
1374737-X
6457543-X
1588153-X
1374737-X
6457543-X
502716-X
6588612-X
1588153-X
1374737-X
6457543-X
1588153-X
1374737-X
6457543-X
502716-X
6588612-X
Singlemode
(blue hsg.)
1828456-1
1754371-1
Multimode
(beige hsg.)
1754625-1
1754371-1
Crimp Tool Dieset only - 1588175-1
Crimp Tool with Dieset - 1588176-1
Instruction Sheet: 408-8675
http://www.tycoelectronics.com/documents
Termination Kit - 1754462-1
Upgrade Kit for Anaerobic
terminations - 1754603-1
1374737-X
6457543-X
Strain Relief Color
Base Part
Number
1588153
1374737
6457543
502716
6588612
Beige
-5
-2
-1
-3
-1
Blue
-2
-1
-2
-4
-2
Black
-3
-3
-4
-1
-5
Red
—
—
—
-5
-4
Aqua
-8
—
—
-11
-8
6588612-X
1588153-X
Note:
All part numbers are RoHS compliant.
45
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
Fiber Optic Products Catalog
LC Connectors
(Continued)

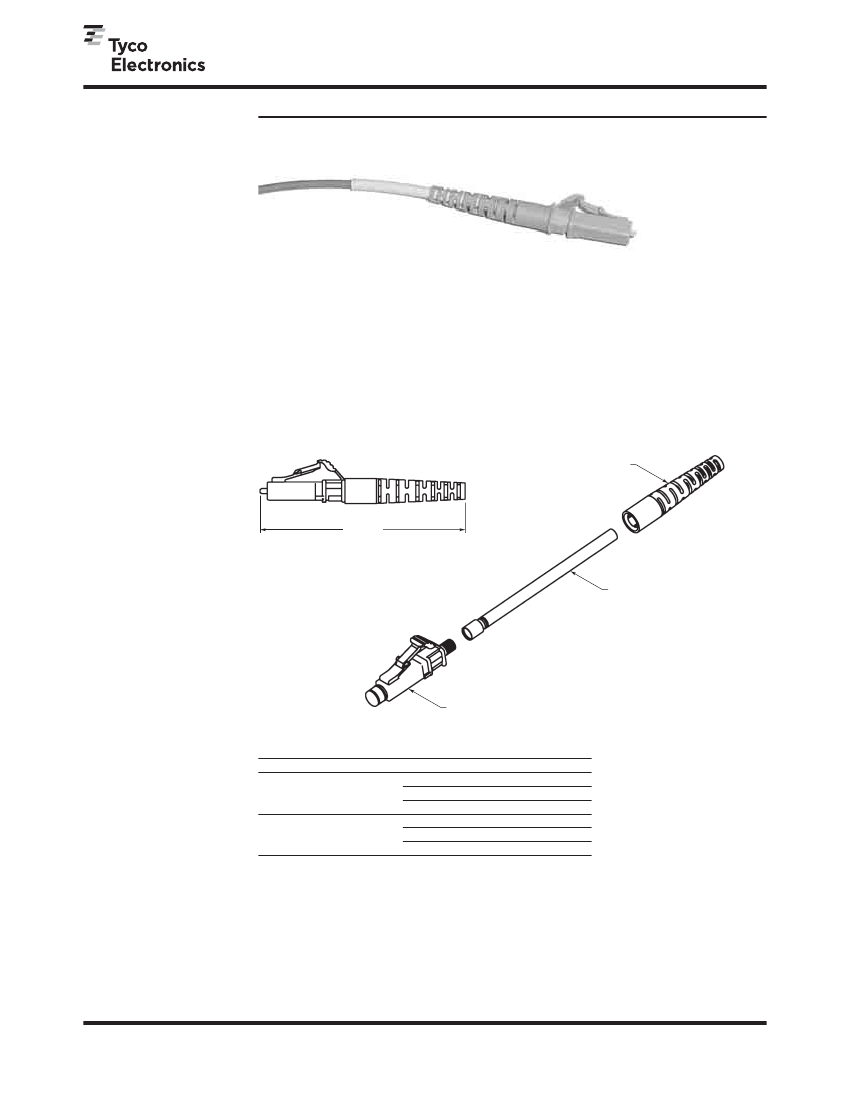

Tight Jacketed
LC Connectors
Product Facts
■
■
■
■
Multimode or singlemode
Simplex or duplex
Tested using MIL-PRF-
85045/16 2.0 mm cable
LC Commercial Item
Description (CID) interim
approval by the Naval
Surface Warfare Center,
Dahlgren Division
Application
■
■
■
The tight jacketed LC
Connectors are non pull-
proof versions of the stan-
dard connectors that are
designed for use with tight
construction cable. Unlike
standard connectors, this
design allows the jacket
and buffer to move together,
reducing the chances of
micro-bends and fiber
breakage.
In Flight Networks
Shipboard Applications
Aero Market
Boot, Bend Limiting
52.0
Ref.
[2.05]
Crimp Eyelet /
Heat
Shrink
Assembly
Connector
Sub
Assembly
Fiber Type
Singlemode
(blue body & straight boot)
Multimode
(beige body & straight boot)
Kit Part Number
6828095-X
6828130-X
1918228-X
6828094-X
6828129-X
1918153-X
Description
Simplex, 1.6–2.0 mm
Duplex, 1.6–2.0 mm
Simplex, 2.4 mm
Simplex, 1.6–2.0 mm
Duplex, 1.6–2.0 mm
Simplex, 2.4 mm
Note:
X = -1 for individual package, -2 for bulk package.
Instruction Sheet 408-10014. See http://www.tycoelectronics.com/documents.
Duplex Clip Available (Part Number 1754371-1).
Note:
All part numbers are RoHS compliant.
46
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
Fiber Optic Products Catalog
LC Connectors
(Continued)
Connectors/Adapters/
Tooling & Accessories

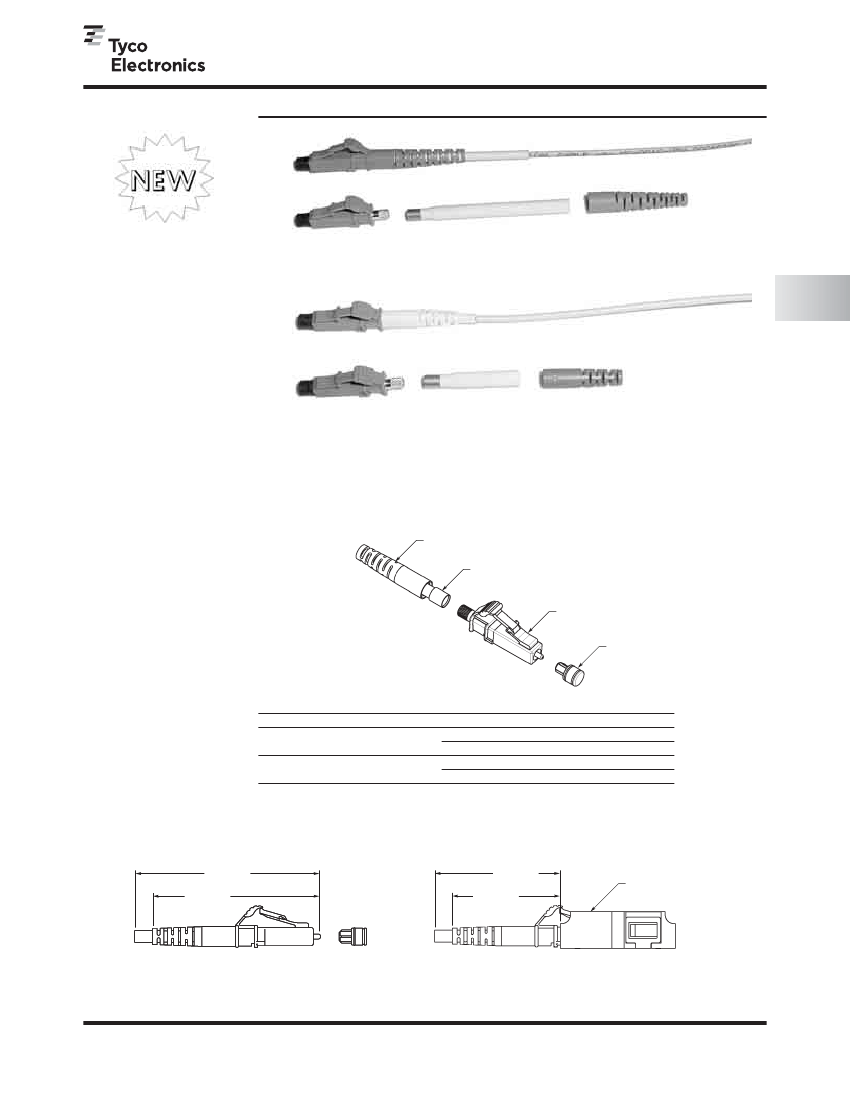

Short Boot LC Connector
Product Facts
■
Overall LC connector length
42.5 mm (compares to
52 mm standard product)
Multimode or singlemode
Simplex or duplex
Anti-snag rear connector
latch
For 1.6 mm to 2.4 mm cable
GR-326 Small Form-Factor
Performance Requirements
The short boot LC connector
provides GR-326 level
performance while reducing
ferrule tip to boot length to
42.5 mm. The 20% reduc-
tion in length is ideal for
installing in cabinets or
other enclosed spaces,
protecting against potential
mechanical damage from
closed cabinet doors.
■
■
■
■
■
1
Bend Limiting Boot
Crimp Eyelet /
Heat
Shrink
Assembly
Connector
Subassembly
Protective Cover
Fiber Type
Singlemode (blue body &
straight blue boot)
Multimode (beige body &
straight beige boot)
Kit Part Number
1918407-X
1918406-X
1918405-X
1918404-X
Description
Simplex, 1.6-2.0 mm
Duplex, 1.6-2.0 mm
Simplex, 1.6-2.0 mm
Duplex, 1.6-2.0 mm
Note:
X = -1 for individual package, -2 for bulk package
The boot (1918403-X) is also sold separately, for use with any Tyco Electronics LC connector.
47.00
Ref.
[1.850]
42.50
Ref.
[1.673]
31.95
Ref.
[1.258]
27.45
Ref.
[1.081]
Part Number 1457567-4 Adapter Ref.
Not Included in Kit
Note:
All part numbers are RoHS compliant.
47
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
Fiber Optic Products Catalog
LC Connectors
(Continued)

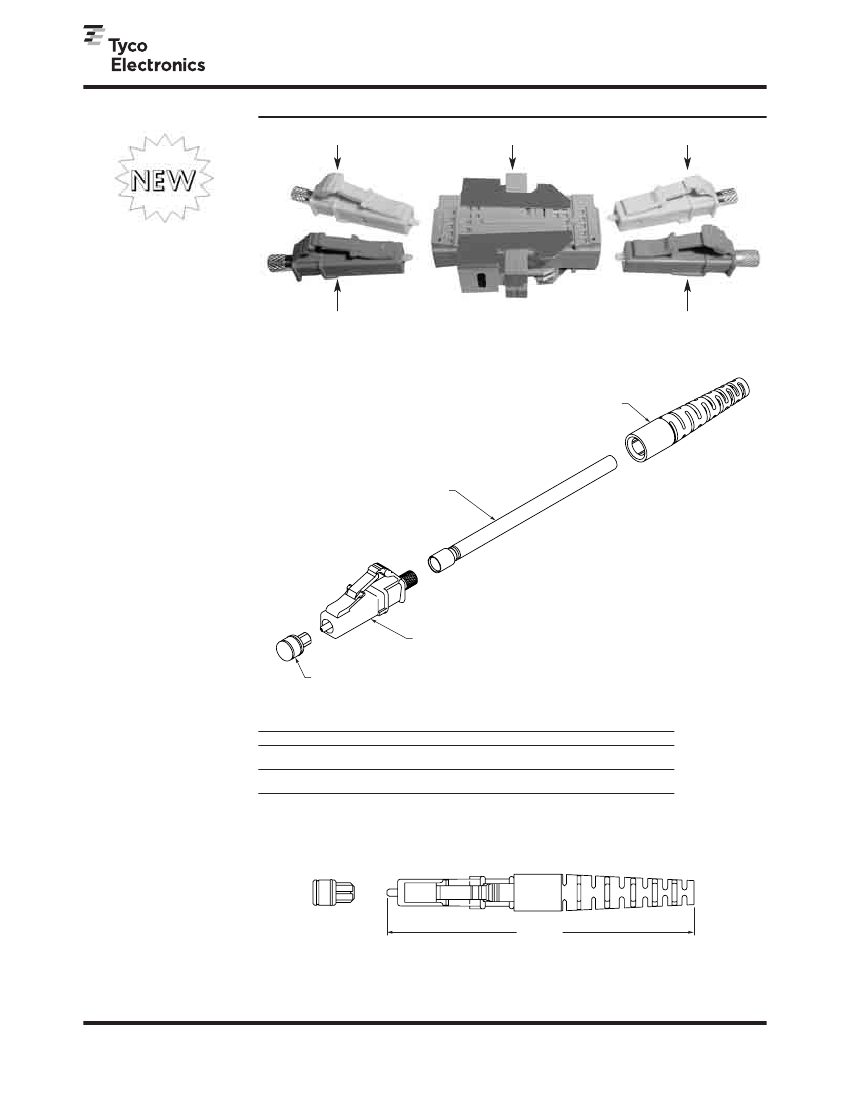

Wide Latch Multimode
KRONE Universal Adapter
Narrow Latch Multimode
Narrow Latch LC Connector
Product Facts
■
■
■
■
■
■
■
■
One-piece housing
Reduced thumb latch for
tight interconnections
Mates with Krone universal
1.25 mm adapter
Multimode or singlemode
Duplex through use of clip
(Part Number 1754371-1)
Anti-snag rear connector
latch
Subassembly can be used
with 900 µm to 3.0 mm cable
GR-326 Small Form Factor
Performance
Crimp Eyelet /
Heat
Shrink
Assembly
Narrow Latch Singlemode
(Not sold through
Tyco Electronics)
Wide Latch Singlemode
The reduced thumb latch on
this connector provides
superior performance when
space is limited by main-
taining all of the other fea-
tures of the Tyco Electronics
LC connector.
Bend Limiting Boot
Connector Assembly
Protective Cover
Fiber Type
Singlemode (Blue Body &
Straight Blue Boot)
Multimode (Beige Body &
Straight Beige Boot)
Kit Part Number
1918538-X
1918539-X
Description
Simplex, 1.6-2.0 mm
Simplex, 1.6-2.0 mm
Note:
X = -1 for individual package, -2 for bulk package
52.00
Ref.
[2.047]
KRONE is a trademark of KRONE Optical
Systems, Inc.
Note:
All part numbers are RoHS compliant.
48
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
京公网安备 11010802033920号
EEWORLD
