8383-16-36-22: DescriptionBoard Connector, 36 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector; File Size96KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8383-16-36-22 Overview

Board Connector, 36 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

8383-16-36-22 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.087 inch
subject depth	0.228 inch
body length	2.835 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	100VAC V
Durability	500 Cycles
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8383
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	3.9878 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

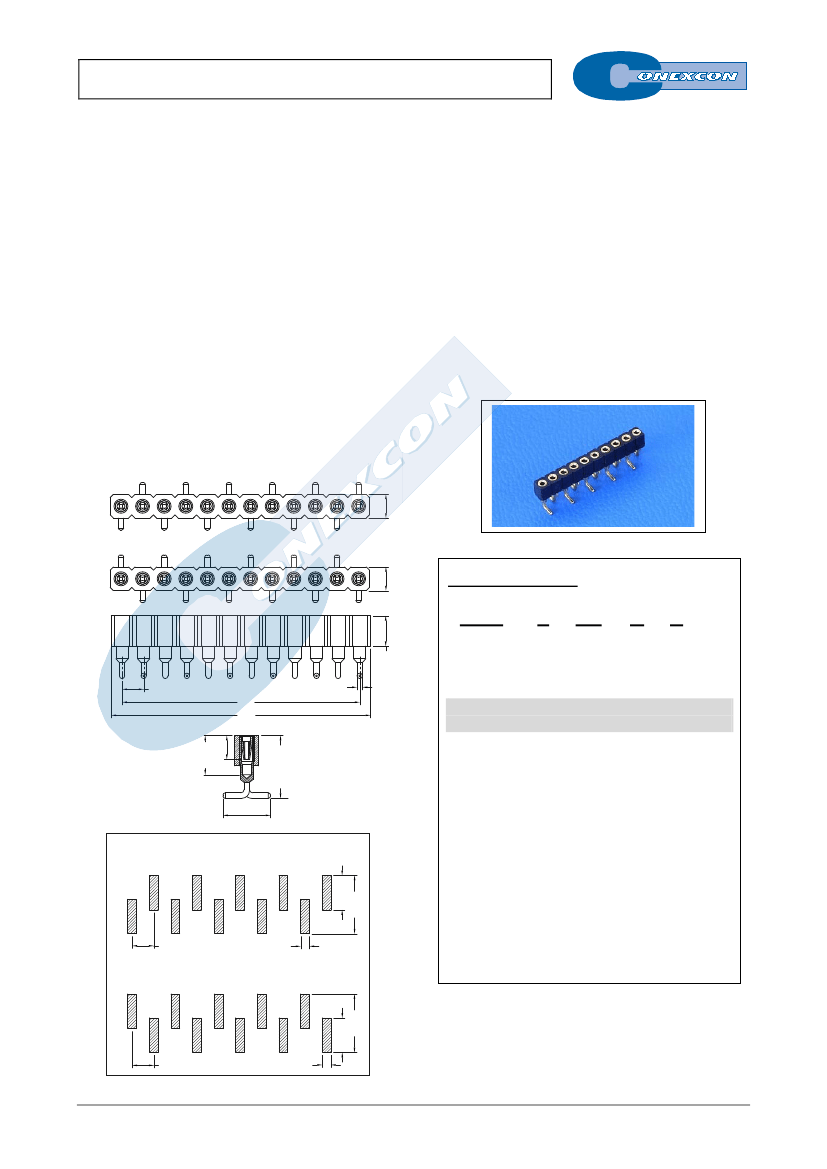

SINGLE ROW SMT VERTICAL SOCKET

8383 SERIES.

2.00 mm. (0.079”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits



Mates with pin headers 2.00mm pitch 8370, 8372 and

8385 series



Accept round pin 0.40 - 0.66mm or square pin 0.50 mm



Low profile 5.80 mm high



Machined contact with different plating

Materials



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Clip(4 fingers): Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Insertion force per pin: < 0.20 Kgf (round pin 0.46 mm)



Withdrawal force per pin: > 0.02 Kgf (round pin 0.46 mm)



Durability: 500 Cycles

Dimension Information

Type 1

2.20

1

2

3

Type 2

1

2

3

Ordering Information:

8383 -

2.80±0.15

T-

XX-

3

C

4

E

5

1

2

1. Connector Series

2. (T) Contact Plating

2.00±0.10

A

B

2.20

ø0.50



T =

13.

Selec. gold flash over 30-50µ" Ni overall

Recommended Finish

5.80±0.25



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits

3.63

4.40±0.25



Available in 2 through 40 circuits

4. C = Contacts Configuration

Type 1

RECOMMENDED PCB LAYOUT

(Tolerance ±0.05)

3.20

5.40



C = 1. Type 1



C = 2. Type 2

5. E = Packing Options

2.00

0.80



E =

1.

Tube + Pad



E =

2.

Reel + Pad

Type 2

Dimensions:

(In mm.)

3 .20

5.40

A

= 2.00 x (XX*-1)

B

= 2.00 x (XX*)

* XX

(Number of circuits)

2.00

0.80

A-XX
