Ferrite Chip Beads For Automotive Use
FEATURES
•
•
•
•
•
•
RUGGED CONSTRUCTION IN STANDARD EIA SIZES
EFFECTIVE EM/RFI SUPPRESSION UP TO 1 GHz
CURRENT RATINGS UP TO 2.2 AMPS
SHARP AND HIGH IMPEDANCES AVAILABLE
OPERATING TEMPERATURE RANGE: -55
O
C TO +125
O
C
SUITABLE FOR AUTOMOTIVE EQUIPMENT*
NCB_Y Series
includes all homogeneous materials
RoHS
Compliant
*See Part Number System for Details
CHARACTERISTICS
Type
Sizes Available
Impedance Range
Impedance Tolerance
Operating Temperature Range
General Range
0603. 0805, 1206
15Ω ~ 2,000Ω
±25% Tol.
-55
O
C ~ +125
O
C
Sharp High Impedances
0603, 0805
10Ω ~ 2,700Ω

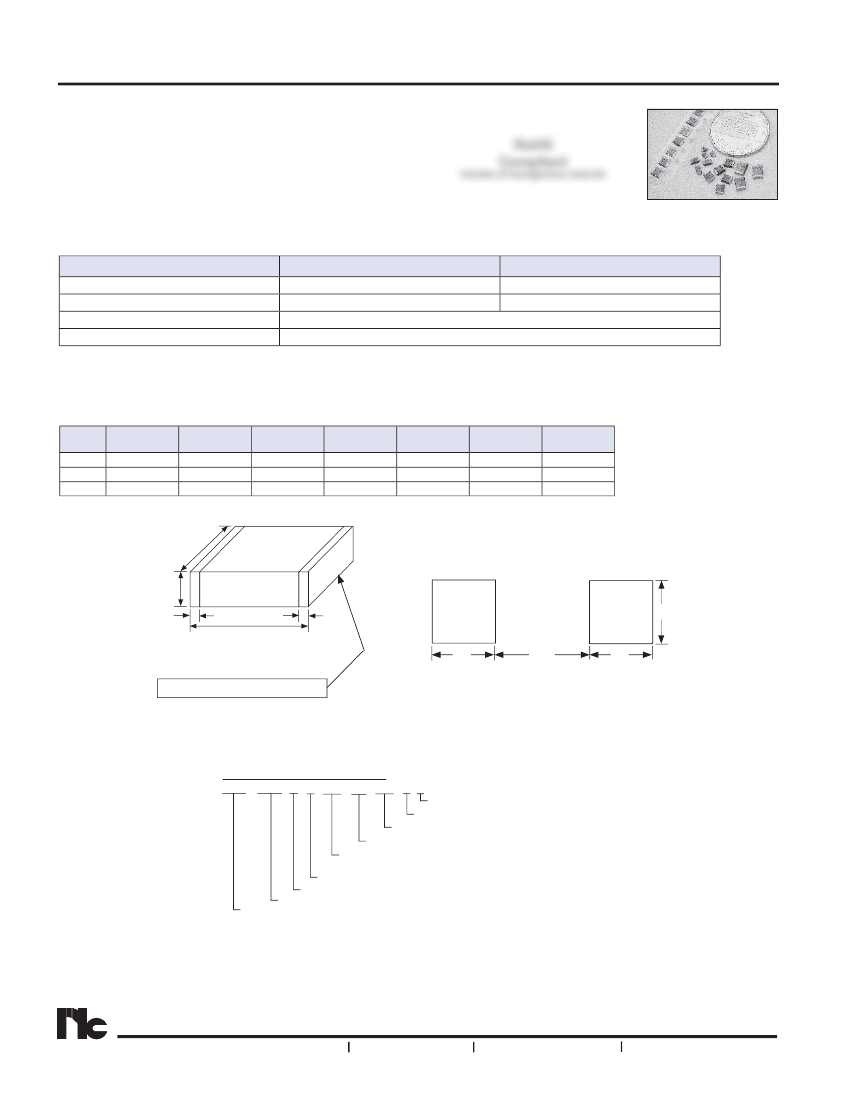

CASE SIZE & LAND PATTERN DIMENSIONS (mm)
EIA
Size
0603
0805
1206
A
(mm)
1.60 ± 0.15
2.0 +0.3/-0.1
3.2 ± 0.20
B
(mm)
0.80 ± 0.15
1.25 ±0.2
1.6 ± 0.20
C
(mm)
0.80 ± 0.15
0.85 ±0.2
0.85 ± 0.2
D
(mm)
0.30 ± 0.20
0.5 ±0.3
0.85 ± 0.2
G
(mm)
0.60 ~ 0.80
0.80 ~ 1.20
1.00 ~ 1.50
H
(mm)
0.60 ~ 0.80
0.90 ~ 1.60
1.20 ~ 2.00
I
(mm)
0.60 ~ 0.80
0.80 ~ 1.20
1.80 ~ 2.50
B
C
D
A
G
I
G
D
H
100% Sn over Ni barrier
PART NUMBER SYSTEM
NCB
0805 G U 301 TR 050 Y F
RoHS Compliant
"Y" denotes suitable for Automotive equipment*
DC Current Rating (see standard values and case size table)
Packaging: TR = Tape and Reel
Impedance at 100Mhz
3 digit code;
fi
rst two digits are significant third digit is no. of zeros
Frequency Charateristic (see frequency response curves)
Type (G = General Range, S = Sharp,High Impedance)
Case Size
Series
®
*Suitable for automotive equipment, sourced to special production and inspection at TS-16949 certified production site.
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
1
Ferrite Chip Beads For Automotive Use
STANDARD VALUES AND CASE SIZES (mm)
EIA
Size
NIC
Part Number
NCB0603GD110TR200YF
NCB0603GD300TR200YF
NCB0603GD600TR050YF
NCB0603GD800TR040YF
NCB0603GD101TR030YF
NCB0603GD121TR030YF
NCB0603GD221TR030YF
NCB0603GD301TR020YF
NCB0603GD471TR020YF
NCB0603GD601TR020YF
NCB0603GD751TR020YF
NCB0603GD102TR020YF
NCB0603GD152TR015YF
NCB0603GD182TR010YF
NCB0603GD202TR010YF
NCB0603GD222TR010YF
NCB0603GE800TR030YF
NCB0603GE121TR030YF
NCB0603GE181TR030YF
NCB0603GE301TR020YF
NCB0603GE601TR020YF
NCB0603GE102TR020YF
NCB0603GE202TR010YF
NCB0603GU100TR200YF
NCB0603GU300TR200YF
NCB0603GU600TR050YF
NCB0603GU121TR030YF
NCB0603GU221TR030YF
NCB0603GU301TR020YF
NCB0603GU471TR020YF
NCB0603GU601TR020YF
NCB0603GU102TR020YF
NCB0805GD070TR200YF
NCB0805GD190TR200YF
NCB0805GD300TR150YF
NCB0805GD800TR100YF
NCB0805GD121TR080YF
NCB0805GD181TR070YF
NCB0805GD221TR060YF
NCB0805GD301TR050YF
NCB0805GD421TR050YF
NCB0805GD501TR050YF
NCB0805GD601TR050YF
NCB0805GD751TR050YF
NCB0805GD102TR050YF
NCB0805GD152TR050YF
NCB0805GD202TR050YF
NCB0805GE800TR100YF
NCB0805GE121TR080YF
Impedance
at 100MHz
Ω
0 ~ 15
30 ± 25%
60 ± 25%
80 ± 25%
100 ± 25%
120 ± 25%
220 ± 25%
300 ± 25%
470 ± 25%
600 ± 25%
750 ± 25%
1000 ± 25%
1500 ± 25%
1800 ± 25%
2000 ± 25%
2200 ± 25%
80 ± 25%
120 ± 25%
180 ± 25%
300 ± 25%
600 ± 25%
1000 ± 25%
2000 ± 25%
0 ~ 15
30 ± 25%
60 ± 25%
120 ± 25%
220 ± 25%
300 ± 25%
470 ± 25%
600 ± 25%
1000 ± 25%
0 ~ 15
19 ± 25%
30 ± 25%
80 ± 25%
120 ± 25%
180 ± 25%
220 ± 25%
300 ± 25%
420 ± 25%
500 ± 25%
600 ± 25%
750 ± 25%
1000 ± 25%
1500 ± 25%
2000 ± 25%
80 ± 25%
120 ± 25%
DC
Resistance
Max. (Ω)
0.05
0.05
0.10
0.15
0.20
0.20
0.30
0.35
0.45
0.45
0.50
0.60
0.70
0.90
1.20
1.20
0.15
0.20
0.30
0.35
0.45
0.60
1.00
0.05
0.05
0.10
0.20
0.30
0.35
0.40
0.50
0.60
0.04
0.04
0.05
0.10
0.15
0.18
0.20
0.20
0.30
0.30
0.30
0.35
0.35
0.40
0.50
0.10
0.15
DC
Current
Max. (mA)
2,000
2,000
500
400
300
300
300
200
200
200
200
200
150
100
100
100
300
300
300
200
200
200
100
2000
2000
500
300
300
200
200
200
200
2000
2000
1500
1000
800
700
600
500
500
500
500
500
500
500
500
1000
800
A
(mm)
B
(mm)
NCB_Y Series
C
(mm)
D
(mm)
0603
1.60 ± 0.15
0.80 ± 0.15
0.80 ± 0.15
0.30 ± 0.20
0805
2.0 +0.3/-0.1
1.25 ±0.2
0.85 ±0.2
0.5 ±0.3
®
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
Ferrite Chip Beads For Automotive Use
STANDARD VALUES AND CASE SIZES (mm)
EIA
Size
NIC
Part Number
NCB0805GE181TR060YF
NCB0805GE301TR050YF
NCB0805GE501TR050YF
NCB0805GE601TR050YF
NCB0805GE102TR050YF
NCB0805GU100TR220YF
NCB0805GU170TR200YF
NCB0805GU300TR150YF
NCB0805GU470TR150YF
NCB0805GU700TR100YF
NCB0805GU121TR080YF
NCB0805GU221TR060YF
NCB0805GU301TR050YF
NCB0805GU421TR050YF
NCB0805GU601TR050YF
NCB0805GU102TR050YF
NCB1206GD000TR220YF
NCB1206GD310TR200YF
NCB1206GD600TR100YF
NCB1206GD800TR100YF
NCB1206GD121TR100YF
NCB1206GD221TR060YF
NCB1206GD301TR060YF
NCB1206GD501TR060YF
NCB1206GD601TR060YF
NCB1206GD102TR050YF
NCB1206GD122TR030YF
NCB1206GU310TR200YF
NCB1206GU700TR100YF
NCB1206GU301TR060YF
NCB1206GU601TR060YF
Impedance
at 100MHz
Ω
(±25% Tol.)
180 ± 25%
300 ± 25%
500 ± 25%
600 ± 25%
1000 ± 25%
0 ~ 15
17 ± 25%
30 ± 25%
47 ± 25%
70 ± 25%
120 ± 25%
220 ± 25%
300 ± 25%
420 ± 25%
600 ± 25%
1000 ± 25%
0 ~ 15
31 ± 25%
60 ± 25%
80 ± 25%
120 ± 25%
220 ± 25%
300 ± 25%
500 ± 25%
600 ± 25%
1000 ± 25%
1200 ± 25%
31 ± 25%
70 ± 25%
300 ± 25%
600 ± 25%
DC
Resistance
Max. (Ω)
0.20
0.20
0.30
0.30
0.35
0.04
0.04
0.05
0.05
0.10
0.15
0.20
0.20
0.25
0.30
0.40
0.03
0.05
0.10
0.10
0.10
0.20
0.20
0.30
0.30
0.60
0.60
0.05
0.10
0.20
0.30
DC
Current
Max. (mA)
600
500
500
500
500
2200
2000
1500
1500
1000
800
600
500
500
500
500
2200
2000
1000
1000
1000
600
600
600
600
500
300
2000
1000
600
600
A
(mm)
B
(mm)
NCB_Y Series
C
(mm)
D
(mm)
0805
2.0 +0.3/-0.1
1.25 ±0.2
0.85 ±0.2
0.5 ±0.3
1206
3.2 ± 0.20
1.6 ± 0.20
0.85 ± 0.2
0.85 ± 0.2
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
3
