Product Specification

PE83512

Product Description

The PE83512 is a high-performance static

UltraCMOS™

prescaler with a fixed divide ratio of 4. Its operating frequency

range is DC to 1500 MHz. The PE83512 operates on a nominal

3 V supply and draws only 14 mA. It is packaged in a small

8-lead plastic MSOP and is ideal for frequency scaling and

clock generation solutions.

The PE83512 is manufactured on Peregrine’s UltraCMOS™

process, a patented variation of silicon-on-insulator (SOI)

technology on a sapphire substrate, offering the performance

of GaAs with the economy and integration of conventional

CMOS.

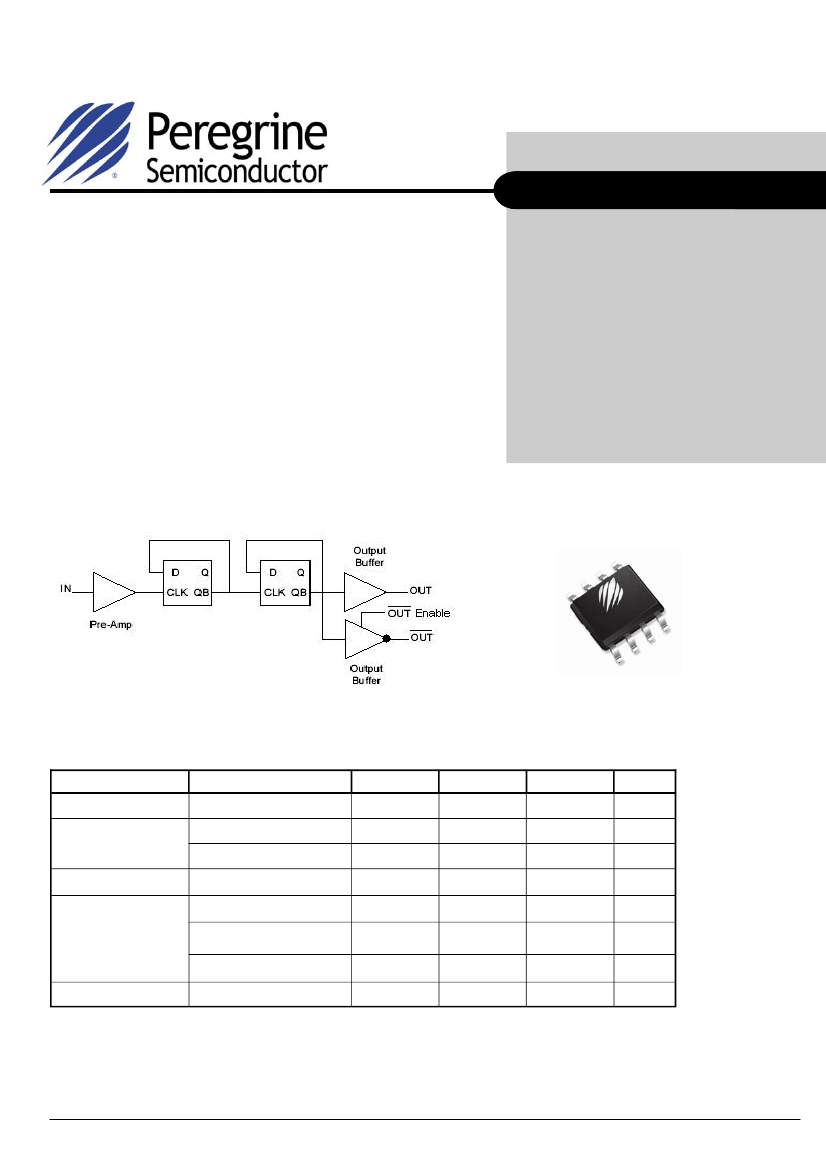

Figure 1. Functional Schematic Diagram

DC - 1500 MHz Low Power UltraCMOS™

Divide-by-4 Prescaler

Military Operating Temperature Range

Features

•

DC to 1500 MHz operation

•

Fixed divide ratio of 4

•

Low-power operation: 14 mA typical

@ 3.0 V

•

Ultra small package: 8-lead MSOP

Figure 2. Package Type

8-lead MSOP

Table 1. Electrical Specifications

= Z

= 50

Ω

)

2.85 V

≤

3.15 V; -55° C

≤

125° C, unless otherwise specified

Parameter

Supply Voltage

Conditions

Minimum

2.85

Typical

3.0

Maximum

3.15

1500

+10

Units

MHz

dBm

OUTB Disabled

Supply Current

OUTB Enabled

Input Frequency (F

)

100 MHz

≤

1200 MHz

-55°C

≤

85°C

100 MHz

≤

1200 MHz

85°C

≥

125°C

1200 MHz < F

≤

1500 MHz

-55°C

≤

85°C

DC < Fin

≤

1500 MHz

-5

Input Power (P

)

Output Power

Document No. 70-0117-03

│

www.psemi.com

Page 1 of 7
