Part Number

Search

74AC16374DGG-T

Description
IC AC SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver
Categorylogic
File Size218KB,14 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

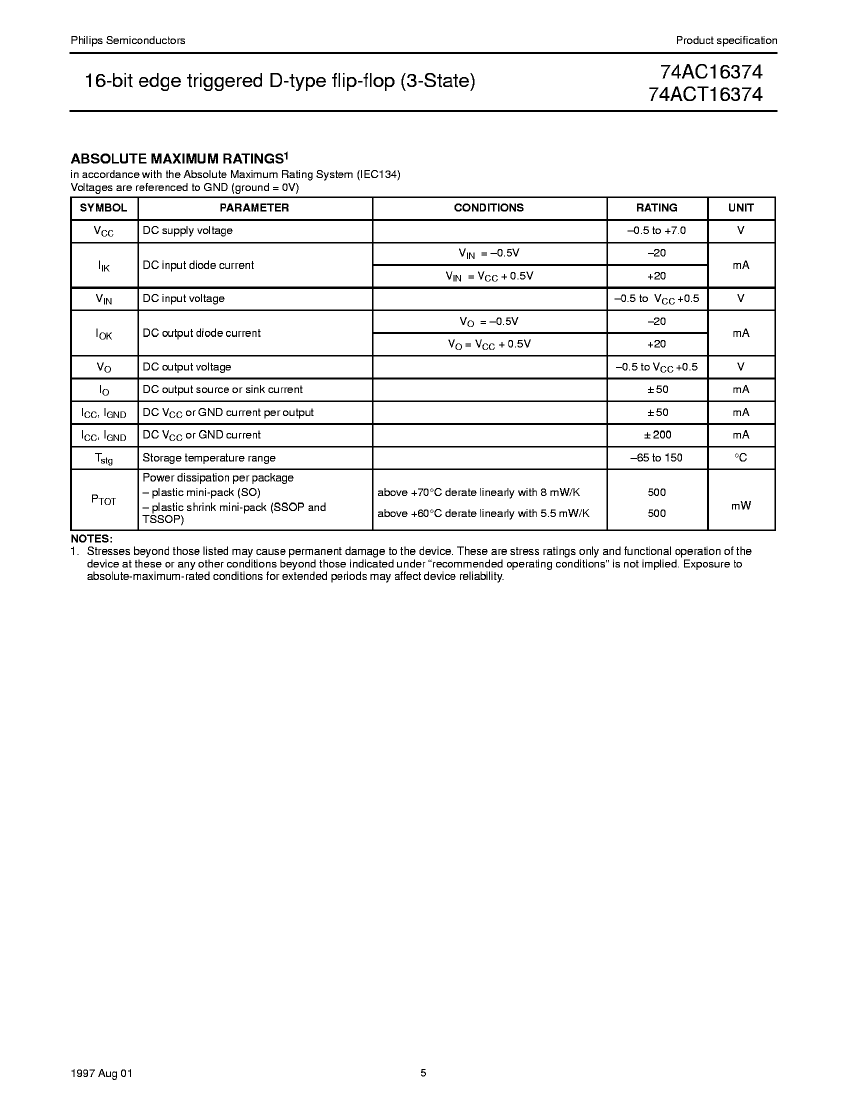

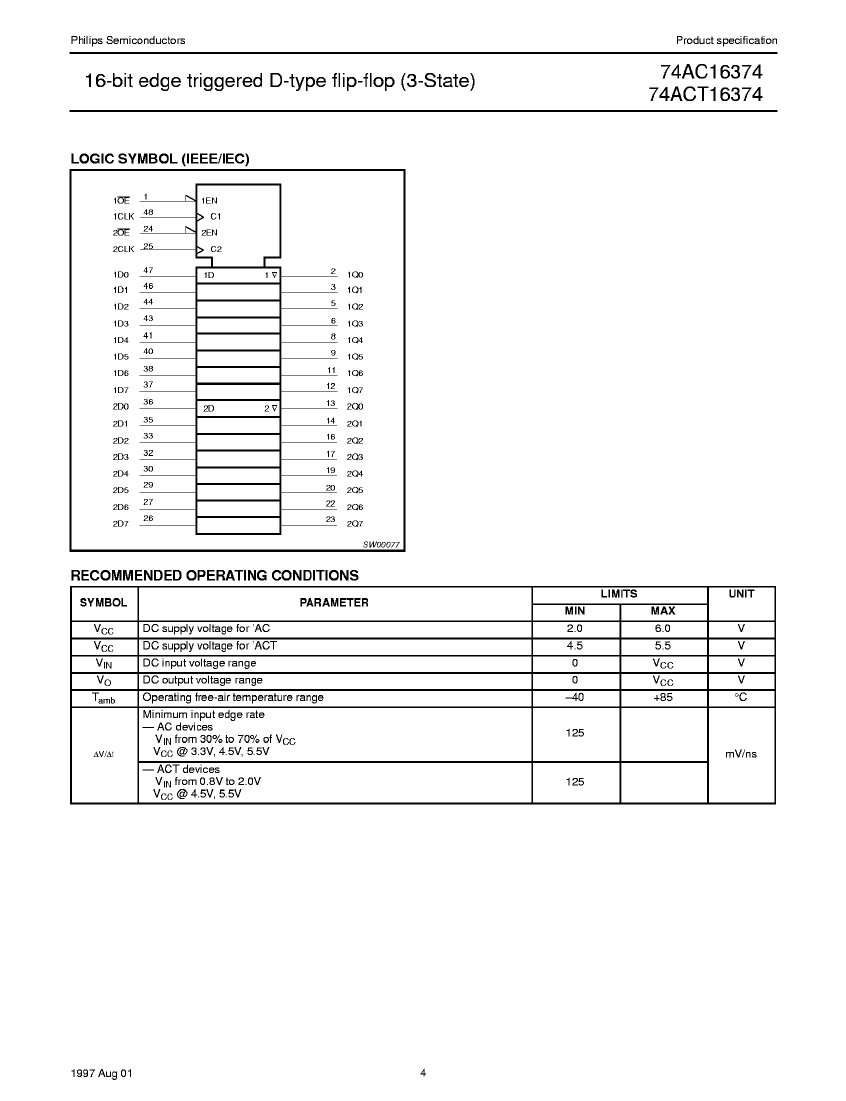

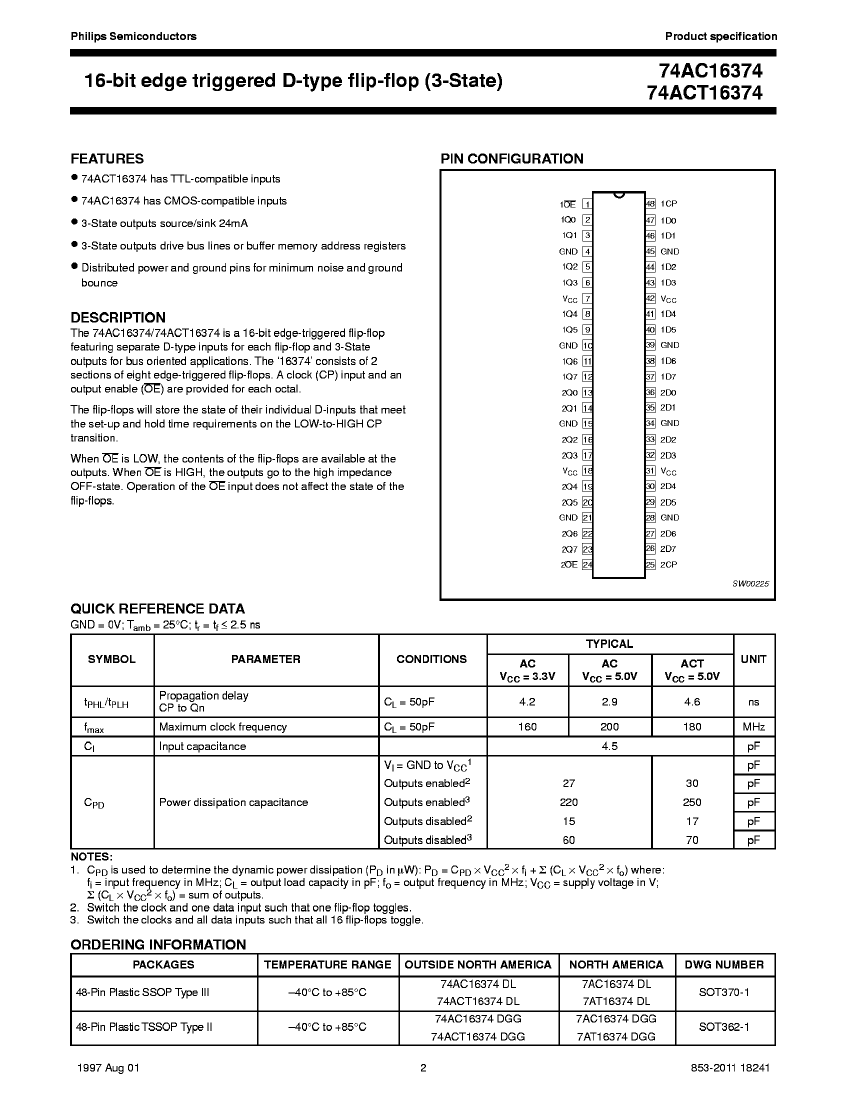

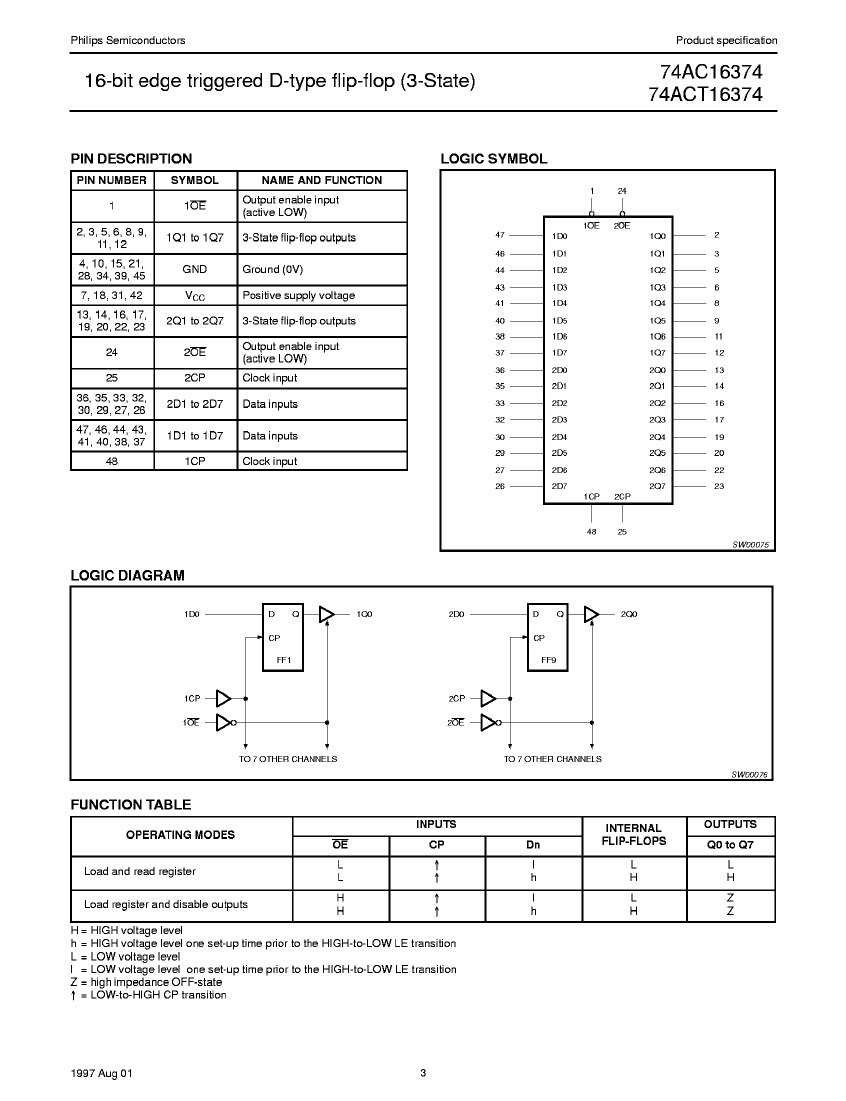

74AC16374DGG-T Overview

IC AC SERIES, DUAL 8-BIT DRIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver

74AC16374DGG-T Parametric

Parameter NameAttribute value
MakerNXP
package instructionTSSOP,
Reach Compliance Codeunknown
seriesAC
JESD-30 codeR-PDSO-G48
length12.5 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
Number of digits8
Number of functions2
Number of ports2
Number of terminals48
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)8 ns
Certification statusNot Qualified
Maximum seat height1.2 mm
Maximum supply voltage (Vsup)6 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationDUAL
width6.1 mm
Base Number Matches1
