5962-88637013A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Programmable logic> Programmable logic devices> 5962-88637013A

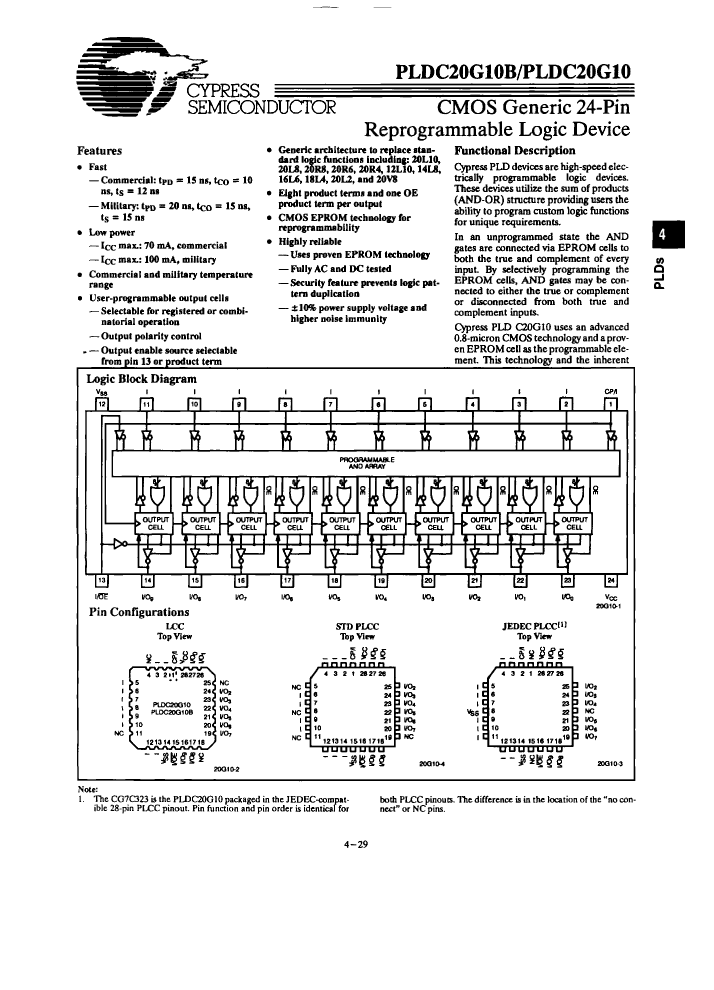

Preview

5962-88637013A: DescriptionOT PLD, 40ns, CMOS, CQCC28, CERAMIC, LCC-28; CategoryProgrammable logic Programmable logic devices; File Size277KB，8 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-88637013A Overview

OT PLD, 40ns, CMOS, CQCC28, CERAMIC, LCC-28

5962-88637013A Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	16.6 MHz
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Dedicated input times	10
Number of I/O lines	10
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	10 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD
propagation delay	40 ns
Certification status	Not Qualified
Maximum seat height	1.9812 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1

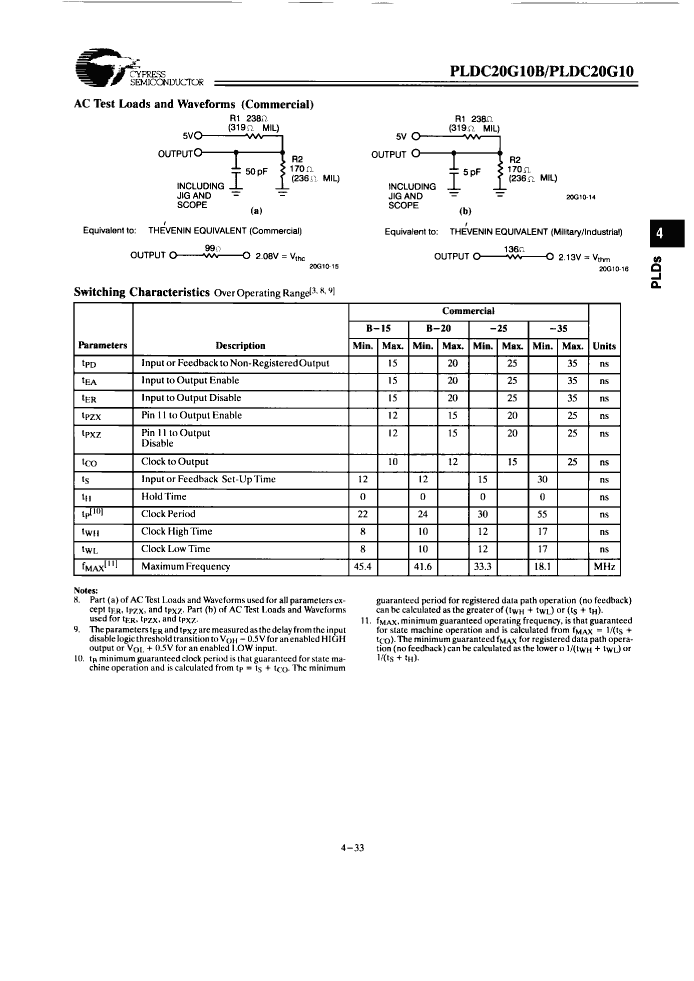

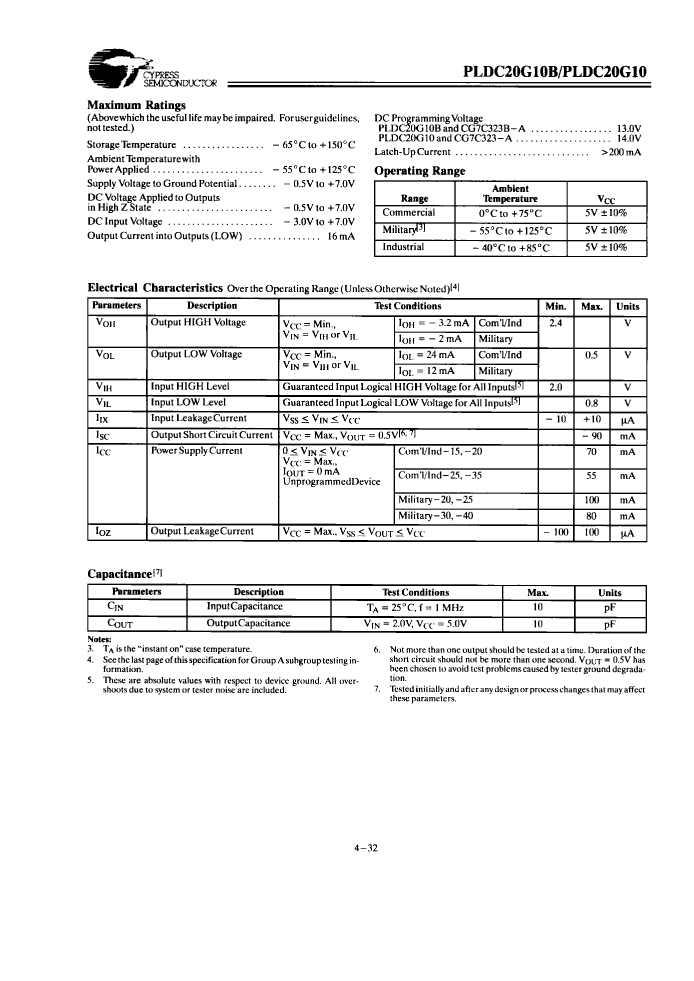

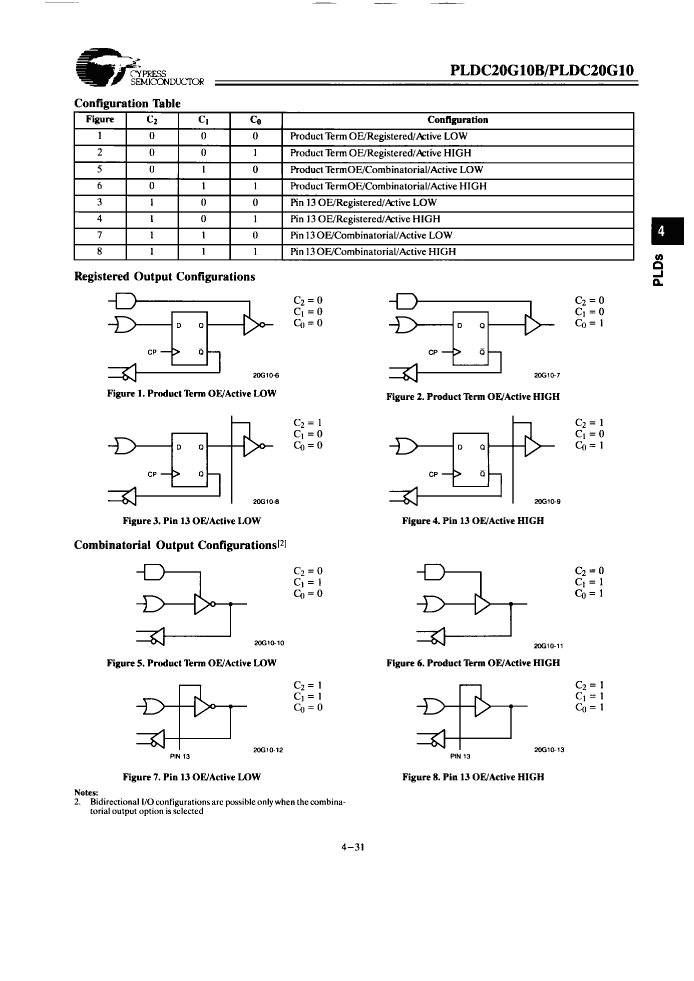

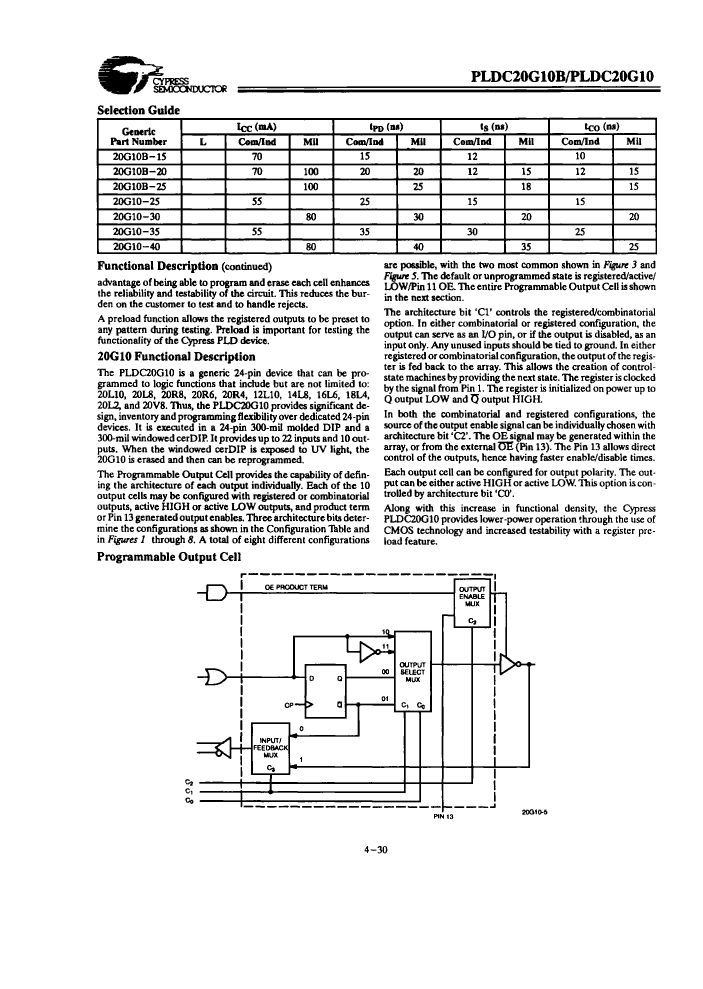

Preview

Download Datasheet

View All

5962-88637013A Related Products

	5962-88637013A	PLDC20G10-25HC	PLDC20G10B-20WI
Description	OT PLD, 40ns, CMOS, CQCC28, CERAMIC, LCC-28	UV PLD, 25ns, PAL-Type, CMOS, CQCC28, WINDOWED, CERAMIC, LCC-28	UV PLD, 20ns, PAL-Type, CMOS, CDIP24, 0.300 INCH, WINDOWED, CERDIP-24
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	QLCC	QLCC	DIP
package instruction	QCCN,	WINDOWED, CERAMIC, LCC-28	0.300 INCH, WINDOWED, CERDIP-24
Contacts	28	28	24
Reach Compliance Code	unknown	compliant	compliant
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	16.6 MHz	33.3 MHz	41.6 MHz
JESD-30 code	S-CQCC-N28	S-CQCC-J28	R-GDIP-T24
JESD-609 code	e0	e0	e0
length	11.43 mm	11.43 mm	31.877 mm
Dedicated input times	10	10	10
Number of I/O lines	10	10	10
Number of terminals	28	28	24
Maximum operating temperature	125 °C	75 °C	85 °C
Minimum operating temperature	-55 °C	-	-40 °C
organize	10 DEDICATED INPUTS, 10 I/O	10 DEDICATED INPUTS, 10 I/O	10 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	WQCCJ	WDIP
Package shape	SQUARE	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER, WINDOW	IN-LINE, WINDOW
Programmable logic type	OT PLD	UV PLD	UV PLD
propagation delay	40 ns	25 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9812 mm	4.57 mm	5.08 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL EXTENDED	INDUSTRIAL
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL
width	11.43 mm	11.43 mm	7.62 mm
Is it Rohs certified?	-	incompatible	incompatible
Architecture	-	PAL-TYPE	PAL-TYPE
Number of entries	-	22	22
Output times	-	10	10
Number of product terms	-	90	90
Encapsulate equivalent code	-	LDCC28,.5SQ	DIP24,.3
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
power supply	-	5 V	5 V
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
