DOMINANT
Semiconductors
Innovating Illumination
TM
DATA SHEET:
Multi DomiLED
TM
DMRTB-CJ : Tri-Color
Multi DomiLED
TM
TM

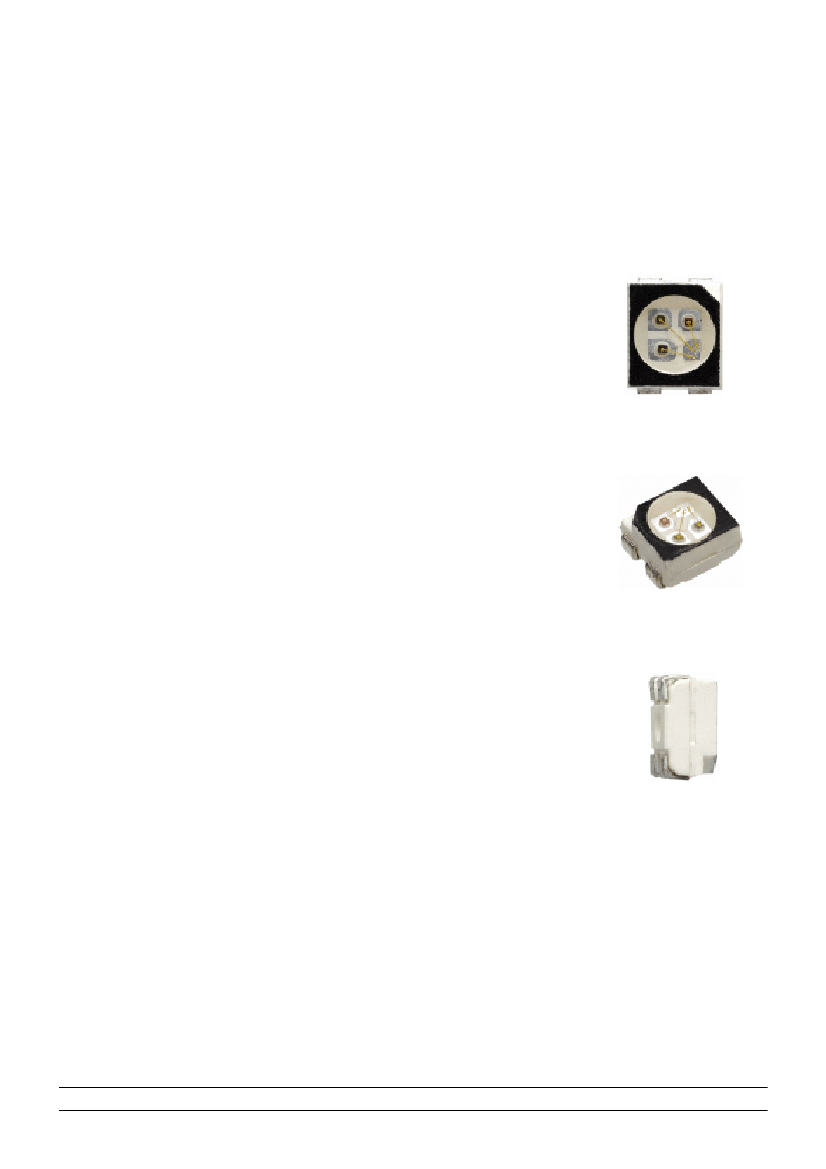

Synonymous with function and performance, the Multi
DomiLED
series
is perfectly suited for a variety of cross-industrial applications due to its
small package outline, durability and superior brightness.
Features:
>
>
>
>
>
>
>
>
High brightness tri-color surface mount LED.
Capable for all vidoe-standards.
The RGB-LED chips can be controlled separately.
120° viewing angle.
Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
Environmental friendly; RoHS compliance.
Applications:
>
>
>
>
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
Consumer Appliances: LCD illumination as in PDAs, LCD TV.
Communication: indicator and backlight in mobilephone.
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
© 2005 DomiLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
27/11/2006 V20.0
DOMINANT
TM
Semiconductors
Innovating Illumination
DMRTB-CJ : Tri-Color
Part Ordering
Number
DMRTB-CJB-RS+ST+PQ-1
• DMRTB-CJB-R3S3N3
• DMRTB-CJB-R3S3P3
• DMRTB-CJB-R3S3Q3
• DMRTB-CJB-R3T3N3
• DMRTB-CJB-R3T3P3
• DMRTB-CJB-R3T3Q3
• DMRTB-CJB-S3S3N3
• DMRTB-CJB-S3S3P3
• DMRTB-CJB-S3S3Q3
• DMRTB-CJB-S3T3N3
• DMRTB-CJB-S3T3P3
• DMRTB-CJB-S3T3Q3
Color, λ
dom
(nm)
Chip #1
Red
625nm
Chip #2
True Green
525nm
Chip #3
Blue
470nm
Viewing
Angle˚
120
Luminous Intensity @
IF = 20mA IV (mcd)
Chip #3
Chip #2
Chip #1
100.0 - 200.0
100.0 - 140.0
100.0 - 140.0
100.0 - 140.0
100.0 - 140.0
100.0 - 140.0
100.0 - 140.0
140.0 - 200.0
140.0 - 200.0
140.0 - 200.0
140.0 - 200.0
140.0 - 200.0
140.0 - 200.0
140.0 - 285.0
140.0 - 200.0
140.0 - 200.0
140.0 - 200.0
200.0 - 285.0
200.0 - 285.0
200.0 - 285.0
140.0 - 200.0
140.0 - 200.0
140.0 - 200.0
200.0 - 285.0
200.0 - 285.0
200.0 - 285.0
35.5 - 100.0
35.5 - 50.5
50.5 - 71.5
71.5 - 100.0
35.5 - 50.5
50.5 - 71.5
71.5 - 100.0
35.5 - 50.5
50.5 - 71.5
71.5 - 100.0
35.5 - 50.5
50.5 - 71.5
71.5 - 100.0
NOTE
1. Reel comes in a quantity of 1025 and 2050 units per reel.
2. Luminous intensity is measured with an accuracy of ± 11%.
3. All electrical and optical data are measured at room temperature; Ta = 25˚C.
Half Group For Luminious Intensity
Only one IV group is allowed for each chip within reel.
Groupings
N3
P3
Q3
R3
S3
T3
Min. (mcd)
35.5
50.5
71.5
100.0
140.0
200.0
Max. (mcd)
50.5
71.5
100.0
140.0
200.0
285.0
2
27/11/2006 V20.0
DOMINANT
TM
Semiconductors
Innovating Illumination
DMRTB-CJ : Tri-Color
Wavelength Grouping
If wavelength binning is required, only one wavelength group is allowed for each chip within a reel.
Color
Red
True Green
Group
Full
Full
A
B
C
Wavelength distribution (nm)
620 - 630
521 - 536
521 - 526
526 - 531
531 - 536
465 - 475
465 - 470
470 - 475
Blue
Full
A
B
Dominant wavelength is measured with an accuracy of ± 1 nm.
Electrical Characteristics at Ta=25˚C
Vf @ If = 20mA
Typ. (V)
Red
True Green
Blue
1.80
3.70
3.60
Max. (V)
2.45
4.25
4.25
Temperature Coefficient of Vf
(If=20mA; -10
o
C<T<100
o
C)
-2.00
-3.60
-3.10
Forward voltage, Vf is measured with an accuracy of ± 0.1 V.
Optical Characteristics at Ta=25˚C
Temperature Coefficient (If=20mA; -10
o
C<T<100
o
C)
λ
peak
(nm/K)
λ
dom
(nm/K)
Red
True Green
Blue
0.15
0.04
0.04
0.05
0.03
0.02
3
27/11/2006 V20.0
DOMINANT
TM
Semiconductors
Innovating Illumination
DMRTB-CJ : Tri-Color
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.005)
Reverse voltage
Power consumption
Thermal resistance junstion/ambient, R
th JA
1 chip on
3 chips on
Thermal resistance junstion/ambient, R
th JA
1 chip on
3 chips on
LED junction temperature
Operating temperature
Storage temperature
Red=260; True Green, Blue=290
Red=420; True Green, Blue=470
125
-40 … +100
-40 … +100
˚C
˚C
˚C
K/W
Red=480; True Green, Blue=530
Red=770; True Green, Blue=820
K/W
Red=30; True Green, Blue=20
Red=1000; True Green, Blue=200
Red=12; True Green, Blue=5
Red=75; True Green, Blue=85
Unit
mA
mA
V
V
4
27/11/2006 V20.0
DOMINANT
TM
Semiconductors
Innovating Illumination
DMRTB-CJ : Tri-Color

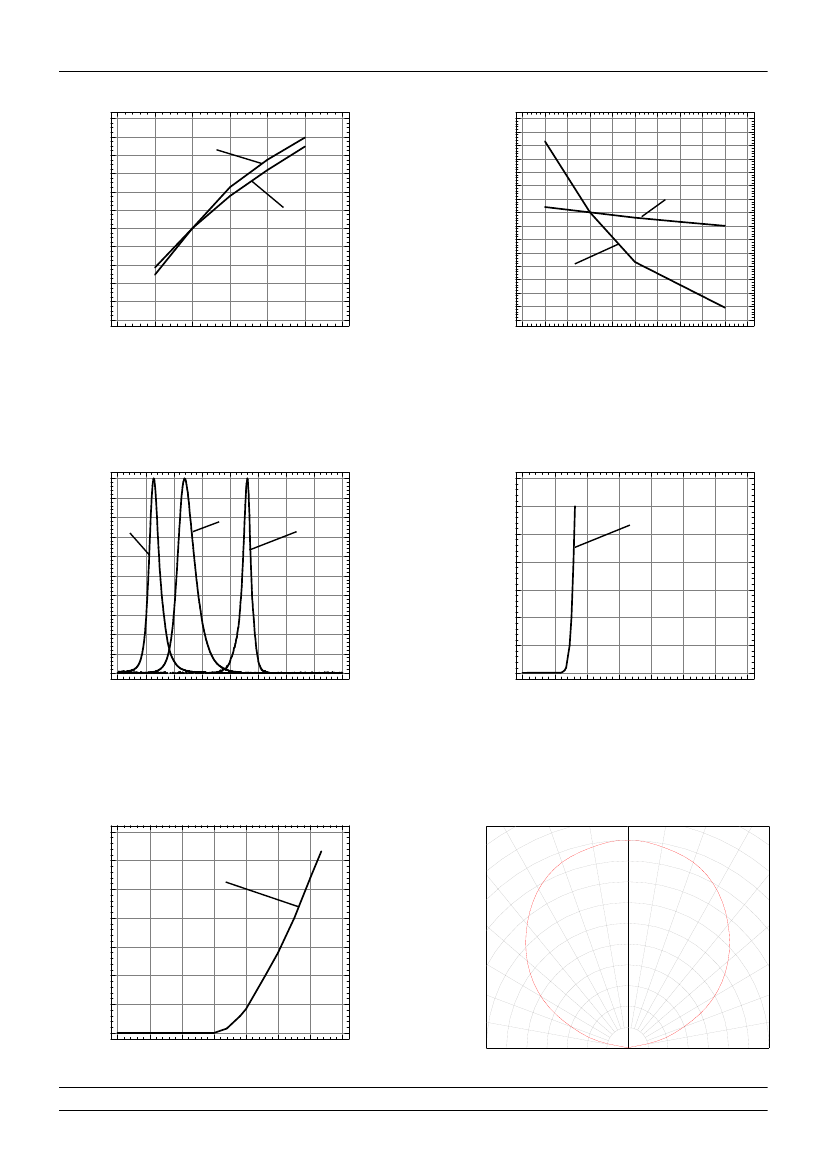

Wavelength Shift Vs Forward Current
7
6
5
4
3
2
1
0
-1
-2
-3
-4
-5
-6
-7
-8
5
Luminous Intensity Vs Forward Current
Relative Intensity, Normalized at 20mA
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
InGaN
AlInGaP
Wavelength Shift, nm
Blue
True Green
10
15
20
25
30
35
40
45
50
55
Forward Current, mA
Forward Current, mA
Relative Intensity
Distribution
Wavelength
Vs Wavelength
1
0.9
0.8
Blue
True
Green
Forward Current Vs Forward Voltage
35
30
Red
Forward
Current, mA
Forward
Current, mA
Red
Relative Intensity
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
25
20
15
10
5
0
400
450
500
550
600
650
700
750
800
1
1.5
2
2.5
3
3.5
4
4.5
Wavelength, nm
Forward Voltage, V
Forward Current Vs Forward Voltage
30°
35
30
Radiation Pattern
20°
10°
0°
1.0
Forward Current, mA
Blue & True Green
40°
0.8
25
20
15
50°
0.6
60°
10
0.4
70°
5
0.2
80°
0
1
1.5
2
2.5
3
3.5
4
4.5
90°
0
Forward Voltage, V
5
27/11/2006 V20.0
