DATA SHEET:
SPNovaLED
TM
InGaN : 50mA

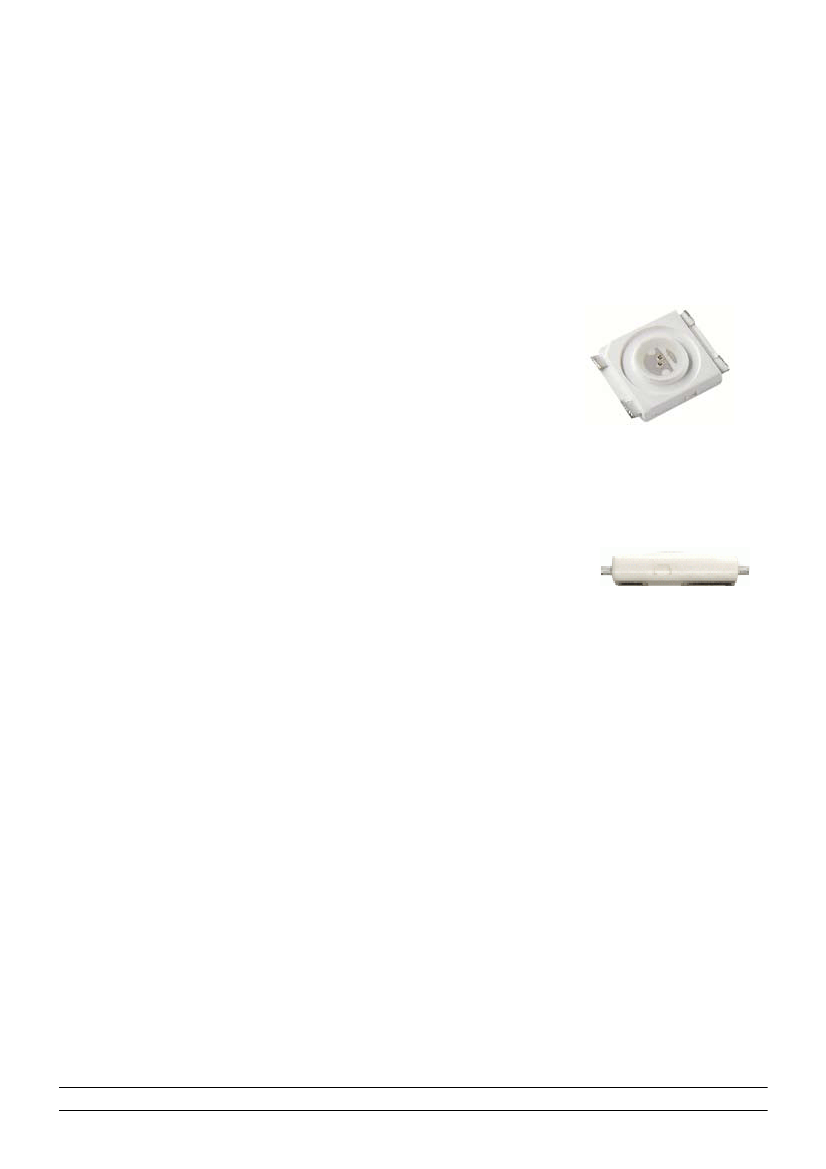

SPNovaLED
TM
Featuring a staggering brilliance and significant flux output, the
SPNovaLED™ showcases the latest technological advent in this
range. With its extremely high level of brightness and the ultra
low high profile, which is only 1.5 mm are highly suitable for both
conventional lighting and specialized application such as auto-
motive signal lights, traffic lights, channel lights, tube lights and
garden lights among others.
Features:
>
>
>
>
>
>
>
>
>
>
Super high brightness surface mount LED.
High flux output.
120° viewing angle.

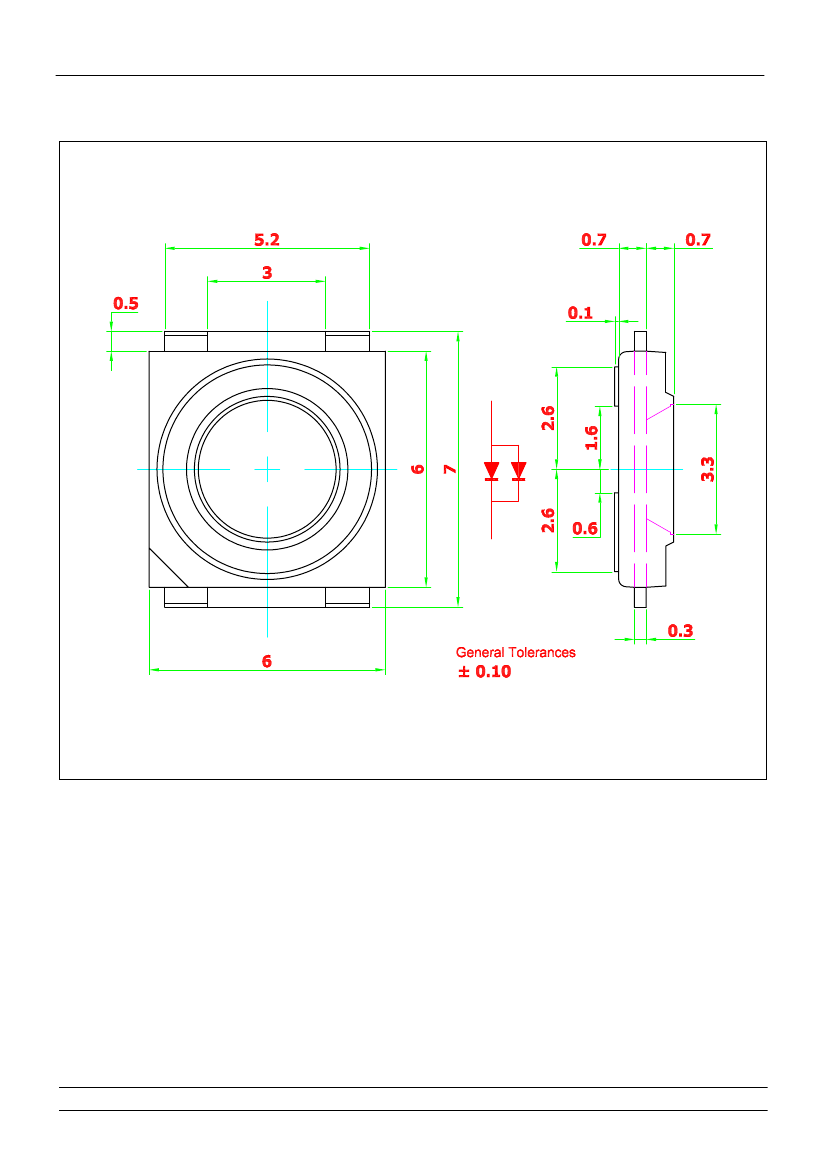

Compact package outline (LxWxH) of 6.0 x 6.0 x 1.5mm.
Ultra low height profile - 1.5 mm.
Designed for high current drive; typically 50 mA.
Low thermal resistance; Rth
(js) = 20 K/W.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to IR reflow soldering.
Environmental friendly; RoHS compliance.
Applications:
> Automotive: exterior applications, eg: Center High Mounted
Stop Light (CHMSL), Rear Combination Lights (RCLs), Signal light-
ting, Fog-lamp, etc.
> Communication: indicator and backlight in mobilephone.
> Industry: white goods (eg: Oven, microwave, etc.).
> Lighting: garden light, architecture lighting, general lighting. etc
© 2005 SPNovaLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
27/11/2006 V6.0
DOMINANT
TM
Semiconductors
Innovating Illumination
SPNovaLED InGaN : 50mA
Part Ordering
Number
N2B-CSS-TU1-1
• N2B-CSS-T1
• N2B-CSS-T2
• N2B-CSS-U1
N2T-CSS-WX1-1
• N2T-CSS-W1
• N2T-CSS-W2
• N2T-CSS-X1
Chip Technology
/ Color
InGaN
Blue, 470nm
Viewing
Angle˚
120
Luminous Intensity @
IF = 50mA (mcd)
285.0 - 560.0
285.0 - 355.0
355.0 - 450.0
450.0 - 560.0
InGaN
True Green, 525nm
120
1125.0 - 2240.0
1125.0 - 1400.0
1400.0 - 1800.0
1800.0 - 2240.0
NOTE
1. Luminous intensity is measured with an accuracy of ± 11%.
2. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
Wavelength Grouping
Color
N2B; Blue
Group
Full
W
X
Y
Wavelength distribution (nm)
464 - 476
464 - 468
468 - 472
472 - 476
520 - 536
520 - 524
524 - 528
528 - 532
532 - 536
N2T; True Green
Full
W
X
Y
Z
Dominant wavelength is measured with an accuracy of ± 1 nm.
Electrical Characteristics at Ta=25
0
C
Part Number
N2B-CSS
N2T-CSS
Vf @ If = 50 mA
Typ. (V)
3.8
3.9
Max. (V)
4.2
4.2
Vr @ Ir = 10
µA
Min. (V)
5
5
Forward Voltage, Vf is measured with an accuracy of ± 0.1 V.
Optical Characteristics at Ta=25˚C, if=50mA, Rja=100K/W
Part Number
N2B-CSS-TU1-1
N2T-CSS-WX1-1
Total Flux @ If=50mA
Typ. (mlm)
Min. (mlm)
800
3700
900
4600
Intensity @ If=50mA(mcd)
Min.
Typ.
285
1125
360
1400
2
27/11/2006 V6.0
DOMINANT
TM
Semiconductors
Innovating Illumination
SPNovaLED InGaN : 50mA

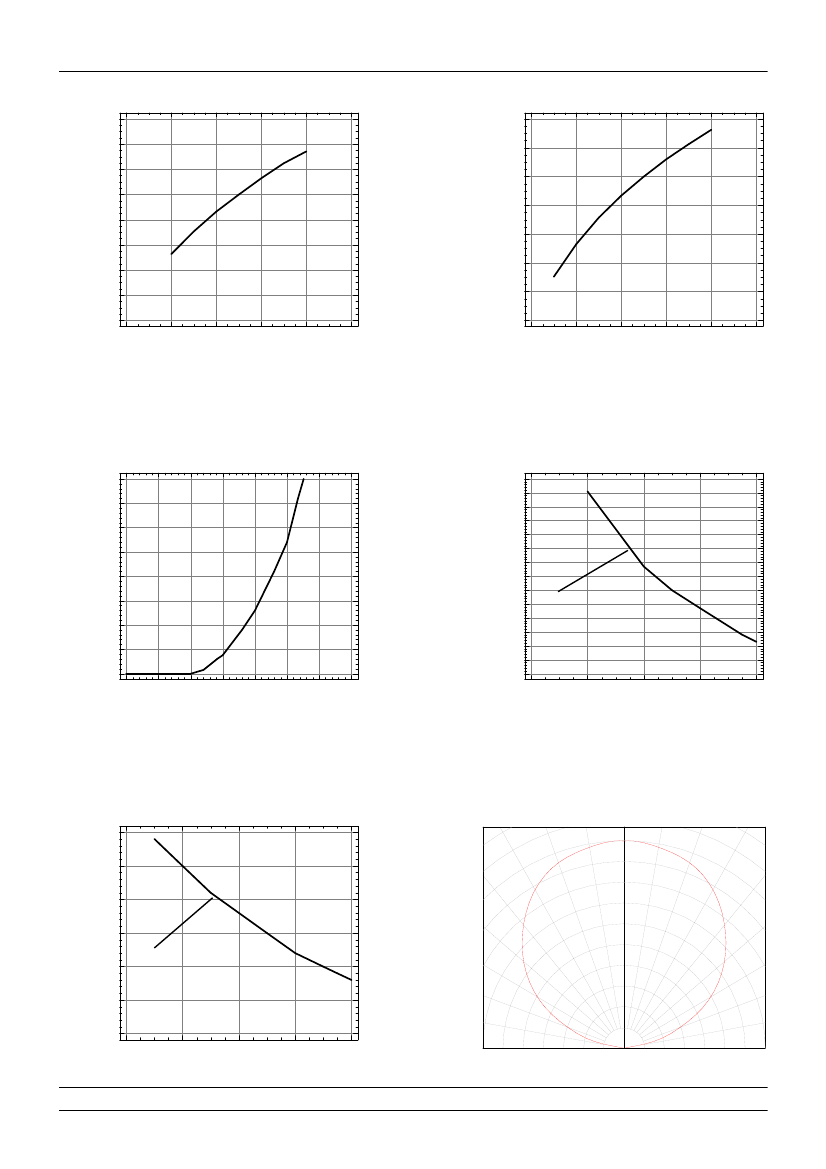

Relative Luminous Flux Vs Forward Current
Relative Flux; Normalized at 50mA
Relative Luminous Flux, Normalized at 50mA
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
20
40
60
80
100
Relative Luminous Intensity Vs Forward Current
Relative Intensity, Normalized at 50mA
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
20
40
60
80
100
Forward Current, mA
Forward Current, mA
Forward Current Vs Forward Voltage
80
70
Dominant Wavelength Shift Vs Forward Current
8
7
6
5
4
3
2
1
0
-1
-2
-3
-4
-5
-6
0
60
50
40
30
20
10
0
1.5
2
2.5
3
3.5
4
4.5
5
Dominant Wavelength Shift, nm
Forward Current, mA
True Green
20
40
60
80
Forward Voltage, V
Forward Current, mA
Dominant Wavelength Shift Vs Forward Current
30°
1.5
Radiation Pattern
20°
10°
0°
1.0
Dominant Wavelength Shift, nm
1
40°
0.8
0.5
50°
0
Blue
0.6
-0.5
60°
70°
80°
0.4
-1
0.2
-1.5
0
20
40
60
80
90°
0
Forward Current, mA
4
27/11/2006 V6.0
Microchip MCU
