DOMINANT
Semiconductors
Multi DomiLED White – DM3W-DJD
•
•
•
•
•
•
High brightness surface mount LED.
Based on InGaN technology.
120° viewing angle.
Small package outline (LxWxH) of 2.8 x 3.2 x 1.9 mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
27/06/06
DomiLED Multi 3 White DM3W-DJD- Catalogue-v4
Page 1 of 8
DOMINANT
Semiconductors
Part Ordering Number
Color
Luminous Intensity @ If = 60mA; Iv (mcd) / 20mA per chip
DM3W-DJD-X2Y1-1
•
•
DM3W-DJD-X2
DM3W-DJD-Y1
White
2240.0 … 3550.0
2240.0 … 2850.0
2850.0 … 3550.0
1. DM3W comes in a quantity of 2000 units per reel.
2. Luminous intensity is measured with an accuracy of
±11%..
Material
Material
Lead-frame
Housing
Epoxy
Lead-finishing
Copper alloy.
High temperature resistant plastic, PPA.
Diffused epoxy resin.
Pure tin plating, Sn.
27/06/06
DomiLED Multi 3 White DM3W-DJD- Catalogue-v4
Page 2 of 8
DOMINANT
Semiconductors
Color Grouping.
If color binning is required, only one color group is allowed for each chip within a reel.
0.4
0.38
0.36
0.34
0.32
0.3
0.28
0.26
0.24
0.22
0.2
0.2
0.22
0.24
0.26
0.28
0.3
0.32
0.34
0.36
0.38
0.4
X
Y
Chromaticity coordinate groups are measured with an accuracy of
±0.01.
X
Y
0.290
0.265
0.310
0.299
0.310
0.299
0.330
0.334
0.310
0.344
0.330
0.379
0.290
0.310
0.310
0.344
Absolute Maximum Ratings.
Maximum Value
DC forward current per chip
Peak pulse current; (tp
≤
10
μs,
Duty cycle = 0.005)
Reverse voltage.
ESD Threshold
LED junction temperature.
Operating temperature.
Storage temperature.
Power dissipation ( at room temperature )
20
100
5
2
125
-40 … +100
-40 … +100
80
Unit
mA
mA
V
kV
°C
°C
°C
mW
27/06/06
DomiLED Multi 3 White DM3W-DJD- Catalogue-v4
Page 3 of 8
DOMINANT
Semiconductors
Recommended Solder Pad
27/06/06
DomiLED Multi 3 White DM3W-DJD- Catalogue-v4
Page 4 of 8
DOMINANT
Semiconductors

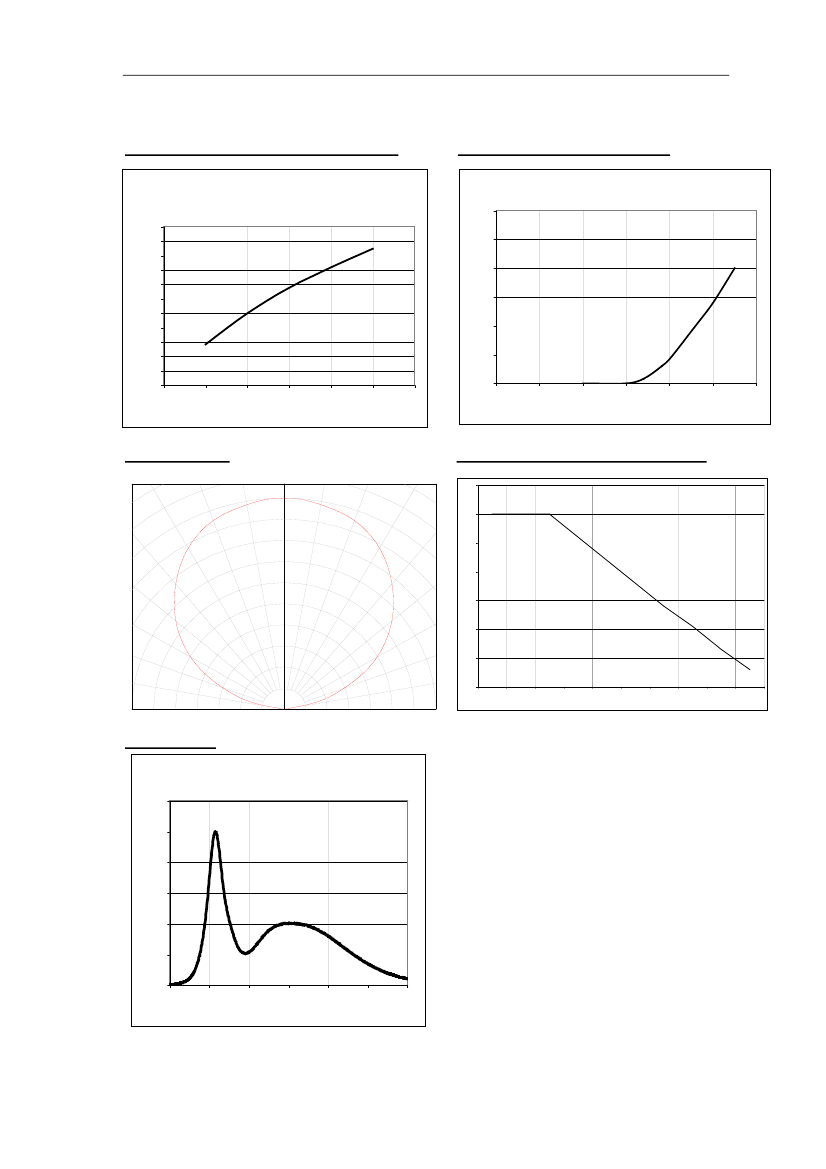

Relative luminous intensity vs. forward current.
Intensity vs. DC Forward Current
Forward current vs. forward voltage.
Forward Current (mA) vs. Forward Voltage
30
Relative intensity. Normalized at 20 mA.
2.2
2
25
Forward Current (mA)
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
60
FORWARD CURRENT (mA)
20
15
10
5
0
1
1.5
2
2.5
Forward Voltage (V)
3
3.5
4
Radiation pattern.
30°
20°
10°
0°
1.0
Maximum forward current vs. temperature.
70
60
40°
0.8
50
Forward Current, If
50°
0.6
40
30
60°
70°
80°
90°
0.4
20
0.2
10
0
10
20
30
40
50
60
70
80
90
100
0
Ambient Temperature
Color Spectrum
WhiteLED : Spectrum
1.2
1.0
Relative Emission Intensity
0.8
0.6
0.4
0.2
0.0
400
450
500
550
Wavelength (nm)
600
650
700
27/06/06
DomiLED Multi 3 White DM3W-DJD- Catalogue-v4
Page 5 of 8
