5962-8764804XA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> 5962-8764804XA

5962-8764804XA: DescriptionUVPROM, 64KX8, 120ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28; Categorystorage; File Size451KB，17 Pages; ManufacturerWaferscale Integration Inc.

Download Datasheet Parametric Compare View All

5962-8764804XA Overview

UVPROM, 64KX8, 120ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28

5962-8764804XA Parametric

Parameter Name	Attribute value
Maker	Waferscale Integration Inc.
package instruction	WINDOWED, CERAMIC, DIP-28
Reach Compliance Code	unknown
Maximum access time	120 ns
JESD-30 code	R-GDIP-T28
JESD-609 code	e0
length	37.1475 mm
memory density	524288 bit
Memory IC Type	UVPROM
memory width	8
Number of functions	1
Number of terminals	28
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	64KX8
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WDIP
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.588 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

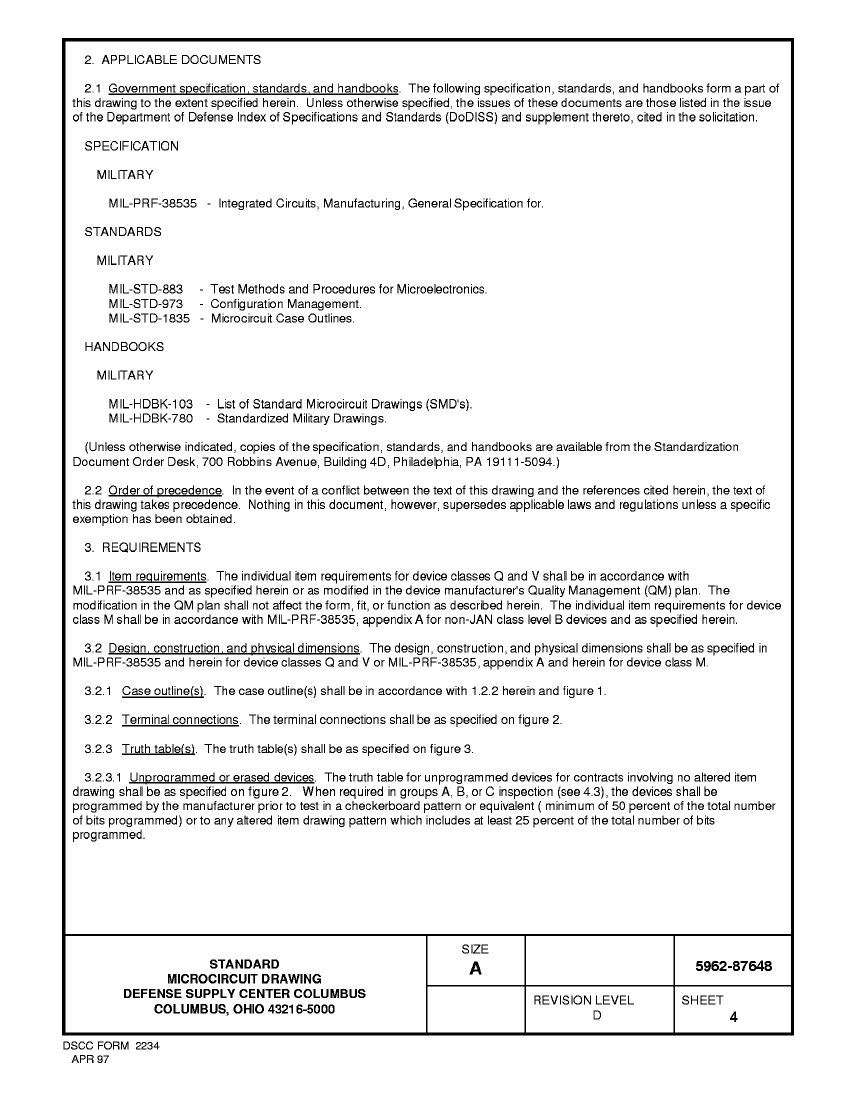

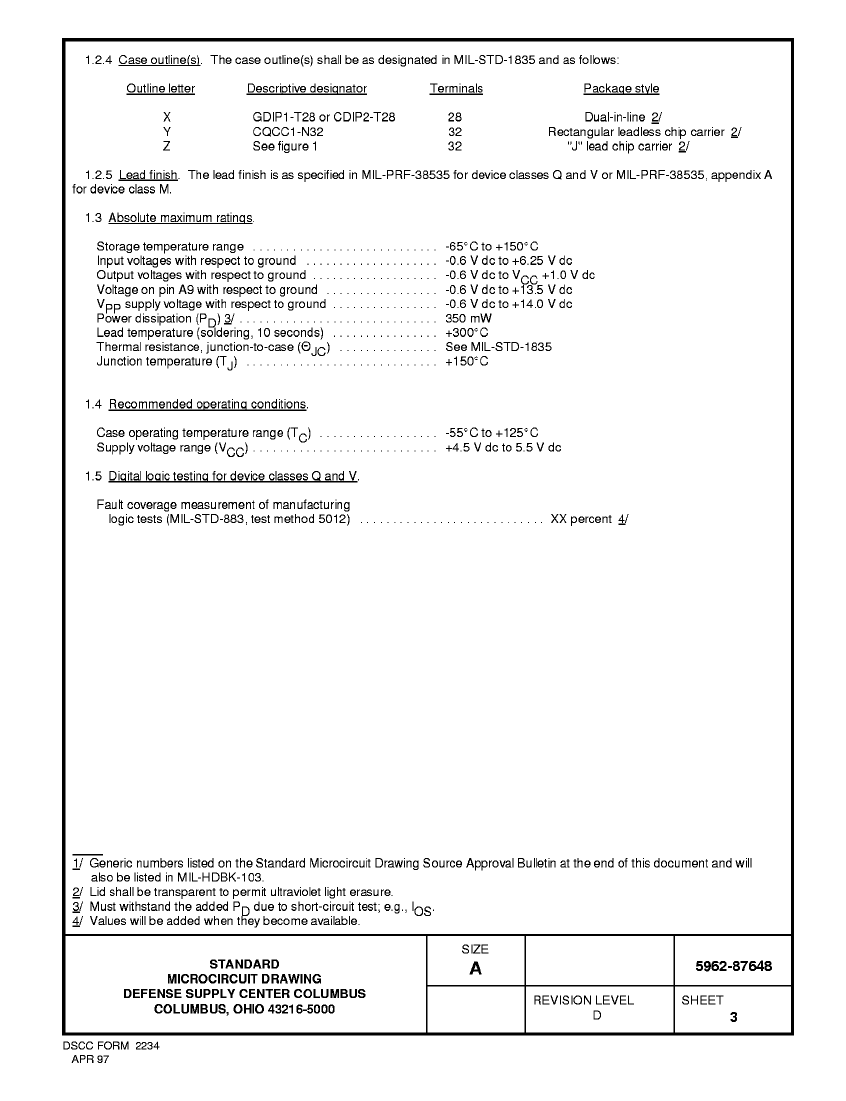

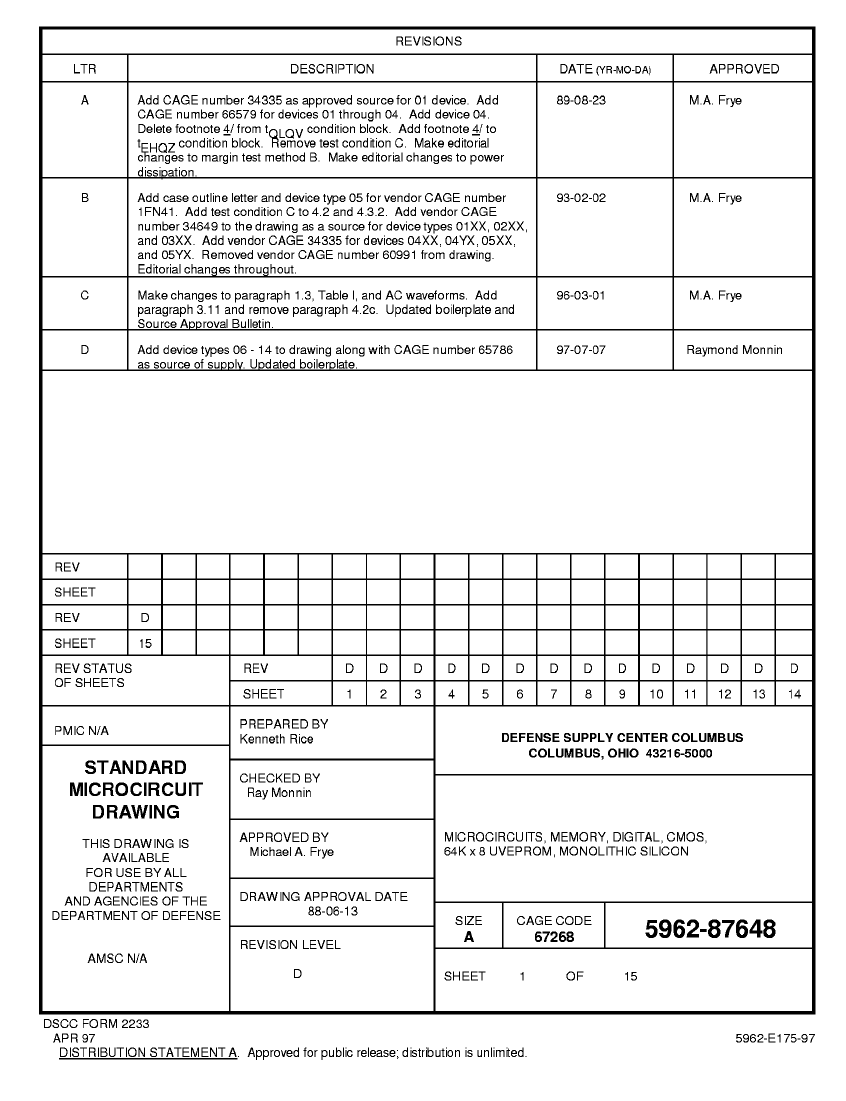

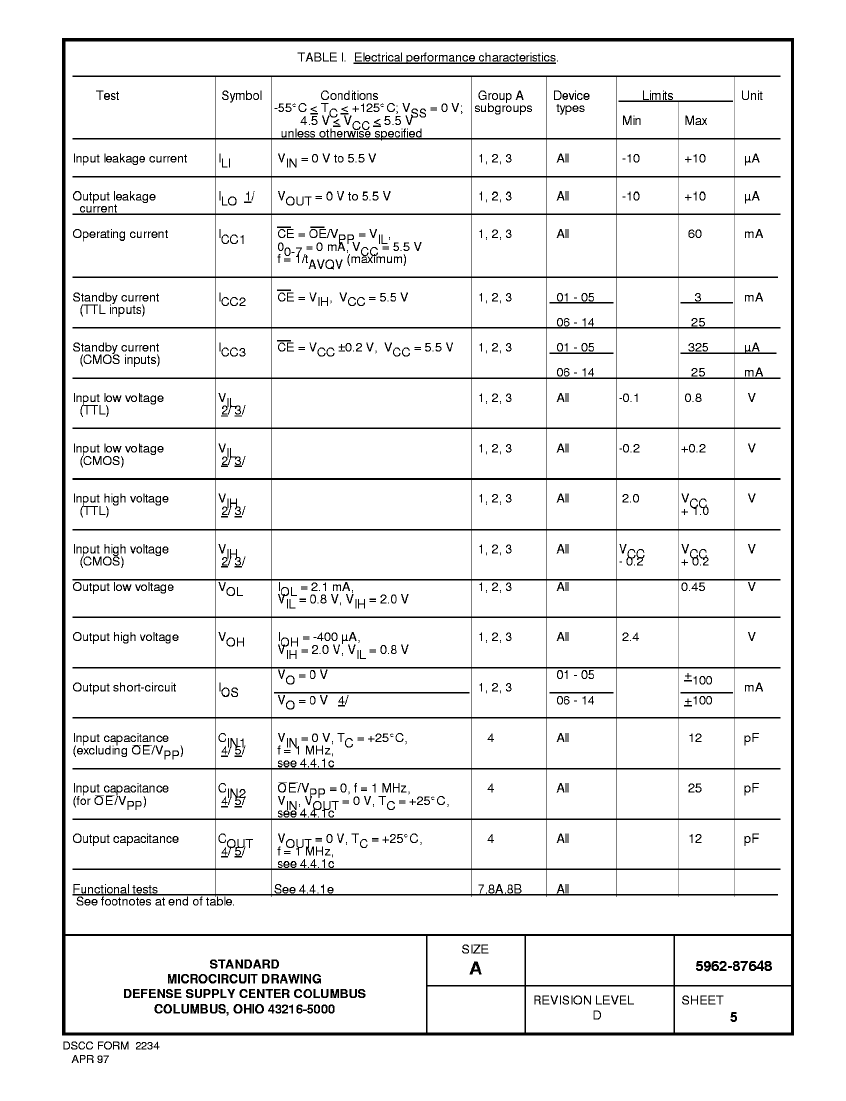

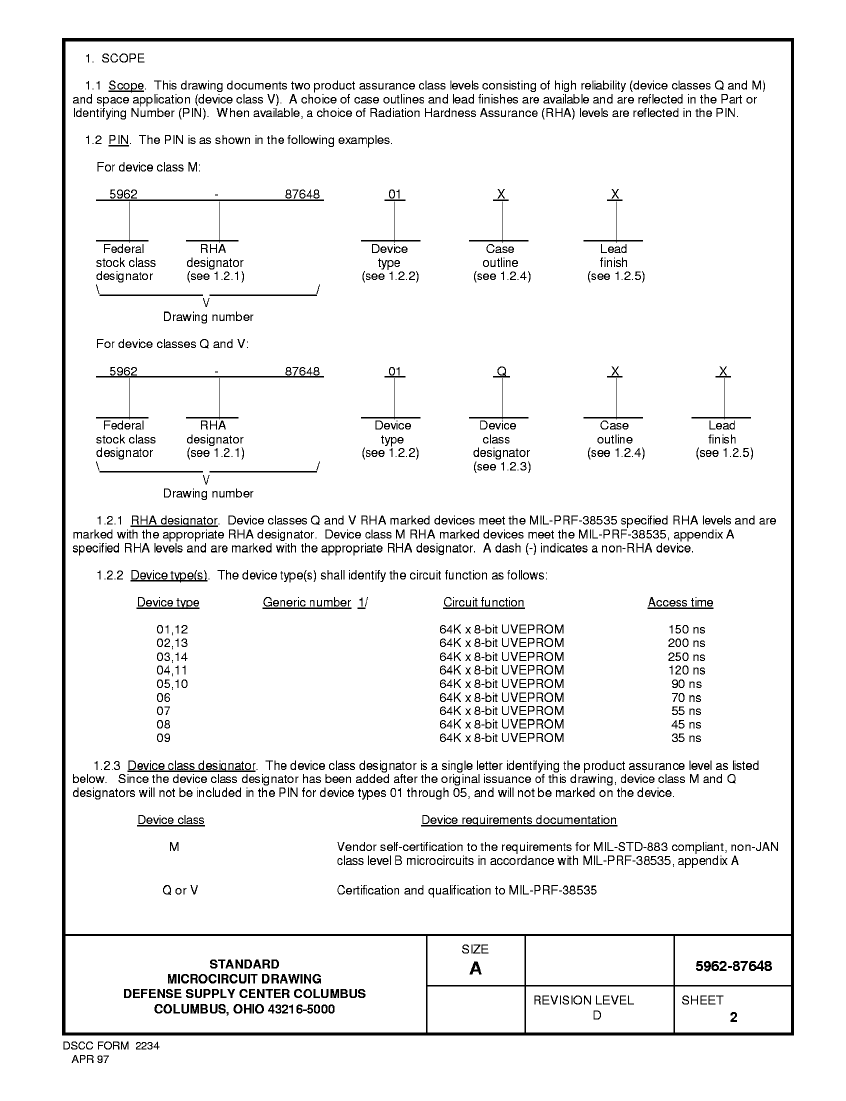

Preview

Download Datasheet

View All

5962-8764804XA Related Products

	5962-8764804XA	5962-8764801XX	5962-8764801YX	5962-8764802XX	5962-8764804XX	5962-8764803YX	5962-8764803XX	5962-8764802YX	PCF1210-02-69K8BT1
Description	UVPROM, 64KX8, 120ns, CMOS, CDIP28, WINDOWED, CERAMIC, DIP-28	UVPROM, 64KX8, 150ns, CMOS, CDIP28, CERAMIC, DIP-28	UVPROM, 64KX8, 150ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	UVPROM, 64KX8, 200ns, CMOS, CDIP28, CERAMIC, DIP-28	UVPROM, 64KX8, 120ns, CMOS, CDIP28, 0.600 INCH, WINDOWED, CERDIP-28	UVPROM, 64KX8, 250ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	UVPROM, 64KX8, 250ns, CMOS, CDIP28, CERAMIC, DIP-28	UVPROM, 64KX8, 200ns, CMOS, CQCC32, WINDOWED, CERAMIC, LCC-32	Fixed Resistor, Metal Film, 0.2W, 69800ohm, 150V, 0.1% +/-Tol, 50ppm/Cel, 1209,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	compliant
Number of terminals	28	28	32	28	28	32	28	32	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	IN-LINE, WINDOW	IN-LINE	CHIP CARRIER, WINDOW	IN-LINE	IN-LINE, WINDOW	CHIP CARRIER, WINDOW	IN-LINE	CHIP CARRIER, WINDOW	SMT
surface mount	NO	NO	YES	NO	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	THIN FILM
package instruction	WINDOWED, CERAMIC, DIP-28	CERAMIC, DIP-28	WINDOWED, CERAMIC, LCC-32	CERAMIC, DIP-28	0.600 INCH, WINDOWED, CERDIP-28	WINDOWED, CERAMIC, LCC-32	CERAMIC, DIP-28	WINDOWED, CERAMIC, LCC-32	-
Maximum access time	120 ns	150 ns	150 ns	200 ns	120 ns	250 ns	250 ns	200 ns	-
JESD-30 code	R-GDIP-T28	R-GDIP-T28	R-CQCC-N32	R-GDIP-T28	R-GDIP-T28	R-CQCC-N32	R-GDIP-T28	R-CQCC-N32	-
JESD-609 code	e0	-	e0	-	e0	e0	-	e0	e3
length	37.1475 mm	-	13.95 mm	-	37.25 mm	13.95 mm	-	13.95 mm	-
memory density	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	524288 bit	-
Memory IC Type	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	UVPROM	-
memory width	8	8	8	8	8	8	8	8	-
Number of functions	1	1	1	1	1	1	1	1	-
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	-
character code	64000	64000	64000	64000	64000	64000	64000	64000	-
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-
organize	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	64KX8	-
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	-
encapsulated code	WDIP	DIP	WQCCN	DIP	WDIP	WQCCN	DIP	WQCCN	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	5.588 mm	-	2.92 mm	-	5.72 mm	2.92 mm	-	2.92 mm	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-
Terminal surface	TIN LEAD	-	TIN LEAD	-	TIN LEAD	TIN LEAD	-	TIN LEAD	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD	-
Terminal pitch	2.54 mm	-	1.27 mm	-	2.54 mm	1.27 mm	-	1.27 mm	-
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD	-
width	15.24 mm	-	11.4 mm	-	15.24 mm	11.4 mm	-	11.4 mm	-
Base Number Matches	1	1	1	1	1	1	1	1	-
