HDSP-70xE
17.3 mm (0.68 inch) General Purpose
5x7 Dot Matrix Alphanumeric Displays
Data Sheet
HDSP-70xE Series, HDSP-71xE Series
HDSP-70xG Series, HDSP-71xG Series
HDSP-70xA Series, HDSP-71xA Series
Description

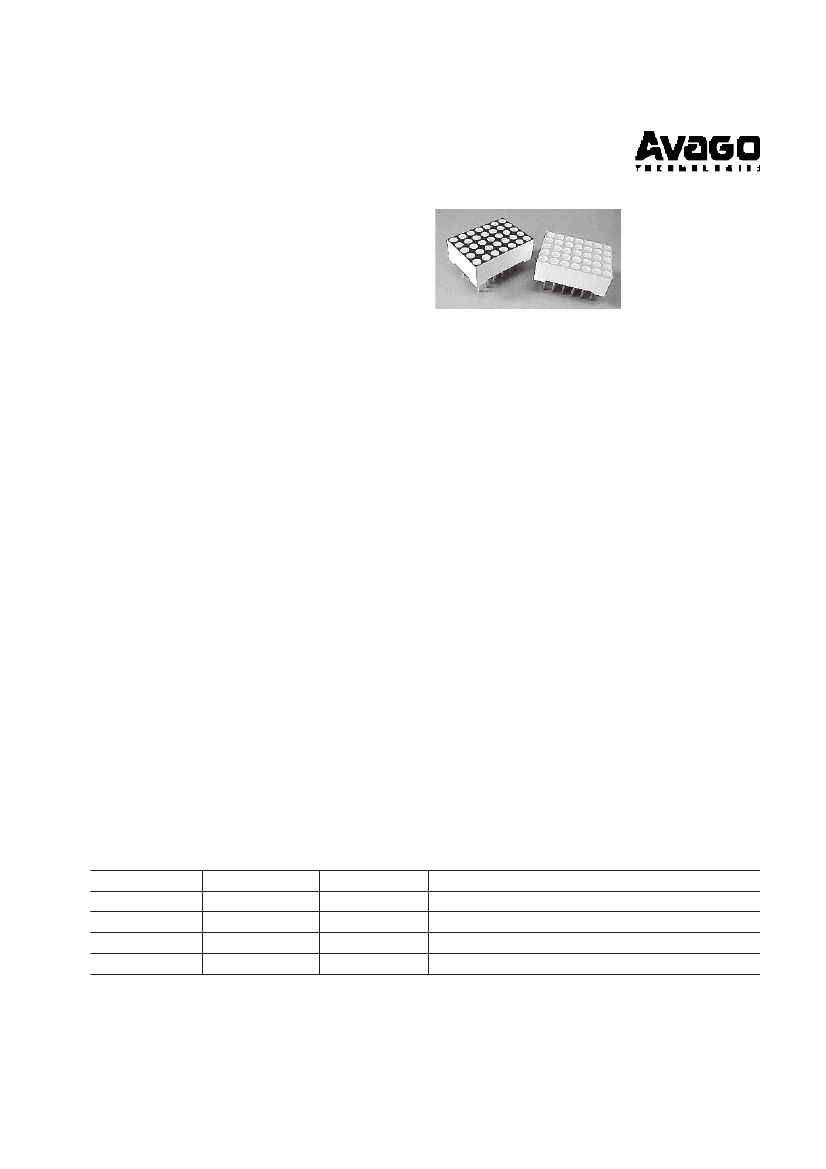

These displays have a 17.3 mm (0.68 inch) character
height and use industry standard size and pin-out.
The devices are available in either common row
anode or common row cathode configurations. The
displays come in either gray or black face paint and are
available in a choice of high efficiency red (HER) or green
colors or AlGaAs.
These parts are subjected to Outgoing Quality Assurance
(OQA) inspection with an AQL of 0.065% for functional
and visual/cosmetic defects.
For optimal intensity performance, please consider our
industrial grade displays:
•
HDSP-L20x
•
HDSP-540x
•
HDSP-L10x
Features
•
5 x 7 dot matrix font
•
Viewable up to 12 meters
•
X-Y stackable
•
Industry standard pin-out
7.6 mm (0.3 in.) Dual-in-Line (DIP) leads on 2.54 mm
(0.1 in.) centers
•
Choice of colors
Red or Green or AlGaAs
•
Choice of face paint colors
Gray or black
•
Design flexibility
Common row anode or common row cathode
•
Categorized for luminous intensity
•
Green categorized for color
Applications
•
Suitable for indoor use
•
Not recommended for industrial applications, i.e., op-
erating temperature requirements exceeding 85°C or
Below -40°C
[1]
•
Extreme temperature cycling not recommended
[2]
Devices
HER HDSP-
701E
703E
711E
713E
Green HDSP-
701G
703G
711G
713G
AlGaAs HDSP-
701A
703A
711A
713A
Description
17.3 mm Gray Surface Common Row Anode
17.3 mm Gray Surface Common Row Cathode
17.3 mm Black Surface Common Row Anode
17.3 mm Black Surface Common Row Cathode
Notes:
1. For details, please contact your local Avago components sales office or an authorized distributor.

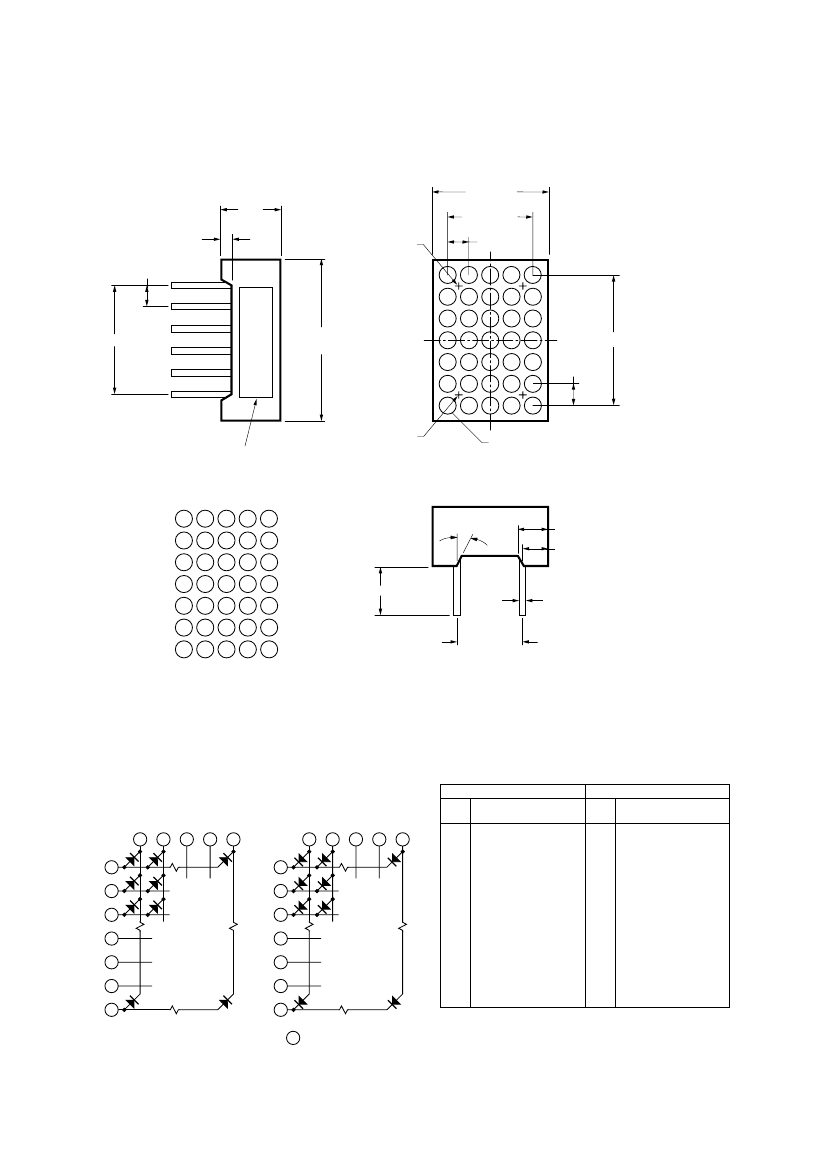

Package Dimensions
6.3
(0.25)
1.3 (0.05)
2.54
(0.10)
PIN 1
12.7 (0.50)
MAX.
10.16 (0.40)
2.54 (0.10)
12.7 (0.50)
17.78
MAX.
(0.70)
15.24 (0.600)
2.54
(0.10)
PART NO.
PIN 6
35 –
∅
1.9 (0.075)
COL 1
ROW 1
2
3
4
5
6
7
2
3
4
5
8 – 21.8
8 – 3 (0.118)
8 – 2.5 (0.098)
5.1 ± 0.5 (0.201)
12 –
∅
0.5 (0.02)
7.62 (0.03)
NOTES:
1. ALL DIMENSIONS IN MILLIMETERS (INCHES).
2. UNLESS OTHERWISE STATED, TOLERANCE IS ± 0.25 mm (0.010).
3. FOR GREEN ONLY.
Internal Circuit Diagram
COMMON ANODE ROW
COLUMN
1
ROW
1
12
2
11
3
2
4
9
5
4
6
5
7
6
1
COMMON CATHODE ROW
COLUMN
5
8
2
3
10
3
4
7
1
ROW
1
1
2
2
3
11
4
10
5
8
6
5
7
6
4
2
3
3
7
4
9
12
5
COMMON ROW ANODE
HDSP-701E/711E/
PIN 701G/711G/701A/711A
1
2
3
4
5
6
7
8
9
10
11
12
COLUMN 1 CATHODE
ROW 3 ANODE
COLUMN 2 CATHODE
ROW 5 ANODE
ROW 6 ANODE
ROW 7 ANODE
COLUMN 4 CATHODE
COLUMN 5 CATHODE
ROW 4 ANODE
COLUMN 3 CATHODE
ROW 2 ANODE
ROW 1 ANODE
COMMON ROW CATHODE
HDSP-703E/713E/
PIN 703G/713G/703A/713A
1
2
3
4
5
6
7
8
9
10
11
12
ROW 1 CATHODE
ROW 2 CATHODE
COLUMN 2 ANODE
COLUMN 1 ANODE
ROW 6 CATHODE
ROW 7 CATHODE
COLUMN 3 ANODE
ROW 5 CATHODE
COLUMN 4 ANODE
ROW 4 CATHODE
ROW 3 CATHODE
COLUMN 5 ANODE
x = ROW OR COLUMN NUMBER, x = PIN NUMBER
2
HDSP-70XE Internal Circuit Diagram
Absolute Maximum Ratings at T
A
= 25°C
Parameter
Average Power per Dot
[1]
Peak Forward Current per Dot
[1,2]
(
1/10 Duty Cycle, 0.1 ms Pulse Width)
Average Forward Current per Dot
[1]
Reverse Voltage per Dot
Operating Temperature
Storage Temperature
Wave Soldering Temperature for 3 seconds
[3]
(1.6 mm [0.063 in.] below Body)
HER
HDSP-701E/
711E/703E/
713E
75
90
23
5
–40 to +85
–40 to +85
250
AlGaAs
HDSP-701A/
703A/711A/
713A
75
125
23
[3]
5
–40 to +85
–40 to +85
250
Green
HDSP-701G/
711G/703G/
713G
75
90
15
[2]
5
–40 to +85
–40 to + 85
250
Units
mW
mA
mA
V
°C
°C
°C
Notes:
1. Do not exceed maximum average current per dot.
2. Derate above 35°C at 0.2 mA/°C.
3. Not recommended to be soldered more than 2 times. Minimum interval between solderings is 15 minutes. Total soldering time not to exceed 5
seconds.
Optical/Electrical Characteristics at T
A
= 25°C
High Efficiency Red
Devices
HDSP-
701E
711E
703E
713E
Parameter
Luminous Intensity/Dot
(Digit Average)
[1]
Peak Wavelength
Dominant Wavelength
[2]
Forward Voltage
Reverse Voltage
[3]
R
V
Luminous Intensity
Matching Ratio
Symbol
I
V
l
PEAK
ld
V
F
5
I
V-M
Min.
1.289
1.60
Typ.
2.500
632
622
2.05
Max. Units
mcd
nm
nm
3.40
V
2.50
V
2:1
Test
Conditions
I
F
= 50 mA,
20% Duty Factor
I
F
= 20 mA
I
F
= 20 mA
I
F
= 50 mA
I
F
= 20 mA
I
F
= 5 mA
I
R
= 100 µA
I
F
= 50 mA
20% Duty Factor
3
Optical/Electrical Characteristics at T
A
= 25°C, continued
Green
Devices
HDSP-
701G
711G
703G
713G
Parameter
Luminous Intensity/Dot
(Digit Average)
[1]
Peak Wavelength
Dominant Wavelength
[2]
Forward Voltage
Reverse Voltage
[3]
R
V
Luminous Intensity
Matching Ratio
Symbol
I
V
l
PEAK
ld
V
F
5
I
V-M
Min.
0.96
1.80
1.60
Typ.
2.50
568
573
2.25
Max. Units
mcd
3.40
2.60
2:1
nm
nm
V
V
Test
Conditions
I
F
= 50 mA,
20% Duty Factor
I
F
= 20 mA
I
F
= 20 mA
I
F
= 50 mA
I
F
= 20 mA
I
F
= 5 mA
I
R
= 100 µA
I
F
= 50 mA
20% Duty Factor
AlGaAs
Devices
HDSP-
701A
711A
703A
713A
Notes:
Parameter
Luminous Intensity/Dot
(Digit Average)
[1]
Peak Wavelength
Dominant Wavelength
[2]
Forward Voltage
Reverse Voltage
[3]
R
V
Luminous Intensity
Matching Ratio
Symbol
I
V
l
PEAK
ld
V
F
5
I
V-M
Min.
1.55
1.5
Typ.
2.10
660
643
1.8
Max. Units
mcd
nm
nm
2.0
V
2.0
V
1.5:1
Test
Conditions
I
F
= 10 mA,
20% Duty Factor
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 10 mA
I
F
= 5 mA
I
R
= 100 µA
I
F
= 10 mA
20% Duty Factor
1. The digits are categorized for luminous intensity. The intensity category is designated by a letter on the side of the package.
2. The dominant wavelength, ld, is derived from the CIE chromaticity diagram and represents the single wavelength which defines the
color of the device.
3. Typical specification for reference only. Do not exceed absolute maximum ratings.
4
I
DC
– MAXIMUM DC CURRENT PER SEGMENT – mA
I
F
– FORWARD CURRENT PER SEGMENT – mA
35
30
25
20
15
10
5
0
0
20
40
60
80
100
AlGaAs
GREEN, HER
90
80
70
60
50
40
30
20
10
0
1
2
GREEN
3
4
5
AlGaAs
HER
T
A
– AMBIENT TEMPERATURE – C
V
F
– FORWARD VOLTAGE – V
Figure 1. Maximum Allowable Average Current
Per Dot vs. Ambient Temperature.
HDSP-70XE fig 1
Figure 2. Forward Current vs. Forward Voltage.
HDSP-70XE fig 2
4.0
RELATIVE LUMINOUS INTENSITY
(NORMALIZED AT 20 mA)
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
0
5
10
15
20
25
30
35
40
GREEN, HER
η
V
– RELATIVE EFFICIENCY
(NORMALIZED TO/AT 10 mA PER SEGMENT)
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0 10 20 30 40 50 60 70 80 90 100
I
PEAK
– PEAK FORWARD CURRENT
PER SEGMENT – mA
AlGaAs
RED
GREEN
AlGaAs
I
F
– DC FORWARD CURRENT – mA
Figure 3. Relative Luminous Intensity vs.
DC Forward Current.
HDSP-70XE fig 3
Figure 4. Relative Efficiency (Luminous Intensity
Per Unit Current Per Dot) vs. Peak Current Per Dot.
HDSP-70XE fig 4
