824-M0136R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > transformer> 824-M0136R

824-M0136R: DescriptionDatacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1CT; 1CT:1CT, SO016C, ROHS COMPLIANT; Categorytransformer; File Size120KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com; Environmental Compliance

Download Datasheet Parametric Compare View All

824-M0136R Overview

Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1CT; 1CT:1CT, SO016C, ROHS COMPLIANT

824-M0136R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Elec & Eltek
package instruction	SO016C, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO
application	10/100 BASE-T; AUTOMDIX
high	5.97 mm
Insulation voltage	1500 V
length	12.83 mm
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	L12.83XB15.24XH5.97 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1CT:1CT
width	15.24 mm
Base Number Matches	1

Preview

Download Datasheet

View All

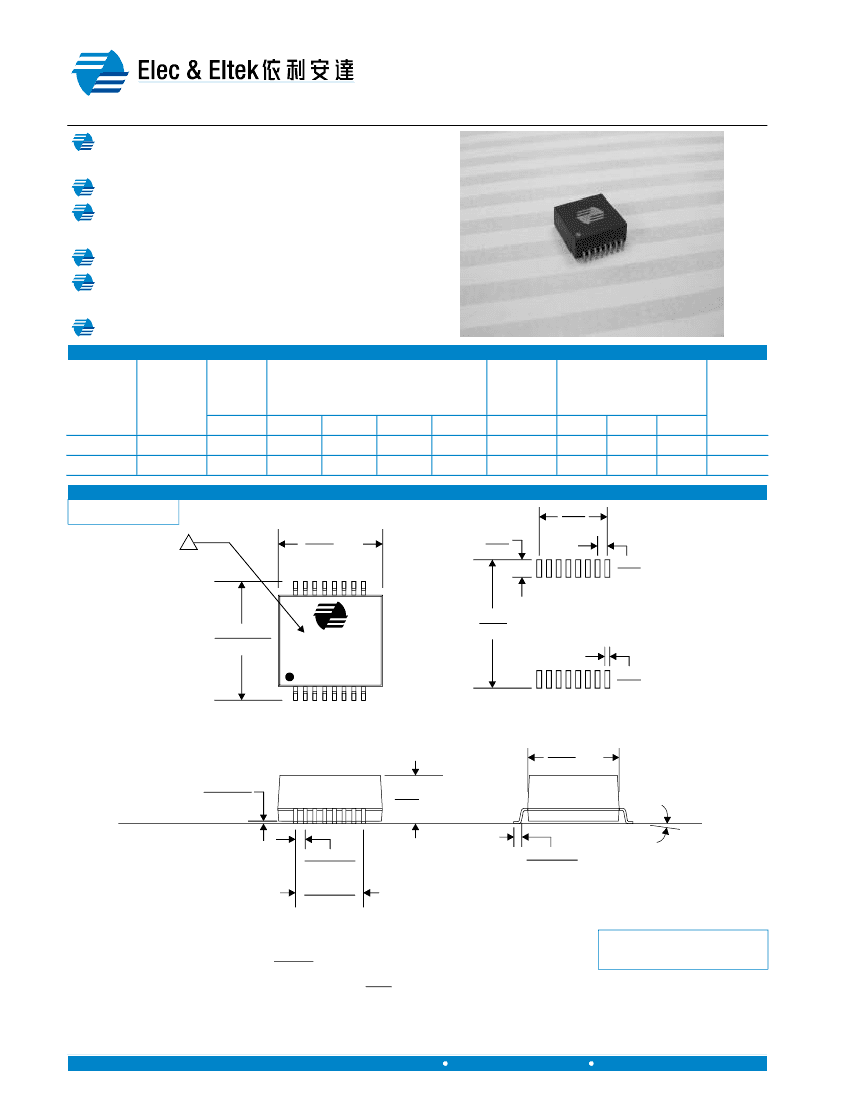

E & E Magnetic Products Limited

10/100 Base-T Single Port

Magnetic Module

Design for Auto MDI/MDIX Applications

CHEMATICS

Compliant with IEEE802.3 standard including

350uH

OCL with 8mA DC bias

Excellent crosstalk and return loss performance

Designed to withstand IR-Reflow with peak

temperature per IPC/JEDEC J-STD-020C

Operating temperature 0°C to +70°C

Symmetrical TX and RX channels suitable for Auto

MDI/MDIX applications

RoHS compliant versions are available

LECTRICAL

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

Insertion

Loss

(dB Max)

.1-100MHz 2-30MHz

824-M0117 824-M0117R

824-M0136 824-M0136R

1.0

18.0

Return Loss

(dB Min)

40MHz

14.4

50MHz

13.1

60-80MHz

12.0

DM-CM

Rejection

(dB Min)

1-200MHz

35.0

30MHz

50.0

Crosstalk

(dB Min)

60MHz

40.0

100MHz

35.0

1500

Hipot

(Vrms)

CHEMATICS

ECHANICAL

IMENSIONS

Package: SO016C

.350

8.89

.505

MAX

12.83

.090

2.29

.050

1.27

.600±.010

15.24±0.25

.660

16.76

4M01xx

(DATE)

.025

0.64

Recommended

Pad Layout

.485

MAX

12.32

.010-.020

0.25-0.51

.235

MAX

5.97

REFERENCE OR

GAUGE PLANE

.050±.005

1.27±0.13

.350±.010

8.89±0.25

.045±.010

1.14±0.25

0-8°

Notes:

Weight (in gram)

2.4 typ.

450 / reel

Tape & Reel

1. All dimensions are specified in inches with higher precedence in inches.

2. Unless otherwise specified, all tolerances are ± .010 .

0.25

3. For available RoHS part number, the part will be marked with “4M01xxR”, instead of “4M01xx”.

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH015(06)

Revised in 06/07

824-M0136R Related Products

	824-M0136R	824-M0117R	824-M0117	824-M0136
Description	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1CT; 1CT:1CT, SO016C, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1:1; 1:1, SO016C, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1:1; 1:1, SO016C	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1CT; 1CT:1CT, SO016C
Is it lead-free?	Lead free	Lead free	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	incompatible	incompatible
Maker	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek
package instruction	SO016C, ROHS COMPLIANT	SO016C, ROHS COMPLIANT	SO016C	SO016C
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO	BREADTH & HEIGHT DIM INCLUDES TERMINALS ALSO
application	10/100 BASE-T; AUTOMDIX	10/100 BASE-T; AUTOMDIX	10/100 BASE-T; AUTOMDIX	10/100 BASE-T; AUTOMDIX
high	5.97 mm	5.97 mm	5.97 mm	5.97 mm
Insulation voltage	1500 V	1500 V	1500 V	1500 V
length	12.83 mm	12.83 mm	12.83 mm	12.83 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
method of packing	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL
physical size	L12.83XB15.24XH5.97 (mm)	L12.83XB15.24XH5.97 (mm)	L12.83XB15.24XH5.97 (mm)	12.83mm X 15.24mm X 5.97mm
Primary inductance	350 µH	350 µH	350 µH	350 µH
surface mount	YES	YES	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1CT; 1CT:1CT	1:1; 1:1	1:1; 1:1	1CT:1CT; 1CT:1CT
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1	1
