UNLESS OTHERWISE
SPECIFIED
TOLERANCE
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
ISSUE NUMBER
ORIGINAL
1
12.55
±0.38
69.32
±0.38
63.50
±0.25
55.42
.X
.XX
.XXX
±0.25
±0.13
±0.05
3.96
1.98
10°
9.16
11.43
±0.25
1.21
NOTES:
11.43
±0.25
MATERIAL:
HOUSING: THERMOPLASTIC POLYESTER, UL94V-0
SHELL: STEEL, Sn or Ni PLATED
CONTACT: COPPER ALLOY SEE ORDERING GUIDE FOR PLATING
0.10
±0.01
2.54
±0.25
TYP
0.095
2.41 TYP
OPERATING TEMPERATURE: -55 C ~ 85 C
CURRENT RATING: 3A PER CONTACT
CONTACT RESISTANCE: 25mΩ MAX.
INSULATOR RESISTANCE: 5000MΩ min.
DIELECTRIC
WITHSTANDING VOLTAGE: 1000V AC rms
SW REFERENCE NO.:
633 ASSEMBLY
DATE:
DATE:
SHEET
AUG. 01/2018

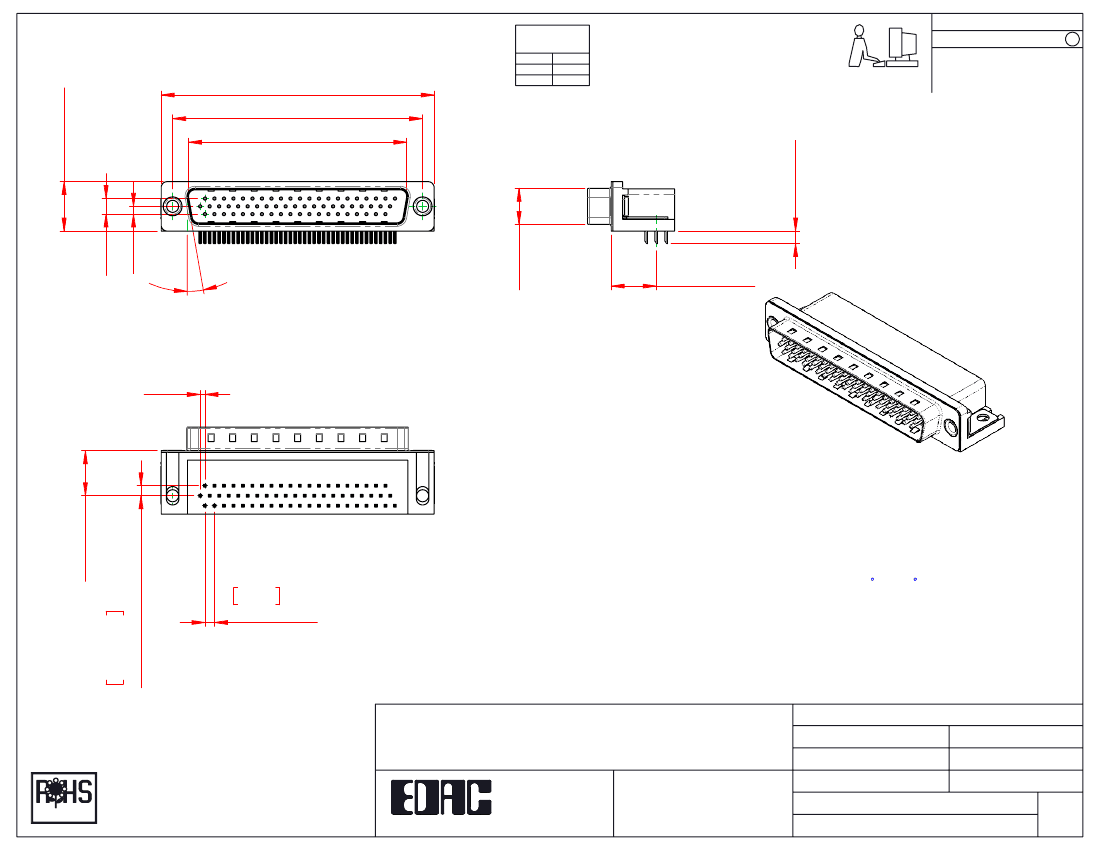

633 SERIES D-SUB CONNECTOR
THIS SERIES FULLY CONFORMS TO
THE EUROPEAN UNION DIRECTIVES
COMPLIANT
2011/65/EU FOR RoHS COMPLIANCY.
EDAC INC
TORONTO, ONTARIO
CANADA
YOUR CONNECTION TO QUALITY & SERVICE
