5962-9228401MZC datasheet, PDF

5962-9228401MZC: DescriptionRISC Microprocessor, 20MHz, CMOS, CPGA169, PGA-169; CategoryMicrocontrollers and processors; File Size583KB，12 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

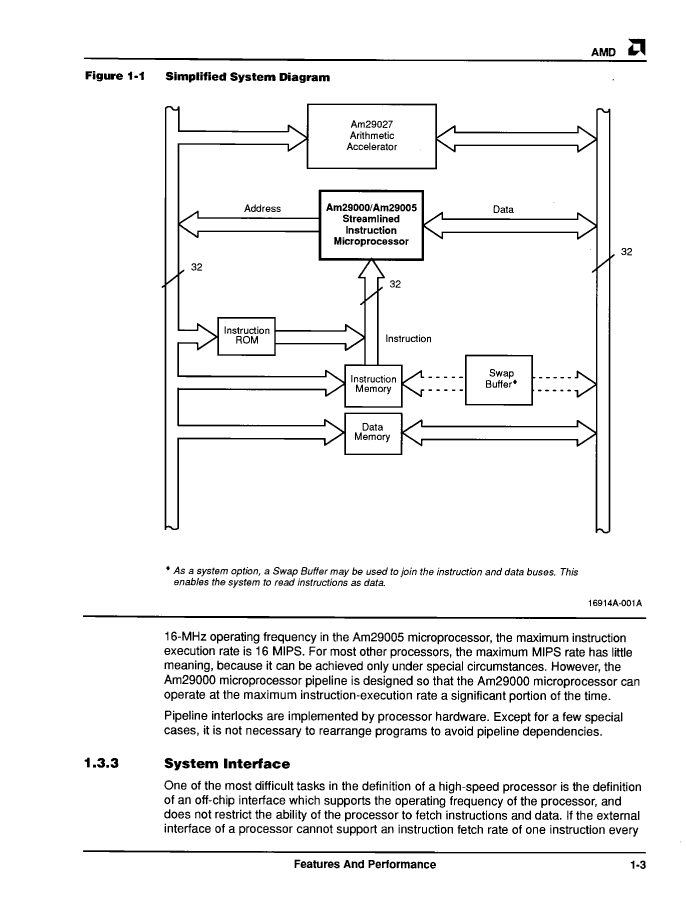

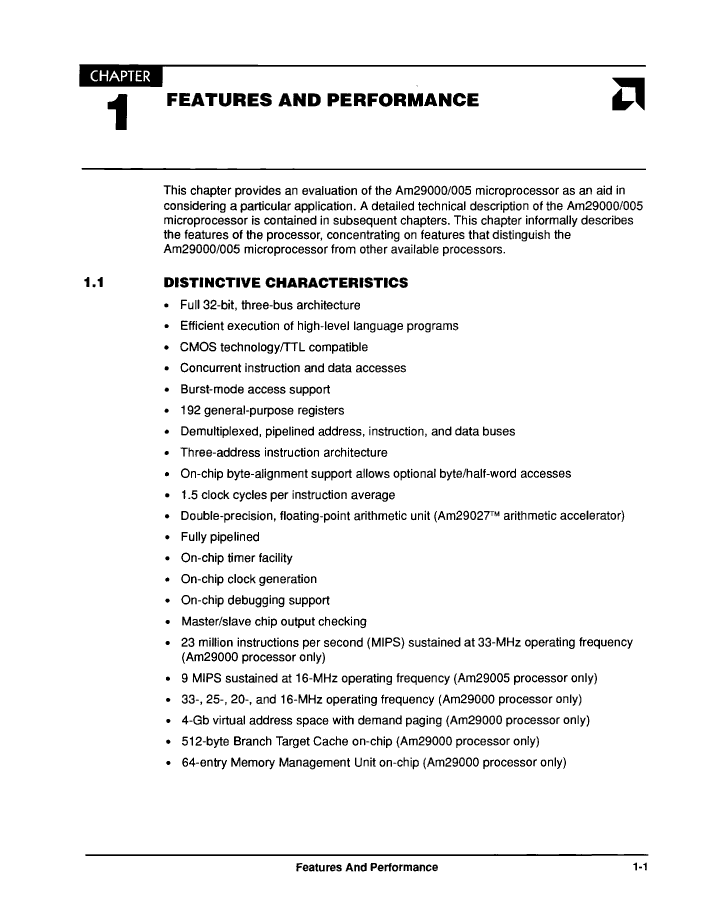

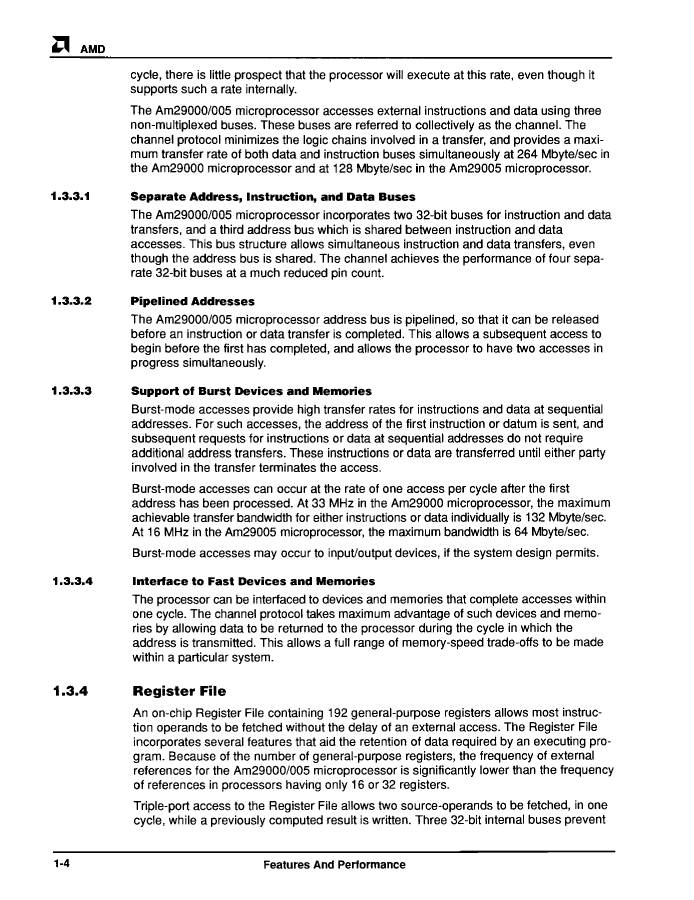

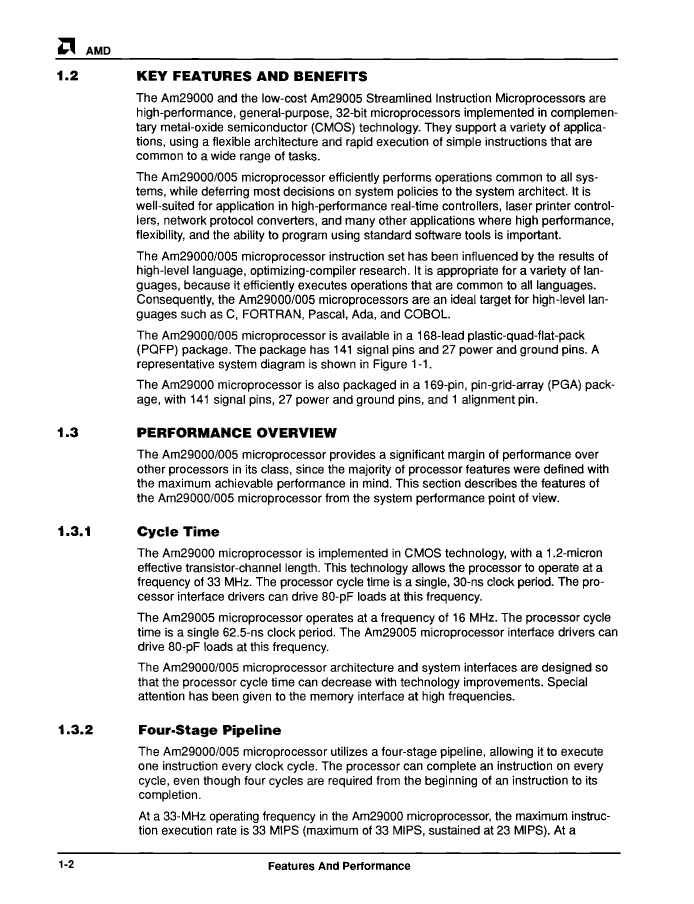

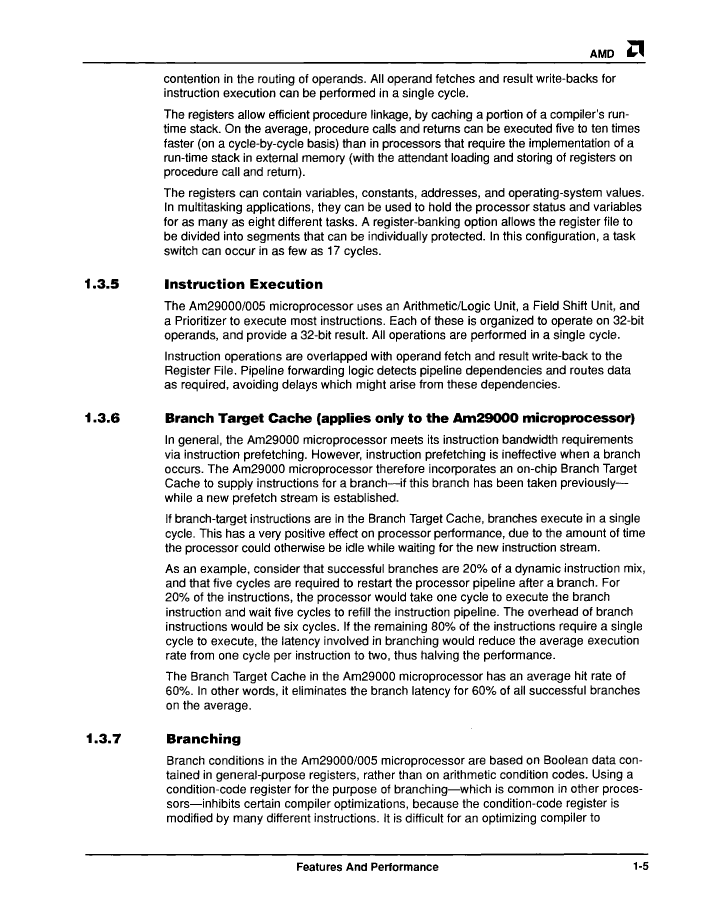

5962-9228401MZC Overview

RISC Microprocessor, 20MHz, CMOS, CPGA169, PGA-169

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	PGA
package instruction	PGA,
Contacts	169
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Address bus width	32
boundary scan	NO
maximum clock frequency	40 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	NO
JESD-30 code	S-CPGA-P169
JESD-609 code	e4
length	44.45 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	6
Number of serial I/Os
Number of terminals	169
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
RAM (number of words)	0
Filter level	MIL-STD-883
Maximum seat height	4.953 mm
speed	20 MHz
Maximum slew rate	500 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
width	44.45 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1

	5962-9228401MZC	5962-9228402MZC
Description	RISC Microprocessor, 20MHz, CMOS, CPGA169, PGA-169	RISC Microprocessor, 16MHz, CMOS, CPGA169, PGA-169
Parts packaging code	PGA	PGA
package instruction	PGA,	PGA,
Contacts	169	169
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Address bus width	32	32
boundary scan	NO	NO
maximum clock frequency	40 MHz	32 MHz
External data bus width	32	32
Format	FLOATING POINT	FLOATING POINT
Integrated cache	NO	NO
JESD-30 code	S-CPGA-P169	S-CPGA-P169
JESD-609 code	e4	e4
length	44.45 mm	44.45 mm
low power mode	NO	NO
Number of external interrupt devices	6	6
Number of terminals	169	169
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA
Package shape	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883
Maximum seat height	4.953 mm	4.953 mm
speed	20 MHz	16 MHz
Maximum slew rate	500 mA	400 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	GOLD
Terminal form	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR
width	44.45 mm	44.45 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Base Number Matches	1	1
