55339-0908 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 55339-0908

55339-0908: DescriptionBoard Stacking Connector, 90 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug; CategoryThe connector; File Size331KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

55339-0908 Overview

Board Stacking Connector, 90 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug

55339-0908 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Other features	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	55339
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	90
UL Flammability Code	94V-0
Base Number Matches	1

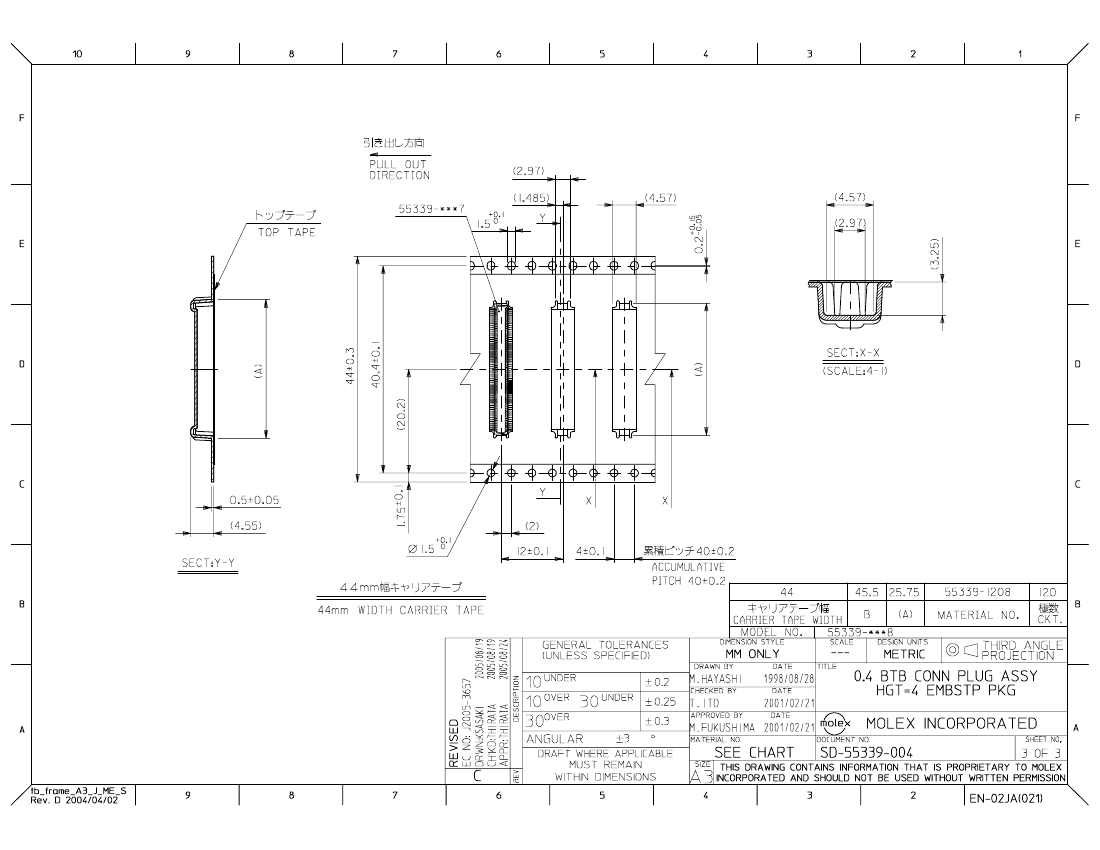

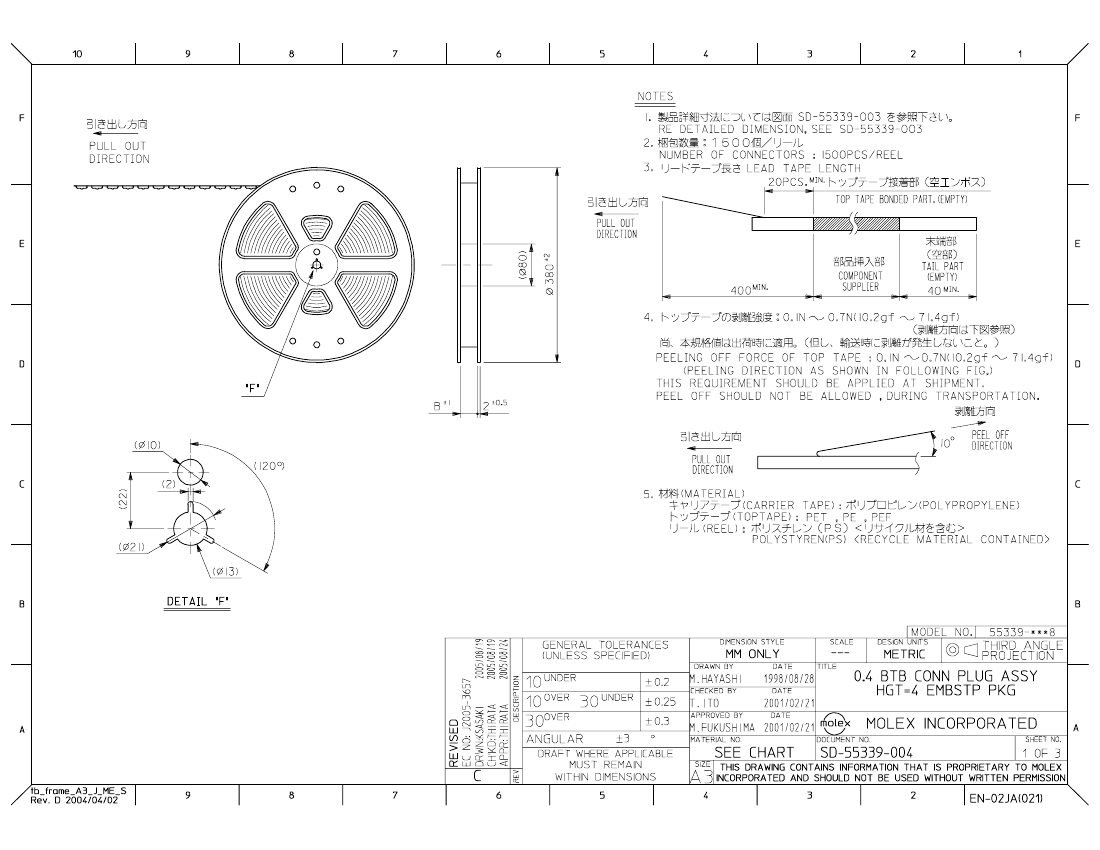

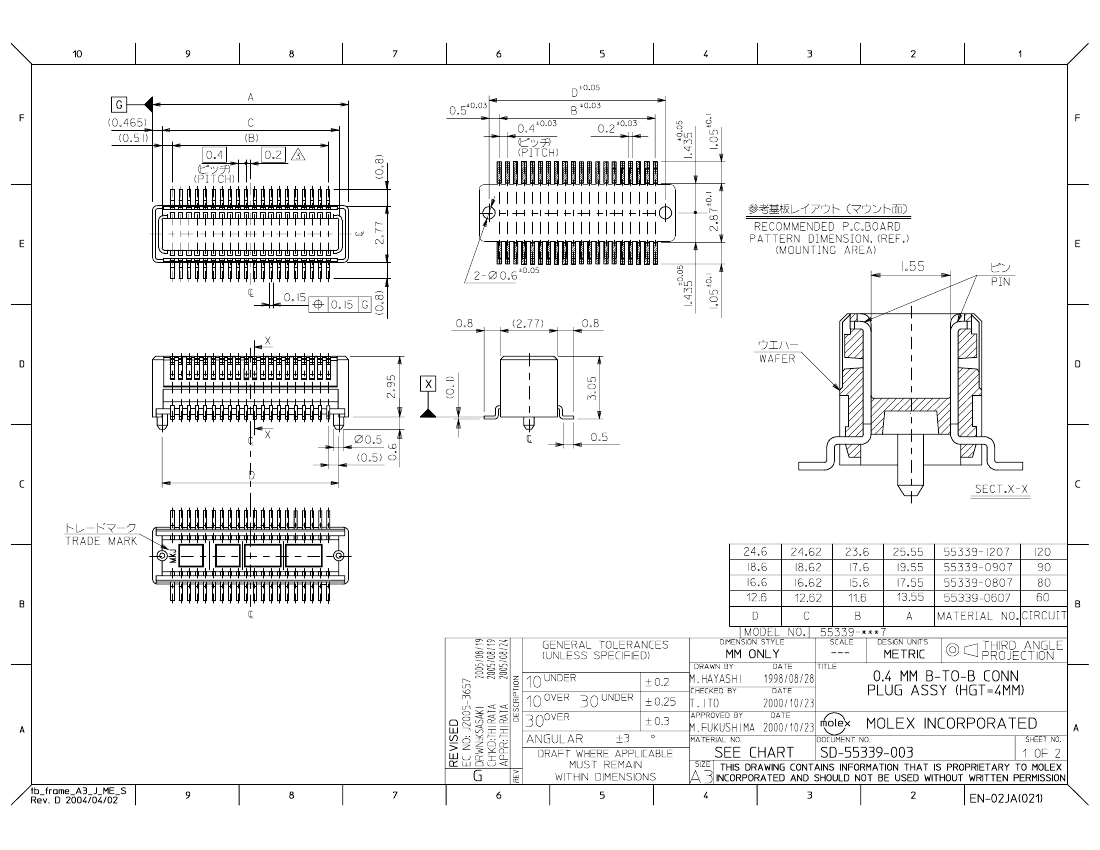

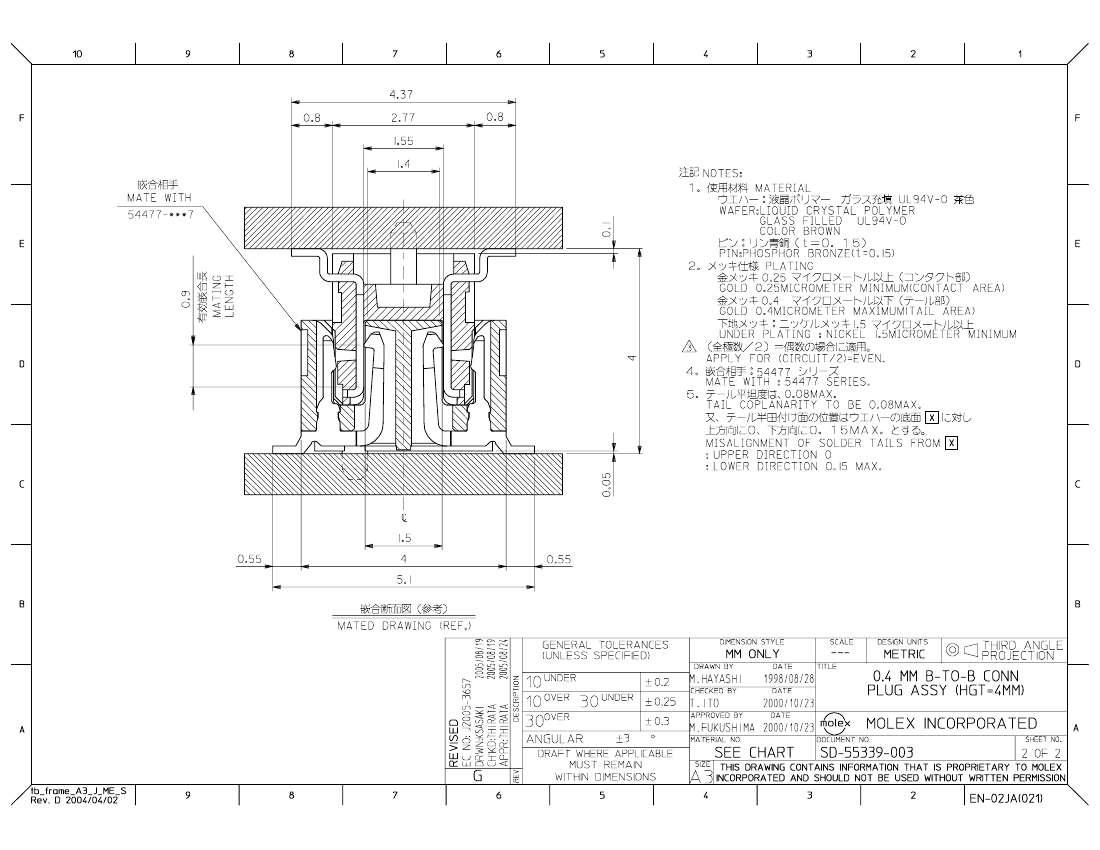

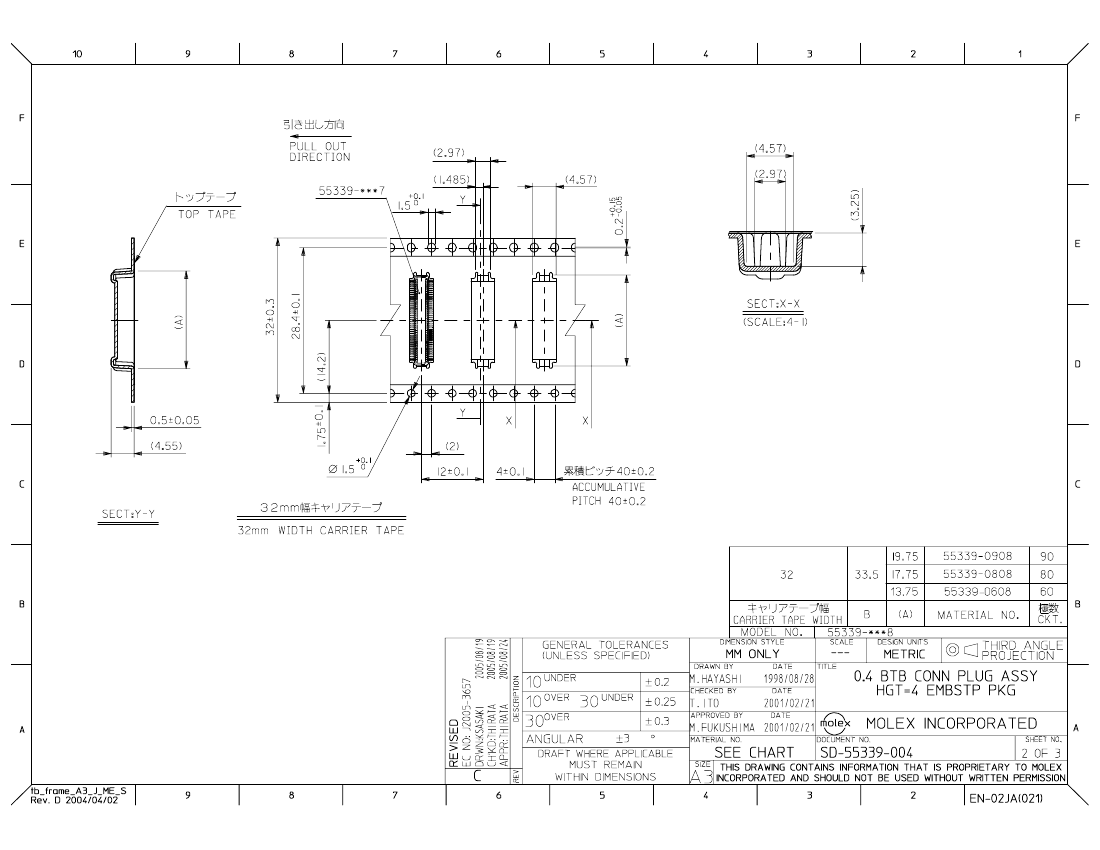

Preview

Download Datasheet

View All

55339-0908 Related Products

	55339-0908	55339-1207	55339-0807	55339-0607
Description	Board Stacking Connector, 90 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug	Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.015 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug,	Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.015 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug,	Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.015 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug,
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	compliant	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	55339	55339	55339	55339
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.4 mm	0.4 mm	0.4 mm	0.4 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	90	120	80	60
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Other features	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED	SLIMSTACK, BLADE ON BEAM CONTACT, SHROUDED	-
Board mount options	-	PEG	PEG	PEG
body width	-	0.109 inch	0.109 inch	0.109 inch
subject depth	-	0.116 inch	0.116 inch	0.116 inch
Contact completed and terminated	-	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Insulator color	-	BROWN	BROWN	BROWN
insulator material	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	-	0.015 inch	0.015 inch	0.015 inch
Installation option 1	-	LOCKING	LOCKING	LOCKING
Number of connectors	-	ONE	ONE	ONE
PCB row number	-	2	2	2
Maximum operating temperature	-	105 °C	105 °C	105 °C
Minimum operating temperature	-	-25 °C	-25 °C	-25 °C
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	-	10u inch	10u inch	10u inch
polarization key	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	-	0.3 A	0.3 A	0.3 A
Guideline	-	UL	UL	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
