74F109N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74F109N

74F109N: DescriptionJ-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16; Categorylogic; File Size139KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74F109N Overview

J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16

74F109N Parametric

Parameter Name	Attribute value
Maker	YAGEO
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-PDIP-T16
length	19.08 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	J-KBAR FLIP-FLOP
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	17 mA
propagation delay (tpd)	9.2 ns
Certification status	Not Qualified
Maximum seat height	4.06 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	90 MHz
Base Number Matches	1

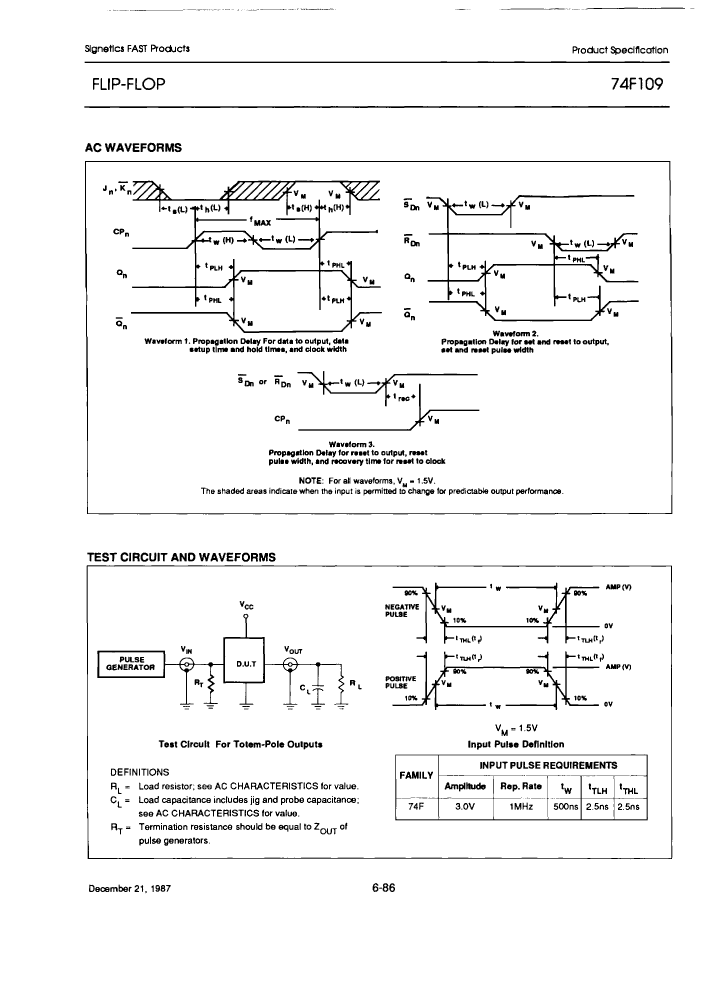

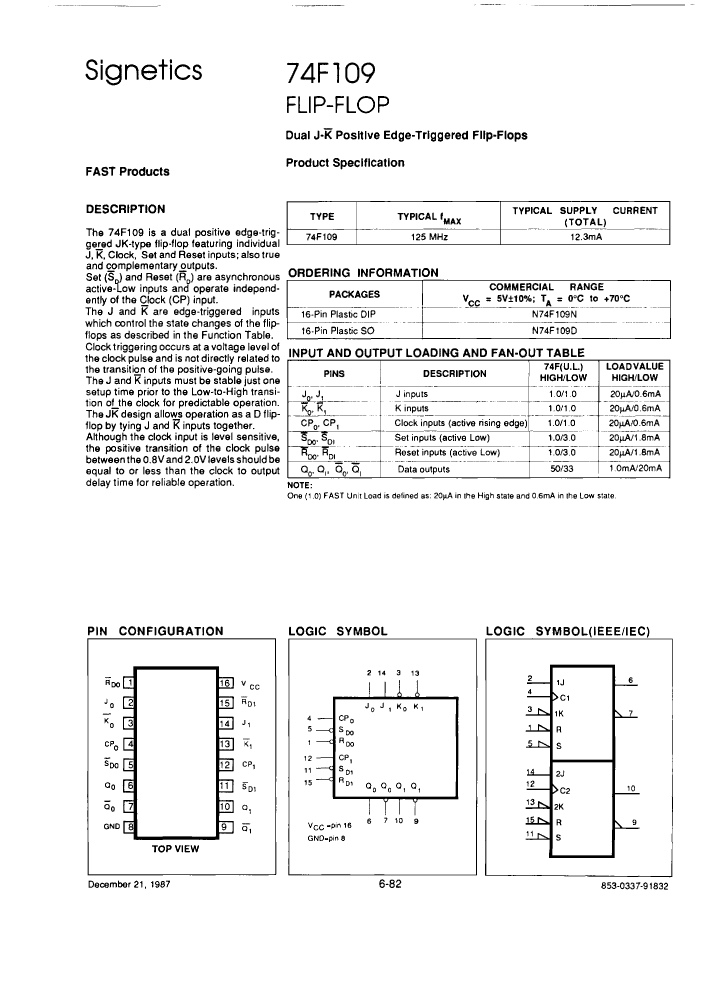

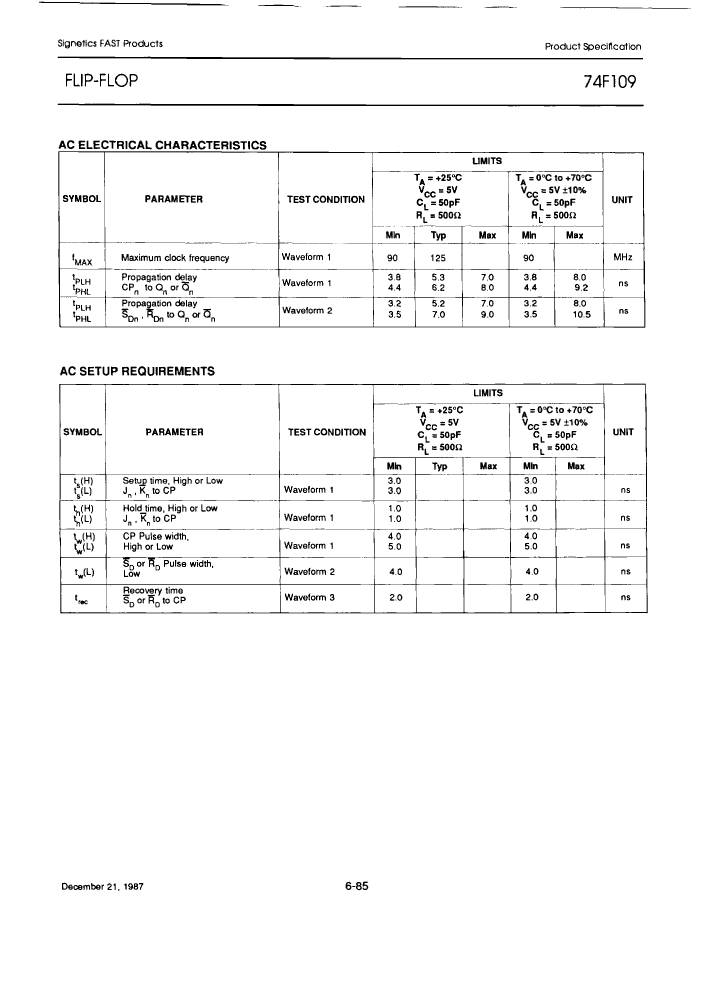

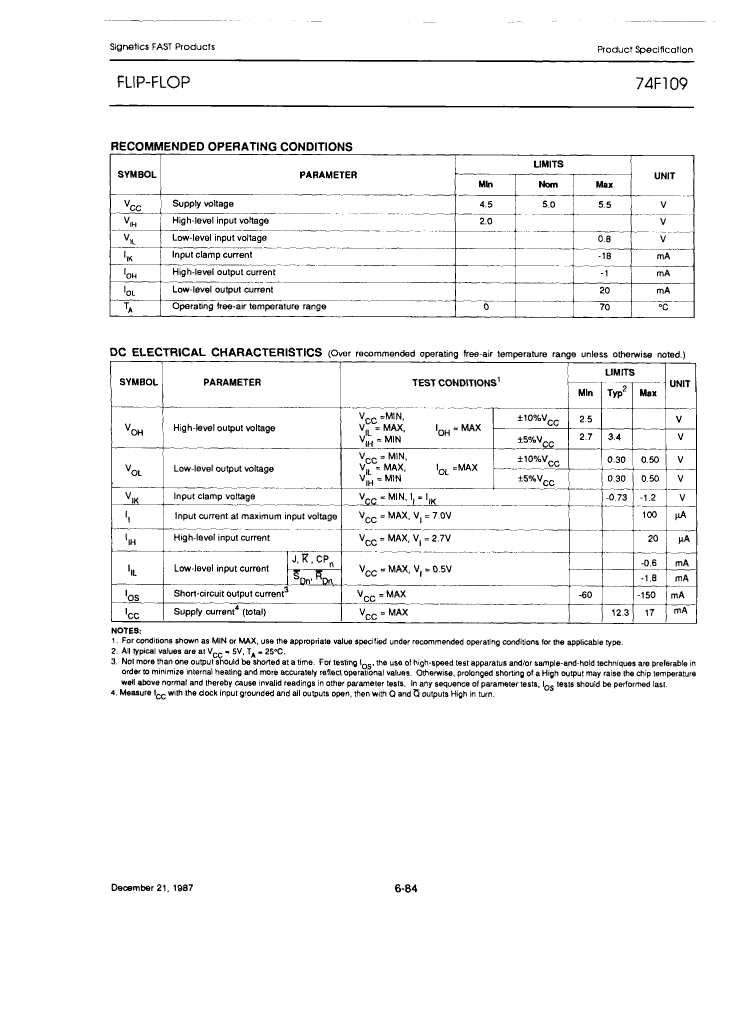

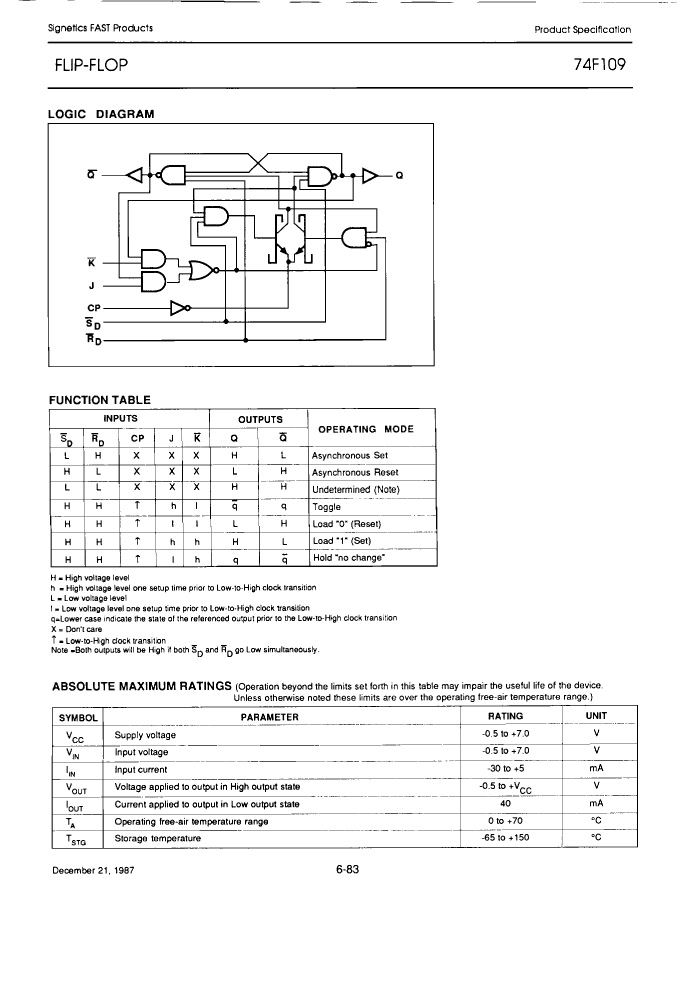

Preview

Download Datasheet

View All

74F109N Related Products

	74F109N	N74F109N	74F109D	74F109D-T	N74F109D-T	N74F109D
Description	J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16	J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16	J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SO-16	J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SO-16	J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SO-16	J-Kbar Flip-Flop, F/FAST Series, 2-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SO-16
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Parts packaging code	DIP	DIP	SOIC	SOIC	SOIC	SOIC
package instruction	DIP,	DIP,	PLASTIC, SO-16	PLASTIC, SO-16	SOP,	SOP,
Contacts	16	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
length	19.08 mm	19.08 mm	9.9 mm	9.9 mm	9.9 mm	9.9 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP	J-KBAR FLIP-FLOP
Number of digits	2	2	2	2	2	2
Number of functions	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum supply current (ICC)	17 mA	17 mA	17 mA	17 mA	17 mA	17 mA
propagation delay (tpd)	9.2 ns	9.2 ns	9.2 ns	9.2 ns	9.2 ns	9.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.06 mm	4.06 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
minfmax	90 MHz	90 MHz	90 MHz	90 MHz	90 MHz	90 MHz
Base Number Matches	1	1	1	1	-	-
