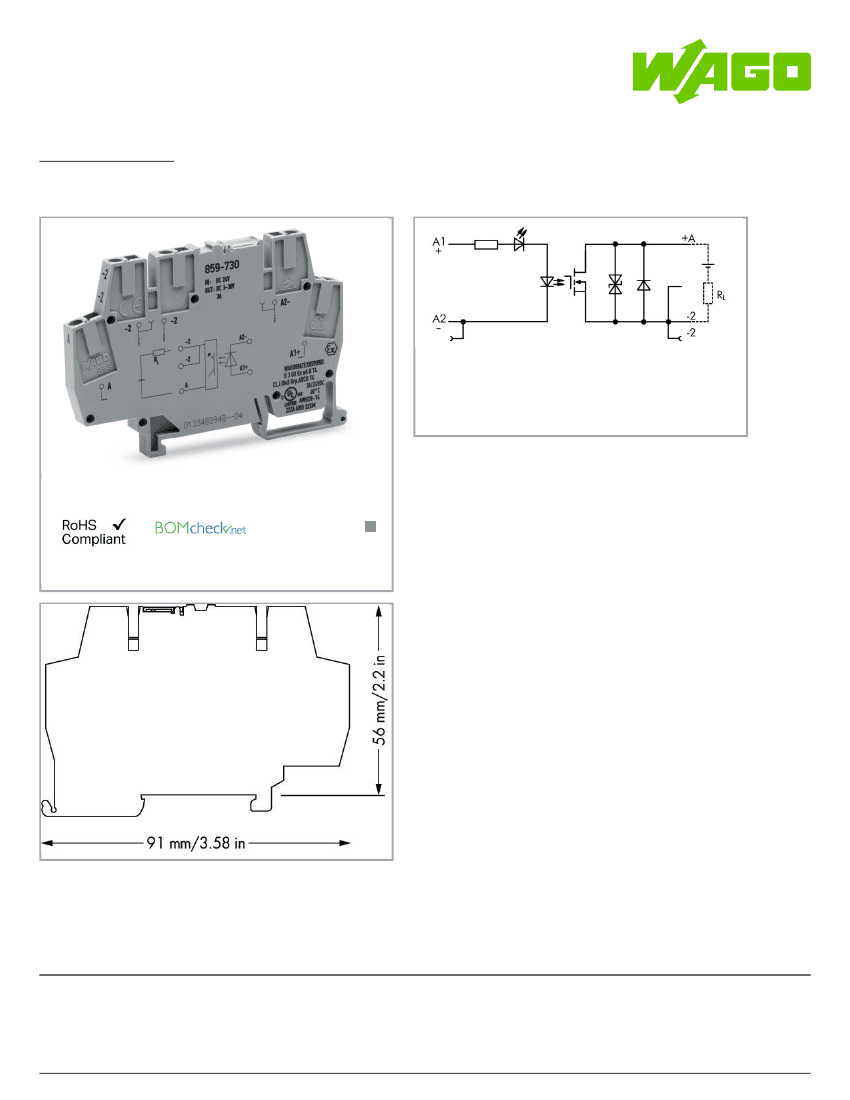

Data sheet | Item number: 859-730
Optocoupler module; Nominal input voltage: 24 VDC; Output voltage range:
3 … 30 VDC; Limiting continuous current: 3 A; 2-wire connection; Module
width: 6 mm; gray
www.wago.com/859-730
Color:
Item description
Note:
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 1/11
Data sheet | Item number: 859-730
www.wago.com/859-730
Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply
networks.
Data
Technical Data
Control circuit
Nominal input voltage U
N
Input voltage range (low level)
Input voltage range (high level)
Nominal input current at U
N
DC 24 V
DC 0 … 5 V
DC 15 … 27 V
14 mA
Load circuit:
Circuit type
Limiting continuous current
Peak output current
Nominal output voltage
Output voltage range
Max. voltage drop at output
Turn-on time
Drop-out time
Switching frequency
2-wire connection
3 A
25
A
DC 24 V
DC 3 … 30 V
≤ DC 0,2 V
≤ 25 µs
≤ 450 µs
≤ 350 Hz
Signaling
Status indication
Red LED
Safety and protection:
Rated voltage
Overvoltage category
Pollution degree
Dielectric strength, control/load circuit (AC, 1 min)
Insulation type (control/load circuit)
Insulation type (adjacent devices)
300
V
II
2
2,5 kVrms
Basic insulation
Reinforced insulation (safe isolation)
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 2/11
Data sheet | Item number: 859-730
www.wago.com/859-730
Connection data
Connection technology
Solid conductor
Fine-stranded conductor
Strip length
CAGE CLAMP
®
0,08 … 2,5 mm² / 28 … 14 AWG
0,08 … 2,5 mm² / 28 … 14 AWG
5 … 6 mm / 0.2 … 0.24 inch
Geometrical Data
Width
Height from upper-edge of DIN-35 rail
Depth
6 mm / 0.236 inch
56 mm / 2.205 inch
91 mm / 3.583 inch
Mechanical data
Type of mounting
DIN-35 rail
Material Data
Color
Fire load
Weight
gray
0.313
MJ
18.6
g
Environmental Requirements
Surrounding air (operating) temperature at U
N
Surrounding air (storage) temperature
Processing temperature
-25 … 55 °C
-40 … 70 °C
-25 … +50 °C
Standards and specifications
Standards/specifications
EN 60664-1; EN 61000-6-2; EN 61000-6-3; EN 61373; UL 508
Commercial data
Product Group
Packaging type
Country of origin
GTIN
Customs Tariff No.
6 (Interface Electronics)
BOX
DE
4055143604987
85365005000
Approvals / Certificates
observe the further product documentation!
Subject to changes. Please also
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 3/11
Data sheet | Item number: 859-730
www.wago.com/859-730
Approvals / Certificates
UL-Approvals
Logo
Approval
UL
UL International Netherlands B.V. (ORDINARY
LOCATIONS)
Additional Approval Text
UL 508
Certificate
name
E175199
Sec.4
Counterpart
Compatible products
tools
Item no.: 210-720
Operating tool; Blade: 3.5 x 0.5 mm; with a partially insulated shaft
Jumper
Item no.: 859-402
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated; light gray
Item no.: 859-402/000-005
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated; red
www.wago.com/859-402
www.wago.com/210-720
www.wago.com/859-402
/000-005
Item no.: 859-402/000-006
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated; blue
www.wago.com/859-402
/000-006
Item no.: 859-402/000-029
Push-in type jumper bar; 2-way; Nominal current 18 A; insulated; yellow
Item no.: 859-403
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated; light gray
Item no.: 859-403/000-005
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated; red
www.wago.com/859-402
/000-029
www.wago.com/859-403
www.wago.com/859-403
/000-005
Item no.: 859-403/000-006
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
22.04.2020 Page 4/11
Data sheet | Item number: 859-730
www.wago.com/859-730
Item no.: 859-403/000-006
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated; blue
www.wago.com/859-403
/000-006
Item no.: 859-403/000-029
Push-in type jumper bar; 3-way; Nominal current 18 A; insulated; yellow
Item no.: 859-404
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated; light gray
Item no.: 859-404/000-005
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated; red
www.wago.com/859-403
/000-029
www.wago.com/859-404
www.wago.com/859-404
/000-005
Item no.: 859-404/000-006
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated; blue
www.wago.com/859-404
/000-006
Item no.: 859-404/000-029
Push-in type jumper bar; 4-way; Nominal current 18 A; insulated; yellow
Item no.: 859-405
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated; light gray
Item no.: 859-405/000-005
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated; red
www.wago.com/859-404
/000-029
www.wago.com/859-405
www.wago.com/859-405
/000-005
Item no.: 859-405/000-006
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated; blue
www.wago.com/859-405
/000-006
Item no.: 859-405/000-029
Push-in type jumper bar; 5-way; Nominal current 18 A; insulated; yellow
Item no.: 859-406
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated; light gray
Item no.: 859-406/000-005
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated; red
www.wago.com/859-405
/000-029
www.wago.com/859-406
www.wago.com/859-406
/000-005
Item no.: 859-406/000-006
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated; blue
www.wago.com/859-406
/000-006
Item no.: 859-406/000-029
Push-in type jumper bar; 6-way; Nominal current 18 A; insulated; yellow
www.wago.com/859-406
/000-029
Item no.: 859-407
