824-AG12SM Overview

DIP24, IC SOCKET

824-AG12SM Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Contact to complete cooperationTIN LEAD
Contact completed and terminatedTIN LEAD
Contact materialNOT SPECIFIED
Device slot typeIC SOCKET
Type of equipment usedDIP24
Shell materialPOLYETHYLENE
JESD-609 codee0
Manufacturer's serial number824-AG12SM
Number of contacts24
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se arch by Ke yword or Part #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Socket/C ard Products
>
Product Feature Selector
> Product Details

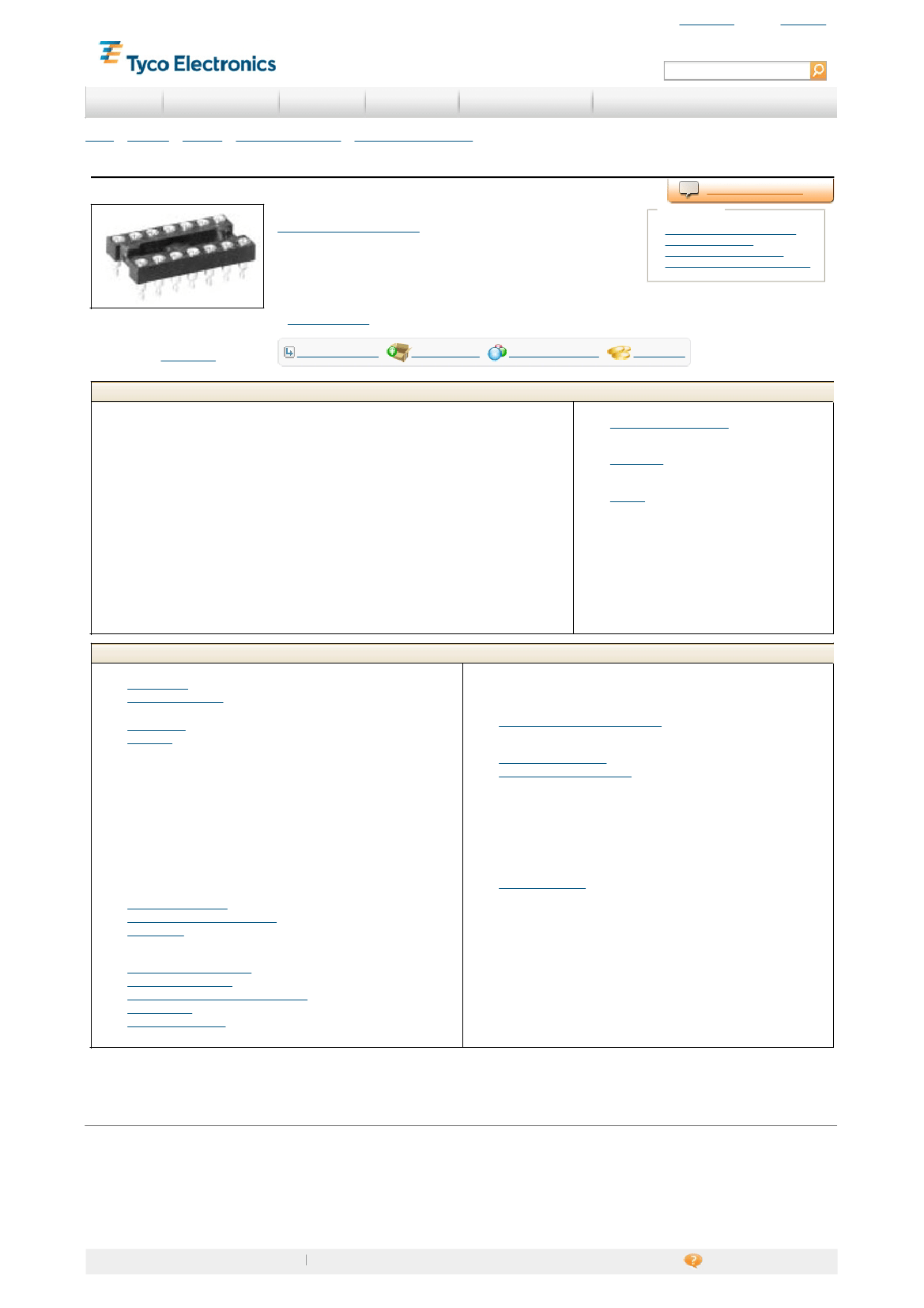

824-AG12SM Product Details
Live Product Chat
DIP Sockets
Not EU R oHS or ELV C om pliant
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
824-AG12SM
(7-1437538-4)
T E I nternal N umber: 7 - 1 4 3 7 5 3 8 - 4
Product Highlights:
l
Socket Style = Standard
l
Surface Mount C ontact Termination Type
l
2.54 mm C enterline
l
Row-to-Row Spacing = 15.24 mm
l
24 Positions
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Preliminary
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Additional Product Images:
l
Pad Layout
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Socket Style
= Standard
l
Number of Positions
= 24
l
Profile = Standard
l
Frame Style
= Ladder
l
Leg Style
= Floating C ontacts
l
Sleeve Material = Brass
l
Product Series = 800 SM Series
Electrical Characteristics:
l
Insulation Resistance (M?) = 5,000
l
C ontact Resistance (m?) = 10
l
C ontact Rating = 3A
Termination Related Features:
l
Solder Tail C ontact Plating = Tin-Lead
Body Related Features:
l
C enterline (mm [in])
= 2.54 [0.100]
l
Row-to-Row Spacing (mm [in])
= 15.24 [0.600]
l
Mount Style
= Vertical
Contact Related Features:
l
C ontact Termination Type
= Surface Mount
l
C ontact Base Material
= Beryllium C opper
l
C ontact Plating, Mating Area, Material
= Tin-Lead
l
C ontact Style
= Screw Machine
l
Mating C ontact Type
= Four-Fingered
Housing Related Features:
l
Housing Material = Thermoplastic - GF
Configuration Related Features:
l
Height Above PC Board (mm [in])
= 2.67 [0.105]
Industry Standards:
l
RoHS/ELV C ompliance
= Not ELV/RoHS compliant
l
Lead Free Solder Processes
= Reflow solder capable to 245?C
Conditions for Usage:
l
Temperature Range (?C ) = -55 – +105
Operation/Application:
l
Application = Production
Packaging Related Features:
l
Packaging Method
= Tube
Other:
l
Brand = AMP
Corporate Information
Who We Are
Investors
News Room
Supplier Portal
C areers
Quick Links
C heck Distributor Inventory
C ross Reference
Find Documents & Drawings
Product C ompliance Support C enter
Site Map
Priva cy Policy
Customer Support
Email or C hat with Us
Find a Phone Number
Search Knowledge Base
Manage Your Account
© 2009 Tyco Ele ctronics All R ights R e se rve d
Provide W e bsite Fe e dback

824-AG12SM Related Products

824-AG12SM 7-1437538-4
Description DIP24, IC SOCKET DIP24, IC SOCKET
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Reach Compliance Code unknown unknow
ECCN code EAR99 EAR99
Contact to complete cooperation TIN LEAD NOT SPECIFIED
Contact material NOT SPECIFIED NOT SPECIFIED
Device slot type IC SOCKET IC SOCKET
Type of equipment used DIP24 DIP24
Shell material POLYETHYLENE POLYETHYLENE
Manufacturer's serial number 824-AG12SM 1437538
Number of contacts 24 24
Base Number Matches 1 1
