Semiconductor
SDT6D8EF
ESD Protection Diode
Features
•
Transient protection for data lines to
IEC 61000-4-2(ESD) 15KV(air), 8KV(contact)
•
Small package for use in portable equipment.
Applications
•
ESD Protection
Ordering Information
Type NO.
SDT6D8EF
Marking
6U8
Package Code
SOT-563F
Outline Dimensions
1.50~1.70
1.00 Typ.
1.10~1.30
unit :
mm
1.50~1.70
1
•
2
3
1.00 Typ.
6
5
4
0.30 Max.
6
5
4
1
2
3
PIN Connections
1. Cathode
2. Anode
3. Cathode
4. Cathode
5. Cathode
6. Cathode
0.53~0.62
0.10 Max.
KSD-D5U001-000
0.18 Max.
1
SDT6D8EF
Absolute Maximum Ratings
Characteristic
Peak pulse power ( tp = 8/20
㎲
)
Power dissipation
Zener current
Junction temperature
Storage temperature range
(Ta=25°C)
Symbol
P
PK
P
D
I
Z
T
J
T
stg
Rating
40
150
10
150
-55 ~ +150
Unit
W
mW
mA
°C
°C
Electrical Characteristics
Characteristic
Zener voltage
Reverse current
Forward voltage
ESD Voltage
(Ta=25°C)
Symbol
V
Z
I
R
V
F
-
C
T
I
Z
=1mA
Test Condition
V
R
=3.5V
I
F
=50mA
C=150pF, R=330Ω
(Repeat by 10 times)
V
R
=0V, f=1MHz
Contact
Air
Min. Typ. Max.
6.5
-
-
±8
±15
-
-
-
0.9
-
-
30
7.5
0.5
1.2
-
-
-
Unit
V
㎂
V
KV
pF
(IEC61000-4-2)
Total capacitance
※
Recommend PCB solder land (Unit : mm)
KSD-D5U001-000
2
SDT6D8EF

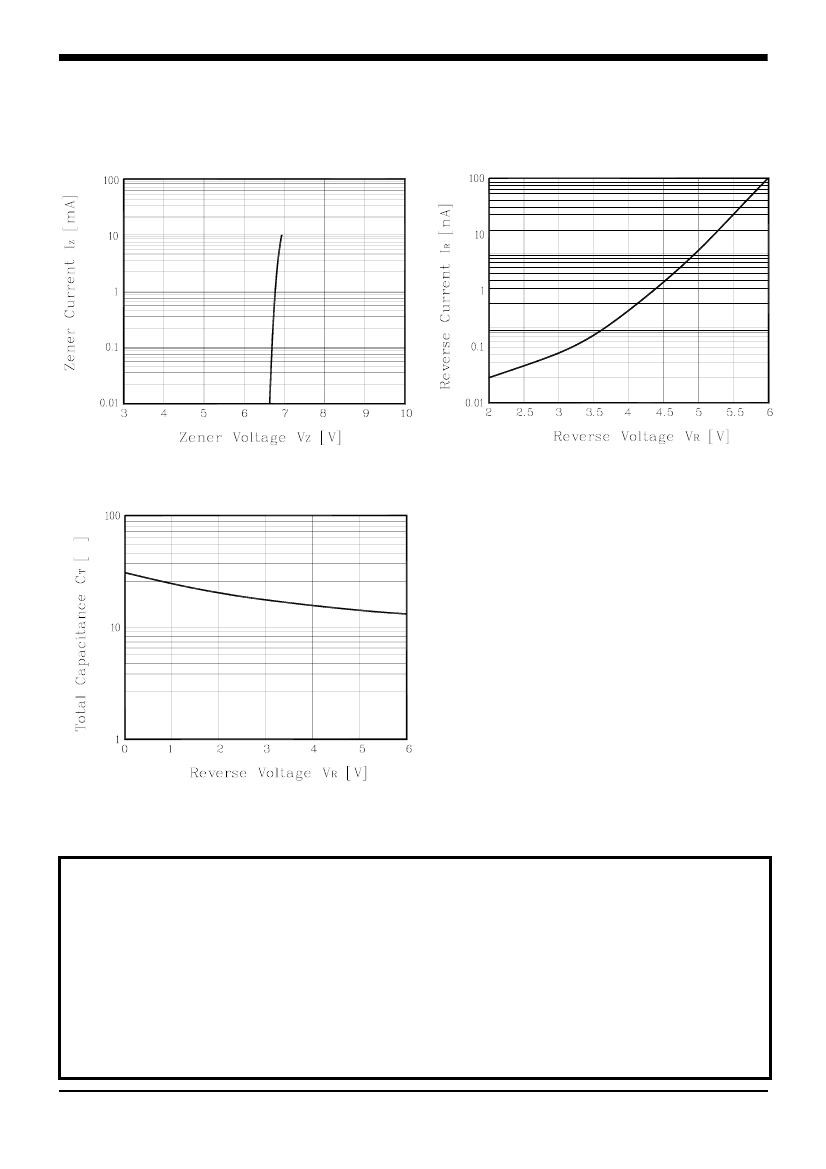

Fig. 1 V
Z-
I
Z
Fig. 2 I
R-
V
R
Fig. 3 C
j-
V
R
The AUK Corp. products are intended for the use as components in general electronic equipment
(Office and communication equipment, measuring equipment, home appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products in equipments
which require high quality and / or reliability, and in equipments which could have major impact to the
welfare of human life(atomic energy control, airplane, spaceship, transportation, combustion control, all
types of safety device, etc.). AUK Corp. cannot accept liability to any damage which may occur in case
these AUK Corp. products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-D5U001-000
3
㎊
