319-10-116-00-240000: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector; File Size123KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

319-10-116-00-240000 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

319-10-116-00-240000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	319
Mixed contacts	NO
Installation method	STRAIGHT
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

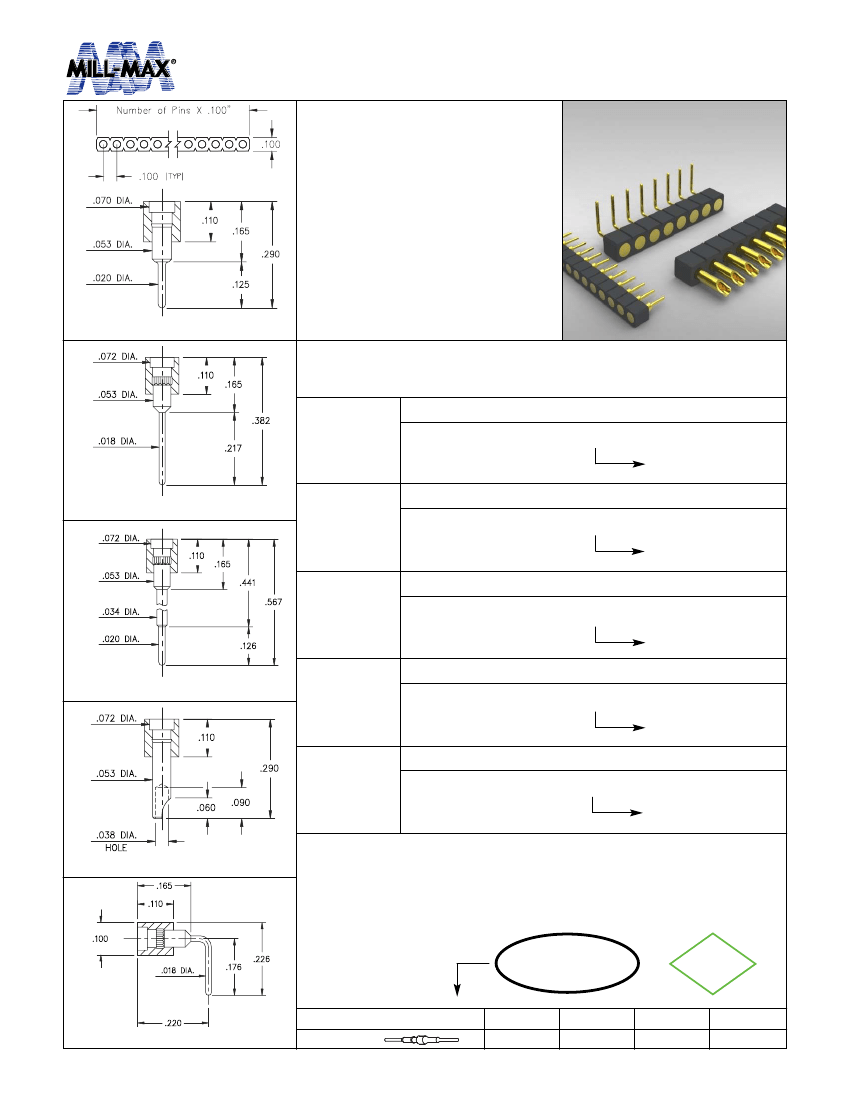

INTERCONNECTS

Target Connectors for Spring Pins

Single Row

•

Series 319, 330 and 399 single row strips

may be cut to any length.

•

Spring Target connectors present a large

flat surface for making tangent connections

to our standard .042” dia spring pin

plungers. The target connectors provide

an excellent gold plated conductive path

back to the board mounted spring pin

connector.

•

Target connectors use MM #1938, #1940,

#1942 and #3024 pins. See page 176

for details.

•

Insulators are high temp. thermoplastic.

Series 319, 330, 399

.070 DIA.

.110

.053 DIA.

.165

.290

.125

.020 DIA.

Fig. 1

.072 DIA.

.110

.053 DIA.

.165

Ordering Information

.382

.018 DIA.

.217

Fig. 1

Series 319...001

Standard Solder Tails

319-10-1_ _-00-001000

Specify # of pins

01-64

Fig. 2

.072 DIA.

.110

.053 DIA.

.165

.441

.567

Fig. 2

Series 319...002

Long Solder Tails

319-10-1_ _-00-002000

Specify # of pins

01-64

.034 DIA.

.020 DIA.

Fig. 3

Series 319...005

Elevated Solder Tails

319-10-1_ _-00-005000

Specify # of pins

01-64

.126

Fig. 3

.072 DIA.

.110

.290

Fig. 4

Series 330...240

Solder Cups

330-10-1_ _-00-240000

Specify # of pins

01-64

.053 DIA.

.090

Fig. 5

Series 399...008

Right Angle Solder Tails

399-10-1_ _-10-008000

Specify # of pins

01-64

.060

.038 DIA.

HOLE

Fig. 4

.165

.110

.100

.176

.226

.018 DIA.

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

.220

10

μ”

Au

Fig. 5

Pin Plating

w w w. m i l l - m a x . c o m

116

516-922-6000
