Printview: Male connector; 100% protected against mismating; with snap-in mounting foot; with strain relief
- Item No.: 721-614/018-000/035-000
.
Male connector; 100% protected against mismating; with snap-in
mounting foot; with strain relief
Item No.: 721-614/018-000/035-000
.
Male connector; 100% protected against mismating; with snap-in mounting foot; with strain relief
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
721-614/018-000/035-000
4044918644273
1
25
Item description:Universal connection for all conductor typesEasy cable pre-assembly and on-unit wiring via vertical
and horizontal CAGE CLAMP® actuationFor “wire-to-wire” and “board-to-wire” connectionsOptional, preceding
ground contact available for 3- to 5-pole male connectors100% protected against mismatingCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Color
Ratings according to 1
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
14
5 mm (0.197 in %)
light gray
IEC/EN 60664-1
320 [V]
4 [kV]
320 [V]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Male connector; 100% protected against mismating; with snap-in mounting foot; with strain relief
- Item No.: 721-614/018-000/035-000
Technical data
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Height from the surface
Length
Type of mounting
Mounting type
4 [kV]
630 [V]
4 [kV]
12 [A]
1
1
CAGE CLAMP®
1
Betätigungswerkzeug
0.08 … 2.5 mm² / 28 … 12 AWG
0.08 … 2.5 mm² / 28 … 12 AWG
0.25 … 1.5 mm² / …
0.25 … 2.5 mm² / …
8 … 9 mm / 0.31 … 0.35 in
I
Polyamide 66 (PA 66)
V0
-60 … 100 C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
tin-plated
0.445 [MJ]
23.485 [g]
73.2 mm / 2.882 in
18.8 mm / 0.74 in
14.3 mm / 0.563 in
62.5 mm / 2.461 in
Oberflächenmontage
Rastfuß
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Male connector; 100% protected against mismating; with snap-in mounting foot; with strain relief
- Item No.: 721-614/018-000/035-000

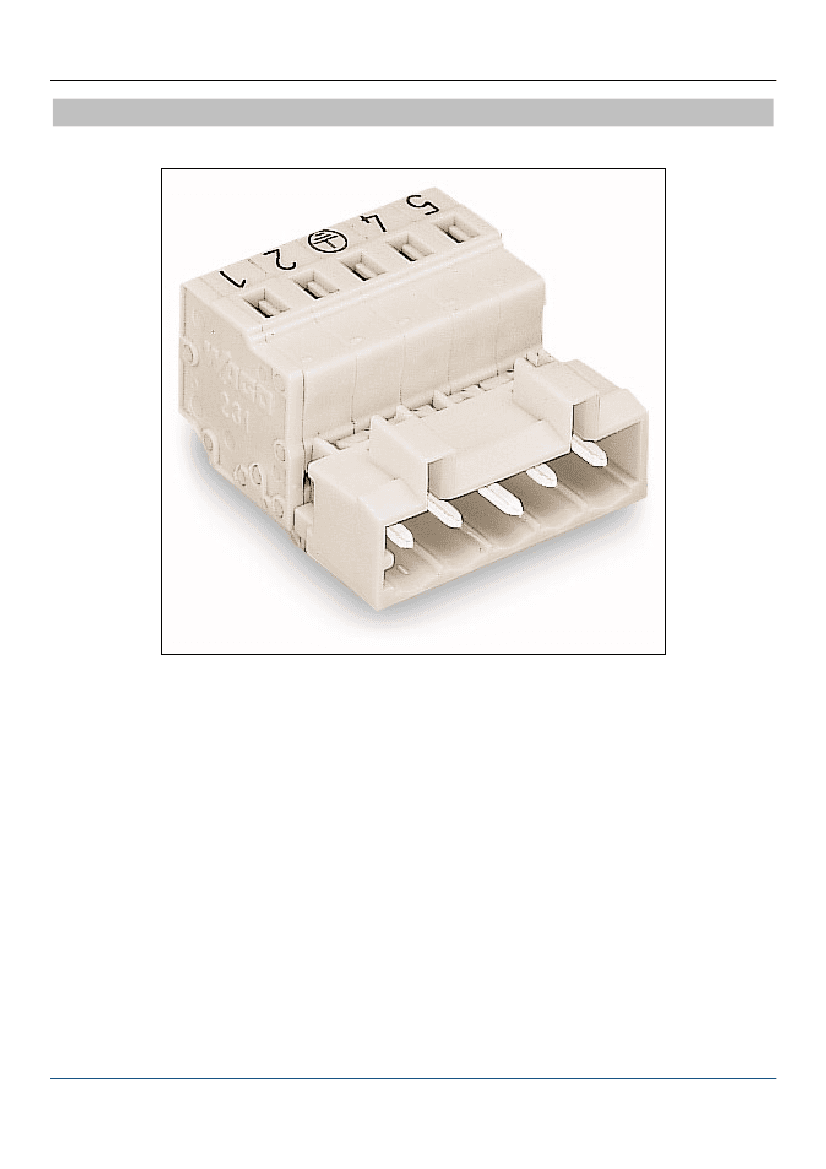

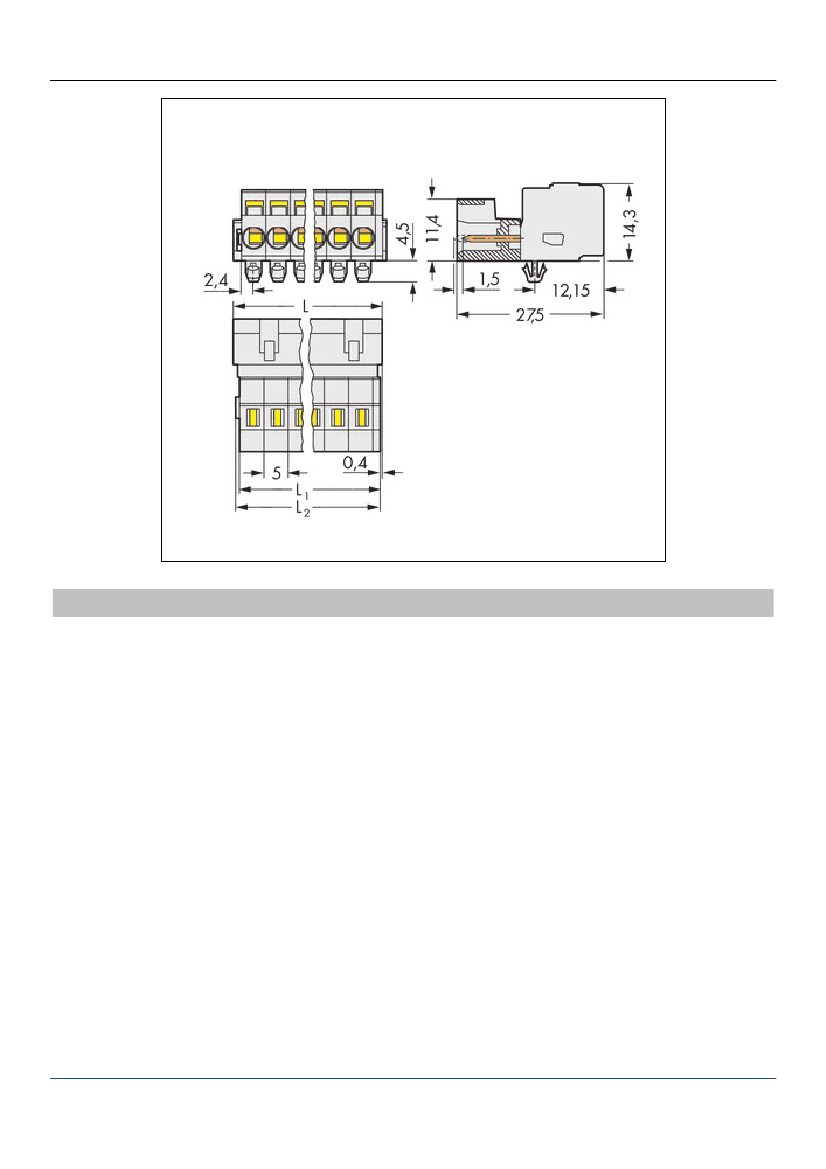

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Male connector; 100% protected against mismating; with snap-in mounting foot; with strain relief
- Item No.: 721-614/018-000/035-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
