PMP 11
Rectifier Module
Description
The Power-One PMP 11 rectifier module
provides cost-effective power in a high
density solution. Built on the latest
advances in the resonance switch mode
approach (soft-switching), the PMP 11 is
the next evolution in our convection
cooled rectifier series.
Optimized for telecom applications, the
module is designed to work in a multitude
of different subrack/shelf configurations
incorporating the PCU/PCS controller and
varying distribution options.
Features
•
208/240 VAC input
•
24V, 48V, or 60V DC output
•
Input overvoltage disconnection
•
Thermal protection
•
Active load sharing
•
Hot-swappable
•
Up to 92% efficient
•
International standards compliance
•
Natural convection cooling
•
Low weight

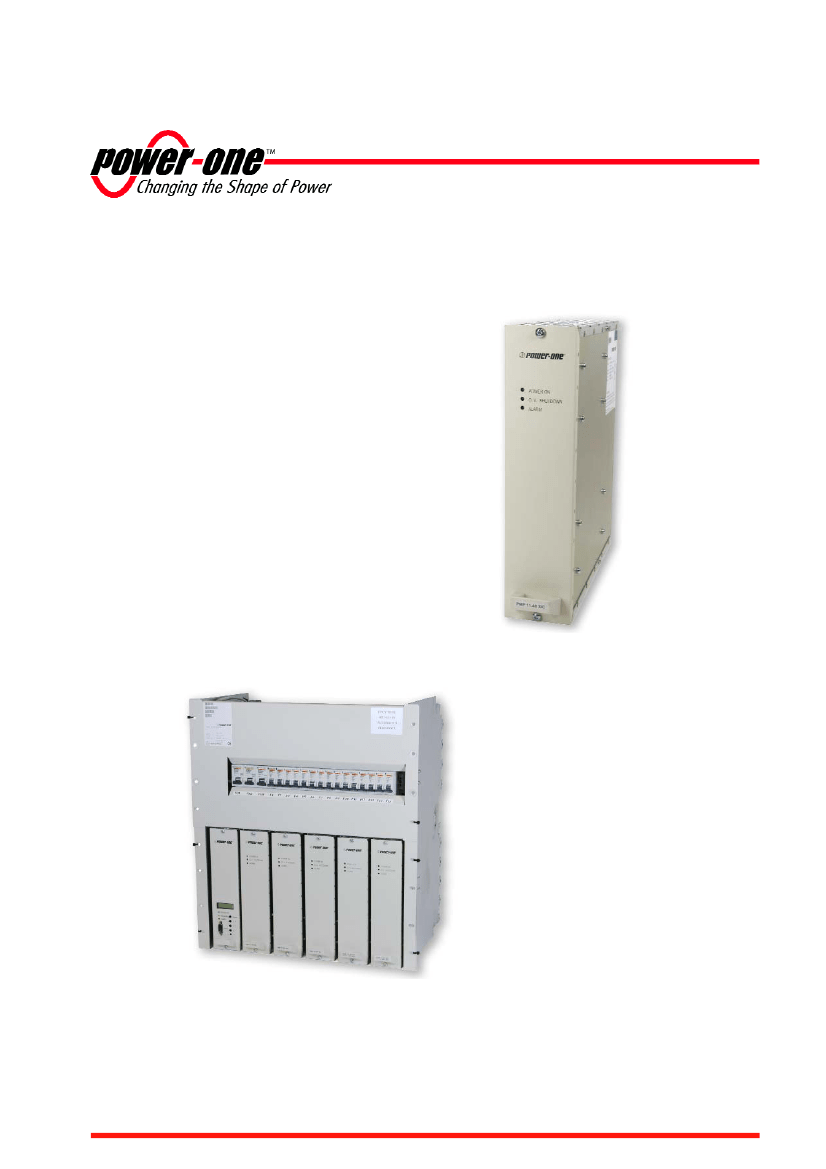

PPS 10 6500 System
Shown
www.power-one.com
PMP 11
Rectifier Module
Input
Model
Input
Voltage
Current
(max.)
Soft Start
Harmonics
Surge
Immunity
Fuse
Connection
EMC
PMP 10.24A
PMP 11.48
PMP 11.60
205-250V AC ±10% single phase,
(44-66Hz)
185-160V AC at reduced output power
<6.8A
<7.0A
<7.0A
Mechanical
Dimensions
Weight
Cooling
62 x 261 x 231mm
(2.4 x 10.3 x 9.1in.)
3.1kg (6.8lbs.)
Natural convection
Reinforced insulation tested at:
4.25 kV DC primary-secondary,
2.12 kV DC primary-ground,
0.75 kV DC secondary ground
IP20
Up to 8 modules per shelf
<12A peak maximum 220ms
EN 61000-3-2
Power Factor >0.99 at max. load
EN 61000-4-5
T 8A
IEC-320/C14
EN 61000-6-2, EN 61000-6-3,
FCC Part 15 Class B
Insulation
Enclosure
Mounting
Other Technical Data
Safety
EN 60950
UL 1950 and IEC60950 , Class 1
CSA C22-2 No. 950
Short circuit proof, automatic
current limiting, selective shutdown
of modules at excessive output
voltage. Thermal protection
reduces the output power at
environmental temperatures above
maximum level. Thermal
protection with shut down at
>55°C. Automatic restart.* Input
over-voltage disconnection at
>275VAC with automatic reset at
>260VAC.
Green LED
Red LED
Indications
Power ON
High output
voltage/ shutdown
Low voltage/
module failure
Output
Model
Output Voltage
Power (max.)
Current (max.)
Efficiency
(at 40-90% Load)*
PMP 10.24A
22-28V DC
1000W
(25-28V)
PMP 11.48
44-56V DC
1100W
(50-57.7V DC)
PMP 11.60
56-71V DC
Protection
1100W
(60-71V DC)
43A
>88%
Vout +/- 1%
23A
>91%
18.5A
>92%
Tolerance
Transient
Response
Load Sharing
Ripple
Psophometric
Connection
EMC
+/- 5% at load variation 10-90%
or 90-10%, recovery time 10ms
<5% of nominal current
<100mV p-p (BW. 30MHz)
<2mV, according to CCITT norms
DIN 41612F
Radiated EMC
EN 61000-6-2, EN 61000-6-4
Environment
Audible
Noise
Operating
Temperature*
Storage
Temperature
Red LED
<35dBA
-25 to +55°C up to 2000m
-25 to +45°C above 2000m
-40 to +85°C
EN 61000-6-2, EN 61000-6-3,
FCC Part 15, Class B
Storage:
Transport:
Operation:
ETS 300 019-2-1
ETS 300 019-2-2
ETS 300 019-2-3
*Average performance for a single module.
Note: All specifications are subject to change without notification.
11V0005-034 PMP 11 V3.0
www.power-one.com
