316-93-157-41-001 datasheet, PDF

Datasheet> All Categories > socket> 316-93-157-41-001

316-93-157-41-001: DescriptionIC Socket, SIP57, 57 Contact(s); Categorysocket; File Size169KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

316-93-157-41-001 Overview

IC Socket, SIP57, 57 Contact(s)

316-93-157-41-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP57
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e0
Manufacturer's serial number	316
Number of contacts	57
Base Number Matches	1

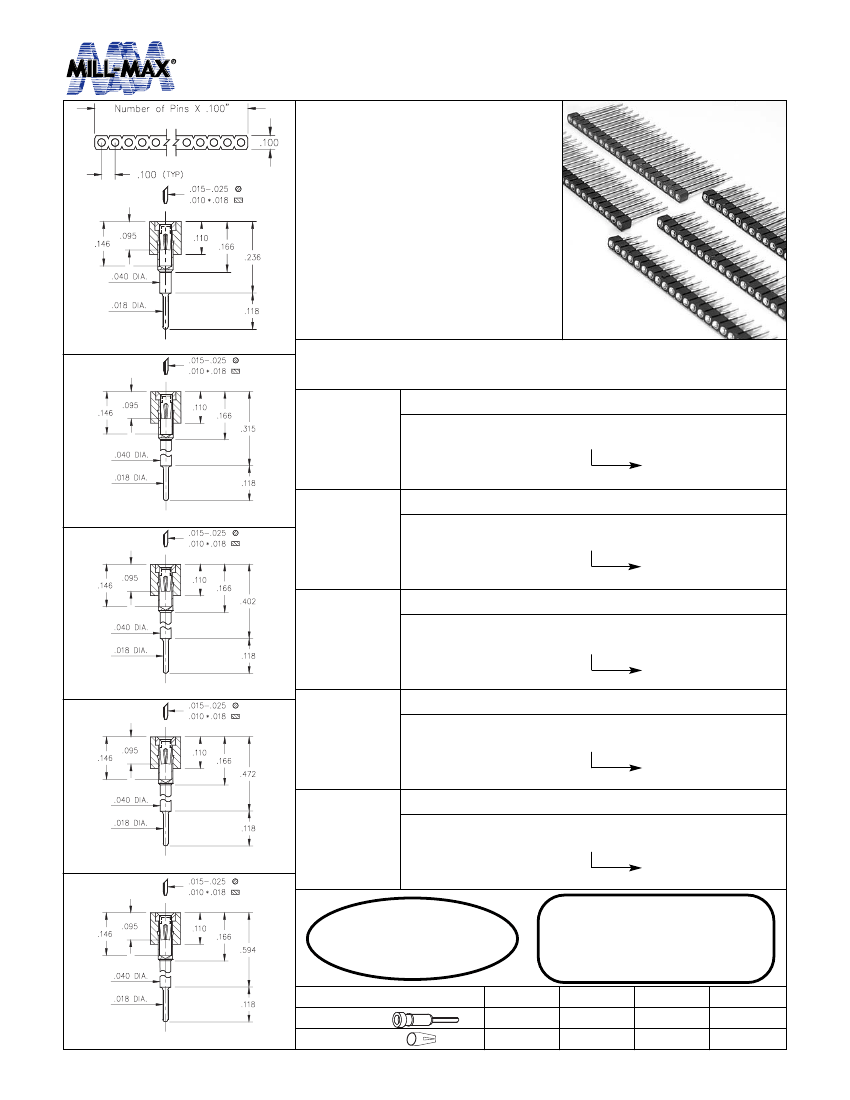

Preview

Download Datasheet

View All

SINGLE-IN-LINE SOCKETS

Elevated

Single Row

•

Elevated socket strips are

available in 5 different heights.

316...006 uses pin # 0153-1

316...003 uses pin # 0153-2

316...007 uses pin # 0153-3

316...008 uses pin # 0153-4

316...001 uses pin # 0153-5

•

Hi-Rel, 4-finger BeCu #30 clip

rated at 3 amps. See page 208

for details.

Fig. 1

Series 316

Ordering Information

Series 316...006

Standoff Height = .236

Fig. 1

316-XX-1_ _-41-006

Specify # of pins

Series 316...003

01-64

Standoff Height = .315

Fig. 2

316-XX-1_ _-41-003

Specify # of pins

Series 316...007

01-64

Standoff Height = .402

Fig. 3

316-XX-1_ _-41-007

Specify # of pins

Series 316...008

01-64

Standoff Height = .472

Fig. 4

316-XX-1_ _-41-008

Specify # of pins

Series 316...001

01-64

Standoff Height = .594

Fig. 5

Fig. 4

316-XX-1_ _-41-001

Specify # of pins

01-64

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

For High Temperature

Insulators Add ‘100’

To End Of

Part Numbers

200µ” Sn/Pb

30µ” Au

Sleeve (Pin)

Fig. 5

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
