HDSP-B5XZ Overview

31.8 mm (1.25 inch) General Purpose 5x7 Dot Matrix Alphanumeric Displays

Preview

Download Datasheet

View All

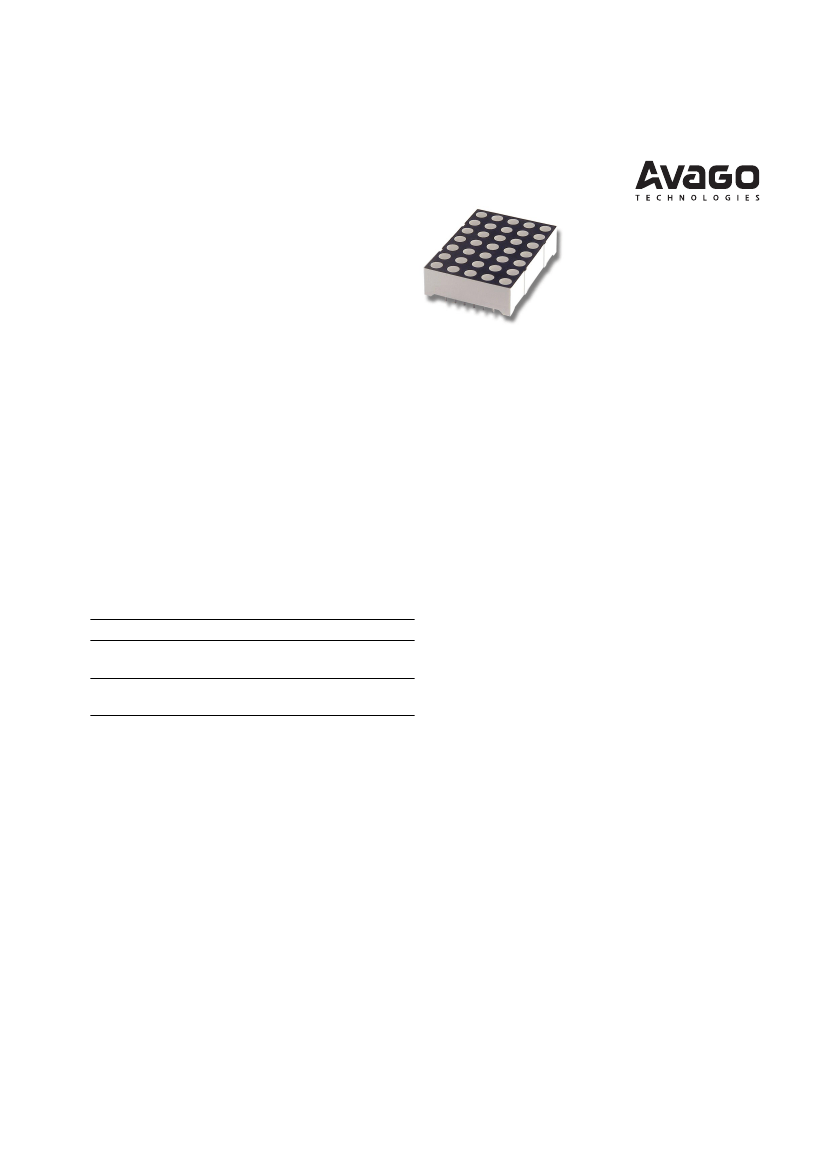

HDSP-B5xZ Series

31.8 mm (1.25 inch) General Purpose

5x7 Dot Matrix Alphanumeric Displays

Data Sheet

Description

These displays have a 31.8 mm (1.25 inch) character

height. The devices are available in either common row

anode or common row cathode configurations. The

displays come in only black face paint. The Bi-color

display consists of GaP Red (HER) and GaP Green

colors.

These parts are subjected to Out-going Quality Assur-

ance (OQA) inspection with an AQL of 0.065% for

functional and visual/cosmetic defects.

Features

• 5x7 Dot matrix font

• X-Y stackable

• Pin-out

– 26.66 mm (1.05 in.) Dual-In-Line (DIP) leads on 2 mm

(0.079 in.) centers

• Choice of colors

– Bi-color: red and green

• Face paint color: black

• Design flexibility

– Common row anode or common row cathode

• Categorized for luminance

Applications

• Suitable for indoor use

• Not recommended for industrial applications, i.e.,

operating temperature requirements exceeding 85°C or

below –35°C

• Extreme temperature cycling not recommended

[1]

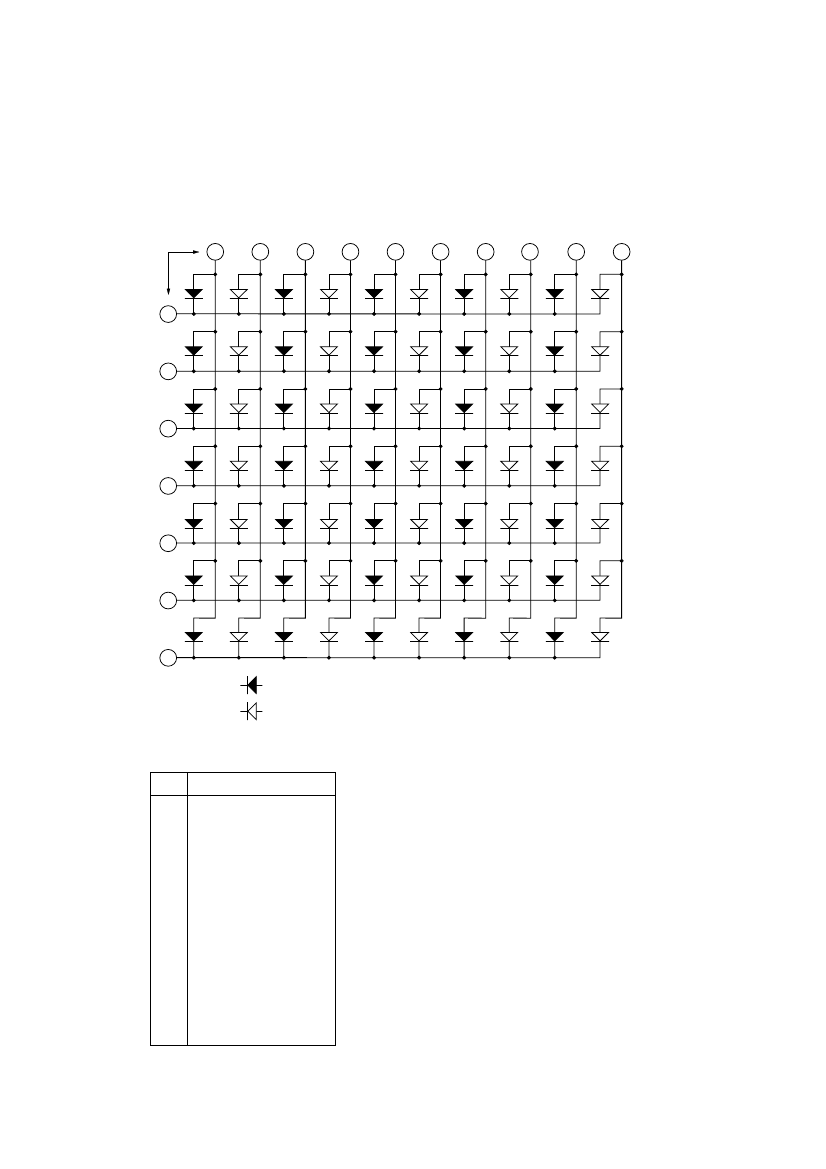

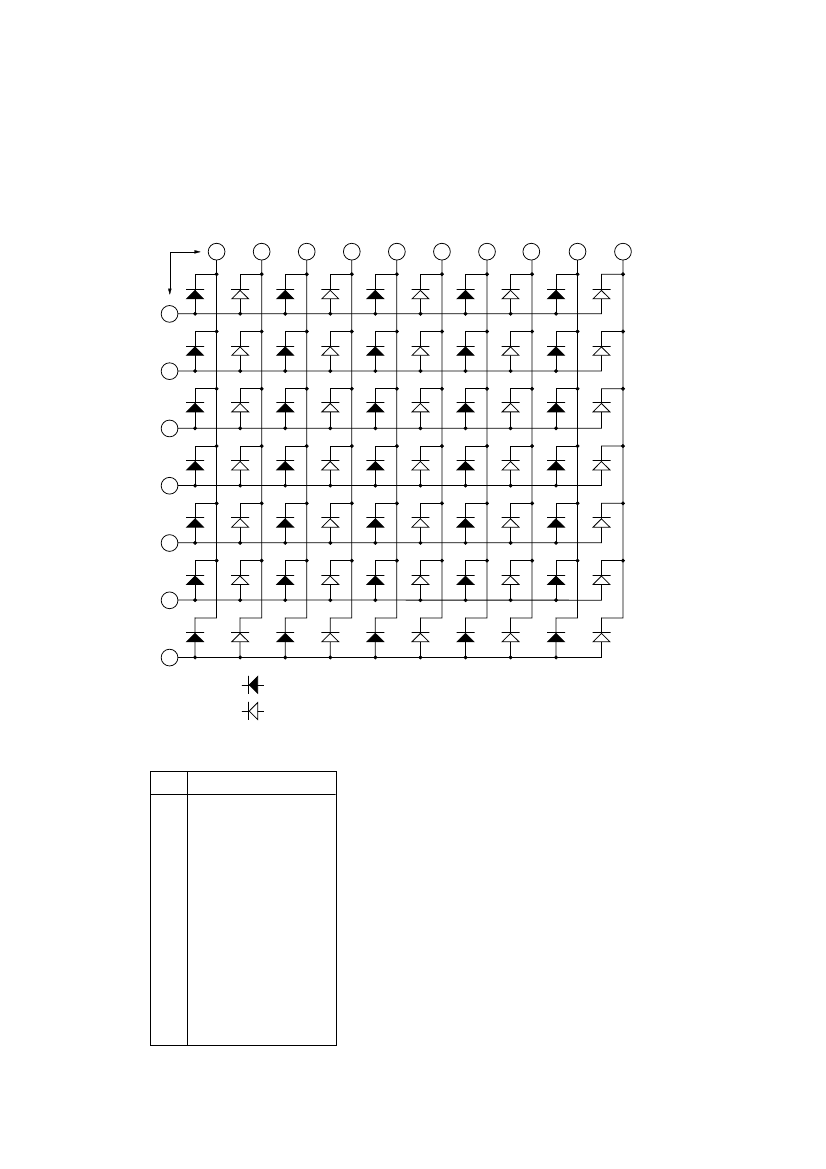

Devices

HDSP-

B5AZ

B5BZ

Description

31.8 mm Black Surface Bi-Color

Common Row Anode

31.8 mm Black Surface Bi-Color

Common Row Cathode

Note:

1. For details, please contact your local Avago components sales office

or an authorized distributor.

HDSP-B5XZ Related Products

	HDSP-B5XZ	HDSP-B5BZ	HDSP-B5AZ
Description	31.8 mm (1.25 inch) General Purpose 5x7 Dot Matrix Alphanumeric Displays	31.8 mm (1.25 inch) General Purpose 5x7 Dot Matrix Alphanumeric Displays	31.8 mm (1.25 inch) General Purpose 5x7 Dot Matrix Alphanumeric Displays
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
Maker	-	AVAGO	AVAGO
package instruction	-	PLASTIC, DIP-18	PLASTIC, DIP-18
Reach Compliance Code	-	compliant	compli
ECCN code	-	EAR99	EAR99
color	-	RED/GREEN	RED/GREEN
Configuration	-	COMMON CATHODE, 1 DIGIT	COMMON ANODE, 1 DIGIT
Display height	-	35.62 mm	35.62 mm
Maximum forward current	-	0.013 A	0.013 A
JESD-609 code	-	e3	e3
Number of functions	-	1	1
Maximum operating temperature	-	85 °C	85 °C
Minimum operating temperature	-	-35 °C	-35 °C
Optoelectronic device types	-	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY
Terminal surface	-	Matte Tin (Sn)	Matte Tin (Sn)
