804-1P

Description
Rectifier Diode, 1 Phase, 2 Element, 20A, 50V V(RRM), Silicon, MF, 3 PIN
Categorydiode    Rectifier diode
File Size78KB,2 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric View All

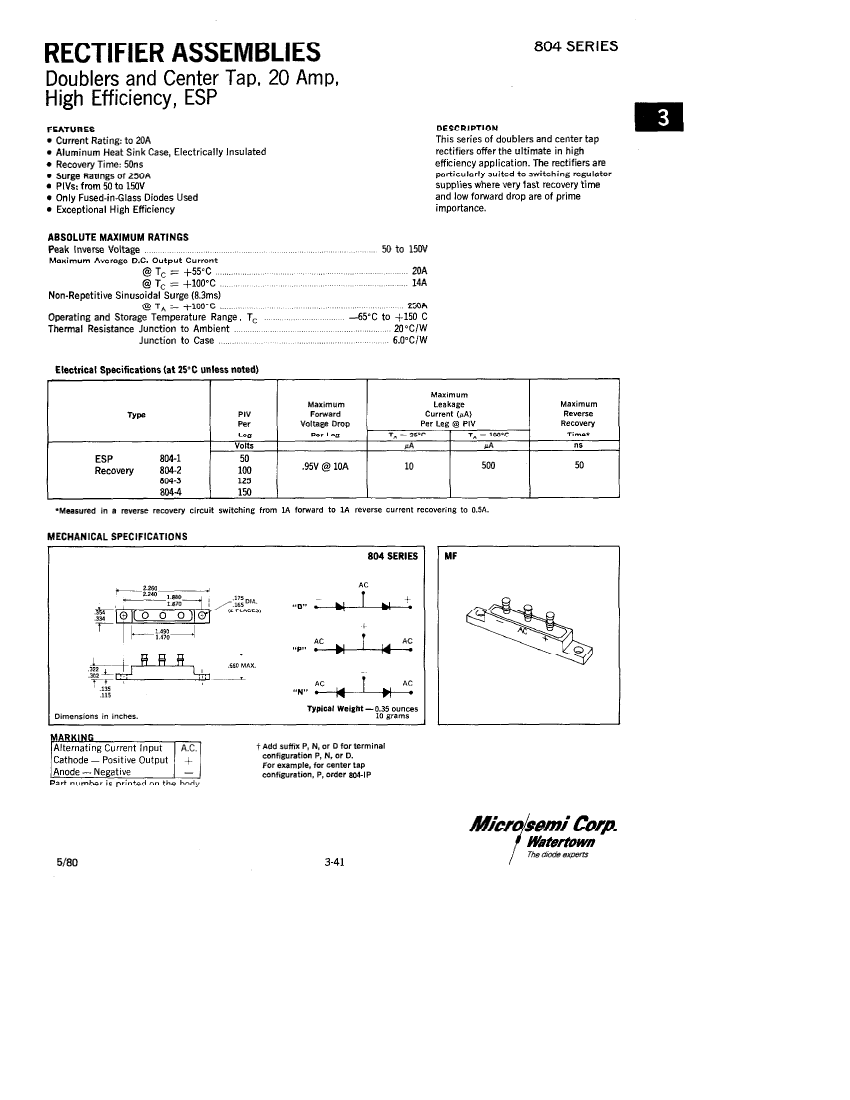

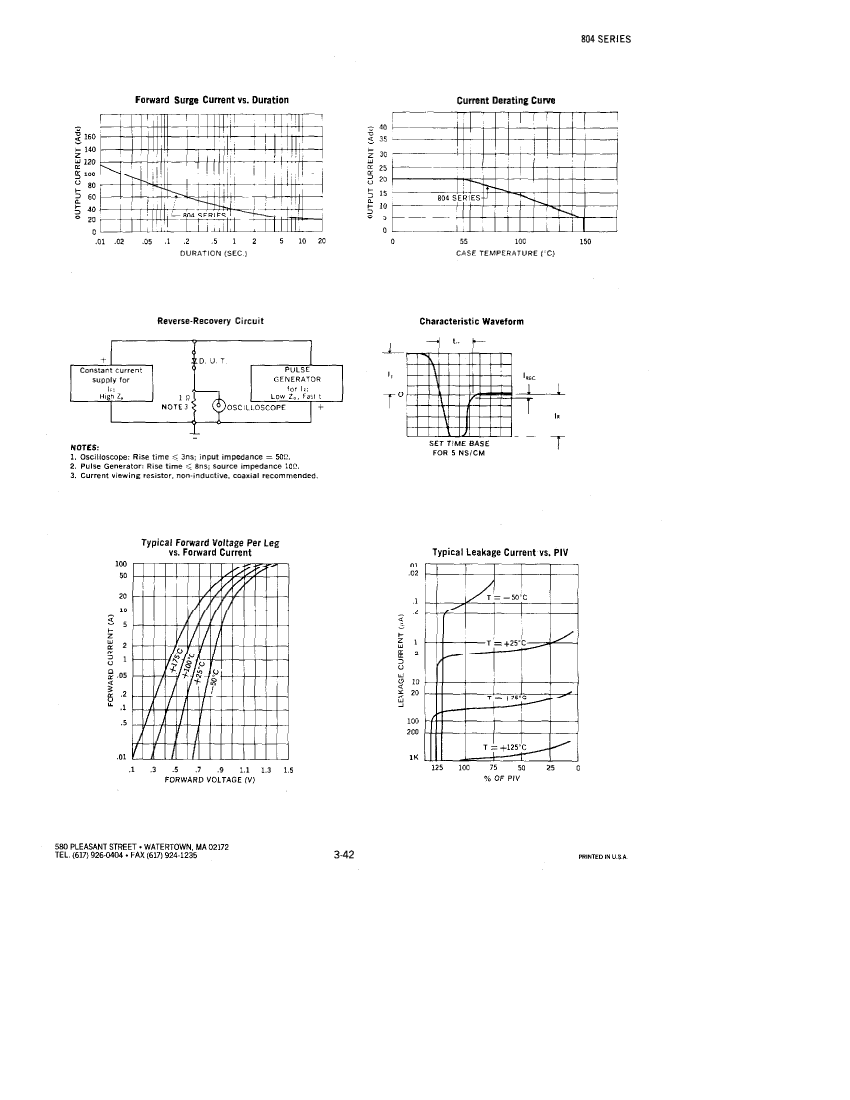

804-1P Overview

Rectifier Diode, 1 Phase, 2 Element, 20A, 50V V(RRM), Silicon, MF, 3 PIN

804-1P Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMicrosemi
package instructionMF, 3 PIN
Contacts3
Reach Compliance Codeunknown
applicationULTRA FAST RECOVERY
Shell connectionISOLATED
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.95 V
JESD-30 codeR-XUFM-X3
JESD-609 codee0
Maximum non-repetitive peak forward current250 A
Number of components2
Phase1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current20 A
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage50 V
Maximum reverse current10 µA
Maximum reverse recovery time0.05 µs
surface mountNO
Terminal surfaceTIN LEAD
Terminal formUNSPECIFIED
Terminal locationUPPER
Base Number Matches1
