OX-5011-EAE-2081-25M0000000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> OX-5011-EAE-2081-25M0000000

OX-5011-EAE-2081-25M0000000: DescriptionHCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size672KB，4 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric View All

OX-5011-EAE-2081-25M0000000 Overview

HCMOS Output Clock Oscillator

OX-5011-EAE-2081-25M0000000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1546439894
package instruction	DILCC6,.37
Reach Compliance Code	compliant
Ageing	0.5 PPM/YEAR
Maximum control voltage	2.8 V
Minimum control voltage
Frequency Adjustment - Mechanical	NO
frequency stability	0.02%
Frequency Stability - Voltage	0.02 ppm
input power	0.66 W
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	25 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
Oven power supply voltage	3.3V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC6,.37
physical size	14.4mm x 9.5mm x 6.2mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Preheating power	2 W
Maximum warm-up time	3 Minute

Preview

Download Datasheet

View All

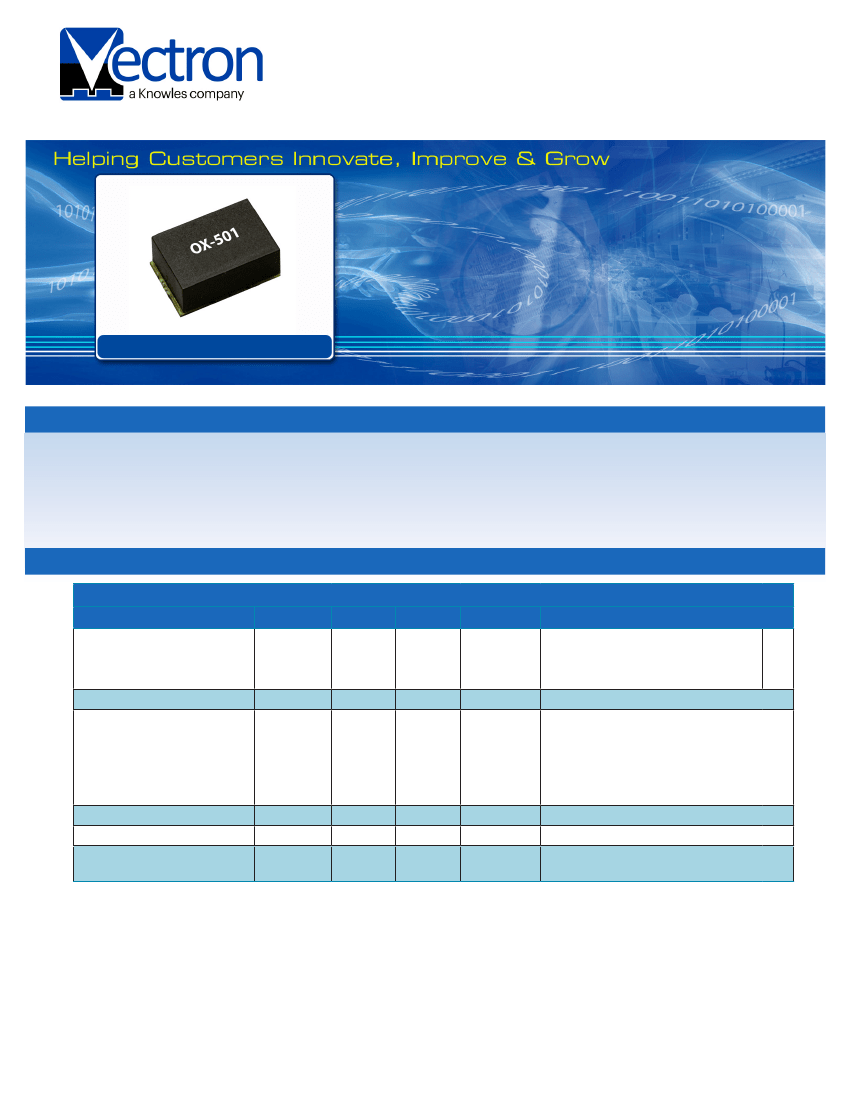

Oven Controlled Crystal Oscillator

OX-501

Features

• 6-Pin SMD package

• Fast warm-up

• Frequency Range, 10 MHz to 40 MHz

• Standard freq: 10, 12.8, 16.384, 19.2, 20, 24.576, 25, 26,

MHz,

•

Applications

Base stations

Test equipment

Femto base station

Military communication equipment

Performance Specifications

Frequency Stabilities

10 to 40 MHz

Parameter

vs. operating temperature range

(referenced to +25°C)

slope

Initial tolerance

vs. supply voltage change

vs. load change

vs. aging / day

vs. aging / year

vs. aging / 10 years

Holdover

Start up time

Warm-up time

minutes

to ±200ppb of final frequency (1 hour reading)

@ +25°C

Min

-20

-2

-0.5

-20

-30

-5

500

Typical

Max

+20

+0.5

+20

+30

+500

Units

ppb

ppb/°C

ppm

ppb

Condition

Options

-20 to +70°C

-40 to +85°C

@ Temp stab. +-10ppb

at time of shipment, nominal EFC

±5% static

Load ±5% static

after 30 days of operation

Page 1 of 7

Vectron International • 267 Lowell Road, Hudson Suite 102, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
