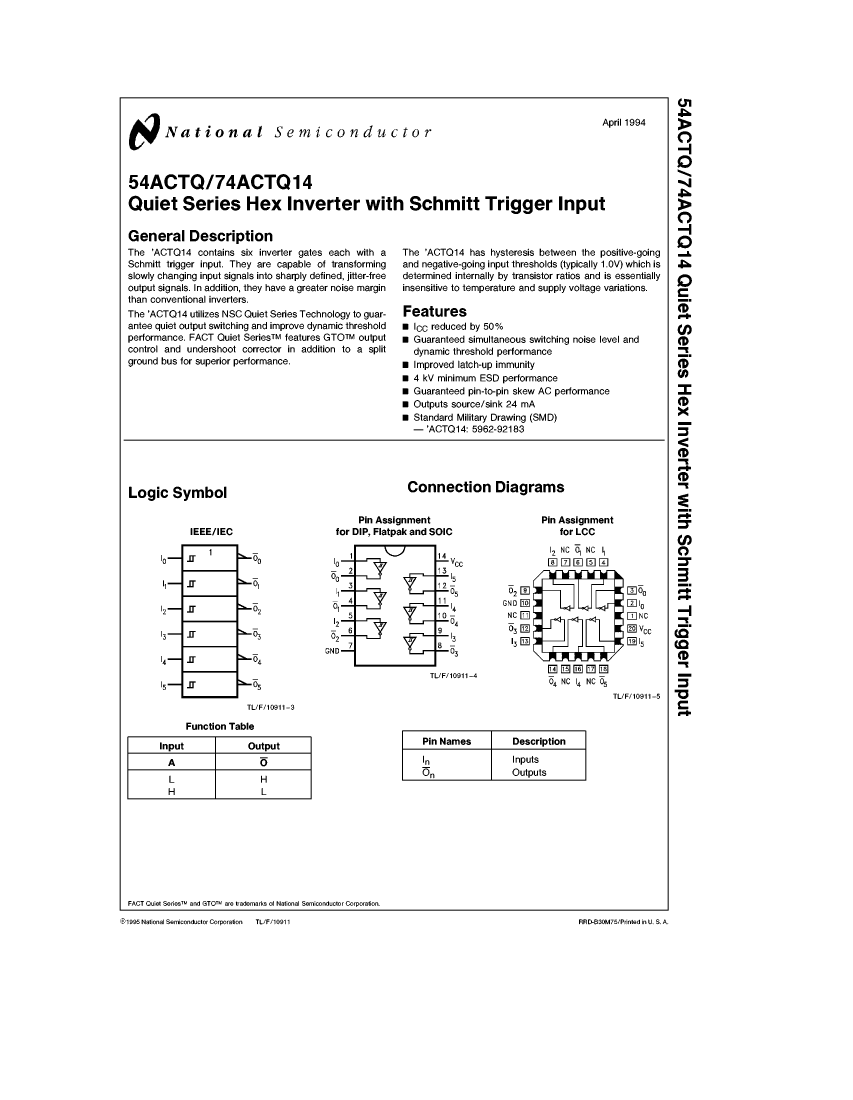

Preview

74ACTQ14PCQR: DescriptionInverter, CMOS, PDIP14,; Categorylogic; File Size394KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74ACTQ14PCQR Overview

Inverter, CMOS, PDIP14,

74ACTQ14PCQR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.024 A
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	11 ns
Schmitt trigger	YES
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

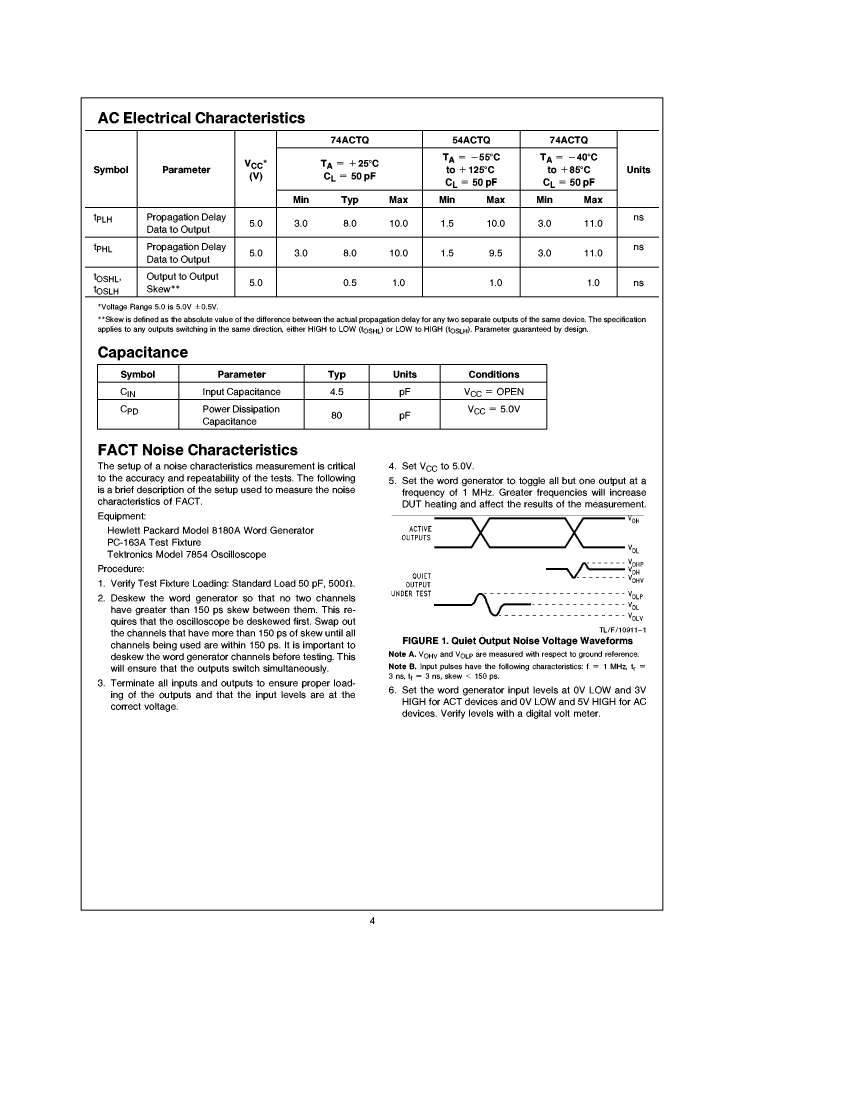

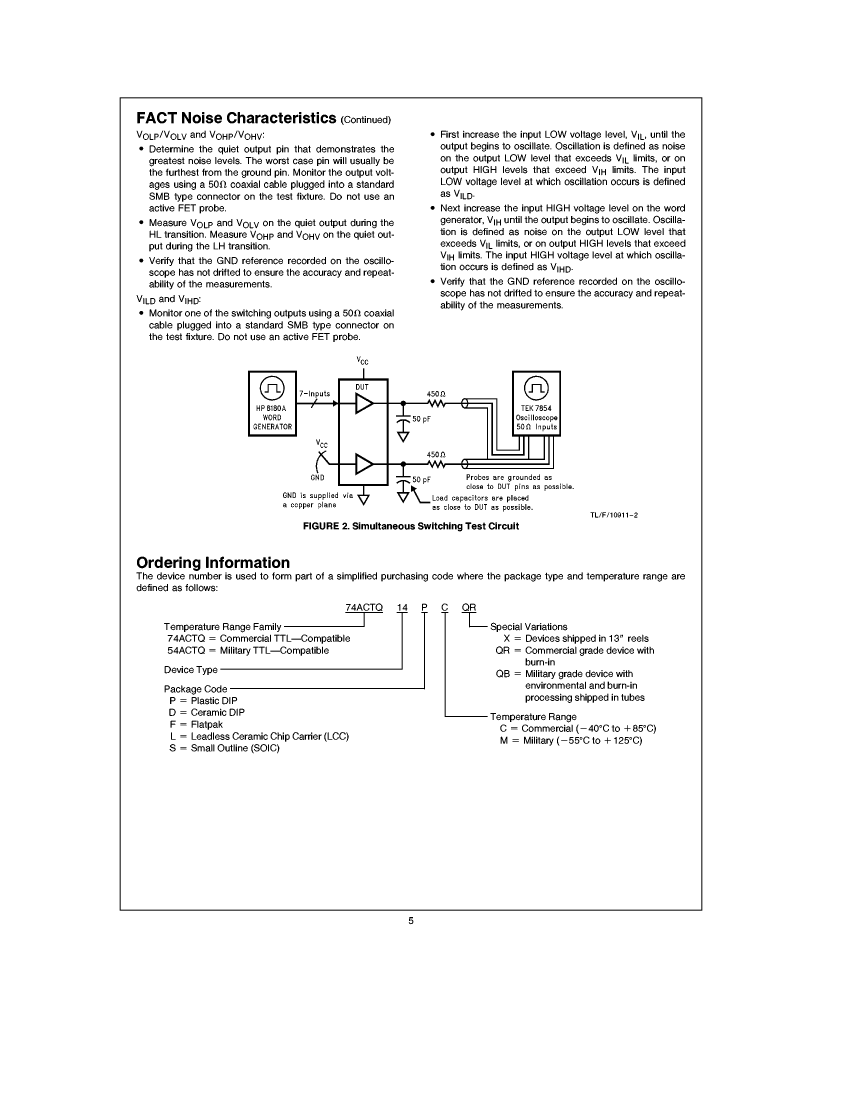

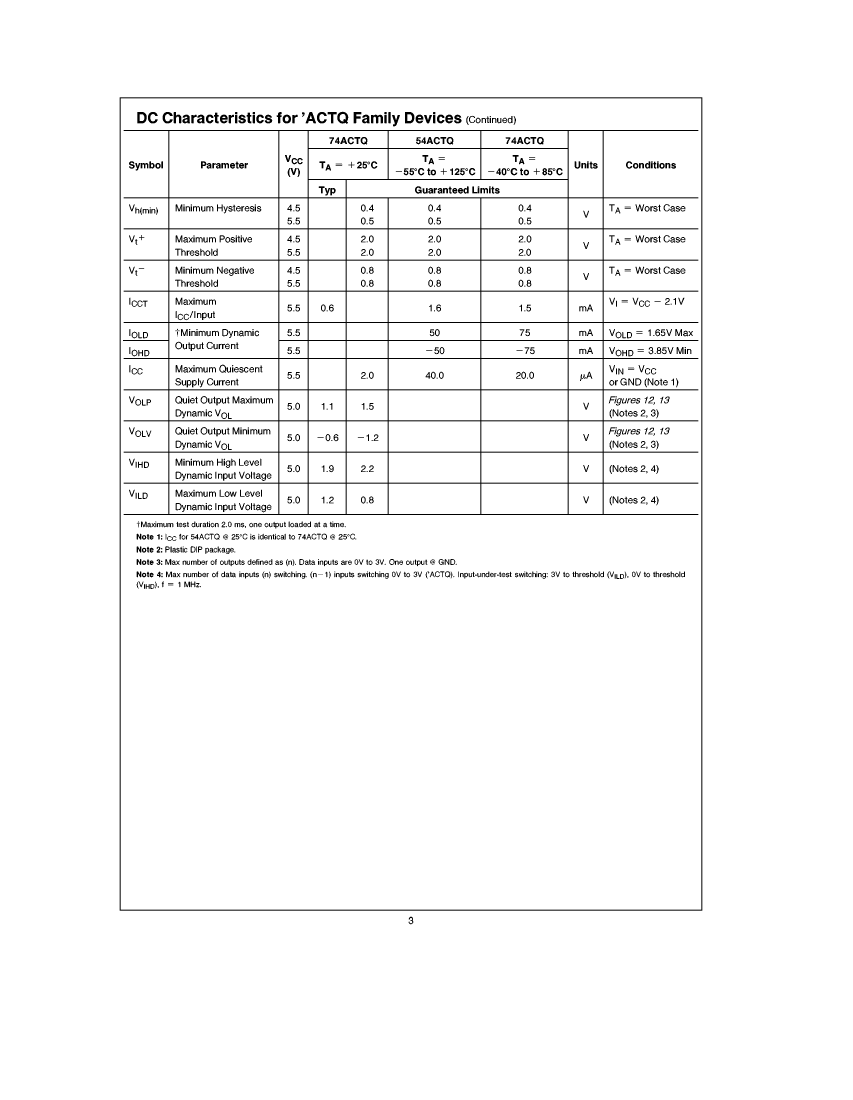

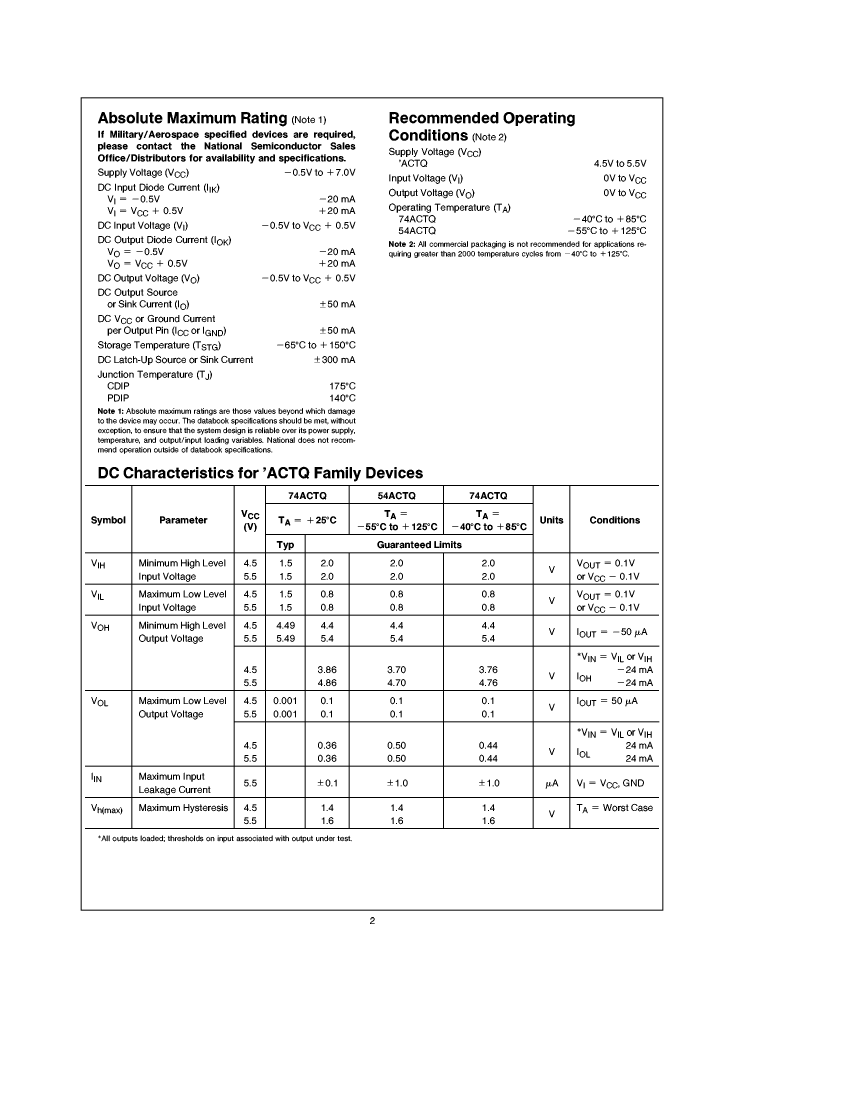

Preview

Download Datasheet

View All

74ACTQ14PCQR Related Products

	74ACTQ14PCQR	54ACTQ14FMQB	54ACTQ14LMQB	54ACTQ14DMQB	74ACTQ14SCQR
Description	Inverter, CMOS, PDIP14,	Inverter, CMOS, CDFP14,	Inverter, CMOS, CQCC20,	Inverter, CMOS, CDIP14,	Inverter, CMOS, PDSO14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	DFP, FL14,.3	QCCN, LCC20,.35SQ	DIP, DIP14,.3	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T14	R-XDFP-F14	S-XQCC-N20	R-XDIP-T14	R-PDSO-G14
JESD-609 code	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A
Number of terminals	14	14	20	14	14
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-55 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DFP	QCCN	DIP	SOP
Encapsulate equivalent code	DIP14,.3	FL14,.3	LCC20,.35SQ	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	11 ns	10 ns	10 ns	10 ns	11 ns
Schmitt trigger	YES	YES	YES	YES	YES
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL
Base Number Matches	1	1	1	1	1
method of packing	-	TUBE	TUBE	TUBE	-
Certification status	-	Not Qualified	Not Qualified	Not Qualified	-
Filter level	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
