Harness Sectioning Connectors
Modular connectors

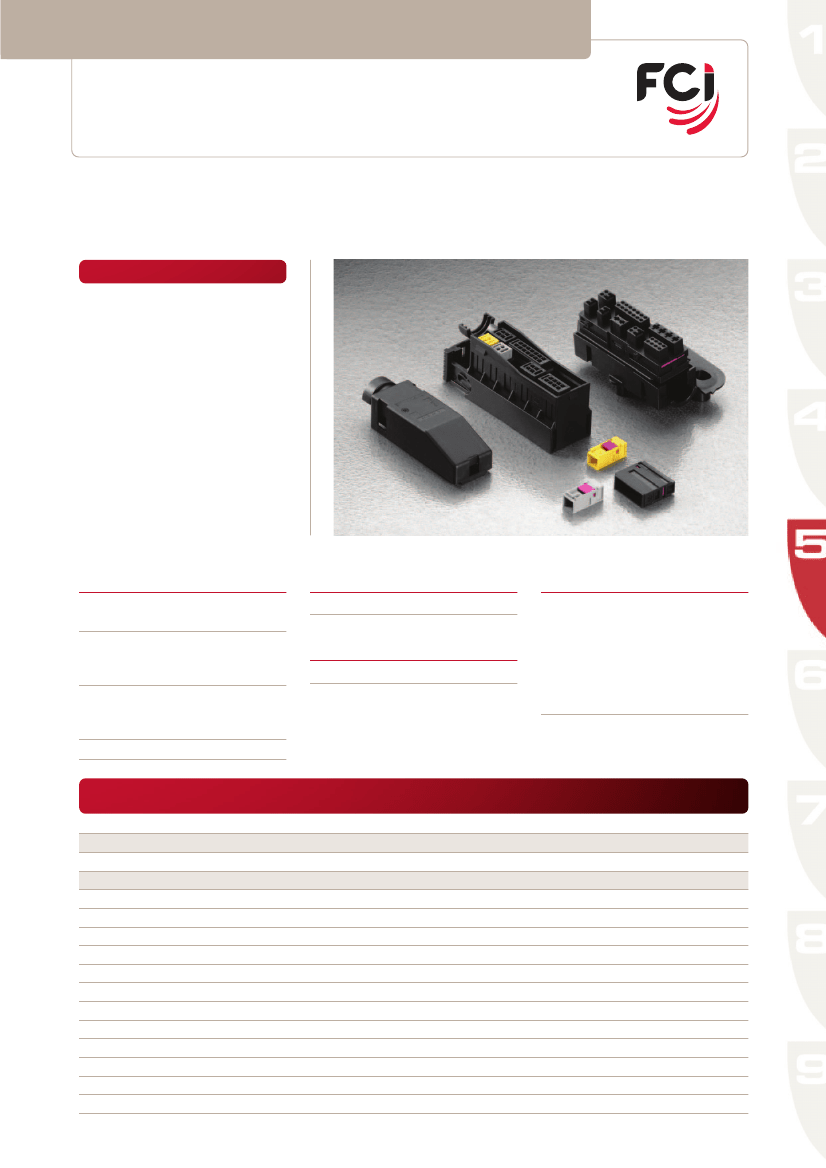

DCS-2 / 4.8 mm
40 way modular connector system for 1.5, 2.8 and
4.8 mm terminals
Features
•
High density modular connector
system using 1.5/2.8 and 4.8 mm
terminals
40 position female housing with
terminal position assurance (T.P.A.)
Mounting device for female housing
Male module holder accomodates
several single and double row
module configurations
Lateral secondary lock for male
modules
Protected locking cam on male
module holder
Connector position assurance
(C.P.A.) optional possible
Mechanical polarization
•
•
•
•
•
•
•
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
PBT
-
-
-
-
-
-
Connector compatibility
•
Usable terminals:
DCS-2 1.5 mm female terminals
DCS-2 1.5 mm male terminals
DCS-2 2.8 mm female terminals
DCS-2 2.8 mm male terminals
4.8 mm female terminals
4.8 mm male terminals
•
Contact retention force:
> 55 N for DCS-2 1.5 mm
> 80 N for DCS-2 2.8 mm
Tooling
•
Terminal removal tool:
Consult us
•
Contact insertion force:
< 10 N for DCS-2 1.5 mm
< 15 N for DCS-2 2.8 mm
•
Connector mating force: Consult us
Part Numbers
6 023 16 01
6 099 44 01
6 033 06 01
6 099 43 01
6 030 23 01
6 030 23 04
6 030 23 11
6 030 23 18
6 030 28 01
6 030 22 01
6 031 10 01
6 031 10 04
6 031 10 11
6 031 10 13
6 031 09 01
6 031 08 01
2
2
2
2
2
4
4
4
4
4
8
14
1.5 mm
1.5 mm
1.5 mm
1.5 mm
2.8 mm
4.8 mm
1.5 mm
1.5 mm
1.5 mm
1.5 mm
1.5 mm
1.5 mm
No. of
position
40
Terminal
size
3.4 x [1.5 mm] + 2 x [2.8 mm] +4 x [4.8 mm]
Type
Female housing
Mounting device
Male module holder
Cover
Male module
Male module
Male module
Male module
Male module
Male module
Male module
Male module
Male module
Male module
Male module
Male module
No
Yes
No
Yes
No
No
No
Yes
No
Yes
No
No
A
A
B
B
A
A
A
A
B
B
A
A
Shorting Code
clip
Colour
Black
Black
Black
Black
Black
Yellow
Black
Grey
Black
Black
Black
Yellow
Black
Red
Black
Black
Rev 06/04
5.19
Harness Sectioning Connectors
Modular connectors
DCS-2 / 4.8 mm
40 way modular connector system for 1.5, 2.8 and
4.8 mm terminals

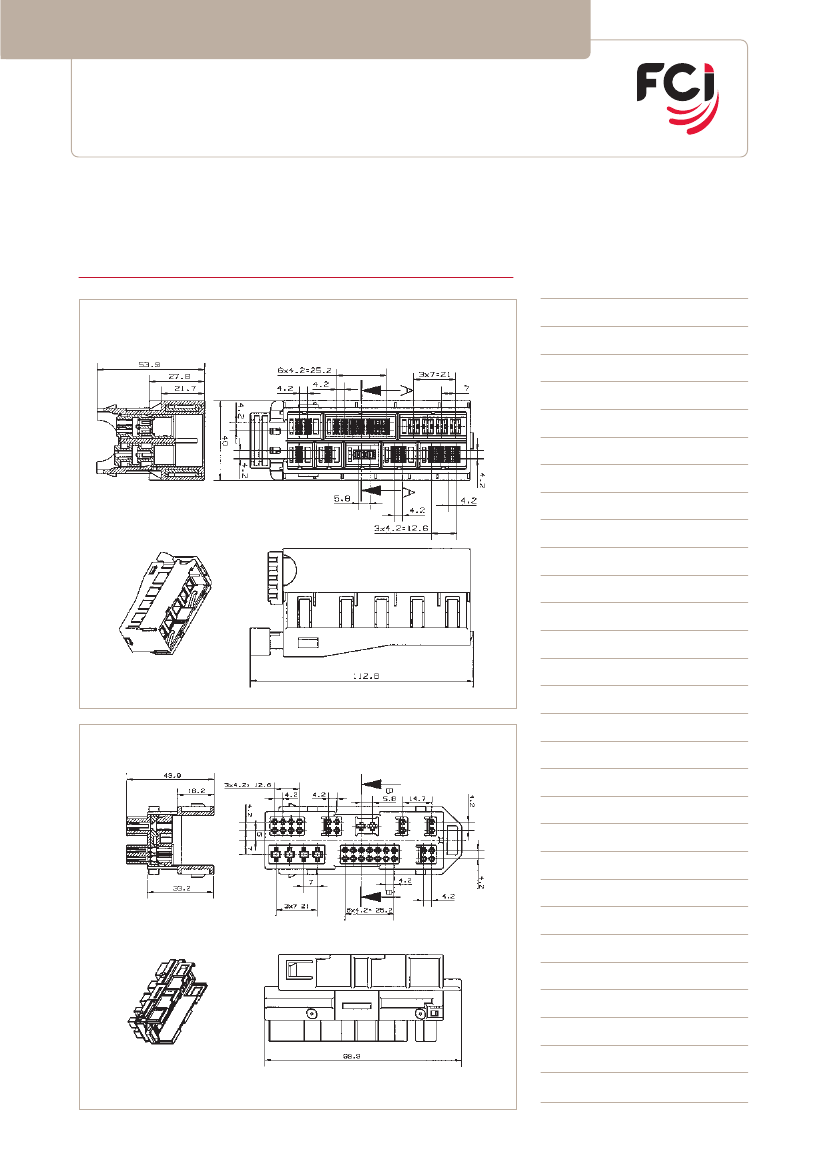

Dimensional characteristics
Notes:
Male module holder
40 way female housing
5.20
Rev 06/04
