KK4050BN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> KK4050BN

KK4050BN: DescriptionHex Buffer/Converter High-Voltage Silicon-Gate CMOS; Categorylogic logic; File Size146KB，5 Pages; ManufacturerKODENSHI; Websitehttp://www.kodenshi.co.jp

Download Datasheet Parametric Compare View All

KK4050BN Overview

Hex Buffer/Converter High-Voltage Silicon-Gate CMOS

KK4050BN Parametric

Parameter Name	Attribute value
Maker	KODENSHI
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknow
JESD-30 code	R-PDIP-T16
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUFFER
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Prop。Delay @ Nom-Su	280 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

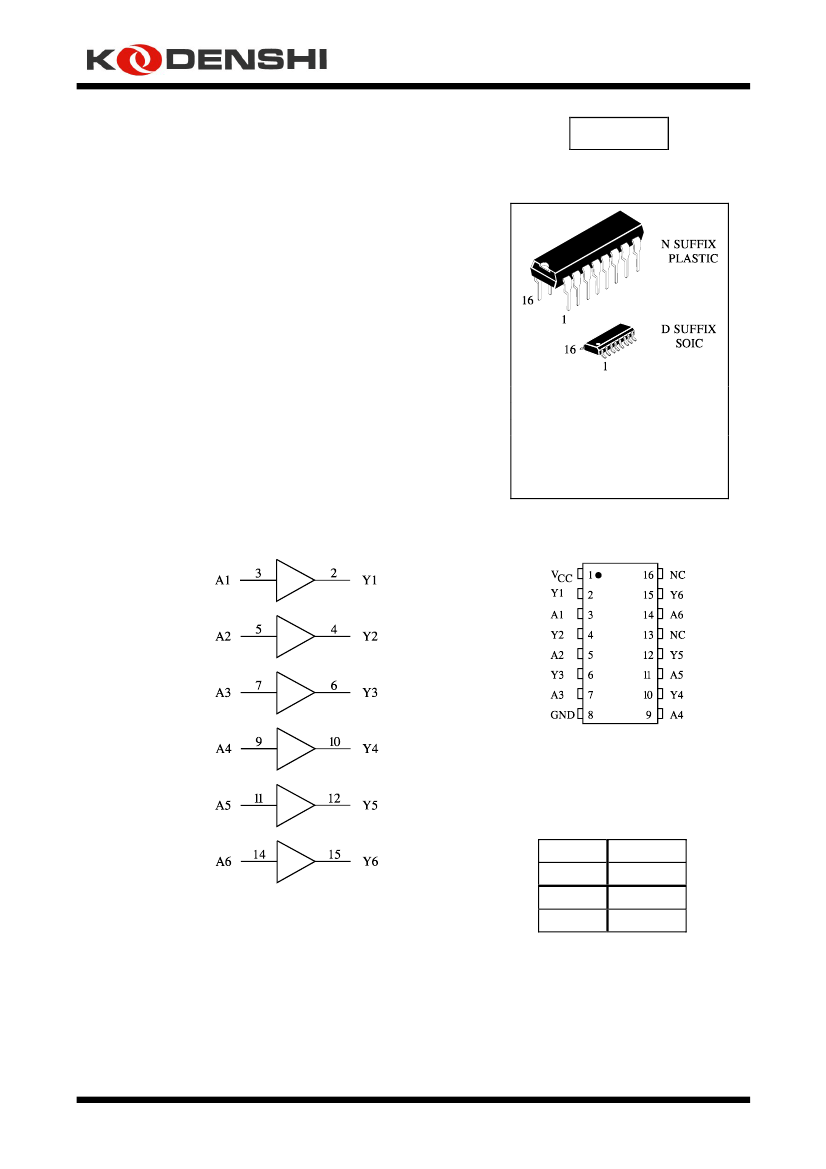

TECHNICAL DATA

KK4050B

Hex Buffer/Converter

High-Voltage Silicon-Gate CMOS

The KK4050B is noninverting hex buffers and feature logic-level

conversion using only one supply (voltage (V

). The input-signal high

level (V

) can exceed the V

supply voltage when these devices are

used for logic-level conversions. These devices are intended for use as

CMOS to DTL/TTL converters.

•

Operating Voltage Range: 3.0 to 18 V

•

Maximum input current of 1

µA

at 18 V over full package-temperature

range; 100 nA at 18 V and 25°C

•

Noise margin (over full package temperature range):

1.0 V min @ 5.0 V supply

2.0 V min @ 10.0 V supply

2.5 V min @ 15.0 V supply

•

High-to-low level conversion

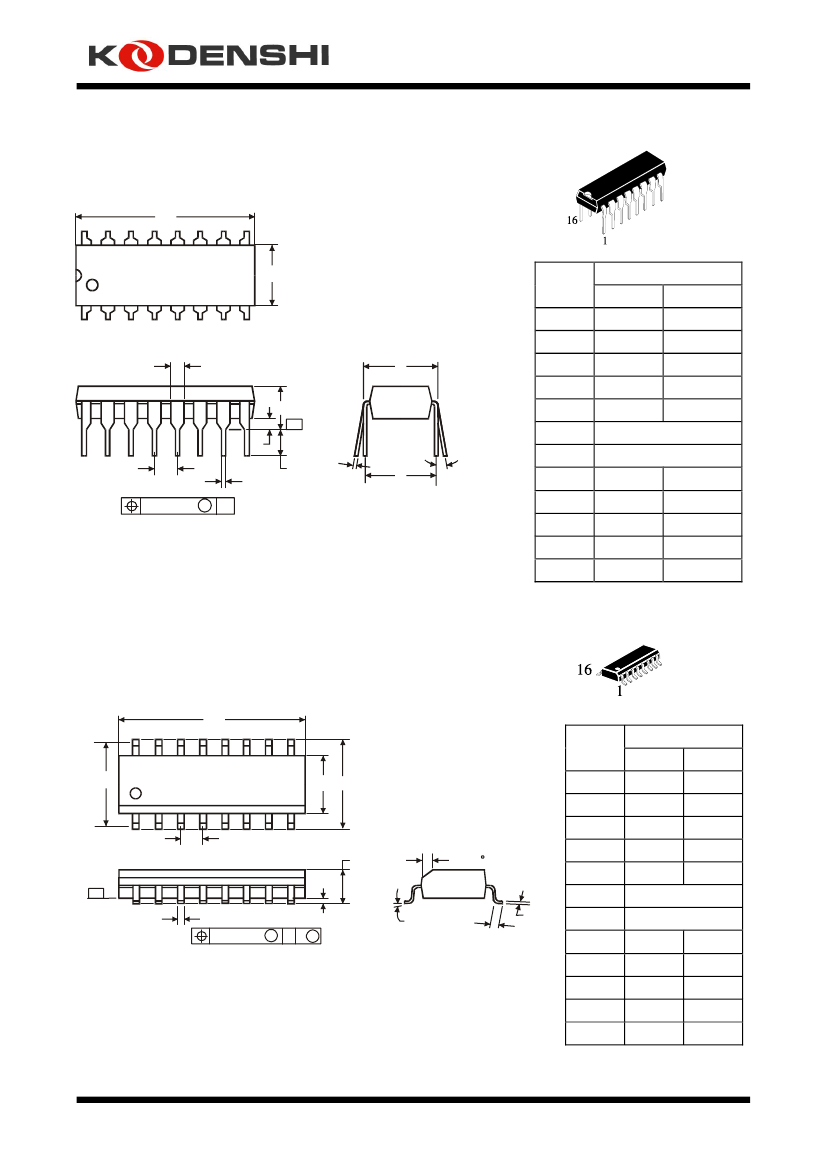

ORDERING INFORMATION

KK4050BN

Plastic

KK4050BD SOIC

= -55° to 125° C for all packages

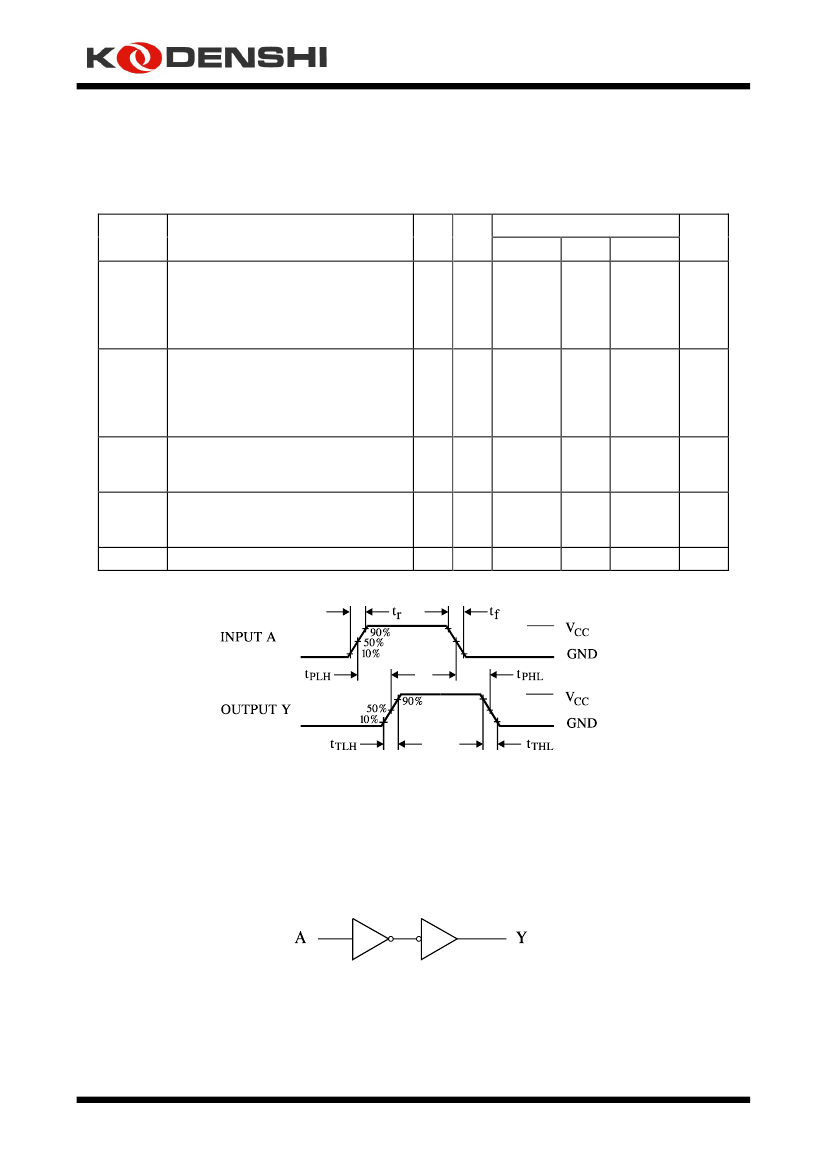

LOGIC DIAGRAM

PIN ASSIGNMENT

NC = NO CONNECTION

FUNCTION TABLE

Inputs

PINS 13, 16 = NO CONNECTION

PIN 1 =V

PIN 8 = GND

Output

KK4050BN Related Products

	KK4050BN	KK4050BD	KK4050B
Description	Hex Buffer/Converter High-Voltage Silicon-Gate CMOS	Hex Buffer/Converter High-Voltage Silicon-Gate CMOS	Hex Buffer/Converter High-Voltage Silicon-Gate CMOS
Maker	KODENSHI	KODENSHI	-
package instruction	DIP, DIP16,.3	SOP, SOP16,.25	-
Reach Compliance Code	unknow	unknow	-
JESD-30 code	R-PDIP-T16	R-PDSO-G16	-
Load capacitance (CL)	50 pF	50 pF	-
Logic integrated circuit type	BUFFER	BUFFER	-
Number of terminals	16	16	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	DIP	SOP	-
Encapsulate equivalent code	DIP16,.3	SOP16,.25	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	SMALL OUTLINE	-
power supply	5/15 V	5/15 V	-
Prop。Delay @ Nom-Su	280 ns	280 ns	-
Certification status	Not Qualified	Not Qualified	-
Schmitt trigger	NO	NO	-
surface mount	NO	YES	-
technology	CMOS	CMOS	-
Temperature level	MILITARY	MILITARY	-
Terminal form	THROUGH-HOLE	GULL WING	-
Terminal pitch	2.54 mm	1.27 mm	-
Terminal location	DUAL	DUAL	-
Base Number Matches	1	1	-
