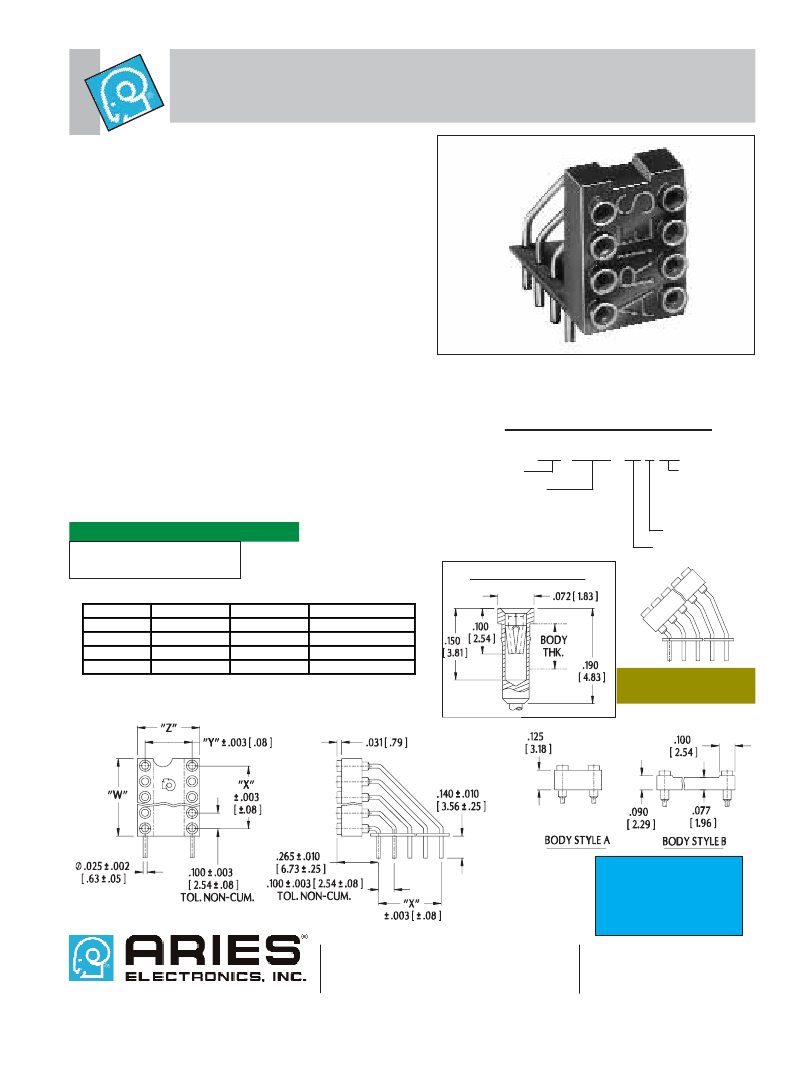

Series 800 Vertisockets
™
Vertical Mounting with Collet Contacts
FEATURES:
• Aries offers a full line of Vertisockets
TM
for DIP packaging of
LEDs, incandescent lamps, DIP switches, test points, etc. The
variations of mounting positions provide exceptional design
freedom.
• Accepts standard LEDs and incandescent displays as well as
.500 [21.70] and .600 [15.24] high large displays.
SPECIFICATIONS:
• Standard body material is black UL 94HB Glass-filled Nylon.
• High temperature body material is black UL 94V-0 4/6 Nylon.
• Spacer is fishpaper.
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-
B16-85.
• Pin body plating is 200μ [5.08
μm]
min. 93/7 Tin/Lead per MIL-
P-81728 over 100μ [2.54
μm]
min. Nickel per QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
C17200 ASTM-B194-92.
• Contact plating is 30μ [.76
μm]
min. Gold per MIL-G-45204 over
50μ [1.27
μm]
min. Nickel per QQ-N-290.
• Contact current rating=3 Amps.
• Operating temperature=221°F [105°C].
• Insertion Force=180 grams/pin; Withdrawal
Force=90 grams/pin; Normal Force=140 grams/pin; (based on
a .018 [.46] diameter test lead).
• Accepts leads .015-.025 [.38-.64] in diameter, .110-.150
[2.79-3.81] in length.
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
No. of pins
(see table)
XX-X810-90CXX
Optional suf-
fix:
V0=UL 94V-0
plastic
Collet contacts
90° display angle
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
Consult factory for non-standard sizes.
Body Style
A
B
B
B
Centers “Y”
.200 [5.08]
.300 [7.62]
.400 [10.16]
.600 [15.24]
Dim. “Z”
.300 [7.62]
.400 [10.16]
.500 [12.70]
.700 [17.78]
Available Sizes
8, 10
8, 10, 12, 14, 16
8, 10
8, 10, 12, 14, 16
Series:
2810: “Y”=.200 [5.08]
810: “Y”=.300 [7.62]
4810 “Y”=.400 [10.16]
6810: “Y”=.600 [15.24]
CONTACT DETAIL
“W”=NO. OF PINS PER ROW X .100 [2.54]
“X”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Consult factory for
other display angles
90° ± 2°
Consult Data Sheet
No. 13005 for Series
800 Horizontal
Mounting
Vertisockets
TM
.
NORTH AMERICA
Frenchtown, NJ USA
TEL:(908) 996-6841
FAX:(908) 996-3891
http://www.arieselec.com • info@arieselec.com
abc
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033 13004
europe@arieselec.com REV.D
