890-003 and 890-004
Single Row Nano Connector
with uninsulated Wire
Glenair Uninsulated Wire Nano Connectors
feature gold
alloy TwistPin contacts. Contacts are precision-crimped to
solid wire. These nanomimiature connectors offer premium
performance and reliability for demanding applications.
Contact spacing is .025 inches. 1 amp current rating, DWV
rating 250 volts AC. Wire gages #30 and #32 AWG.
TwistPin Contact System
assures premium performance in
demanding environments. The gold/platinum alloy contacts will
stand up to years of exposure without corrosion.
systems and geophysical instruments.
Typical Applications
include uAV's, satellites, missile

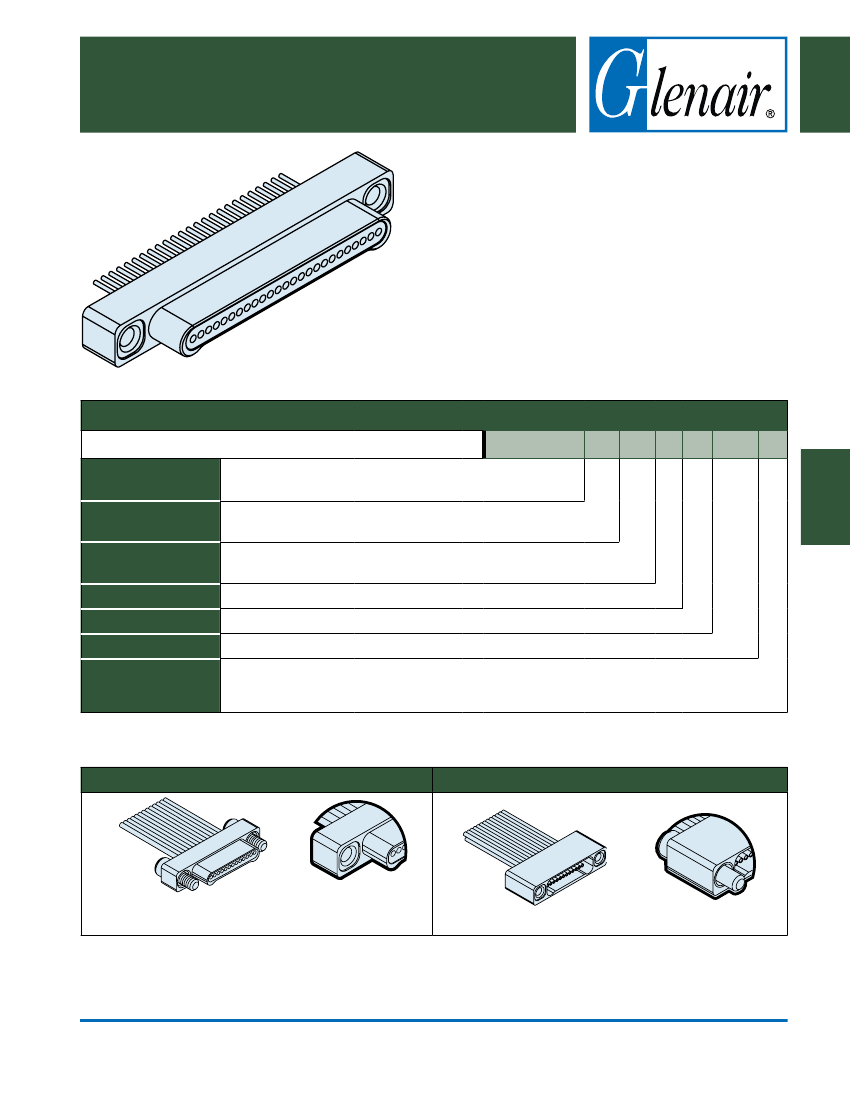

How to Order Nano Connectors with uninsulated Wire
Sample Part Number
Series
Insert Arrangement/
Contact Type
Shell Material and
Finish
Wire Gage
Wire Type
Wire Length Inches
Hardware
890-003
890-003
Plug, Pin Contacts, Single Row, Nanominiature
890-004
Receptacle, Socket Contacts, Single Row, Nanominiature
Plugs (890-003):
5P, 9P, 15P, 21P, 25P, 31P, 37P, 51P
Receptacles (890-004):
5S, 9S, 15S, 21S, 25S, 31S, 37S, 51S
A1
- Aluminum Shell, Cadmium Plating
T
- Titanium Shell, Unplated
A2
- Aluminum Shell, Electroless Nickel Plating
S
- Stainless Steel Shell, Passivated
-31P
A2
-0
D3
-.250
J
0
- #30 AWG
2
- #32 AWG
D3
- Single Strand Copper Wire, Uninsulated, with Gold Plating
.125, .250, .375, .500
Wire Length in Inches
J
- Jackscrew, #0-80
T
- Female Thread, #0-80
Female threads are available on plug connectors
only if the shell material is titanium or stainless steel.
Plug (Pin) Connector
Receptacle (Socket) Connector
“J” Jackscrew Option
“T” Female Thread Option
Titanium or Stainless Steel
Shells Only
“T” Female Thread Option
“J” Jackscrew Option
Dimensions in inches (millimeters) and are subject to change without notice.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-5
E-Mail: sales@glenair.com
Single Row
Connectors
D
890-003 and 890-004
Single Row Nano Connector
with uninsulated Wire

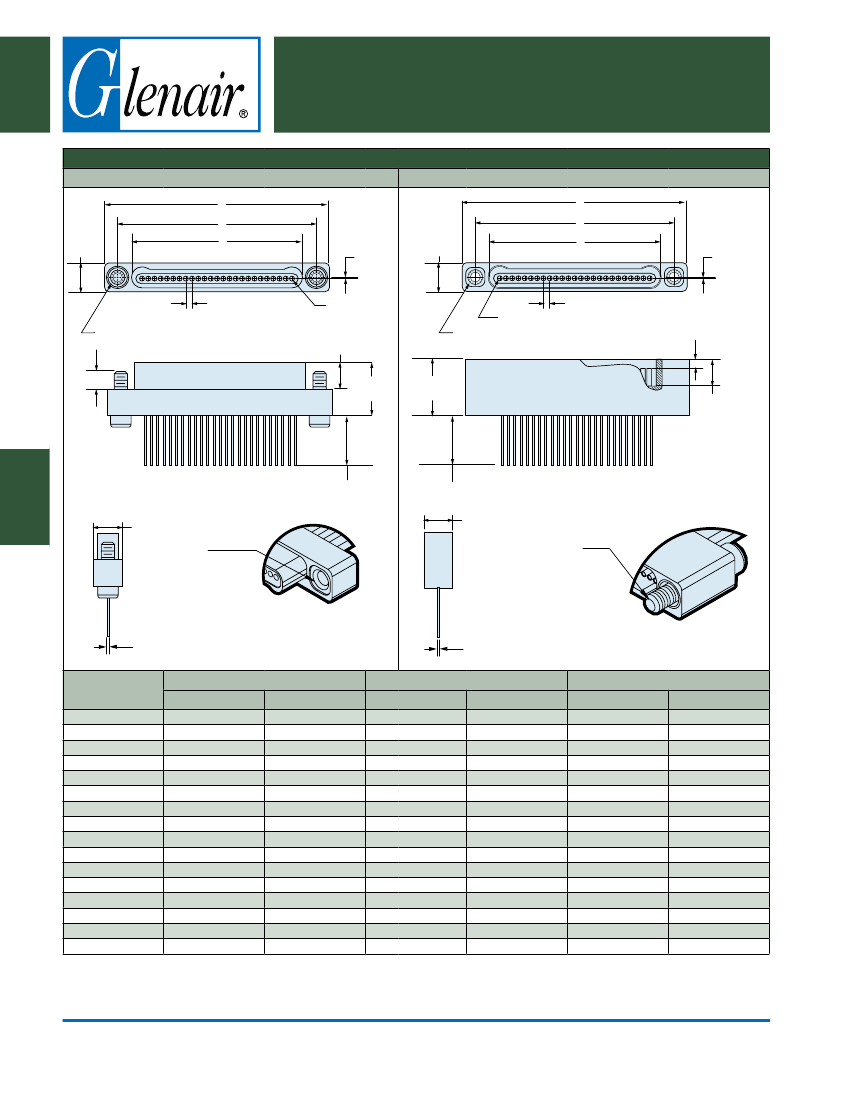

Table 1: Single Row Nano uninsulated Wire Dimensions
890-003 Plug (Pin) Connector
A
.115
(2.92)
B
C
.005
(0.13)
.115
(2.92)
890-004 Receptacle (Socket) Connector
A
B
C
.005
(0.13)
Single Row
Connectors
.025 (0.64) Typ
#0-80 UNF-2A, 2X
Pin 1
.105 ± .003
(2.67)
.210
(5.33)
.080
(2.03)
.025 (0.64) Typ
Socket 1
#0-80 UNF-2B, 2X
.042/.037
(1.07/0.94)
.225
(5.72)
.110 ± .003
(2.8 ± 0.1)
D
.115 (2.92)
Optional
2X #0-80 UNF-2B
.090 Min. Thread
(Type T)
Ø.010
+.002
- .000
Lead Length
± .015 (0.38)
Lead Length ± .015 (0.38)
.115 (2.92)
2X #0-80 UNF-2A
.050 Hex Drive
Jackscrew
(Type J)
Titanium or Stainless
Steel Shells Only
Ø.010
+.002
- .000
B BSC.
mm. ± 0.13
10.16
10.16
12.70
12.70
16.51
16.51
20.32
20.32
22.86
22.86
26.67
26.67
30.48
30.48
39.37
39.37
C BSC.
A
Layout
5P
5S
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
In. ± .005
.400
.400
.500
.500
.650
.650
.800
.800
.900
.900
1.050
1.050
1.200
1.200
1.550
1.550
In.
.295
.295
.395
.395
.545
.545
.695
.695
.795
.795
.945
.945
1.095
1.095
1.445
1.445
mm.
7.49
7.49
10.03
10.03
13.84
13.84
17.65
17.65
20.19
20.19
24.00
24.00
27.81
27.81
36.70
36.70
In.
.184
.185
.284
.285
.434
.435
.584
.585
.684
.685
.834
.835
.984
.985
1.334
1.335
mm.
4.67
4.70
7.21
7.24
11.02
11.05
14.83
14.86
17.37
17.40
21.18
21.21
24.99
24.02
33.88
33.91
Dimensions in inches (millimeters) and are subject to change without notice.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-6
E-Mail: sales@glenair.com
