PIS74-220MT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > inductor> Fixed inductance> PIS74-220MT

Preview

PIS74-220MT: DescriptionGeneral Purpose Inductor, 22uH, 20%, 3128,; Categoryinductor Fixed inductance; File Size171KB，2 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

PIS74-220MT Overview

General Purpose Inductor, 22uH, 20%, 3128,

PIS74-220MT Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
package instruction	3128
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	3128
structure	Shielded
DC Resistance	0.12 Ω
Nominal inductance(L)	22 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Package height	4.5 mm
Package length	7.8 mm
Package form	SMT
Package width	7 mm
method of packing	TR
Maximum rated current	1.1 A
shield	YES
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

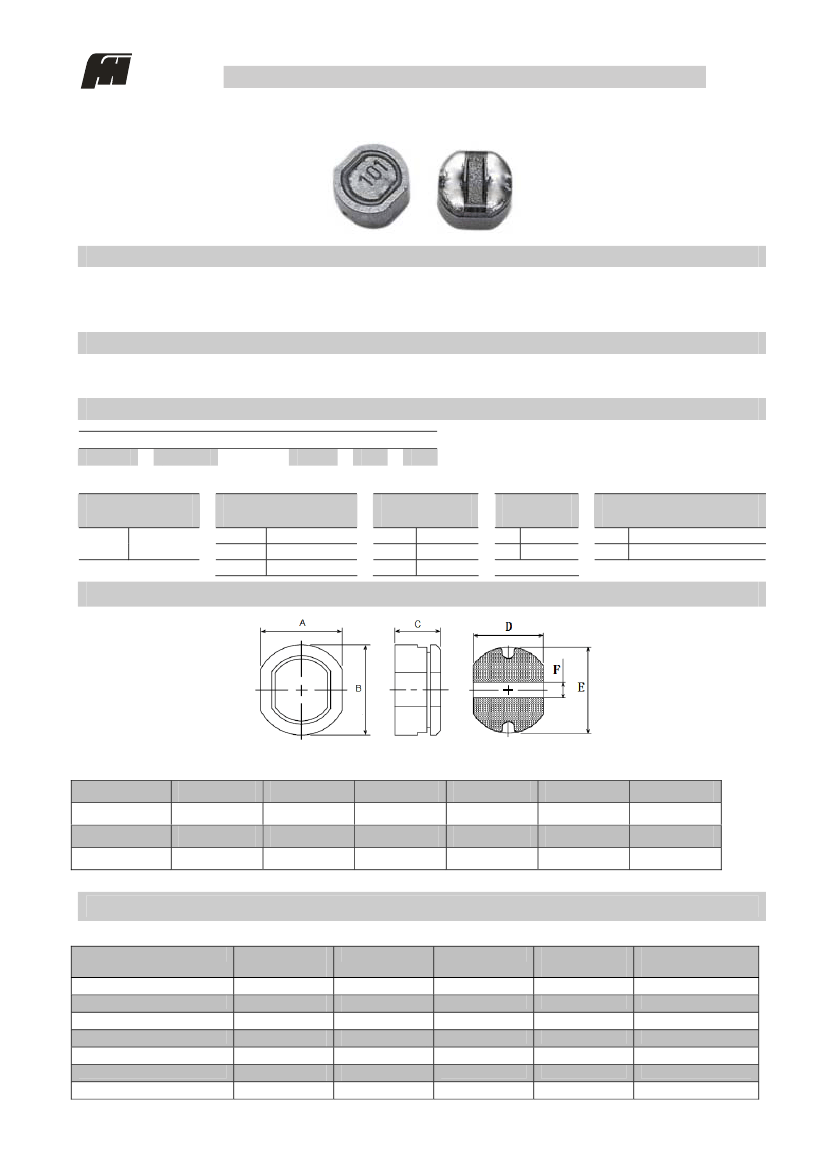

PIS

系列功率电感

PIS Series SMD Power Inductors

特征

FEATURES

·超薄

·小尺寸，大电流

·适合于表面贴装,适合于回流焊

· Low profile

··small dimension,High saturation current

· SMT type, suitable for solder reflow

应用

APPLICATIONS

·移动通信,笔记本电脑

·DC/DC

½换

·Portable communication equipment, Notebook Computer

· DC/DC converters

产品规格型号表示方法

ORDERING CODE

PIS

①

产品代号

Code

PIS

系列

功率电感

74

②

—

220

③

M

④

③

T

⑤

④

误差

Tolerance

M ±20%

N ±30%

⑤

包装方式

Packaging Style

T

B

Tape & Reel

Bulk

规格尺寸

Dimensions

(L×W×T) (mm)

63

6.2×5.8×3.2

74

7.8×7.0×4.5

105

10.0×9.0×5.0

感量(µH)

Inductance

1R0 1

100 10

101 100

外½尺寸

Dimensions

单½(Unit)：mm

型号

Part

PIS63

PIS74

PIS105

A

5.80±0.30

7.00±0.35

9.00±0.40

B

6.20±0.30

7.80±0.35

10.0±0.40

C

3.20±0.30

4.50±0.40

5.0±0.50

D

5.80

7.00

9.00

E

6.20

7.80

10.0

F

2.00

2.50

3.00

电性½参数

Electrical Characteristics

PIS63 Series

Part Number

PIS63-4R7MT

PIS63-100MT

PIS63-120MT

PIS63-150MT

PIS63-180MT

PIS63-220MT

PIS63-270MT

Inductance

（μH）

4.7

10

12

15

18

22

27

Tolerance

±20%

Test Freq.

100KHz

DCR (Ω)

Max

0.059

0.140

0.160

0.180

0.250

0.360

Isat

(A)

2.00

1.00

0.94

0.86

1.00

0.90

0.64
