74HCT423NB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> 74HCT423NB

Preview

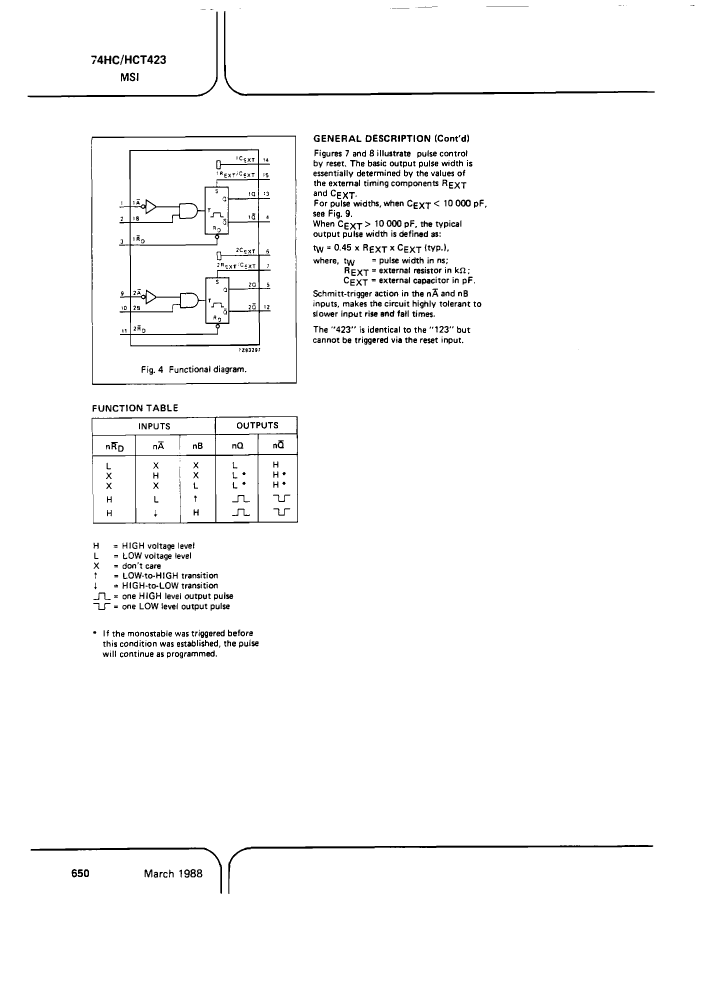

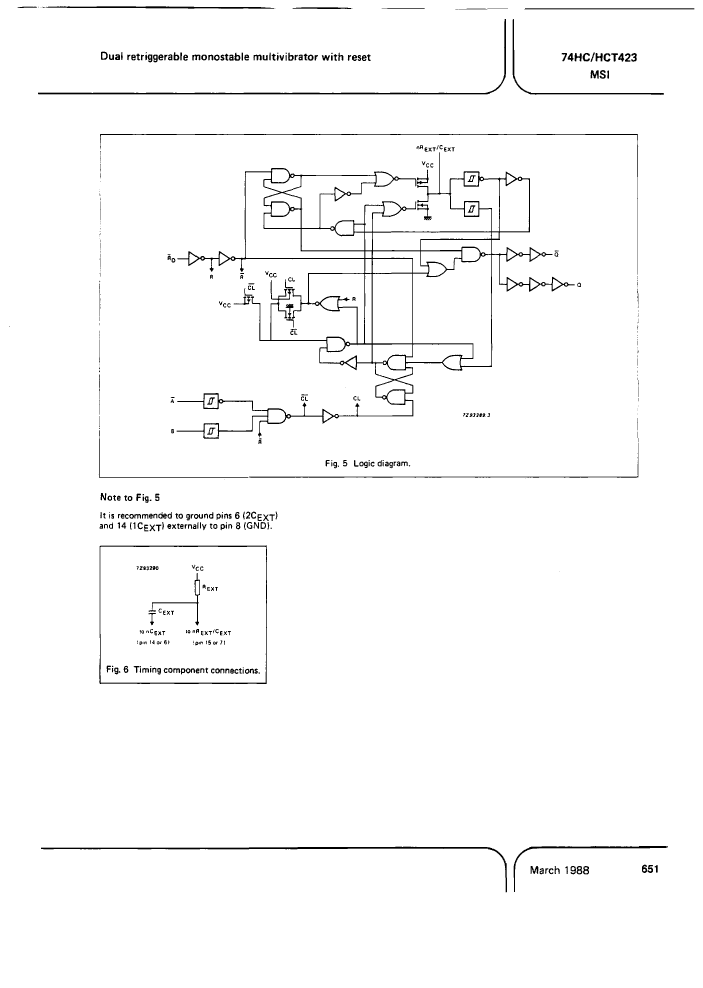

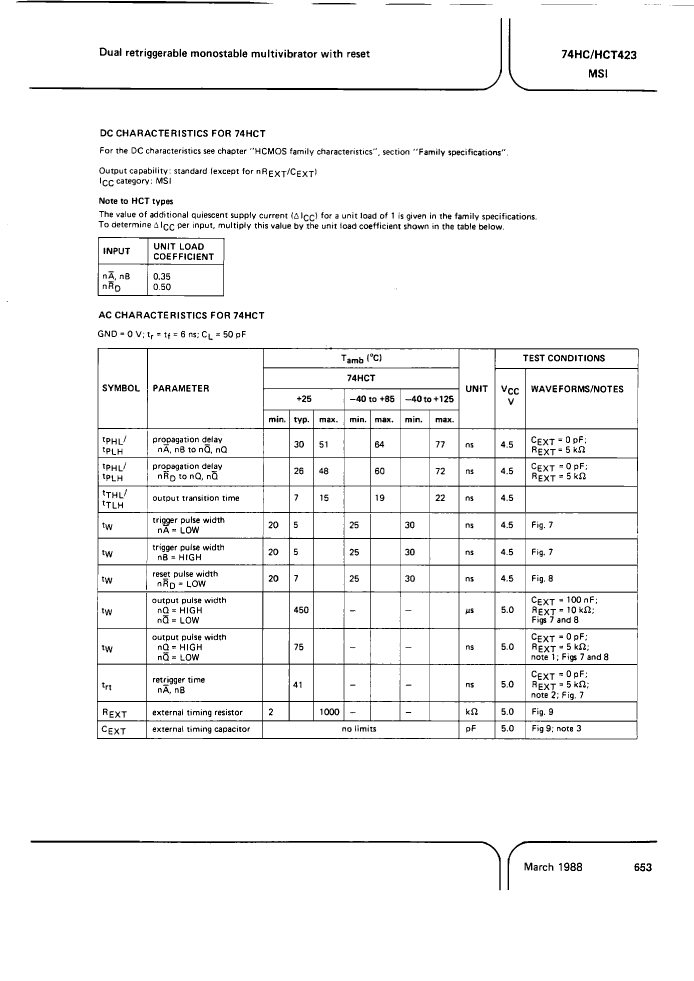

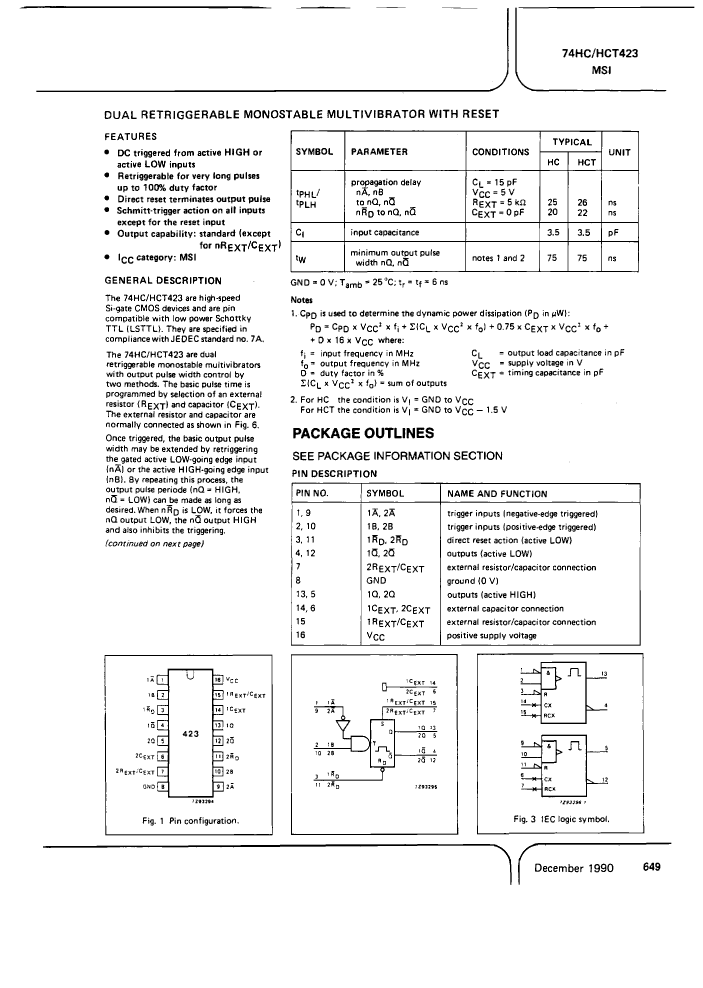

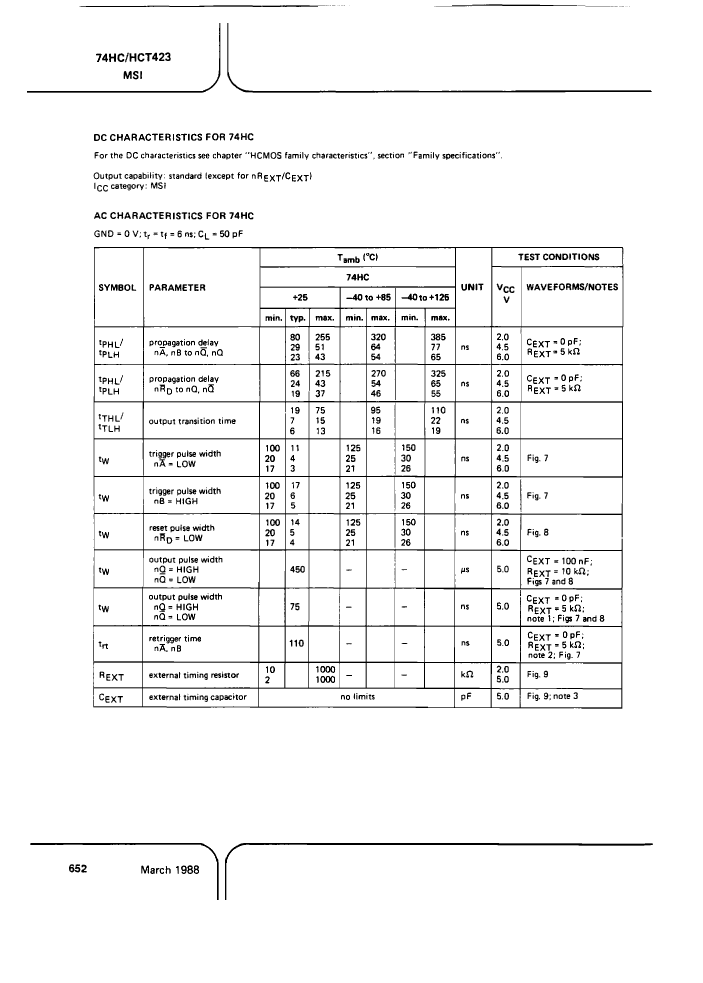

74HCT423NB: DescriptionHCT SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDIP16; Categorylogic; File Size163KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74HCT423NB Overview

HCT SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDIP16

74HCT423NB Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	DIP,
Reach Compliance Code	unknown
Other features	RETRIGGERABLE
series	HCT
JESD-30 code	R-PDIP-T16
length	19.025 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	77 ns
Certification status	Not Qualified
Maximum seat height	4.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

74HCT423NB Related Products

	74HCT423NB	74HC423PW-T	74HC423PW	74HC423DB-T	74HC423NB
Description	HCT SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDIP16	IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, Prescaler/Multivibrator	IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, Prescaler/Multivibrator	IC HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDSO16, Prescaler/Multivibrator	HC/UH SERIES, DUAL MONOSTABLE MULTIVIBRATOR, PDIP16
package instruction	DIP,	TSSOP,	TSSOP,	SSOP,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	RETRIGGERABLE	RETRIGGERABLE	RETRIGGERABLE	RETRIGGERABLE	RETRIGGERABLE
series	HCT	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16
length	19.025 mm	5 mm	5 mm	6.2 mm	19.025 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR	MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs	2	2	2	2	2
Number of functions	2	2	2	2	2
Number of terminals	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	TSSOP	TSSOP	SSOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	IN-LINE
propagation delay (tpd)	77 ns	77 ns	77 ns	77 ns	77 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.2 mm	1.1 mm	1.1 mm	2 mm	4.2 mm
Maximum supply voltage (Vsup)	5.5 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	4.5 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	0.65 mm	0.65 mm	0.65 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	4.4 mm	4.4 mm	5.3 mm	7.62 mm
Base Number Matches	1	1	1	1	1
Maker	NXP	NXP	-	NXP	NXP
